What Is the IZTOSS 300A Bus Bar?

The IZTOSS 300A is a battery power distribution block intended to provide a common connection point for multiple electrical circuits. Its four M8 (5/16-inch) studs offer separate attachment points for compatible cable terminals, while the supplied black-and-red enclosure helps organize the positive and negative sides of a power installation.In a typical marine electrical setup, a battery supplies energy to equipment such as lighting, pumps, navigation electronics, communications equipment, and other onboard accessories. A properly designed bus-bar arrangement provides a central point for distributing that power instead of requiring every accessory cable to connect directly to the battery.The advertised 300A rating is an important specification, but it should not be interpreted as a guarantee that every installation can safely carry 300 amps continuously. Actual suitability depends on the product’s verified rating conditions, conductor sizes, terminal connections, ambient temperature, and the requirements of the complete electrical system.

Key Features of This Marine Battery Power System

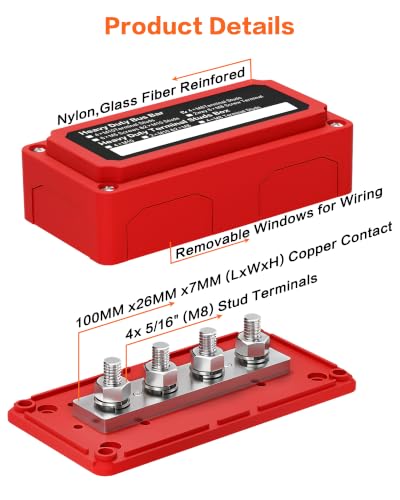

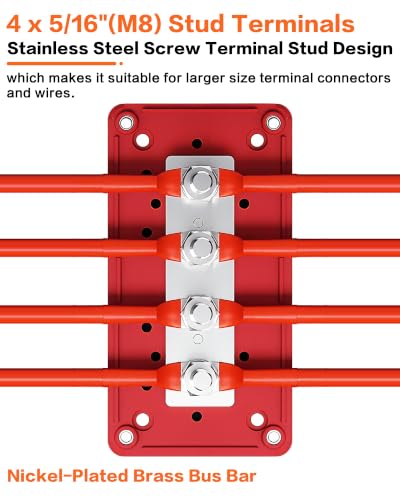

1. Four M8 Stud Connections

The four 5/16-inch (M8) studs are a central feature of this distribution block. They provide multiple connection points for compatible ring terminals, helping reduce the need to stack several cable lugs on a single battery terminal.This arrangement can be useful when a battery supplies several accessories or when a solar installation requires an organized connection point for different circuits. Before purchasing, count the connections your design actually requires and confirm whether the four studs are sufficient for your intended layout.Also check the terminal dimensions and permitted cable-lug sizes. A stud that accepts an M8 ring terminal does not automatically accommodate every cable gauge or terminal thickness.

2. Advertised 300A Current Rating

The product name identifies the bus bar as a 300A distribution block. That rating suggests that it is intended for applications where substantial electrical current may need to pass through a centralized connection point.Nevertheless, high-current electrical installations require careful engineering. Buyers should verify the manufacturer’s documentation for continuous-current capability, peak-current conditions, temperature limitations, and any restrictions on conductor size. The rating of the bus bar must also be compatible with the battery, cables, fuses, switches, and connected equipment.For example, a high-current inverter installation may draw substantial current from a low-voltage battery. The current required depends on the inverter’s actual power demand, conversion efficiency, and battery voltage. A nominal 300A bus bar alone does not establish that the entire circuit is adequately sized.

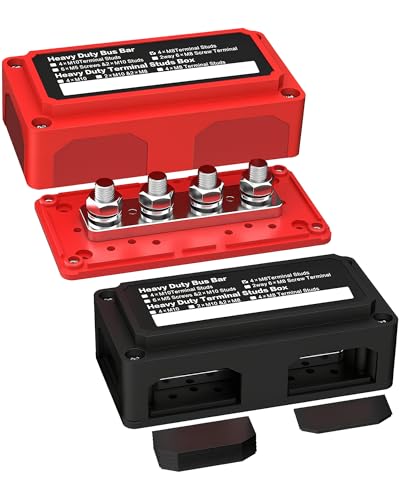

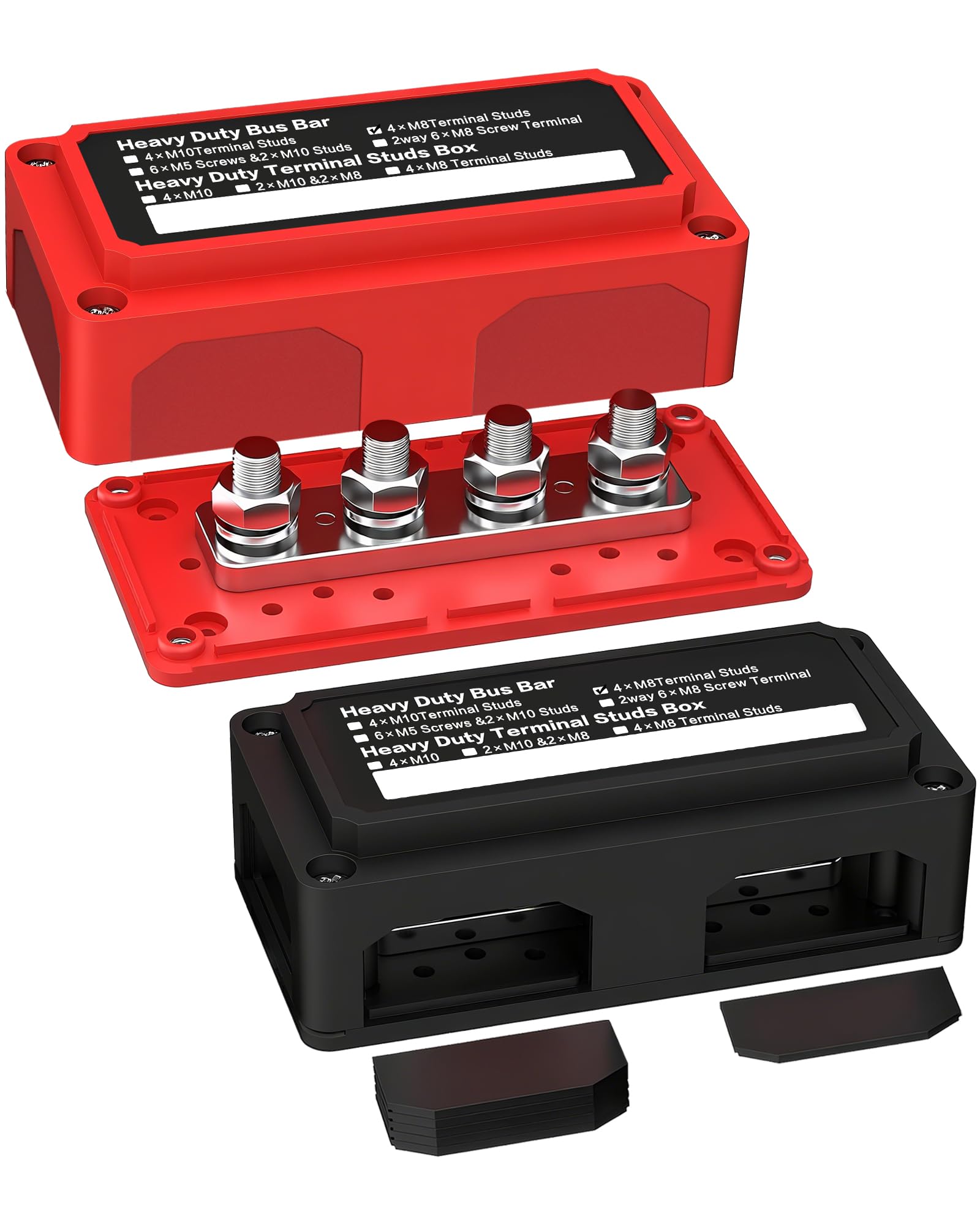

3. Black-and-Red Enclosure

The included black-and-red box is intended to provide an organized housing for the distribution connections. Distinctive colors can help installers identify the intended positive and negative sides, provided the internal terminal layout and polarity markings support that arrangement.A housing can also help shield terminals from accidental contact and environmental contamination. However, the word “waterproof” in a product listing should not be treated as proof of a particular immersion depth, IP rating, or resistance to saltwater exposure. Confirm any formal protection rating before installing the block in a location exposed to spray, condensation, or standing water.

4. Broad Application Potential

IZTOSS markets this distribution block for marine, automotive, boat, RV, and solar applications. These environments share a need for organized battery connections, but their electrical and environmental requirements are not identical.

• Marine installations: Centralize selected battery-fed circuits while accounting for moisture, corrosion, vibration, and applicable marine electrical standards.
• Automotive projects: Organize compatible accessory circuits, auxiliary batteries, or other properly engineered low-voltage systems.
• RV electrical systems: Provide a common distribution point for suitable battery-powered accessories.
• Solar and off-grid systems: Organize battery-side connections in a properly protected energy-storage installation.

These are potential applications, not a guarantee of compatibility with every vehicle, battery chemistry, inverter, or solar charge controller. Confirm that the specific equipment and installation requirements match the product documentation.

How a Bus Bar Can Improve Electrical Organization

One of the main advantages of a bus bar is the way it organizes multiple conductors. Without a dedicated distribution point, an installation can become crowded as additional accessories are connected to the battery. Stacked terminals may complicate servicing, make labels difficult to read, and create opportunities for loose or poorly arranged connections.A central distribution block can provide a more logical layout. Individual circuit cables can be routed and identified more clearly, making it easier to trace connections during troubleshooting or future upgrades.For a marine battery power system, organization is particularly important because electrical equipment may be distributed throughout a vessel. A clean installation can help with maintenance, but it does not eliminate the need for secure mounting, proper cable support, corrosion prevention, or suitable circuit protection.

Installation Considerations Before You Buy

Choose the Correct Location

Select a location that allows access to the terminals and leaves sufficient room for cable routing. Avoid mounting the block where it can be struck by stored equipment, exposed to excessive heat, or subjected to persistent water accumulation. In a boat, consider splash zones, condensation, ventilation, and the manufacturer’s environmental limitations.The enclosure should be mounted securely using an appropriate method for the application. The product’s supplied mounting hardware, if any, should be confirmed in the current listing rather than assumed.

Size Cables for the Actual Load

Conductor sizing should account for expected current, cable length, voltage drop, insulation temperature rating, bundling, and installation conditions. Low-voltage systems can be especially sensitive to voltage drop because even a modest drop represents a meaningful percentage of the available supply voltage.Do not choose a cable solely because its terminal fits the M8 stud. The cable must also be suitable for the circuit’s load and environment. Marine installations may require appropriately rated marine-grade conductors and terminals.

Provide Appropriate Overcurrent Protection

A bus bar distributes electrical power; it should not be assumed to replace fuses, circuit breakers, disconnects, or other required protective devices. Battery-fed conductors need overcurrent protection selected for the conductor, expected load, available fault current, and applicable installation standards.In many systems, the protective device should be positioned close to the power source, subject to the governing requirements and system design. Each branch circuit may need its own correctly sized protection. Confirm the arrangement with a qualified marine or automotive electrician when necessary.

Check Polarity and Terminal Security

Identify positive and negative connections before attaching cables. Follow the product’s markings and wiring documentation rather than relying on enclosure color alone. Incorrect polarity can damage connected equipment and create dangerous fault conditions.Use compatible terminals and the manufacturer’s specified tightening procedure. Loose connections can generate heat, while excessive tightening can damage studs, terminals, or insulating components. Disconnect the power source and follow safe battery-handling procedures before installation or maintenance.

Pros and Cons of the IZTOSS 300A Bus Bar

IZTOSS Bus Bar vs. Other Battery Distribution Options

The right distribution method depends on the number of circuits, current requirements, environmental exposure, and desired level of circuit protection. The IZTOSS block is one option, but it is not necessarily the best fit for every installation.

If your installation has several sensitive electronic devices, a fused distribution block may offer a more convenient way to organize branch protection. If you need only a few high-current connections, a suitably rated bus bar may be sufficient as part of a correctly designed system.

Who Should Consider This Bus Bar?

The IZTOSS 300A bus bar may be worth considering if you are building or reorganizing a battery-powered system and want a centralized connection point for several compatible cables.

• Boat owners: Those organizing selected onboard battery connections in a suitable, protected location.
• RV enthusiasts: Those improving the layout of an auxiliary battery or house-battery installation.
• Automotive DIY users: Those consolidating compatible auxiliary electrical connections.
• Solar system builders: Those who need a bus bar for an appropriately designed battery-side distribution arrangement.
• Maintenance-focused owners: Those who value accessible, clearly organized connections for future inspection and servicing.

It may be less suitable if you require integrated branch fuses, a large number of connection points, a documented marine certification, or a specific verified ingress-protection rating that the product cannot demonstrate.

What to Check on Amazon Before Ordering

Product listings and included accessories can change, so review the current Amazon page carefully before purchasing. In particular, confirm:

• The exact model and advertised 300A rating, including any continuous-current limitations.
• The number of bus bars, studs, and enclosures included in the package.
• The permitted cable sizes and terminal dimensions.
• The housing material and any documented water-resistance or ingress-protection rating.
• Whether mounting hardware, covers, or other installation accessories are included.
• The manufacturer’s instructions, electrical limitations, and any applicable certifications.
• Current price, shipping availability, return conditions, and warranty details.

Do not assume that the product includes fuses, circuit breakers, cables, or battery disconnects unless the listing explicitly confirms them.

Frequently Asked Questions

1. What does a 300A bus bar do?

A bus bar provides a common electrical connection point for distributing power to multiple circuits. The IZTOSS model is advertised as a 300A distribution block, but the safe operating current depends on its verified specifications and the design of the complete electrical installation.

2. Can I use this bus bar in a boat?

It is marketed for marine applications. Before installing it on a boat, verify its environmental protection rating, corrosion resistance, mounting requirements, and compatibility with the vessel’s electrical standards. A product described as waterproof should not automatically be considered suitable for immersion or unrestricted saltwater exposure.

3. Does the IZTOSS bus bar include built-in fuses?

The supplied product description identifies a bus bar with four M8 studs and an enclosure, but does not establish that built-in fuses are included. Check the current product listing and package contents. Provide appropriate overcurrent protection separately if it is not integrated into the product.

4. Are the four M8 studs suitable for every battery cable?

No. The M8 designation describes the stud’s nominal metric thread size, not the suitability of every cable or ring terminal. Confirm terminal-hole dimensions, cable-lug compatibility, conductor size, and the manufacturer’s connection limits before installation.

5. Can I use the bus bar with a solar battery system or inverter?

Potentially, provided the bus bar is compatible with the system’s operating current, voltage, connections, and environmental conditions. Solar charge controllers and inverters have different electrical requirements, so cable sizing, fusing, disconnects, and fault protection must be designed for the actual equipment.

6. Is this bus bar enough to make a battery installation safe?

No. A bus bar is only one component of a battery distribution system. Safe installation also requires suitable conductors, correctly selected overcurrent protection, secure terminals, appropriate disconnects, correct polarity, and compliance with applicable electrical standards. Seek qualified help if you are uncertain about high-current wiring.

Final Verdict: Is the IZTOSS 300A Bus Bar Worth Considering?

The IZTOSS 300A Bus Bar offers a straightforward concept: four M8 connection studs housed in a black-and-red enclosure for organizing battery power distribution. Its advertised current rating and intended marine, automotive, RV, boat, and solar applications make it a potential candidate for projects that need a central connection point rather than a collection of crowded battery terminals.Its most compelling potential benefit is organization. A centralized bus bar can make cable routing easier to understand and future maintenance more manageable. However, the value of that convenience depends on the product’s verified electrical limits, the enclosure’s actual environmental protection, and whether four connections meet your needs.For a marine battery power system, prioritize verified specifications and safe electrical design over the headline 300A rating alone. If the IZTOSS block meets your installation requirements and is paired with correctly sized cables, appropriate circuit protection, and secure mounting, it may be a practical distribution component. If you need integrated fuses, more terminals, or documented protection for harsh marine conditions, compare alternatives before committing.Bottom line: Consider the IZTOSS 300A bus bar for organized battery connections, but confirm the current Amazon listing and manufacturer’s documentation before buying or installing it.
