Introduction

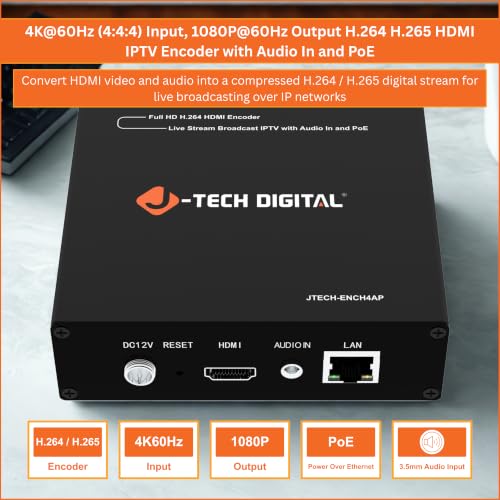

The J-Tech Digital HDMI IPTV Encoder [JTECH-ENCH4AP] is designed for users who need to take a high-quality HDMI video source and distribute it across an IP network for streaming, monitoring, digital signage, live production, or whole-home video distribution. With a 4K 60Hz HDMI input, 1080p 60Hz output, H.264/H.265 encoding, audio input, PoE support, and a broad selection of streaming protocols, this compact encoder targets applications that require much more flexibility than a basic HDMI capture device.
What makes this model particularly interesting is its network-oriented design. Instead of treating HDMI as an isolated connection between two devices, the encoder converts the source into network streams that compatible players, decoders, media systems, software platforms, and displays can access. That makes it a practical building block for a Whole Home professional streaming encoder System, especially when centralized video distribution is more important than simply connecting one source to one screen.
The 4K 60Hz input capability is useful when your source equipment produces a modern high-resolution signal, while the 1080p 60Hz output keeps the encoded stream focused on a widely compatible Full HD format. H.264 and H.265 support also gives users flexibility when balancing compatibility, bandwidth, and compression efficiency.
For anyone building a networked video environment, the real attraction is the combination of connectivity and protocol support. The J-Tech Digital encoder supports UDP, HTTP, RTSP, RTMP, RTMPS, SRT, HLS, FLV, and ONVIF, giving it potential applications ranging from local IPTV distribution to streaming workflows and IP-based surveillance environments.
Features
4K 60Hz HDMI Input
A major feature of the JTECH-ENCH4AP is its ability to accept HDMI input at up to 4K 60Hz. This allows it to sit downstream from modern cameras, media players, computers, gaming hardware, and other HDMI sources capable of producing high-resolution video.
The important distinction is that the input capability and encoded output resolution are not identical. The device accepts a 4K 60Hz source while providing 1080p 60Hz encoded output. For many IPTV, streaming, signage, and distribution environments, Full HD remains a practical target because it offers a useful combination of image quality and network compatibility.
H.264 and H.265 Encoding
Video compression is central to any IP streaming system. Raw HDMI video requires enormous bandwidth, so an encoder must compress the signal into a manageable network stream. The J-Tech Digital model supports both H.264 and H.265 encoding.
H.264 remains extremely common across streaming software, media players, network video equipment, and legacy infrastructure. H.265, also known as HEVC, can provide greater compression efficiency in supported workflows. Having both options gives system builders more flexibility when integrating the encoder into existing equipment.
Multiple Streaming Protocols

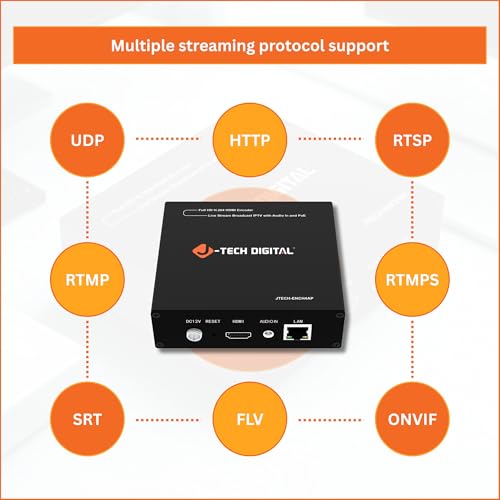

Protocol support is one of the strongest reasons to consider this type of encoder. The JTECH-ENCH4AP supports UDP, HTTP, RTSP, RTMP, RTMPS, SRT, HLS, FLV, and ONVIF.
That broad compatibility opens up different deployment possibilities. RTSP and UDP can be useful in local network video distribution, while RTMP and RTMPS are commonly associated with streaming workflows. HLS can be useful for HTTP-based playback environments, while SRT is designed for reliable video transport across less predictable network conditions. ONVIF support is also relevant when the encoder is being integrated into compatible IP video management environments.

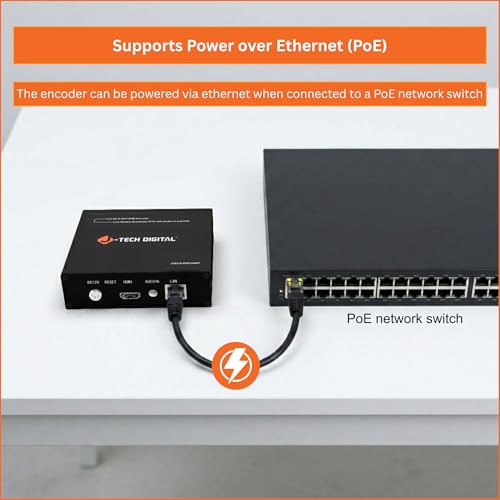

PoE Support
Power over Ethernet can simplify installation because compatible network infrastructure can carry power and data through a single Ethernet connection. In installations where the encoder is positioned away from a convenient electrical outlet, PoE can reduce cable clutter and make deployment cleaner.
This is especially useful for rack-mounted, equipment-room, classroom, commercial display, or distributed residential installations where network cabling is already part of the infrastructure.

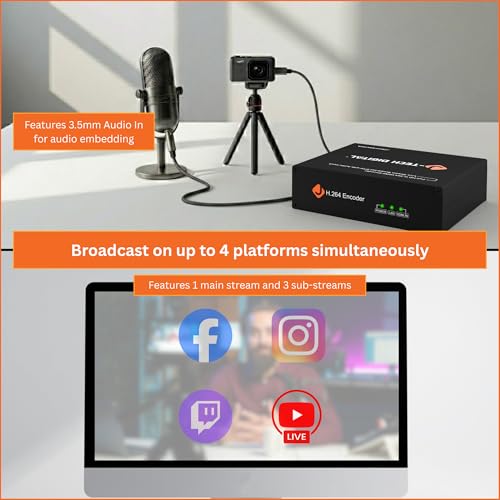

Audio Input
Video is only part of a streaming system. The dedicated audio capability allows the encoder to incorporate audio into the streaming workflow, which can be useful for presentations, cameras, media sources, announcements, live events, and other applications where synchronized sound matters.
Network-Based Distribution
Once HDMI is converted into an IP stream, the video can potentially be accessed by multiple compatible endpoints depending on the chosen protocol, network configuration, and receiving equipment. This makes the encoder fundamentally different from a simple HDMI splitter.
An HDMI splitter typically distributes one physical signal across several HDMI outputs. An IPTV encoder instead turns the signal into network traffic, allowing the distribution architecture to extend over Ethernet infrastructure.
Compact Professional Form Factor
A compact encoder can be easier to incorporate into a production workstation, network cabinet, equipment shelf, conference room, or distributed media installation. Its value comes less from taking up physical space and more from how easily it can become part of a larger networked video architecture.
Pros & Cons
| Pros | Cons |
|---|---|
| Supports up to 4K 60Hz HDMI input | Encoded output is limited to 1080p 60Hz |
| Supports both H.264 and H.265 | Setup requires some networking knowledge |
| Wide range of streaming protocols | Compatibility depends on the receiving software or hardware |
| PoE support can simplify installation | Not intended to replace a dedicated 4K encoder when 4K streaming output is required |
| Audio input expands application possibilities | Network configuration can add complexity compared with a basic HDMI connection |
| Useful for IPTV, streaming, signage, and network video | Advanced protocol options may require additional configuration |
Performance
In practical use, the J-Tech Digital HDMI IPTV Encoder is best understood as a bridge between conventional HDMI equipment and IP-based video infrastructure. The encoder takes the HDMI source and prepares it for distribution over a network, making it suitable for installations where Ethernet is more convenient or scalable than running multiple HDMI cables.
The 4K 60Hz input is particularly useful when the connected source is a modern high-resolution device. Even though the encoded output is 1080p 60Hz, accepting a 4K source gives the encoder room to work with contemporary HDMI equipment without requiring the source itself to be downgraded before connection.
The 1080p 60Hz output target is also practical for many streaming scenarios. Full HD at 60 frames per second can provide smooth motion for presentations, live demonstrations, camera feeds, gaming content, and other moving imagery. The actual visual quality will depend on source quality, encoding configuration, network conditions, bitrate, and the receiving endpoint.
H.264 is the obvious choice when broad compatibility is the priority. H.265 becomes more interesting when supported receivers and software can take advantage of its compression efficiency. In a network with limited bandwidth, codec selection can have a meaningful impact on how efficiently video is transported.
The variety of protocols is another performance advantage, but it should not be confused with universal plug-and-play compatibility. Each protocol is designed for particular workflows, and the receiving device or application must support the selected stream type. Users building a professional installation should therefore test the encoder with their intended decoder, player, streaming service, or video management platform before deploying it throughout a large system.
Whole-Home Streaming Applications

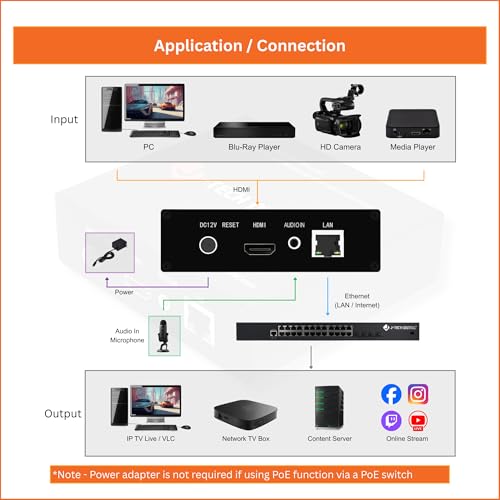

For a whole-home installation, the encoder can become one component in a larger architecture. Imagine a media room with a high-quality HDMI source. Instead of physically routing HDMI throughout the property, the source can be encoded and placed onto the network. Compatible endpoints can then receive the stream wherever network connectivity is available.
This approach can be particularly attractive in properties where Ethernet cabling already exists. It can also make centralized equipment management easier because source equipment can remain in a dedicated media or networking area rather than requiring a separate source installation at every display.
For professional environments, similar concepts can apply to conference rooms, training spaces, houses of worship, retail displays, hospitality installations, classrooms, and control rooms. The specific design depends on the receiver hardware, network architecture, VLAN configuration, bandwidth, multicast requirements, and streaming protocol being used.
Streaming and Live Production
The RTMP, RTMPS, SRT, and related protocol options make this encoder relevant to streaming-oriented setups. A camera, presentation computer, or other HDMI source can become an IP video source for compatible streaming infrastructure.
SRT support is particularly noteworthy for workflows where reliable transport is important. RTMP and RTMPS can fit into streaming ecosystems that already use those protocols. Meanwhile, local network protocols such as RTSP or UDP can be useful for internal distribution.
If you are researching broader camera and video equipment, this Related Guide can also provide useful context when considering source devices for a networked video workflow.
Installation Considerations
Before installing an encoder permanently, it is worth planning the network architecture. Video streams can consume substantial bandwidth, particularly when multiple sources or destinations are involved. Network switches, Ethernet cabling, routing, multicast handling, firewall settings, and receiving devices should all be considered.
PoE can simplify physical installation, but the network equipment must provide the appropriate PoE capability. Likewise, the receiving endpoint needs to support the selected codec and protocol. These details are more important in a professional system than simply having an HDMI cable that works.
Who Is This Encoder For?
The J-Tech Digital JTECH-ENCH4AP makes the most sense for users who need network-based video distribution rather than a conventional point-to-point HDMI connection. It can be relevant to AV installers, content creators, streamers, educators, businesses, IT professionals, digital signage operators, and advanced home users building centralized media systems.
It is also worth considering when your existing infrastructure already revolves around Ethernet. In that situation, converting HDMI into an IP stream can provide a more flexible distribution model than installing long HDMI runs throughout a building.
On the other hand, someone who simply wants to connect a laptop directly to a television may not need the complexity of an IPTV encoder. The value of this product becomes clearer when its networking, protocol, codec, audio, and PoE capabilities are actually part of the intended workflow.
FAQ
Does the J-Tech Digital encoder accept 4K video?
Yes. The JTECH-ENCH4AP supports HDMI input up to 4K 60Hz. Its encoded output is specified at up to 1080p 60Hz, so it should not be considered a 4K-output streaming encoder.
Does it support H.265?
Yes. The encoder supports both H.264 and H.265, giving users flexibility when selecting a compression format for their network video workflow.
Which streaming protocols are supported?
The listed protocols include UDP, HTTP, RTSP, RTMP, RTMPS, SRT, HLS, FLV, and ONVIF. The best choice depends on the receiving platform and the type of network video application.
Can it be used for whole-home video distribution?
Yes, it can be used as a component of a whole-home IPTV or network video distribution system. The encoder converts an HDMI source into an IP stream that compatible receivers can access over the network. The overall system still requires appropriate networking equipment and compatible receiving devices.
Does it support PoE?
Yes. PoE support can simplify installation by allowing compatible Ethernet infrastructure to provide both network connectivity and power.
Can it be used for live streaming?
Its support for protocols such as RTMP, RTMPS, and SRT makes it suitable for certain live-streaming workflows. The exact setup depends on the streaming platform, receiving software, network configuration, and selected protocol.
Is H.264 or H.265 better for this encoder?
Neither codec is universally better for every setup. H.264 generally offers broad compatibility, while H.265 can provide greater compression efficiency when the receiving equipment supports it. The appropriate choice depends on your network and playback environment.
Can it replace an HDMI splitter?
Not directly. An HDMI splitter distributes an HDMI signal through physical HDMI outputs, while an IPTV encoder converts the signal into a network stream. If your goal is network-based distribution, an encoder can provide capabilities that a conventional HDMI splitter does not.
What should I check before buying?
Confirm that your intended HDMI source is compatible, that 1080p 60Hz encoded output meets your requirements, and that your receiver or streaming platform supports the codec and protocol you plan to use. Also verify the capabilities of your Ethernet and PoE infrastructure if those features are important to your installation.
Final Thoughts
The J-Tech Digital HDMI IPTV Encoder JTECH-ENCH4AP is built around a straightforward concept: take a modern HDMI source and turn it into a flexible network video stream. Its combination of 4K 60Hz input, 1080p 60Hz encoding, H.264/H.265 support, audio input, PoE, and extensive protocol compatibility gives it a broad range of potential applications.
For a Whole Home professional streaming encoder System, the biggest advantage is the ability to integrate HDMI sources into an Ethernet-based distribution environment. Rather than treating every display as a separate HDMI destination, a networked approach can centralize sources and distribute video to compatible endpoints across the infrastructure.
The product is most compelling when those capabilities match an actual networking requirement. If you need simple HDMI-to-TV connectivity, a conventional cable or splitter may be more appropriate. But for IPTV, professional AV, streaming, digital signage, centralized media, and network video distribution, the JTECH-ENCH4AP offers a feature set designed around flexible IP-based video transport.
