Ampinvt Solar Inverter 5000 Watt Review: Behind the Engineering of a Powerful Off-Grid Energy Solution
The Ampinvt Solar Inverter 5000 Watt 48V to 120V system is designed for users who want more than basic power conversion. While many shoppers compare it to products commonly used in the Solar inverter SMA Sunny Boy market, this model takes a different approach by combining a pure sine wave inverter, a powerful 100A MPPT solar charger, high-voltage photovoltaic input capability, and scalable parallel operation into a single platform.
In this review, I want to look behind the scenes and discuss the engineering decisions that make this inverter attractive for off-grid cabins, workshops, farms, RV installations, backup power systems, and advanced solar energy projects. Instead of focusing only on specifications, we’ll examine why these features exist and how they improve real-world performance.
If you’re researching professional-grade solar equipment, you may also find this useful: Related Product Guide.
Why the Engineering Matters
Every serious inverter begins with a challenge: converting DC battery power into stable AC electricity while minimizing losses, controlling heat, protecting connected equipment, and maintaining reliability over years of operation.
The engineering team behind the Ampinvt 5000W model appears to have prioritized flexibility. Instead of limiting users to a small solar array or a fixed battery setup, the design supports high PV input levels, multiple battery chemistries, and expansion through parallel operation.
These choices are important because solar systems rarely remain static. Many owners start small and gradually expand. An inverter that supports future growth can save significant upgrade costs later.

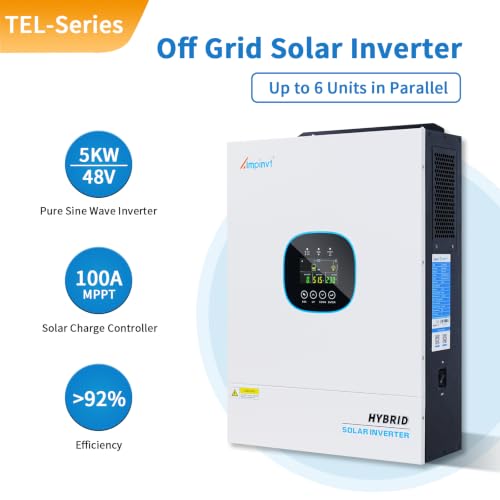

Key Features
- 5000W pure sine wave output
- 48V battery system compatibility
- Integrated 100A MPPT solar charger
- Maximum PV input up to 5500W
- High-voltage solar input up to 500VDC
- Parallel capability for up to 6 units
- Support for lithium and lead-acid batteries
- Off-grid energy independence
- Advanced protection systems
- Professional-grade system scalability
Behind the Scenes: Pure Sine Wave Engineering
One of the most important engineering decisions in any inverter is the waveform quality. Cheap modified sine wave systems can power simple loads, but modern electronics, appliances, variable-speed motors, computers, and communication equipment benefit from clean power.
The pure sine wave architecture used in the Ampinvt inverter produces electricity that closely resembles utility grid power. This reduces electrical noise, improves compatibility, and helps protect sensitive electronics.
From an engineering perspective, creating a stable pure sine wave requires more sophisticated control circuitry and power conversion stages. While it increases design complexity, the result is significantly better performance across a wider range of applications.
The Advantage of a Built-In 100A MPPT Charger
Another major engineering highlight is the integrated 100A MPPT solar charge controller.
MPPT technology continuously searches for the maximum power point of solar panels. Instead of operating at a fixed voltage, the controller dynamically adjusts operating conditions to maximize energy harvest.
Behind the scenes, this involves advanced algorithms monitoring voltage and current values thousands of times throughout operation. The controller constantly optimizes solar collection efficiency.
For users, this translates into faster battery charging, better performance during changing weather conditions, and improved energy production throughout the year.

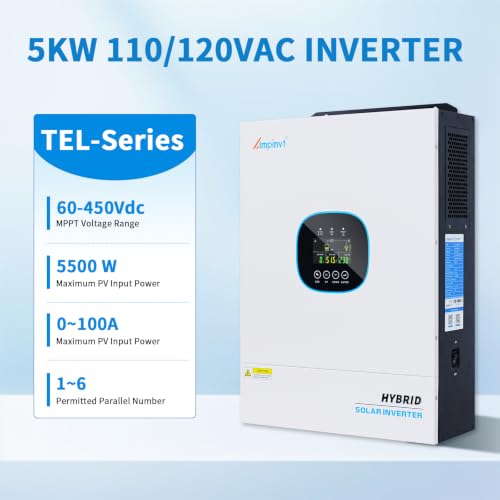

5500W Solar Input Capacity Explained
Many solar installations eventually hit a bottleneck when the inverter cannot fully utilize available panel output.
The Ampinvt inverter supports up to 5500W of photovoltaic input. From a design standpoint, this allows the system to capture more solar energy without requiring separate charge control hardware.
This capability is especially beneficial during winter months or partially cloudy conditions because the larger solar array can compensate for reduced sunlight availability.
The result is greater charging flexibility and improved daily energy production.
High Voltage PV Design
The 500VDC maximum solar input deserves special attention. High-voltage solar architecture offers several engineering advantages.
Higher voltage means lower current for the same power level. Lower current reduces cable losses, improves transmission efficiency, and can simplify system wiring over long distances.
Professional installers often prefer high-voltage solar strings because they reduce conductor requirements while maintaining excellent performance.
This design choice demonstrates that the inverter was developed with serious solar applications in mind.

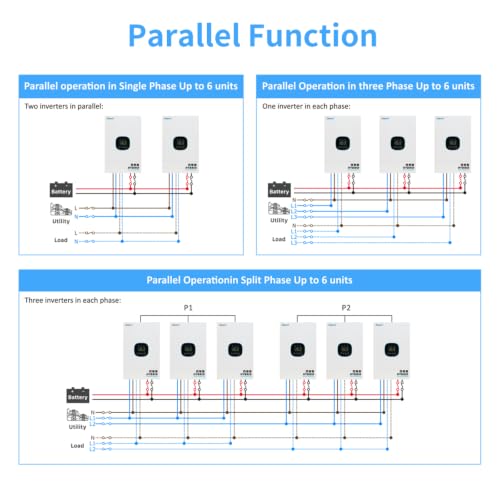

Scalability Through Parallel Operation
Perhaps the most future-proof engineering feature is support for up to six parallel units.
This means users are not locked into a single 5000W system forever. As power requirements increase, additional units can be integrated.
From an engineering perspective, parallel synchronization is not trivial. Multiple power conversion systems must coordinate output characteristics to maintain stable operation.
The inclusion of this feature suggests a design philosophy centered on long-term expansion and professional deployment.

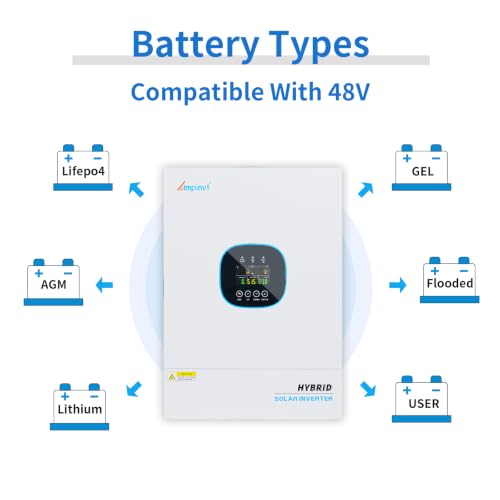

Battery Compatibility
Battery technology continues to evolve rapidly. Some users prefer proven lead-acid systems while others are moving toward lithium-based storage.
Supporting both battery types increases flexibility and protects future investments. Users can begin with one chemistry and upgrade later without replacing the inverter.
This adaptability is one of the strongest practical advantages of the system.
Pros & Cons
| Pros | Cons |
|---|---|
| Pure sine wave output | May be more advanced than casual users need |
| 100A MPPT charger included | Requires proper installation planning |
| Supports up to 5500W PV input | Large systems may need professional setup |
| 500VDC solar capability | Higher-voltage arrays require careful design |
| Parallel expansion support | Expansion hardware may increase total project cost |
| Works with lithium and lead-acid batteries | Learning curve for beginners |
| Suitable for residential and commercial off-grid projects | Requires adequate ventilation space |
Performance Review
Performance is where engineering decisions become visible.
The 5000W output capacity provides enough power for many residential off-grid installations, workshops, emergency backup systems, and solar-powered workspaces.
Voltage stability remains a key advantage because the pure sine wave output supports a wide variety of equipment. Sensitive electronics, power tools, refrigerators, pumps, and communication systems can operate reliably.
The integrated MPPT charger improves solar harvest efficiency while reducing the number of separate components required in the system.
Thermal management appears well suited for continuous operation, which is critical in energy systems expected to run daily.
For users building long-term solar infrastructure, the combination of scalability, charging capability, battery flexibility, and power quality creates a strong overall package.
Frequently Asked Questions
Is this inverter suitable for off-grid homes?
Yes. Its 5000W capacity, MPPT charging system, and battery compatibility make it suitable for many off-grid residential installations.
Can it work with lithium batteries?
Yes. The inverter supports lithium battery systems as well as traditional lead-acid battery banks.
What is the benefit of the 100A MPPT controller?
It maximizes solar energy collection efficiency while charging batteries faster and more effectively than simpler charging methods.
Why is 500VDC solar input important?
Higher-voltage solar strings can reduce wiring losses and improve overall system efficiency.
Can the inverter be expanded later?
Yes. Up to six units can operate in parallel, making future capacity upgrades much easier.
Is pure sine wave output important?
Absolutely. Pure sine wave power is ideal for sensitive electronics, motors, appliances, and professional equipment.
Who should buy this inverter?
It is ideal for solar enthusiasts, off-grid homeowners, RV users, workshop operators, and professionals building scalable energy systems.
Final Verdict
The Ampinvt Solar Inverter 5000 Watt stands out because of the engineering decisions hidden beneath its specifications. The combination of pure sine wave output, integrated 100A MPPT charging, 5500W PV capacity, 500VDC solar support, battery flexibility, and six-unit parallel expansion demonstrates a design focused on efficiency, scalability, and long-term reliability.
For anyone comparing advanced off-grid systems within the Solar inverter SMA Sunny Boy category, this inverter delivers an impressive balance of performance, expandability, and technical sophistication. Its behind-the-scenes engineering makes it far more than a simple power converter—it is a foundation for a serious solar energy system.
