Introduction
The QNAP TS-h1886XU-RP-R2-D1622-32G-US is built for organizations that need considerably more than basic network file storage. This 2U rackmount NAS combines an Intel Xeon D-1622 processor, 32GB of DDR4 ECC memory, 18 drive bays, 10GbE connectivity, redundant power supplies, and QNAP’s ZFS-based QuTS hero operating system in one enterprise-focused platform. QNAP specifies twelve 3.5-inch SATA bays on the front and six 2.5-inch SATA bays at the rear, creating a flexible hybrid storage layout for capacity drives and SSDs. :contentReference[oaicite:0]{index=0}
For businesses handling virtualization, centralized backups, large project files, databases, surveillance archives, media production, or other data-intensive workloads, the appeal of this system is its combination of capacity, networking, memory reliability, and storage management features. The included 32GB DDR4 ECC configuration is also expandable to 128GB, giving administrators additional headroom as workloads grow. :contentReference[oaicite:1]{index=1}
Rather than positioning this as a simple desktop NAS, it is better understood as an enterprise storage foundation. The Smart enterprise network storage System concept fits particularly well here because the TS-h1886XU-RP-R2 is designed around high-speed networking, ZFS data management, virtualization support, and long-term expansion.
Features
18-Bay Hybrid Storage Architecture

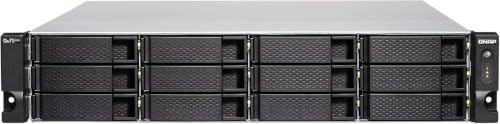

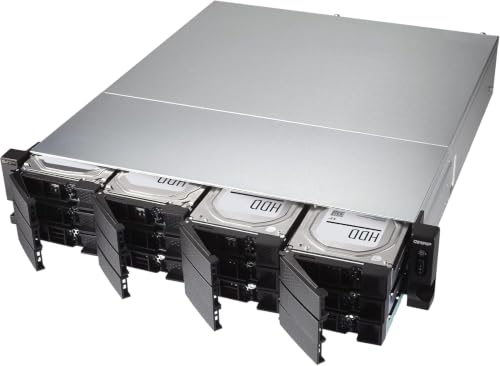

One of the most important advantages of the QNAP TS-h1886XU-RP-R2 is its 18-drive configuration. The chassis provides 12 front-mounted 3.5-inch SATA bays plus six rear-mounted 2.5-inch SATA bays. That arrangement allows an administrator to combine high-capacity HDD storage with SSD-based workloads instead of treating every drive position identically. :contentReference[oaicite:2]{index=2}
This can be useful when designing a storage pool around different workload requirements. Large SATA hard drives can provide economical bulk capacity, while SSDs can be assigned to performance-oriented workloads, caching, or applications that benefit from faster storage response.
Intel Xeon D-1622 Processing
The system uses an Intel Xeon D-1622 quad-core processor with a burst frequency of up to 3.2GHz. The processor uses a 64-bit architecture and includes AES-NI support for hardware-assisted encryption workloads. :contentReference[oaicite:3]{index=3}
Although this is not intended to compete with a high-end modern desktop CPU, its server-oriented design is appropriate for a NAS that may simultaneously provide file services, virtualization storage, backup operations, network services, and other enterprise applications. The processor also supports virtualization-oriented capabilities such as SR-IOV according to QNAP’s hardware specifications. :contentReference[oaicite:4]{index=4}
32GB ECC Memory with Expansion
Memory is particularly important in a ZFS-based storage platform, and this configuration ships with 32GB of DDR4 ECC UDIMM memory. QNAP specifies four memory slots and support for up to 128GB total memory using four 32GB modules. :contentReference[oaicite:5]{index=5}
ECC memory is designed to detect and correct certain single-bit memory errors, which is valuable for systems expected to operate continuously and manage important business data. The ability to expand memory also makes this Smart enterprise network storage System more adaptable to virtualization and application workloads.
10GbE and 2.5GbE Networking

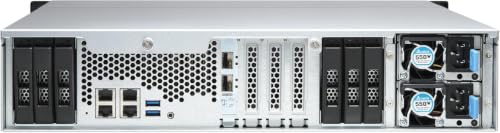

Networking is another major feature. The TS-h1886XU-RP-R2 includes two 10GbE SFP+ ports and four 2.5GbE ports. QNAP specifically positions the two 10GbE connections for large-file sharing and intensive data transfers. :contentReference[oaicite:6]{index=6}
For a business network that already uses 10GbE switching, this connectivity can make a substantial difference compared with conventional 1GbE NAS hardware. Large project folders, backup repositories, virtual machine storage, and shared media files can benefit from the additional network bandwidth, provided the rest of the infrastructure is appropriately configured.
The four 2.5GbE ports also give administrators additional networking flexibility. Depending on the network design, they can be used for separate services, redundancy, or other network configurations supported by the operating system.
ZFS-Based QuTS Hero
The TS-h1886XU-RP-R2 runs QNAP’s QuTS hero operating system, which is based on ZFS. QNAP highlights QuTS hero for data integrity and security, making the platform particularly interesting for organizations where storage reliability is a primary concern. :contentReference[oaicite:7]{index=7}
ZFS is designed around features that can help administrators manage data integrity, storage pools, snapshots, and other advanced storage functions. QuTS hero also gives the NAS a more enterprise-oriented software environment than a basic file-sharing appliance.
Virtualization and Container Workloads
This NAS is not limited to serving shared folders. QNAP states that the TS-h1886XU-RP-R2 supports storage for virtualization and can natively host independent virtual machines and containerized applications. :contentReference[oaicite:8]{index=8}
That capability can be valuable for small and medium-sized businesses that want to consolidate several infrastructure services. Instead of deploying separate hardware for every lightweight application, administrators can potentially use the NAS as a centralized storage and application platform, depending on the specific workload and software requirements.
Redundant Power Supplies
Enterprise storage equipment should be designed with component redundancy wherever practical. This QNAP model includes dual redundant power supplies. QNAP describes the redundant PSU configuration as a reliability feature intended to help maintain system operation if a power supply encounters a failure. :contentReference[oaicite:9]{index=9}
For rack-mounted systems operating continuously, redundant power can be especially useful when connected to appropriate power infrastructure, such as separate UPS-backed circuits.
PCIe Expansion
The platform also provides PCIe expansion capability. QNAP lists three PCIe slots for the R2 model, allowing organizations to consider additional networking, storage, or other compatible expansion options as their infrastructure evolves. :contentReference[oaicite:10]{index=10}
This is important because enterprise networks rarely remain static. A business may initially deploy 10GbE and later require a different networking technology or additional storage connectivity. Expansion options can reduce the need to replace the entire NAS simply because infrastructure requirements changed.
Pros & Cons
| Pros | Cons |
|---|---|
| 18 total SATA drive bays provide substantial storage flexibility | 2U rackmount design is better suited to a server room than a home office |
| Intel Xeon D-1622 provides server-oriented processing | Enterprise hardware can involve a higher overall investment |
| 32GB DDR4 ECC memory comes installed | Drives and some expansion requirements can add significantly to system cost |
| Memory can be expanded up to 128GB | 10GbE SFP+ infrastructure may require compatible switches and transceivers |
| Two 10GbE SFP+ ports support high-speed transfers | Advanced ZFS configuration requires more storage planning than a basic NAS |
| Four 2.5GbE ports add networking flexibility | Its capabilities may be excessive for simple file-sharing requirements |
| QuTS hero provides a ZFS-based storage environment | Rackmount installation requires appropriate rack space and cooling |
| Redundant power supplies improve hardware resilience | Performance depends heavily on drive selection and network infrastructure |
Performance
Performance on the QNAP TS-h1886XU-RP-R2 should be considered from several angles rather than focusing only on processor speed. Storage performance depends on the installed drives, RAID or storage-pool configuration, network equipment, workload characteristics, and whether SSDs are used for performance-sensitive tasks.
The combination of two 10GbE SFP+ ports and four 2.5GbE ports gives the platform considerably more network capacity than a conventional 1GbE NAS. QNAP specifically identifies the 10GbE ports as being suited to large file sharing and intensive data transfer. :contentReference[oaicite:11]{index=11}
For example, a creative team working with large video assets can benefit from a faster connection between editing workstations and centralized storage. Likewise, an IT department managing backup repositories can make better use of high-speed network links when several systems transfer data concurrently.
The 18-bay architecture also helps separate capacity and performance roles. An administrator might use larger HDDs for general storage while reserving SSD bays for workloads that require faster response. QNAP confirms support for SSD cache acceleration, providing another option for optimizing appropriate workloads. :contentReference[oaicite:12]{index=12}
Virtualization is another area where the hardware configuration becomes relevant. With a Xeon processor and 32GB ECC memory, the NAS has a stronger foundation for virtualized services than entry-level consumer NAS hardware. QNAP explicitly describes the R2 platform as supporting virtualization storage and native virtual machines and containerized applications. :contentReference[oaicite:13]{index=13}
Still, expectations should remain realistic. A NAS is not automatically a substitute for a dedicated virtualization cluster. The number and type of virtual machines that can run comfortably will depend on CPU demand, memory allocation, storage performance, networking, and the applications involved. Organizations should size the system around their actual workload instead of assuming that all enterprise applications will perform identically.
The ZFS foundation is particularly relevant for data-intensive environments. QuTS hero is designed to provide data-integrity-focused storage management, while the ECC memory and redundant power architecture add further enterprise-oriented features. :contentReference[oaicite:14]{index=14}
For buyers researching broader technology options, it can also be useful to compare infrastructure purchases with the rest of the workstation environment. For example, organizations building a content-creation workflow may also want to review this Related Guide when evaluating peripheral equipment for a broader workspace.
Who Should Consider the QNAP TS-h1886XU-RP-R2?
This NAS is aimed primarily at businesses, IT departments, production teams, virtualization users, and organizations that need a rack-mounted centralized storage platform. Its 18-bay design makes particular sense when future storage growth is expected.
It can also be interesting for professional video teams because large media projects can quickly consume storage. The combination of HDD capacity, dedicated SSD bays, 10GbE networking, and expansion options creates a foundation that can be adapted as project requirements increase.
For backup environments, the large number of drive bays can provide room for substantial repositories. The exact backup architecture should still be designed around an appropriate backup strategy, retention policy, redundancy model, and off-site protection rather than treating the NAS as the only copy of important information.
Installation and Management Considerations
Because this is a 2U rackmount system, installation should be planned around rack compatibility, ventilation, cabling, power delivery, and acoustic considerations. Enterprise NAS hardware can produce more operational noise than typical desktop NAS products, so a dedicated server room or equipment area is generally more appropriate.
Storage configuration also deserves careful planning. With 18 bays available, administrators have many possible combinations of HDDs and SSDs. The right layout depends on whether the priority is capacity, redundancy, application performance, backup throughput, or a combination of these factors.
The same principle applies to networking. Installing the NAS into a 10GbE environment without upgrading the connected switch or workstation infrastructure may prevent users from realizing the full benefit of the available bandwidth. A properly matched end-to-end network is essential.
FAQ
How many drives does the QNAP TS-h1886XU-RP-R2 support?
The system provides 18 SATA drive bays: 12 front 3.5-inch bays and six rear 2.5-inch bays. The 3.5-inch bays support compatible SATA hard drives and SSD configurations, while the 2.5-inch positions are intended for compatible 2.5-inch SATA storage. :contentReference[oaicite:15]{index=15}
How much RAM does this model have?
The TS-h1886XU-RP-R2-D1622-32G comes with 32GB of DDR4 ECC memory. QNAP specifies four memory slots and a maximum supported capacity of 128GB. :contentReference[oaicite:16]{index=16}
Does it have 10GbE?
Yes. The model includes two 10GbE SFP+ ports, along with four 2.5GbE ports. The 10GbE connectivity is intended to support large file transfers and intensive network workloads. :contentReference[oaicite:17]{index=17}
What operating system does it use?
The TS-h1886XU-RP-R2 runs QNAP’s QuTS hero operating system, which is based on ZFS and is designed around data integrity and advanced storage management. :contentReference[oaicite:18]{index=18}
Is it suitable for virtualization?
Yes. QNAP states that the platform supports storage for virtualization and can natively host independent virtual machines and containerized applications. Actual VM capacity depends on the CPU, available memory, storage configuration, and workload requirements. :contentReference[oaicite:19]{index=19}
Does it have redundant power supplies?
Yes. The TS-h1886XU-RP-R2 includes dual redundant power supplies, an important feature for systems intended to provide continuous enterprise storage services. :contentReference[oaicite:20]{index=20}
Can the memory be upgraded later?
Yes. QNAP specifies four DDR4 UDIMM slots and support for up to 128GB of memory, giving administrators room to expand the system as application and virtualization requirements increase. :contentReference[oaicite:21]{index=21}
Is this NAS suitable for home users?
It can technically be used in an advanced home lab or enthusiast environment, but its rackmount form factor, 18-bay architecture, ECC memory, 10GbE connectivity, redundant power, and enterprise-focused software make it much more aligned with professional and business deployments.
Final Thoughts
The QNAP TS-h1886XU-RP-R2-D1622-32G-US is a serious storage platform for organizations that need capacity, high-speed networking, data-integrity features, and room to expand. Its Intel Xeon D-1622 processor, 32GB ECC memory, 18-drive hybrid architecture, dual 10GbE connectivity, PCIe expansion, QuTS hero ZFS environment, and redundant power supplies create a configuration aimed at demanding storage workloads. :contentReference[oaicite:22]{index=22}
The biggest advantage is flexibility: businesses can combine large-capacity SATA drives with SSDs, expand memory, use high-speed networking, add compatible PCIe hardware, and build storage around virtualization or application requirements. For organizations designing a Smart enterprise network storage System rather than simply purchasing a basic file server, the TS-h1886XU-RP-R2 provides a broad collection of enterprise-oriented capabilities in a single 2U chassis.
