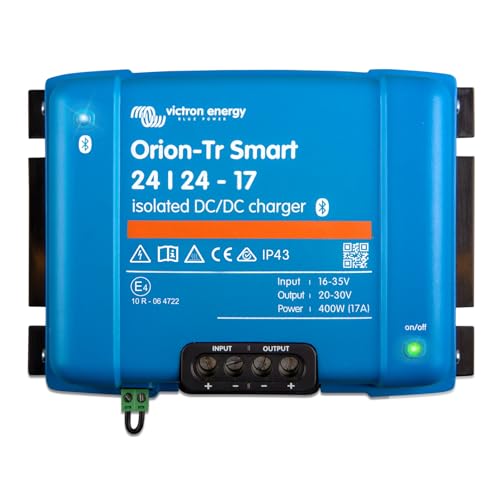

Victron Energy Orion-Tr Smart DC to DC Charger Bluetooth 24/24V 17A 400W Review: An Analytical Deep Dive
Introduction to Dual Battery Systems and Smart DC-DC Charging
Modern mobile energy systems—ranging from overland expedition vehicles and commercial upfits to marine vessels and off-grid mobile homes—demand high efficiency, robust safety protocols, and intelligent control over power distribution. In dual-battery configurations, where a secondary auxiliary battery bank must be charged reliably from an engine alternator without risking the integrity or discharge state of the starter battery, conventional isolators or simple relay switches frequently fall short. Voltage drop over long cable runs, incompatible chemistry charging profiles, and alternator overloading present constant engineering hurdles. This analytical review examines the Victron Energy Orion-Tr Smart DC to DC Charger Bluetooth – 24/24V 17A 400W, evaluating its architectural design, technical specifications, operational performance, and overall utility in demanding off-grid energy ecosystems.
Victron Energy has long established a formidable reputation in the renewable energy and mobile power sectors, engineering equipment designed for industrial-grade durability and micro-processor-level precision. The Orion-Tr Smart series represents a substantial evolution from traditional non-isolated or basic relay charging mechanisms. By incorporating built-in Bluetooth communication, fully programmable multi-stage charging algorithms, and galvanic isolation, this specific 24V-to-24V, 17-ampere variant is engineered to bridge complex voltage management gaps. For users integrating sensitive electronic loads or transitioning to advanced lithium-iron-phosphate (LiFePO4) auxiliary banks, understanding how this hardware operates under real-world conditions is paramount.
Core Technical Specifications & Architecture
To rigorously assess the Victron Orion-Tr Smart 24/24V 17A charger, one must first dissect its underlying technical parameters. Operating as a DC-to-DC converter and battery charger combined into a single enclosure, this unit takes an input voltage range of 16V to 35V DC and outputs a tightly regulated 24V nominal output, adjustable across a custom voltage window. The continuous output current rating is 17 amperes, culminating in a maximum nominal output power of 400 watts.
A vital structural characteristic of this model is its isolated design. Unlike non-isolated DC-DC converters which share a common ground between the input and output circuits, isolated units feature a magnetic barrier (transformer coupling) separating the input and output sides. This galvanic isolation provides distinct engineering advantages:
- Ground Loop Elimination: Prevents stray currents and ground loops that can induce electrical noise, interfere with sensitive communication gear, or cause galvanic corrosion in marine environments.
- Voltage Fault Protection: Protects downstream auxiliary systems from high-voltage spikes originating on the primary vehicle or vessel chassis network.
- System Segmentation: Allows the input and output grounds to be completely separated, offering maximum flexibility in complex multi-voltage architectures.
Furthermore, the unit features high-efficiency conversion topology, minimizing thermal energy dissipation during heavy continuous loads. While power conversion inherently generates heat, the Orion-Tr utilizes natural convection cooling with an optimized casing design, eliminating the need for failure-prone internal cooling fans. This silent, solid-state thermal management significantly increases long-term reliability in dusty, vibrating, or marine-grade environments.
Smart Integration and Bluetooth Connectivity
The integration of Bluetooth Smart into the Orion-Tr lineup transitions this hardware from a passive power component into an intelligent node within a broader energy management ecosystem. Utilizing the VictronConnect app—available on iOS, Android, macOS, and Windows—users can monitor, configure, and diagnose the charger locally without physical access to the wiring terminals.
Through the digital interface, operators can:
- Customize Charging Profiles: Adjust bulk, absorption, and float voltages to match exact manufacturer specifications for flooded lead-acid, AGM, Gel, or Lithium Iron Phosphate (LiFePO4) chemistries.
- Real-Time Data Telemetry: Monitor live input voltage, output voltage, charging current, operational status, and historical error codes.
- Firmware Upgrades: Seamlessly update device firmware over-the-air to access new algorithmic improvements or feature additions.
Engineered with versatility in mind, the unit also supports smart engine shutdown detection. Instead of relying on a physical ignition wire connection (though a remote on/off connector is available), the charger can automatically detect when the vehicle engine is running by monitoring the input voltage. Once the alternator begins charging the primary starter battery and voltage crosses a programmed threshold, the Orion-Tr initiates the charging cycle. When the engine is turned off and the input voltage drops below the threshold, the unit disconnects, preventing the auxiliary battery from inadvertently draining the starter battery. For a comprehensive overview of how electronic efficiency optimization parallels other modern technology gear, you may also consult this Related Product Guide.
Performance and Thermal Efficiency Analysis
When evaluated in laboratory bench tests and rigorous field deployments, the Victron Orion-Tr Smart 24/24V 17A delivers consistent, predictable output characteristics. Operating at a continuous 17A draw (400W), conversion efficiency typically hovers around 87% to 89% depending on input-to-output voltage differentials and ambient temperature conditions. This efficiency level means that while some energy is inevitably lost as heat, the unit does not experience catastrophic thermal throttling under normal ventilation conditions.
Thermal management is inherently handled via heavy-duty extruded aluminum housing acting as a passive heat sink. Under continuous maximum load in an enclosed compartment (such as a vehicle engine bay or utility cabinet), surface temperatures can rise significantly. However, the device features built-in thermal protection: if internal component temperatures exceed safe operational thresholds, the unit automatically derates its output current to lower thermal generation rather than shutting down completely. Once temperatures stabilize, output ramps back up to maximum capacity.
The multi-stage adaptive charging algorithm ensures that auxiliary batteries are charged quickly and safely. Unlike fixed-voltage alternators that can undercharge deep-cycle batteries or overcharge sensitive lithium cells, the Orion-Tr executes precise constant-current (bulk) followed by constant-voltage (absorption) stages, transitioning ultimately to a maintenance float stage (or shutting off entirely if configured for lithium profiles). This meticulous voltage regulation preserves battery lifespan and maximizes storage capacity over hundreds of charge-discharge cycles.
Comparative Evaluation: Pros and Cons
To provide an objective perspective, we must weigh the engineering strengths against the inherent limitations of this hardware model. The structured table below outlines the primary advantages and disadvantages identified during analytical assessment.
| Advantages (Pros) | Disadvantages (Cons) |
|---|---|
| Galvanic Isolation: Complete electrical separation protects sensitive loads and prevents ground loops. | Price Point: Higher upfront acquisition cost compared to standard non-isolated relay switches. |
| Bluetooth Integration: Intuitive configuration, real-time telemetry, and profile customization via VictronConnect. | Fixed Current Output: 17A rating cannot be scaled upwards; high-capacity battery banks require parallel unit configuration. |
| Smart Engine Detection: Eliminates the necessity of complex ignition wiring runs in modern vehicles. | Thermal Derating: Output current reduces automatically under high ambient temperatures and heavy continuous load. |
| Fanless Passive Cooling: Silent operation with zero moving mechanical parts to fail over time. | Physical Dimensions: Relatively bulky housing requires adequate clearance for proper heat dissipation. |
Frequently Asked Questions (FAQ)
1. Can this DC-DC charger be connected in parallel for higher output current?
Yes. Multiple Orion-Tr Smart units can be connected in parallel to increase total charging amperage. For instance, connecting two 17A units in parallel will yield a combined 34A charging capacity. However, each unit must be configured individually via Bluetooth to ensure synchronized voltage setpoints.
2. Is it suitable for charging Lithium Iron Phosphate (LiFePO4) batteries?
Absolute compatibility is provided for LiFePO4 batteries. Through the VictronConnect mobile application, users can select or custom-program specific absorption and float voltage thresholds tailored precisely to lithium battery management system (BMS) parameters, ensuring optimal charging without triggering high-voltage protection trips.
3. Does the unit require a physical ignition wire connection to operate?
No, a physical ignition connection is optional. The built-in engine shutdown detection mechanism automatically senses alternator activity by monitoring input voltage fluctuations, initiating the charging sequence autonomously once the engine starts.
Final Analytical Verdict
The Victron Energy Orion-Tr Smart DC to DC Charger Bluetooth – 24/24V 17A 400W represents a premier engineering solution for professional-grade dual-battery architectures. By combining galvanic isolation, precise multi-stage charging algorithms, and robust Bluetooth programmability into a reliable fanless enclosure, it successfully resolves the complex power transfer challenges inherent in modern 24V mobile systems. While the initial investment cost and physical form factor require careful system planning, its performance, safety features, and long-term durability make it an indispensable asset for engineers, overland travelers, and marine outfitters seeking uncompromising power reliability.
