5Pcs KY-040 Rotary Encoder Module Review: A Practical Input Kit for Arduino Projects
When a project needs a physical control that feels more intuitive than a push button, a rotary encoder can be a remarkably useful component. The 5Pcs KY-040 Rotary Encoder Module with 15×16.5 mm body size and knob caps is designed for Arduino and similar microcontroller projects where users need to rotate, adjust, select, or navigate through settings. This five-piece kit also makes sense for makers who want spare modules available for multiple prototypes rather than buying a single encoder every time a new project begins.
Despite the keyword Smart broadcast streaming encoder Kit, it is important to understand what this product actually is. The KY-040 is a rotary input module for electronics projects; it is not a video or audio broadcast encoder. That distinction matters when choosing components. Used correctly, however, it can become a simple physical control for menus, volume-style adjustments, camera-control interfaces, lighting projects, DIY control panels, and other Arduino-based systems.
What Is the KY-040 Rotary Encoder Module?

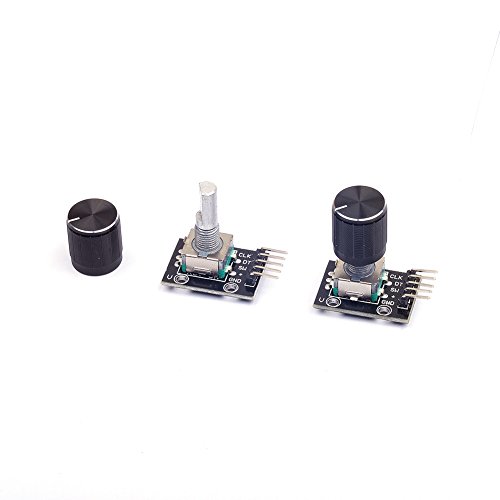

The KY-040 is a mechanical rotary encoder module that detects rotational movement and provides a push-button function through its integrated shaft switch. Instead of simply reporting a variable resistance like a traditional potentiometer, a rotary encoder produces digital signals that a microcontroller can interpret to determine direction and movement.
This makes the module particularly interesting for DIY interfaces. You can rotate the knob to move through menu items, change a numerical value, adjust a setting, or navigate an interface. Pressing the knob can then be programmed as an enter, select, or confirmation command.
The five-piece package is useful because development projects often involve experimentation. One module can be installed into a prototype while another remains available for testing, replacement, or a completely different Arduino project.
Key Features

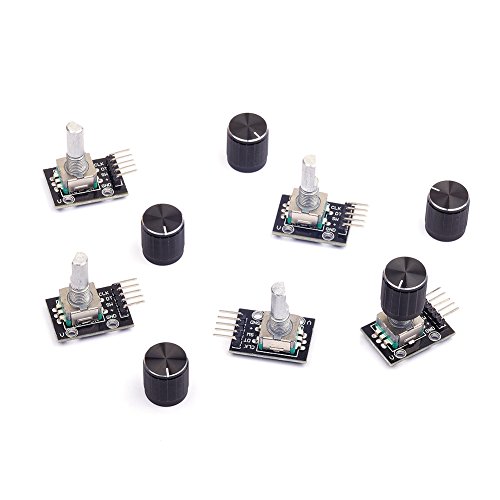

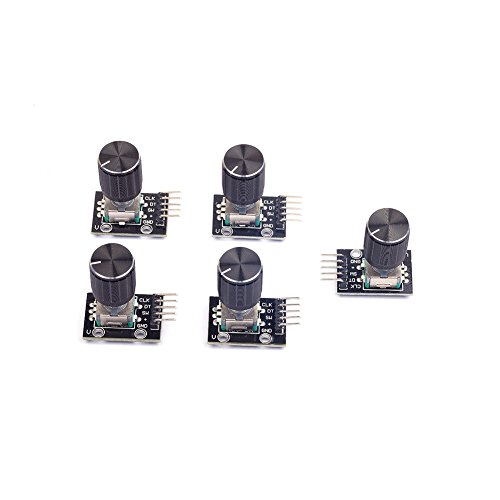

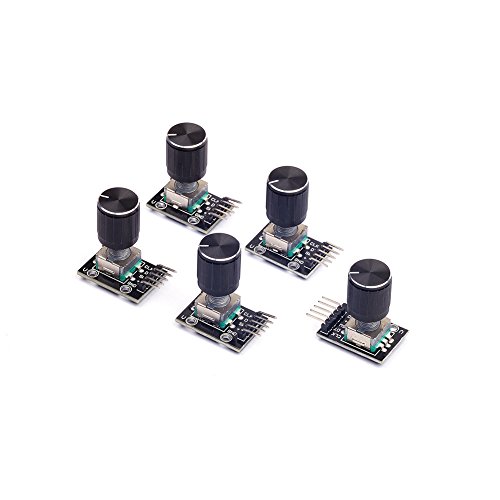

- Five KY-040 modules: The package provides five rotary encoder boards for projects, experiments, and replacement needs.
- Compact module format: The listed 15×16.5 mm size makes the board suitable for compact control-panel designs.
- Rotary input: The encoder detects clockwise and counterclockwise rotation.
- Push-button action: Pressing the shaft adds another digital input option to the interface.
- Knob caps included: The included caps make the modules easier to operate by hand.
- Arduino-oriented design: KY-040 modules are commonly used in microcontroller learning and DIY electronics projects.
- Digital control concept: Unlike a conventional potentiometer, the encoder communicates rotational movement as digital pulses.
Why a Rotary Encoder Can Be Useful
A rotary encoder becomes especially useful when a project needs more than a simple on/off control. Imagine an Arduino menu with ten settings. A series of buttons could require separate controls for moving up, moving down, selecting, and going back. A rotary encoder can combine rotational navigation with a push-to-select action in a single physical control.
This approach can make DIY interfaces feel more like finished electronic equipment. A maker could use one encoder for menu navigation, another for brightness, and another for a numerical parameter. Because this package contains five units, there is enough hardware for experimentation without immediately needing another order.
The module can also be valuable in educational environments. Beginners can learn about digital inputs, interrupts, state changes, switch debouncing, and user-interface programming while working with a relatively inexpensive physical component.
Features That Stand Out in Real Projects
Rotational Direction Detection
One of the defining characteristics of the KY-040 is its ability to distinguish rotation direction. A microcontroller can monitor the encoder’s output signals and determine whether the user is turning the knob clockwise or counterclockwise. This is useful for increasing or decreasing values, moving through menus, or controlling parameters.
Integrated Push Function
The encoder’s push function adds another control without requiring a separate button next to the knob. For menu-driven projects, this can be particularly convenient: rotate to highlight an option and press the knob to select it.
Five-Piece Value for Prototyping
Having five modules changes the usefulness of a small electronics component. A single encoder is enough for one prototype, but five give makers room to experiment. You can build multiple versions, keep replacement hardware on hand, or create an interface with several independently programmed controls.
Performance and Usability
For typical Arduino experimentation, the KY-040 concept is straightforward. The encoder translates physical rotation into digital signal changes that your program can interpret. The push switch provides another digital input. This combination makes it possible to create surprisingly capable interfaces with only a few components and lines of control logic.
Performance will depend heavily on the software implementation. Mechanical encoders can produce signal transitions that require debouncing or appropriate state handling. A poorly designed program may interpret one physical movement as multiple movements. That is not necessarily a defect unique to this particular module; it is a common consideration when working with mechanical switches and encoders.
For that reason, beginners should spend some time understanding encoder libraries, interrupt-based approaches, and debounce techniques. Once the input logic is handled properly, the physical control can become a reliable part of an Arduino interface.
Potential Uses for the KY-040
There are many ways to incorporate these modules into a DIY electronics project. Common examples include:
- Arduino menu navigation
- DIY LCD display controls
- Digital volume-style controls
- LED brightness adjustment
- RGB lighting interfaces
- Motor-control parameter selection
- DIY clock and timer interfaces
- 3D printer or CNC control experiments
- Home automation prototypes
- Custom electronics control panels
- Camera or media-control interfaces
- Educational microcontroller projects
For creators working on camera or streaming-related hardware, a rotary encoder can also be useful as a physical control in a larger DIY interface. It should not be confused with a video streaming encoder itself. If your project involves recording or publishing video, you may also find this Related Guide useful for exploring camera equipment.
Pros & Cons
| Pros | Cons |
|---|---|
| Five modules provide useful quantities for prototyping | It is a mechanical input module rather than a video streaming encoder |
| Compact design fits many DIY control panels | Software usually needs appropriate debounce handling |
| Rotation and push action provide two types of input | Mechanical components can have different tactile characteristics over time |
| Suitable for Arduino-oriented learning projects | Requires basic microcontroller programming knowledge |
| Knob caps make physical operation convenient | Not a replacement for a precision analog potentiometer in every application |
Build and Practical Design Considerations
The compact board format is one of the reasons this style of module is popular among hobbyists. A large control interface does not necessarily need a large amount of hardware. A small encoder can be mounted behind a front panel while the knob remains accessible to the user.
For a clean project, consider the physical spacing between multiple encoders. If several controls are positioned next to each other, enough clearance should be provided so that users can comfortably rotate one knob without accidentally touching another. The included knob caps can help make the controls easier to grip.
Wiring is another consideration. Before building a permanent enclosure, it is sensible to test the module on a breadboard and verify the expected signal behavior with the specific microcontroller and software library being used.
Smart Broadcast Streaming Encoder Kit: What Does It Mean Here?
The phrase Smart broadcast streaming encoder Kit may sound like it describes professional video-production equipment, but the product itself is a KY-040 rotary encoder module. In electronics terminology, “encoder” has several meanings. A rotary encoder detects mechanical rotation and converts it into electrical signals. A broadcast or streaming encoder, by contrast, processes video or audio into a streamable digital format.
Therefore, this five-piece KY-040 kit should be considered an input-control component for DIY electronics rather than a broadcast hardware encoder. It could potentially serve as part of a custom control surface for a larger media project, but it does not itself encode video for streaming.
This distinction is particularly important for shoppers searching by broad keywords. Understanding the actual function of the component helps avoid purchasing the wrong type of encoder for a professional media workflow.
How It Can Improve a DIY User Interface
One of the biggest advantages of physical controls is immediacy. A rotary knob gives the user a tactile reference point. Instead of repeatedly clicking buttons, the user can turn the control quickly through a range of values.
For example, an Arduino-based display could show a value from 0 to 100. Turning the encoder clockwise could increase the value, while counterclockwise rotation decreases it. Pressing the knob could confirm the selected number. With suitable programming, the same physical control could then be reused for another menu item.
This kind of interface is especially useful in prototypes where touchscreen controls would add unnecessary complexity or cost.
Installation and Programming Tips
Start by connecting the module to your development board according to the wiring configuration required by your specific KY-040 board and microcontroller. Before integrating it into a larger system, create a simple test program that reports rotational movement and push-button activation.
Testing one function at a time makes troubleshooting easier. First confirm the push switch. Then verify clockwise movement. Next test counterclockwise movement. Finally, add debouncing or a suitable encoder library if the raw signal creates unwanted duplicate readings.
When several encoders are used together, give each module clearly defined input pins and organize the software so each control has an obvious purpose. This becomes particularly important in larger control panels.
Who Should Consider This Five-Piece Kit?
This package makes the most sense for Arduino hobbyists, students, electronics learners, DIY makers, and developers who need inexpensive physical controls for prototypes. It is also useful for anyone who expects to build multiple projects because the five-piece quantity reduces the need to purchase another module for every experiment.
It is less appropriate if you are specifically searching for a professional broadcast video encoder, HDMI encoder, SDI streaming encoder, or hardware device designed to compress and transmit video. Those applications require an entirely different class of equipment.
Frequently Asked Questions
What is a KY-040 rotary encoder?
A KY-040 is a rotary encoder module commonly used with Arduino and other microcontroller projects. It detects rotational movement and typically provides a push-button function through the encoder shaft.
Does the KY-040 work with Arduino?
Yes. The KY-040 is commonly used in Arduino projects. The exact wiring and software implementation depend on the Arduino board and program being used.
Can the encoder detect clockwise and counterclockwise movement?
Yes. Its quadrature-style output allows suitable software to determine the direction of rotation.
Does pressing the knob do anything?
The shaft includes a push-switch function, allowing a program to use a press as another digital input, such as select, enter, or confirm.
Is this a broadcast streaming encoder?
No. Despite the keyword Smart broadcast streaming encoder Kit, the KY-040 is a rotary input encoder. It does not encode or transmit video or audio streams.
Why does the package contain five modules?
The five-piece quantity is useful for prototyping, replacement hardware, educational projects, or building interfaces with multiple physical controls.
Does it require special software?
The hardware itself does not require a proprietary application. You need microcontroller code capable of reading the encoder’s output signals. Arduino libraries and example projects can simplify the programming process.
Can I use several KY-040 encoders in one project?
Yes, provided your microcontroller has enough suitable input resources and your software is designed to monitor each encoder correctly.
Should I use a rotary encoder or potentiometer?
That depends on the application. A rotary encoder is useful when you need digital movement, direction detection, and often a push-to-select function. A potentiometer is generally more appropriate when you need a continuous analog voltage representing shaft position.
Is this suitable for beginners?
Yes. The KY-040 is a useful learning component because it introduces concepts such as digital inputs, rotary direction detection, switch debouncing, and interface programming.
Final Thoughts
The 5Pcs KY-040 Rotary Encoder Module kit is a small component with a surprisingly broad range of applications. Its combination of rotational control and push-button functionality makes it useful for Arduino menus, DIY interfaces, lighting controls, displays, automation prototypes, and custom electronics projects. The five-piece package is particularly practical for makers who experiment frequently or need multiple controls in one build.
The most important buying consideration is understanding what this product actually does. It is a rotary input encoder, not a professional broadcast or streaming video encoder. Once that distinction is clear, the KY-040 becomes a straightforward and versatile component for adding physical controls to microcontroller projects.
