12-Bay NAS Rackmount Chassis Review: Build a Pro Storage Server at Home [START] Introduction The …

Introduction

The 3U Mini-ITX Rackmount NAS Chassis is designed for users who want to build a high-capacity storage server inside a standard 19-inch equipment rack. With support for up to 12 trayless 3.5-inch drives, plus an additional fixed 3.5-inch or 2.5-inch drive position, this chassis provides an interesting foundation for a professional 12 bay NAS storage system. Its 3U rackmount form factor, Mini-ITX compatibility, and SFX power supply support make it suitable for custom NAS builds, media servers, backup systems, surveillance storage, and small-business server environments.
Unlike a preconfigured NAS appliance, a rackmount chassis gives builders much more freedom over the internal hardware. You can select the motherboard, processor, memory, storage controllers, networking hardware, operating system, and power supply according to your workload. That flexibility can be especially useful for users who want to build a system around software platforms such as TrueNAS, Unraid, or other Linux-based storage solutions, provided the selected components are compatible.
The most obvious attraction is the drive capacity. Twelve trayless 3.5-inch bays can accommodate a substantial collection of hard drives without requiring a collection of external enclosures. The extra fixed drive position also provides another storage option for a boot device, cache, application storage, or additional capacity.

Features

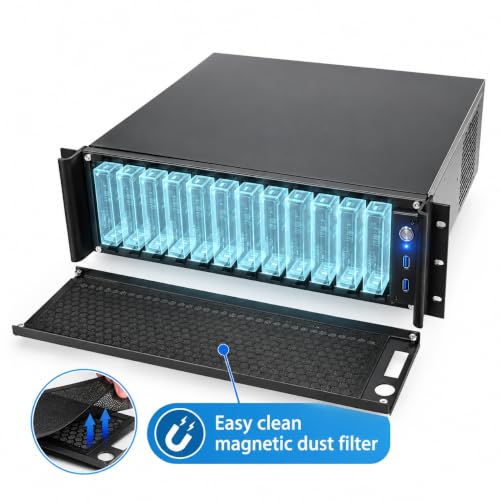

12 Trayless 3.5-Inch Drive Bays

The centerpiece of this chassis is its array of twelve trayless 3.5-inch drive positions. For a storage-focused build, this configuration offers considerably more flexibility than a typical desktop case. Users can populate the bays with large-capacity NAS hard drives and create a RAID, ZFS pool, parity array, or another storage configuration supported by their chosen operating system.
Trayless drive access can also make drive installation and replacement more convenient. Instead of managing a separate removable tray for every disk, the chassis is designed around direct drive installation. This is particularly useful in environments where storage drives may need to be replaced periodically.

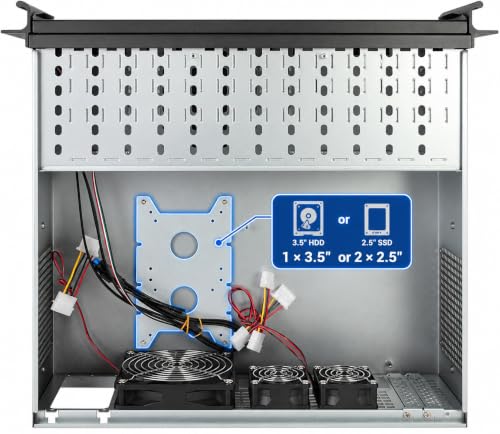

Additional Fixed Drive Support

In addition to the twelve primary bays, the chassis supports one fixed 3.5-inch or 2.5-inch drive. This additional position can be useful for separating the operating system from the main storage array. For example, a builder might use a smaller SSD as a boot drive while dedicating the twelve front bays to data storage.
That arrangement can simplify storage management because the operating system and application environment do not necessarily need to occupy one of the main high-capacity storage bays.

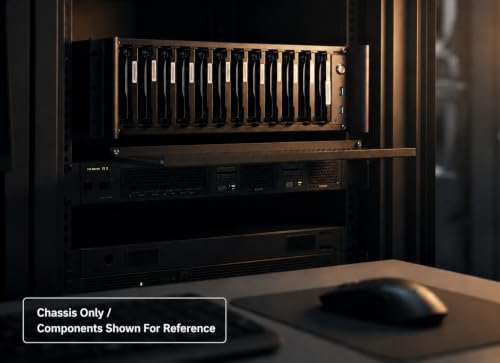

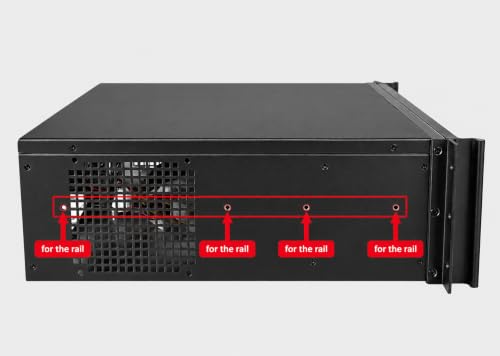

3U Rackmount Form Factor

The 3U format is another important characteristic. Designed for a standard 19-inch rack environment, the chassis can be integrated into a server rack alongside networking equipment, UPS hardware, switches, patch panels, and other infrastructure.
A 3U chassis also provides more vertical room than many 1U systems. That additional space can be beneficial for a storage server because multiple hard drives, cooling hardware, cables, a Mini-ITX motherboard, and an SFX power supply all need to fit inside the enclosure.

Mini-ITX Compatibility

The Mini-ITX motherboard format gives builders a compact platform for creating a custom server. While Mini-ITX boards are physically small, modern models can offer useful combinations of SATA connectivity, M.2 storage, high-speed networking, USB ports, PCIe expansion, and modern processors.
When planning a build, it is important to verify the motherboard’s physical dimensions, SATA connector placement, PCIe requirements, memory compatibility, and I/O arrangement before purchasing components. A chassis provides the physical framework, but the final capabilities depend heavily on the motherboard and other selected hardware.

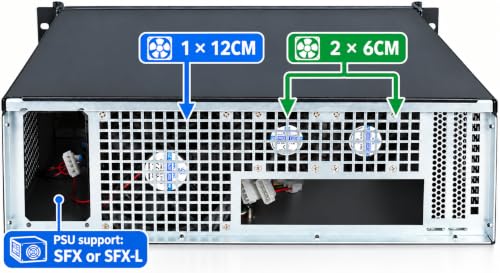

SFX Power Supply Support

The chassis supports an SFX power supply, allowing a relatively compact PSU to provide power to the system. For a twelve-drive configuration, PSU selection deserves particular attention. Mechanical hard drives can draw substantially more power during startup than when operating at idle, so the power supply should be selected according to the complete hardware configuration rather than simply the motherboard’s rated consumption.
Builders should also consider the number and type of power connectors available. With many drives installed, adequate SATA power connectivity and properly routed cables become important considerations.

Industrial Server-Oriented Construction

The industrial computer case design is intended for equipment-rack applications rather than conventional living-room desktop use. The 19-inch rackmount format makes it particularly appropriate for dedicated server rooms, home labs, offices, production environments, and technical workspaces where organized rack installation is preferred.

Pros & Cons

Pros	Cons
Supports up to 12 trayless 3.5-inch drives	Requires separate motherboard, CPU, RAM, and storage components
Additional fixed 3.5-inch or 2.5-inch drive position	Drive compatibility should be checked before installation
3U rackmount design fits standard 19-inch racks	SFX PSU selection requires careful planning for multi-drive builds
Mini-ITX platform enables custom server configurations	Custom NAS assembly requires more technical knowledge than an appliance NAS
Trayless bays simplify access to storage drives	Cable management can become important when all bays are populated
Suitable foundation for NAS, backup, media, and server projects	Actual performance depends on the components installed

Performance

It is important to distinguish the chassis itself from the performance of the completed NAS. A rackmount case does not determine network throughput, storage performance, processor speed, or software capabilities. Instead, it provides the physical infrastructure for assembling a system capable of meeting those requirements.
With twelve drive bays available, the chassis is particularly interesting for capacity-focused storage systems. A builder could install twelve NAS-class hard drives and configure them according to the desired balance between capacity, redundancy, and performance. RAID levels, ZFS configurations, parity systems, and other storage layouts each have different characteristics, so the appropriate configuration depends on the intended workload.

For example, a media archive may prioritize large usable capacity, while a business file server may emphasize redundancy and data protection. A video-editing environment could have different requirements again, especially when multiple users need to access large files simultaneously. The chassis provides the drive capacity needed to explore these configurations without immediately requiring an external disk enclosure.
Networking hardware is equally important. A high-capacity NAS with only a basic network interface may not take full advantage of fast local storage when multiple clients are accessing the system. Depending on the motherboard and expansion capabilities, builders may consider faster Ethernet connectivity for workloads involving large media files, workstation backups, virtualization, or multiple simultaneous users.

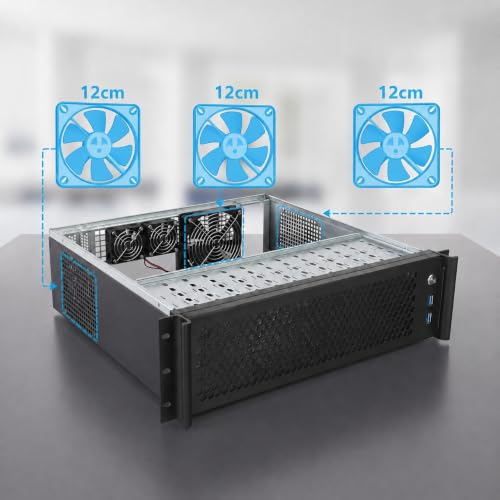

Cooling Considerations

Cooling becomes increasingly important as more hard drives are installed. Twelve mechanical drives can generate a meaningful amount of heat, particularly during sustained transfers, rebuild operations, or intensive storage workloads. The rack environment should therefore provide adequate airflow around the chassis.
Drive placement, fan configuration, cable routing, ambient temperature, and workload all affect operating temperatures. Builders should monitor drive temperatures after completing the installation and make adjustments if necessary.

Storage Expansion and Maintenance

One of the strongest reasons to choose a chassis like this is long-term storage flexibility. A system does not necessarily need to be fully populated on day one. Users can begin with a smaller number of drives and expand the configuration as storage requirements increase, assuming their selected NAS software and storage architecture support the intended expansion method.
Trayless drive access can also be helpful when maintenance is required. Storage systems are long-term infrastructure, and the ability to replace a failed drive without redesigning the entire enclosure is valuable for anyone building a dedicated server.

Home Lab and Professional Applications

This chassis can serve as a useful foundation for a home lab where users want to experiment with NAS software, virtualization, containers, backups, media servers, and network services. The 3U form factor makes it easier to incorporate the storage system into a rack alongside a managed switch and other equipment.
Small businesses may also find the design relevant for centralized file storage, backup repositories, surveillance recording, and internal media libraries. However, organizations should evaluate redundancy, backup procedures, power protection, and component reliability according to their operational requirements.
For users researching other professional equipment, a dedicated guide can also help when evaluating related technology. For example, you can explore this Related Guide for another professional hardware category.

Installation and Build Planning

Before assembling a twelve-drive NAS, it is worth planning the complete system on paper. Start with the motherboard and processor combination, then determine how many SATA ports are available. If the motherboard does not provide enough native ports, a compatible HBA or storage controller may be necessary.
Next, consider memory capacity and operating-system requirements. NAS platforms vary considerably in their memory recommendations and storage architecture. If virtualization or multiple applications are planned, additional memory and processing capability may be useful.
Power planning should come next. Count the expected drives, motherboard, processor, cooling devices, storage controllers, and any expansion cards. Pay particular attention to startup power requirements for mechanical drives. The selected SFX PSU should provide suitable capacity and the necessary connectors for the complete configuration.

Finally, plan airflow and cable routing. Twelve drives can create a dense internal environment, so organized cabling can help maintain airflow and make future maintenance easier. It is also worth labeling drive connections during assembly, especially if the system will use a complex storage topology.

Who Should Consider This Chassis?

This chassis is best suited to users who want control over their NAS hardware rather than purchasing a fixed appliance. It can appeal to experienced home-lab builders, IT professionals, storage enthusiasts, small businesses, content creators, and anyone planning a large-capacity rack-mounted storage server.
It is particularly relevant if twelve drive bays are more useful to you than the smaller capacity of a conventional desktop NAS. The 3U form factor also makes sense when your infrastructure is already rack-based.
On the other hand, users who want a completely turnkey NAS with preinstalled software, integrated hardware, and simplified setup may prefer a preconfigured appliance. A custom rackmount chassis involves more decisions, but that additional complexity also provides substantially more flexibility.

FAQ

How many drives can this NAS chassis hold?

The chassis is designed to support twelve trayless 3.5-inch drives, plus one additional fixed 3.5-inch or 2.5-inch drive position. The actual usable configuration depends on the motherboard, storage controllers, cabling, and installed hardware.

Does it include the hard drives?

This is a chassis rather than a complete NAS appliance, so the storage drives and other internal computer components need to be selected separately according to the particular product configuration and seller listing.

What motherboard size is supported?

The chassis is designed around a Mini-ITX motherboard. Always verify the exact motherboard dimensions and connector placement against the chassis specifications before purchasing components.

What type of power supply does it use?

The chassis supports an SFX power supply. For a system containing many hard drives, choose a PSU with sufficient capacity, appropriate connectors, and enough startup headroom for the complete hardware configuration.

Is this suitable for a home lab?

Yes. The 3U rackmount design and large number of drive bays make it a practical foundation for home-lab NAS projects, backup servers, media storage, surveillance storage, and other storage-focused experiments.

Can it be used for a professional NAS?

It can serve as the physical foundation for a professional-oriented NAS build, but the final reliability and performance depend on the motherboard, processor, memory, storage drives, power supply, cooling, storage controller, networking, and operating system selected.

Are trayless drive bays convenient?

Trayless bays can simplify drive installation and replacement because dedicated removable trays are not required. However, users should still verify drive fitment and mounting requirements before populating all bays.

Is twelve-drive storage better than a smaller NAS?

The answer depends on storage requirements. Twelve bays provide more room for high-capacity storage and redundancy configurations, but a smaller NAS can be more appropriate when the required capacity, physical footprint, power consumption, and budget are lower.

Final Thoughts

The 3U Mini-ITX Rackmount NAS Chassis offers a flexible foundation for anyone looking to build a high-capacity rack-mounted storage server. Its combination of twelve trayless 3.5-inch drive bays, an additional fixed drive position, Mini-ITX support, 3U rack compatibility, and SFX PSU support makes it well suited to custom NAS and server projects.
The biggest advantage is flexibility. Instead of being locked into a fixed processor, motherboard, memory configuration, or networking platform, builders can select components around their actual requirements. That makes this enclosure particularly interesting for experienced users who want to create a professional 12 bay NAS storage system with a specific combination of capacity, redundancy, networking, and software features.
As with any custom server chassis, successful results depend on careful component selection. Check motherboard compatibility, drive dimensions, storage-controller requirements, power connections, PSU capacity, rack dimensions, and cooling before beginning the build. With the right components and planning, this 3U chassis can provide a solid platform for a substantial home-lab, office, backup, media, or professional storage environment.
