Introduction
Building a reliable wired network across multiple rooms, buildings, or long cable runs can become challenging when standard copper Ethernet reaches its practical distance limits. That is where fiber networking becomes especially useful. The 2Pack BiDi Gigabit Multi-Mode Fiber Ethernet Media Converters provide a straightforward way to connect copper Ethernet equipment to a multi-mode fiber link while supporting Gigabit-class network speeds.

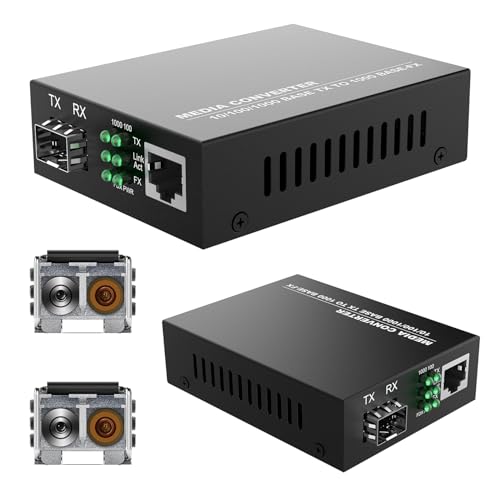

This kit combines two media converters with two dual SFP LC transceiver modules. Each unit is designed to convert 1000Base-SX fiber into 10/100/1000Base-TX Ethernet through an RJ45 interface. With 850nm optical modules, 1.25Gbps transmission capability, and a stated fiber reach of up to 550 meters, the system is aimed at users who need to extend Ethernet connectivity farther than conventional copper cabling can comfortably handle.
For anyone planning a Pro fiber network switch Kit, this type of media converter can be a useful component. It can sit between a standard Ethernet switch and a fiber run, allowing existing RJ45 equipment to communicate across a multi-mode fiber connection without requiring every networking device to have built-in fiber ports.

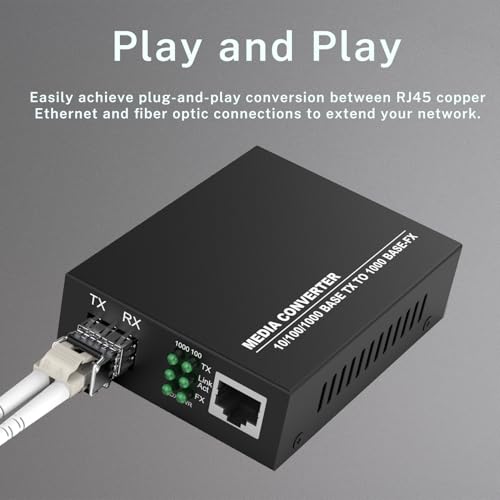

In practical terms, the concept is simple: connect Ethernet from a router, switch, server, computer, or other compatible network device to one converter, run multi-mode fiber between the two locations, and connect the second converter to another Ethernet device. The result is a flexible fiber-to-copper bridge that can help expand an existing network infrastructure.
Features

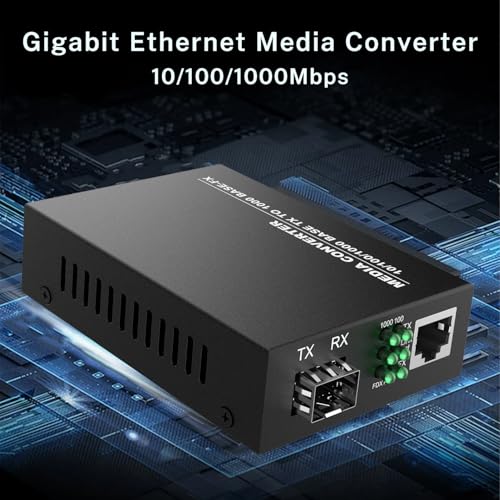

Gigabit Ethernet Media Conversion
The primary feature is support for conversion between 1000Base-SX fiber and 10/100/1000Base-TX copper Ethernet. This makes the kit useful for environments where existing networking equipment uses RJ45 Ethernet but the connection between locations needs to travel over fiber.
The 10/100/1000Base-TX compatibility also provides flexibility for connecting different Ethernet devices. Rather than limiting the converter to a single lower-speed connection, it is designed around a Gigabit Ethernet environment while supporting common Ethernet speeds.
Two Media Converters in One Kit
Because the package includes two media converters, it is designed as a convenient point-to-point solution. One converter can be positioned at each end of the fiber run. This eliminates the need to purchase separate conversion hardware for the receiving end and makes the kit easier to deploy for a basic fiber extension.
This arrangement can be particularly practical for office networks, workshops, warehouses, classrooms, surveillance installations, server rooms, and other locations where a copper Ethernet connection needs to cross a longer distance.

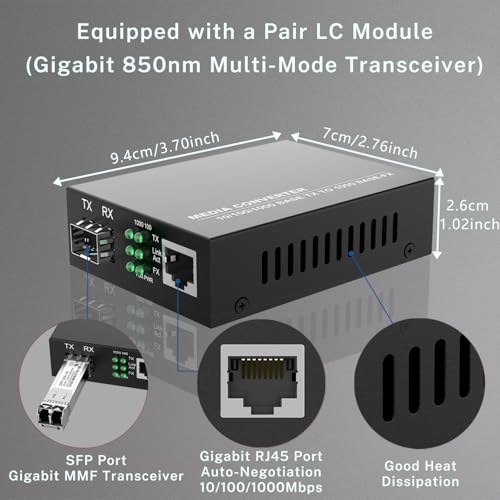

Dual SFP LC Transceiver Modules
The included SFP modules use LC fiber connectors and 850nm optical signaling. SFP-based designs can make networking equipment more flexible because the optical transceiver is a separate module rather than permanently integrated into the converter.
For compatible multi-mode fiber infrastructure, LC is a familiar connector format that can simplify installation and maintenance. Before purchasing or installing the system, users should verify that their existing fiber cable, connector type, and network hardware are compatible with the supplied modules.
Up to 550-Meter Fiber Reach
The stated maximum transmission distance is up to 550 meters when used with compatible multi-mode fiber. That is considerably farther than the typical maximum copper Ethernet segment of around 100 meters, making fiber media conversion particularly useful for larger facilities or separated network areas.
The actual usable distance can depend on fiber specifications, optical conditions, connector quality, network configuration, and environmental factors. Therefore, the 550-meter figure should be treated as a supported maximum under appropriate conditions rather than a guarantee for every installation.
RJ45 Ethernet Interface
The RJ45 interface allows the converters to work with familiar Ethernet patch cables. This is valuable when the network devices at either end already use conventional copper Ethernet ports.

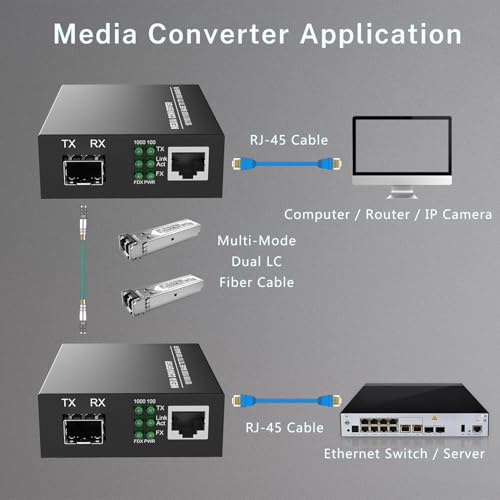

A typical installation might connect an Ethernet switch to one converter, use a multi-mode fiber cable between locations, and then connect the second converter to another switch, computer, access point, or compatible Ethernet device. This approach can extend the reach of existing network infrastructure without replacing all of the equipment.
Compact Point-to-Point Networking Solution
A dedicated media converter can be useful when the goal is simply to bridge fiber and copper rather than deploy an entirely new fiber-based switching infrastructure. It can serve as an intermediate component in a larger network and can be paired with conventional Ethernet switches.
For users researching a Pro fiber network switch Kit, this is an important distinction. The converters themselves are not a replacement for a managed or unmanaged Ethernet switch. Instead, they provide the media-conversion function that allows fiber and copper networking equipment to communicate.
Pros & Cons
| Pros | Cons |
|---|---|
| Includes two media converters for a complete point-to-point setup | Requires compatible multi-mode fiber cabling |
| Supports 10/100/1000Base-TX Ethernet | Not itself a network switch |
| Includes dual SFP LC transceiver modules | Maximum distance depends on fiber and installation conditions |
| Supports 1000Base-SX multi-mode fiber | Users must verify connector and transceiver compatibility |
| Stated fiber reach up to 550 meters | Additional networking hardware may be required for larger deployments |
| Useful for extending copper Ethernet through fiber | Configuration depends on the connected network equipment |
Performance
Performance is where a fiber media converter earns its place in a network. The 1000Base-SX interface is designed for Gigabit Ethernet over compatible multi-mode fiber, while the RJ45 side provides a familiar copper Ethernet connection to standard networking equipment.
For a properly configured Gigabit connection, this architecture can provide a practical way to extend network connectivity beyond the limitations of a conventional copper run. The fiber section is especially useful when two network locations are physically separated and pulling a long copper Ethernet cable would be impractical or undesirable.
Another benefit of fiber is its suitability for electrically separated network segments. Fiber does not carry electrical current between the two endpoints, which can be valuable in installations where electrical isolation is desirable. It can also be useful when networking equipment is located in different areas of a building or facility.
At the same time, users should understand that a media converter does not automatically improve the speed of the internet connection or connected devices. Actual throughput depends on the entire network path, including the router, switches, Ethernet adapters, fiber, transceivers, and connected devices.
The 1.25Gbps optical module specification provides headroom around a Gigabit Ethernet application, while the 1000Base-SX designation identifies the intended fiber networking standard. For ordinary Gigabit networking, the combination is well suited to the role of a fiber-to-Ethernet bridge.
Installation Experience
A typical installation should begin with confirming compatibility between the converters, included SFP modules, multi-mode fiber cable, and Ethernet equipment. Once the hardware is positioned, the RJ45 connection can be made between the converter and the local network device, while the fiber connection links the two converter locations.
Because LC connectors are relatively common in fiber installations, users familiar with structured cabling should find the connection concept straightforward. However, fiber connectors should be handled carefully and kept clean because contamination can affect optical performance.

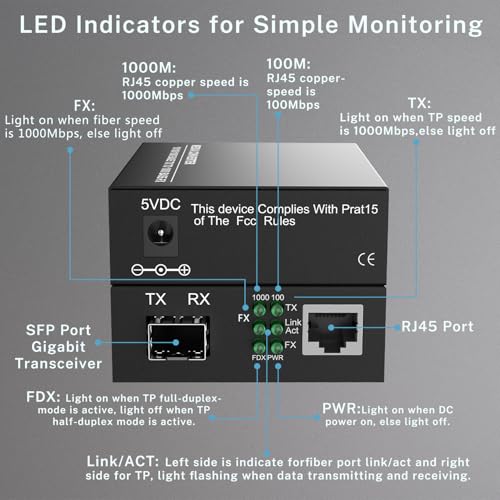

For troubleshooting, it is useful to verify link indicators, Ethernet cable connections, SFP seating, fiber polarity, and compatibility before assuming that the converter itself is defective. A properly planned installation can reduce unnecessary troubleshooting and help maintain stable network connectivity.
Where This Kit Makes Sense
This type of two-converter kit can be useful in several scenarios. An office may need to connect a network switch in one building section to another switch farther away. A warehouse might need to extend Ethernet connectivity to a distant workstation. A school or commercial facility could use fiber between network closets while retaining ordinary RJ45 connections at the equipment ends.
It can also complement a broader server or storage deployment. If a NAS, workstation, security system, or server is located farther away from the primary network cabinet, fiber can provide a practical backbone connection while the endpoint equipment continues using standard Ethernet.
For readers researching networking accessories alongside other technology equipment, this Related Guide offers an example of how internal product resources can be incorporated into a broader equipment research workflow.
What to Check Before Buying
Compatibility is the most important consideration. This kit is designed around 1000Base-SX multi-mode fiber and 850nm SFP optics, so buyers should confirm that their fiber infrastructure matches those requirements. The fiber connector should also be compatible with the LC interface.
Distance should be considered as well. Although the stated reach is up to 550 meters, the actual maximum depends on the optical characteristics of the fiber and the complete installation. If the planned cable run is close to the maximum distance, checking the specifications of the installed fiber is particularly important.
It is also worth remembering that these devices perform media conversion rather than switching. If a project requires VLAN configuration, traffic management, PoE, routing, multiple fiber ports, or advanced monitoring, those functions would need to come from separate compatible networking equipment.
FAQ
What does a fiber media converter do?
A fiber media converter changes network signals between different physical media. In this case, it connects 1000Base-SX multi-mode fiber with 10/100/1000Base-TX copper Ethernet, allowing compatible RJ45 networking equipment to communicate over a fiber link.
Does this kit include two converters?

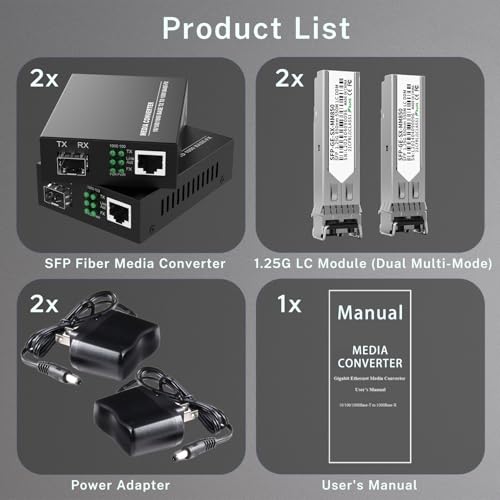

Yes. The product description specifies a 2-pack of BiDi Gigabit multi-mode fiber Ethernet media converters, along with two SFP LC transceiver modules. This makes the package suitable for a basic two-ended fiber-to-copper connection.
What type of fiber does it use?
The system is designed for multi-mode fiber using 1000Base-SX and 850nm optical transceivers. Buyers should confirm their installed fiber specifications before connecting the equipment.
How far can the fiber connection reach?
The stated maximum distance is up to 550 meters. Actual performance can vary according to the multi-mode fiber type, optical loss, connectors, installation quality, and network conditions.
Can I connect this to a normal Ethernet switch?
Yes, the RJ45 side is intended for 10/100/1000Base-TX Ethernet connections. This means a compatible Ethernet switch, router, computer, server, or other Ethernet device can be connected to the copper interface.
Is this a managed network switch?
No. These products are media converters rather than managed Ethernet switches. They provide the physical media conversion required to connect compatible copper Ethernet and fiber links.
What connector does the fiber side use?
The included optical transceiver modules use LC connectors. The fiber patch cable and infrastructure should therefore be compatible with the LC interface and the required multi-mode fiber specifications.
Can this be used for a long-distance office network?
It can be suitable for extending compatible Gigabit Ethernet over multi-mode fiber within the supported distance. The exact suitability depends on the building layout, fiber infrastructure, network hardware, and required bandwidth.
Does fiber provide an advantage over a very long Ethernet cable?
Fiber is designed for longer-distance network transmission than a typical copper Ethernet segment and can also provide electrical isolation between endpoints. For installations that exceed normal copper Ethernet distances, fiber can therefore be a practical alternative.
Is this useful for a Pro fiber network switch Kit?
It can be a useful supporting component for a Pro fiber network switch Kit when the network includes both fiber and RJ45 equipment. The converters allow compatible copper Ethernet devices to connect through a multi-mode fiber segment, while the actual switching functionality remains with the connected network switches.
Final Thoughts
The 2Pack BiDi Gigabit Multi-Mode Fiber Ethernet Media Converters offer a straightforward approach to connecting copper Ethernet equipment through a multi-mode fiber infrastructure. With 1000Base-SX support, 10/100/1000Base-TX RJ45 connectivity, 850nm SFP optics, LC connectors, and a stated reach of up to 550 meters, the kit is designed around practical Gigabit fiber-extension applications.
The two-unit configuration is particularly convenient for point-to-point installations because both ends of the fiber connection can be equipped from the same package. Whether the goal is to connect separated network cabinets, extend connectivity across a facility, or integrate existing RJ45 equipment with a fiber backbone, a media converter can simplify the transition between copper and optical networking.
As with any fiber installation, compatibility remains essential. Verify the multi-mode fiber type, LC connectors, optical specifications, Ethernet speeds, and required distance before deployment. When those requirements align, this compact converter pair can serve as a useful building block within a larger wired networking environment.
