Introduction

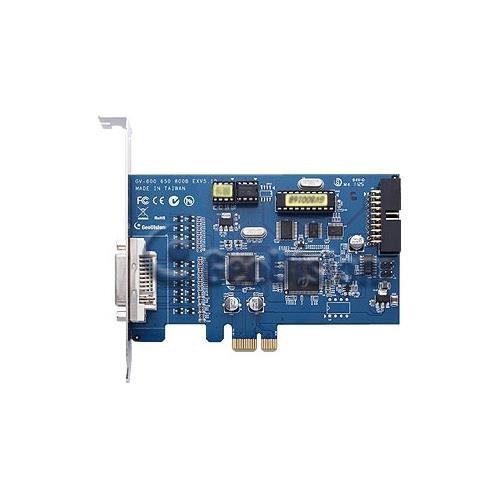

The GeoVision GV-800B-8 8 Channel DVR Video Capture Card is a dedicated PCI Express video capture solution designed for building a computer-based surveillance and DVR recording system. Rather than functioning like a modern USB webcam capture device, this card is intended to become the video acquisition hardware inside a compatible Windows-based security computer. With DVI-based camera connectivity, multiple video channels, audio support, and a total recording capability of up to 120 fps for NTSC systems, it is aimed at users who need centralized recording from several surveillance cameras.For anyone researching a Premium Edition professional video capture system, the GV-800B-8 is particularly interesting because it takes a traditional PC-DVR approach. GeoVision’s documentation identifies the GV-800B family as a PCI Express capture platform supporting up to 16 video channels depending on configuration, with the single-card version offering up to four audio channels. The GV-800B series supports Geo MPEG4 and Geo H.264 compression and can reach a total recording rate of 120 fps for NTSC or 100 fps for PAL in the supported configurations.
That makes this card less about flashy modern connectivity and more about dependable integration into an established surveillance workstation. If you already have compatible analog cameras, a suitable computer, storage, and the required GeoVision software environment, the GV-800B-8 can serve as the central capture component. It is also important to recognize that this is an older-generation platform, so buyers should verify motherboard, operating-system, driver, connector, and software compatibility before purchasing.
Features
8-Channel Video Capture
The biggest attraction is the ability to consolidate multiple surveillance feeds into one PC-based recording platform. The GV-800B family was designed around multi-camera DVR applications, with the 8-channel configuration providing a practical middle ground for small commercial installations, offices, workshops, retail spaces, and other locations that require several camera viewpoints.Instead of purchasing an individual capture device for every camera, a dedicated multi-channel card centralizes acquisition inside the computer. This can simplify the physical architecture of a traditional DVR installation and make it easier to manage recorded footage from one workstation.
PCI Express Interface
The GV-800B uses a PCI Express x1 interface in the documented PCI-E configuration. This is important because the card is intended for installation directly inside a compatible desktop computer rather than being used as an external USB accessory.Before installation, check that the target PC has an available compatible PCI Express slot and sufficient physical clearance. Because this is an internal expansion card, buyers should also plan the cable routing from the camera connections to the computer chassis.
DVI-Based Camera Input

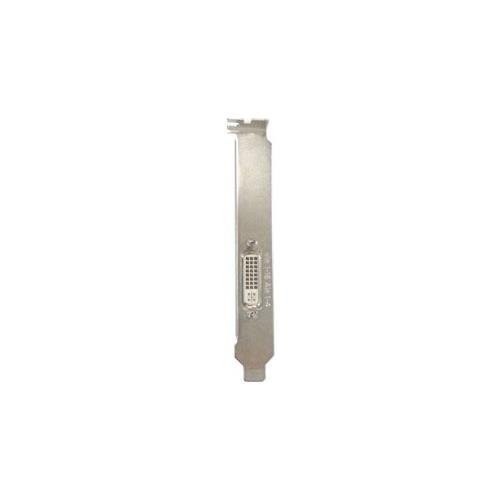

One of the more unusual characteristics of this capture hardware is its DVI input architecture. The official documentation specifies DVI as the input type, with dedicated multi-camera cabling used to connect the supported surveillance sources.
This means buyers should not assume that the card accepts ordinary HDMI, DisplayPort, or USB camera signals simply because the connector architecture may look familiar. The intended installation uses the appropriate GeoVision cabling and compatible camera sources. Confirming exactly what cables and accessories are included with the particular listing is therefore essential.
Audio Recording Support
The GV-800B platform also supports audio input. GeoVision’s documentation lists four audio channels for a single GV-800B card, while configurations using two GV-800B cards can provide eight audio channels. This gives an appropriately configured surveillance workstation the ability to associate sound with supported camera channels where local laws, camera hardware, cabling, and installation requirements permit it.
Up to 120 FPS Total Recording Rate
The product description’s 120 fps figure deserves some clarification. It is a total recording rate, not necessarily 120 fps for every individual camera. GeoVision documentation lists the GV-800B at up to 120 fps total for NTSC and 100 fps total for PAL, with actual per-channel performance depending on the number of active inputs and recording resolution. For example, the documented specifications show that D1 recording distributes the available frame rate across channels differently than lower-resolution CIF recording. This distinction is important when planning a multi-camera security system because the number of cameras, selected resolution, and video standard all influence the resulting recording rate.
GeoVision Compression
The GV-800B documentation lists Geo MPEG4 and Geo H.264 among its supported video compression formats. Compression is particularly important in DVR applications because continuous multi-camera recording can generate substantial amounts of data. The selected recording configuration and retention period should therefore be matched with adequate hard-drive capacity.For a surveillance workstation, this approach can be practical when the priority is maintaining an organized recording archive rather than capturing extremely high-resolution modern video. Buyers should nevertheless remember that this is legacy DVR technology and should not expect the image quality or connectivity of a contemporary IP-camera NVR.
Pros & Cons
| Pros | Cons |
|---|---|
| Supports multi-camera DVR recording | Older PCI Express capture architecture |
| Up to 120 fps total NTSC recording capability | 120 fps is a total rate, not 120 fps per channel |
| Supports audio input | Requires compatible GeoVision cabling and equipment |
| DVI-based multi-camera connectivity | Not a plug-and-play USB capture device |
| Supports Geo MPEG4 and Geo H.264 compression | Compatibility should be checked carefully on modern PCs |
| Useful for dedicated PC-DVR installations | Not designed for modern HDMI/DisplayPort/IP-camera workflows |
| PCI Express x1 interface | Legacy software and operating-system requirements may limit deployment |
Performance
In the right environment, the GV-800B-8’s biggest performance advantage is centralized multi-channel recording. Instead of treating every camera as an independent device, the card allows a compatible PC to act as the DVR platform. This can be useful for installations where an existing computer is already designated for security monitoring and recording.The available frame rate is also appropriate for traditional surveillance workloads. GeoVision’s specifications show that the GV-800B can provide up to 120 fps total under NTSC conditions, while PAL configurations reach up to 100 fps total. However, buyers should pay close attention to how that total is divided among channels. At higher resolutions and with more cameras active simultaneously, the per-camera frame rate can be lower.
Resolution is another important consideration. The documented GV-800B specifications include resolutions such as 704 x 480 and 640 x 480 for NTSC and 704 x 576 and 640 x 480 for PAL, along with lower-resolution modes. These specifications place the card firmly in the traditional DVR category rather than the modern high-definition surveillance category.For a legacy security system, however, that may not be a disadvantage. A business replacing or expanding an existing GeoVision-based installation may value compatibility with its current workflow more than having the newest camera interface. The card can make sense where the goal is maintaining a known PC-DVR architecture rather than rebuilding the entire surveillance system around IP cameras.
Installation Considerations
Installation requires more planning than a typical external capture device. The card must be physically installed in a compatible PCI Express slot, appropriate drivers and software need to be available, and the camera cabling must match the card’s DVI-based input architecture. GeoVision’s installation documentation also describes a hardware watchdog connection and software installation process for the GV-800B family. The documented system requirements for the older GV-800B platform were based on legacy Windows environments and hardware, including Windows XP, Vista, 7, 8, and certain Windows Server versions in the historical documentation. Because modern operating systems and motherboards have changed substantially, compatibility should be verified before treating this card as a drop-in component for a new computer.This is arguably the most important practical point in evaluating the product today. The hardware itself may still be useful, but its value depends heavily on the surrounding system. A buyer with a compatible legacy workstation and cameras may have a very different experience from someone trying to install the card into a brand-new Windows 11 PC.
Who Should Consider It?
The GV-800B-8 is best suited to users who specifically need a traditional PC-based DVR capture card and understand the requirements of legacy surveillance hardware. It can be relevant to installers maintaining older systems, businesses replacing a failed capture board, hobbyists building a dedicated DVR workstation, or users who already have compatible GeoVision equipment.It is less appropriate for someone starting from scratch with modern IP cameras. If your cameras use Ethernet and PoE, a contemporary NVR or network-based surveillance platform will generally be a more natural architecture. Likewise, if your goal is HDMI video production, streaming, gaming capture, or modern high-resolution cinema acquisition, this product belongs to a very different category.For additional background on video transmission equipment and related workflows, this October 2026
