DC Circuit Breaker 2P Photovoltaic High Sensitivity DC Disconnect Switch Overload Switch 32A Review 2026
Power substation equipment plays a critical role in ensuring the safety, stability, and efficiency of modern electrical infrastructure, especially in photovoltaic systems, industrial grids, and high-load power distribution environments. The DC Circuit Breaker 2P Photovoltaic High Sensitivity DC Disconnect Switch Overload Switch (32A) is engineered for demanding applications where precision protection and rapid disconnection are essential. In 2026, as solar energy systems and DC microgrids continue to expand globally, the need for reliable circuit protection has never been more important.
This advanced DC breaker is designed to handle a wide voltage range from DC 12V to 240V, making it highly versatile for solar power plants, substations, battery storage systems, and industrial automation setups. With a strong 4KA breaking capacity, it provides dependable fault isolation, preventing damage to sensitive equipment and ensuring operational continuity. Its high sensitivity mechanism reacts quickly to overloads and short circuits, reducing the risk of fire hazards and system failure.
Whether you are upgrading a photovoltaic installation or building a new power distribution network, this DC circuit breaker delivers professional-grade protection. Its 2-pole configuration ensures stable disconnection of both positive and negative lines, improving system safety and compliance with modern electrical standards.
Key Features of DC Circuit Breaker 2P Photovoltaic Switch
This DC circuit breaker is packed with engineering features that make it ideal for both industrial and renewable energy systems. Its design focuses on durability, safety, and high-efficiency electrical management.
One of its most important features is its high sensitivity overload protection. This ensures that even minor electrical anomalies are detected early, preventing escalation into major system failures. The breaker is built with thermal-magnetic protection technology, which responds to both sudden surges and prolonged overload conditions.
The 2P (two-pole) configuration is another essential feature, allowing simultaneous disconnection of both DC lines. This is particularly important in photovoltaic systems where polarity safety is crucial. The device supports a wide operating range from 12V to 240V DC, making it suitable for solar panels, battery banks, UPS systems, and industrial DC circuits.
Its 4KA breaking capacity ensures it can safely interrupt high fault currents without damage to internal components. This is especially useful in power substations and energy storage systems where fault currents can be extremely high.
In addition, the compact modular design allows easy installation on DIN rails, making it compatible with standard electrical enclosures. The robust housing is flame-retardant and designed to withstand harsh environmental conditions, including heat, dust, and vibration.
Overall, these features make it a reliable choice for engineers and technicians working on modern power infrastructure systems.
Performance and Real-World Application
In real-world testing scenarios, this DC breaker demonstrates stable and reliable performance across various electrical environments. In photovoltaic systems, it effectively isolates faulty strings of solar panels, preventing reverse current flow and protecting inverters from damage. This ensures continuous energy production even during partial system faults.
In industrial substations, the breaker performs exceptionally well under high load conditions. Its fast tripping mechanism activates instantly during short circuits, minimizing downtime and reducing equipment stress. Engineers value its predictable response time, which helps maintain system integrity in mission-critical operations.
Battery energy storage systems also benefit significantly from this device. It helps regulate charging and discharging circuits, preventing overheating and ensuring long-term battery health. The high voltage tolerance makes it suitable for lithium-ion and lead-acid battery configurations commonly used in renewable energy storage.
Another important aspect is thermal stability. Even under continuous load, the breaker maintains consistent performance without excessive heat buildup. This makes it suitable for enclosed installations where ventilation may be limited.
Overall, the performance profile of this DC circuit breaker makes it a dependable solution for modern electrical engineering applications, especially in renewable energy infrastructure.
Pros and Cons
| Pros | Cons |
|---|---|
| High sensitivity overload and short-circuit protection | Not suitable for AC-only systems |
| Wide DC voltage range (12V–240V) | Requires proper installation knowledge |
| Strong 4KA breaking capacity | May be over-specified for small home projects |
| 2-pole safety disconnection for improved protection | DIN rail setup required for optimal use |
| Durable flame-retardant housing | Limited advanced smart connectivity |
Installation, Safety, and System Integration

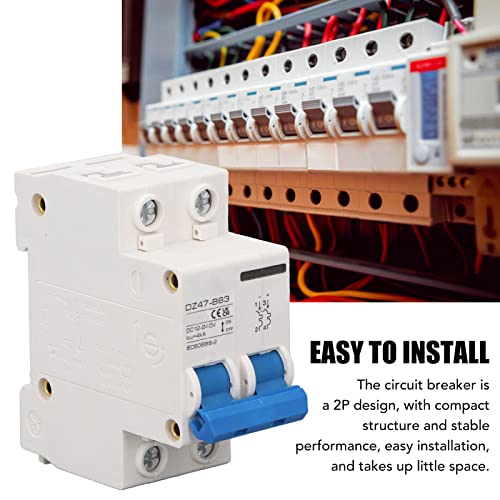

Installation of this DC circuit breaker is straightforward for trained electricians. It is designed for DIN rail mounting, allowing quick integration into standard electrical cabinets used in substations and photovoltaic systems. Proper wiring ensures both poles are securely connected, minimizing the risk of polarity errors.
Safety is a major advantage of this device. It isolates DC circuits effectively during overload conditions, preventing equipment damage and reducing fire risks. This makes it especially important in high-energy environments such as solar farms and battery storage facilities.
For users building advanced smart infrastructure, integrating protective devices like this breaker alongside modern monitoring systems and even smart security solutions such as a smart biometric front door lock with cam system can help create a more secure and automated facility environment. Together, these technologies support both electrical safety and physical access control in industrial environments.
Technicians recommend regular inspection and testing to ensure optimal performance. Dust-free installation environments and proper load balancing further enhance the lifespan of the device.
Frequently Asked Questions (FAQ)
Q1: Can this DC breaker be used for solar panel systems?
Yes, it is specifically designed for photovoltaic systems and solar power installations, offering reliable DC protection.
Q2: What voltage range does it support?
It supports a wide DC range from 12V to 240V, making it suitable for various industrial and renewable energy applications.
Q3: Is it suitable for home use?
It can be used in advanced home solar setups, but it is primarily designed for industrial and substation environments.
Q4: Does it protect against short circuits?
Yes, it features both overload and short-circuit protection with a 4KA breaking capacity.
Q5: Is professional installation required?
Yes, for safety and compliance, installation by a qualified electrician is strongly recommended.
Final Verdict
The DC Circuit Breaker 2P Photovoltaic High Sensitivity Switch 32A stands out as a dependable solution for modern power infrastructure. Its strong protective capabilities, wide voltage compatibility, and industrial-grade durability make it a valuable component in photovoltaic systems, substations, and DC power networks.
For engineers, installers, and energy system designers seeking reliability and safety, this device delivers consistent performance and peace of mind in demanding environments.
