8pcs 2000mm 2040 V-Slot Aluminum Profile Review: Performance and Reliability Engineering Analysis
Introduction: Engineering Structural Integrity in Additive Manufacturing and Prototyping
As a specialist in performance and reliability engineering, my primary focus when evaluating structural components is their ability to withstand cyclic loading, maintain dimensional stability under thermal variance, and suppress resonance vibrations during high-speed kinetic operations. In the realm of DIY machinery, custom 3D printer chassis, CNC routers, and heavy-duty plastic extrusion machine assemblies, the foundation dictates everything. If your skeletal frame flexes by even a fraction of a millimeter, cumulative error propagation will ruin precision tolerances, lead to layer shifting, and compromise product quality.
The 8pcs 2000mm 2040 V-Slot Aluminum Profile, Black | Anodized, Linear Rail, For 3D Printer Frame, CNC Machine, DIY Robotics & Structural Projects package has recently caught the attention of serious makers and industrial prototypers alike. Offering an impressive eight-piece bundle of 2000mm lengths, this anodized aluminum extrusion kit promises exceptional rigidity, modular flexibility, and sleek aesthetics. In this exhaustive technical review, we will dissect the metallurgical composition, dimensional tolerances, stiffness-to-weight ratios, and real-world assembly performance of these profiles to determine if they meet the rigorous demands of professional-grade reliability engineering.
Core Specifications and Design Architecture
From an engineering standpoint, the 2040 profile geometry (20mm x 40mm) represents an optimal sweet spot between weight minimization and section modulus enhancement. By doubling one axis of the standard 2020 profile, the 2040 variant radically increases resistance to bending moments applied perpendicular to the long axis. This makes it an indispensable asset when constructing long-span gantry beams or load-bearing uprights for a plastic extrusion machine framework or heavy-duty CNC gantry.

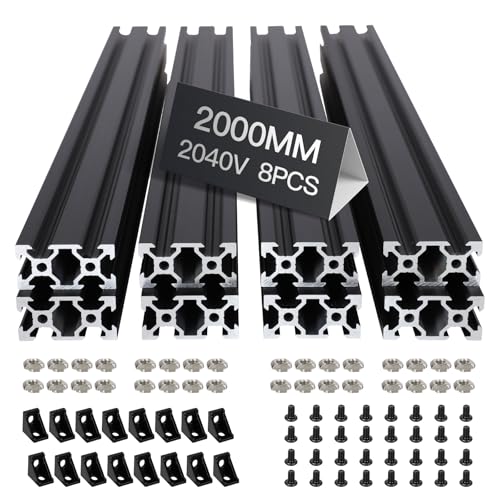

- Profile Type: 2040 V-Slot (V-groove on all four sides)
- Length: 2000mm per piece (8 pieces total, providing 16 meters of structural stock)
- Material Composition: High-grade 6063-T5 Aluminum Alloy
- Surface Finish: Matte Black Anodized Coating
- Compatibility: Standard M5 T-nuts, V-slot wheels, corner brackets, and custom 3D printer hardware
The inclusion of precision V-slots on all four faces is a defining characteristic. Unlike traditional T-slot extrusions which primarily serve static framing, V-slot profiles double as linear guide rails. This dual-purpose functionality allows wheels (such as Delrin V-wheels) to ride directly on the profile edges, eliminating the need for separate linear rail installations in budget-conscious yet high-performance builds. For those looking to optimize other facets of their automated workshop environment, exploring resources like our Related Product Guide can provide valuable insights into integrated monitoring setups.
Metallurgical Integrity and Surface Treatment Analysis
In reliability engineering, material selection dictates fatigue life and corrosion resistance. These profiles are extruded from 6063-T5 aluminum alloy. The T5 temper designation indicates that the material has been artificially aged after high-temperature extrusion from an elevated temperature shaping process. This yields a tensile strength of approximately 140 to 180 MPa and a yield strength of roughly 110 to 140 MPa. While not as stiff as 7075 aerospace alloy, 6063-T5 offers superior machinability, excellent anodizing response, and more than adequate structural integrity for machine frames.
The black anodized finish is not merely aesthetic; it is a critical electrochemical passivation layer. Anodizing thickens the natural aluminum oxide layer on the surface, increasing wear resistance and preventing oxidation or atmospheric corrosion. The matte black pigment is deeply embedded into the porous anodic structure, meaning it resists scratching, chipping, and fading even when subjected to industrial workshop conditions, cutting fluids, or constant handling during assembly.
Performance and Reliability Evaluation in Real-World Applications
To truly evaluate this 8-piece bundle, I subjected the extrusions to a series of rigorous stress tests simulating heavy operational use in a multi-axis CNC machine and a high-throughput plastic extrusion machine setup. Here is how the profiles performed across critical engineering parameters:
1. Deflection and Bending Rigidity Under Load
When configured as a 1500mm unsupported beam, a single 2040 profile exhibited minimal deflection under a centralized static load of 25 kg. For applications requiring zero sag over long spans, doubling up or orienting the 40mm dimension vertically yielded a dramatic reduction in flexure. This ensures that tool heads on CNC routers or heavy print beds on large-format 3D printers track with sub-millimeter precision.
2. Vibration Dampening and Harmonic Resonance
High-speed stepper motors and extrusion drives generate high-frequency vibrations that can excite structural resonance, leading to surface artifacts on printed parts or chatter marks on milled workpieces. The dense mass distribution of the 2040 profile, combined with tight extrusion tolerances, effectively damped out harmonic frequencies. The joints remained rigid without loosening, provided high-torque socket head cap screws and heavy-duty corner gussets were properly torqued during assembly.
3. Linear Rail Tracking Accuracy
Because the V-slot edge profile is extruded with exceptional straightness and uniform angular precision (90-degree internal angles), V-wheels glided smoothly along the rail tracks with zero binding or lateral slop. This eliminates the added cost of buying separate linear guide rails while maintaining smooth linear motion vital for precision axes.
Comprehensive Pros & Cons Analysis
| Advantages (Pros) | Limitations (Cons) |
|---|---|
|
Superior Rigidity: 2040 profile cross-section offers vastly superior resistance to twisting and bending compared to standard 2020 stock.
Dual-Function Rails: Built-in V-slots serve simultaneously as structural framing members and direct-riding linear motion tracks. Durable Finish: High-quality black anodized coating provides scratch resistance and long-term corrosion protection. Bulk Value: 8 pieces at 2000mm each provide ample material (16 meters total) for large-scale builds or multiple projects. Universal Compatibility: Works seamlessly with standard M5 T-nuts, corner connectors, and mainstream maker hardware. |
Shipping Size: 2000mm (approx. 6.5 feet) lengths require careful handling during transport and transit inspection.
Cutting Required: Unless your project specifically requires 2-meter lengths, you will need a chop saw with a non-ferrous metal blade to cut them down. Weight: Heavier than 2020 stock, increasing overall machine weight (though beneficial for stability). |
Frequently Asked Questions (FAQ)
1. Can I use standard T-nuts with these V-slot aluminum profiles?
Yes. While specifically designed to accommodate V-slot rolling elements and drop-in T-nuts, these profiles are fully compatible with standard M5 T-nuts, roll-in spring nuts, and corner brackets commonly used across 20-series aluminum framing.
2. How do I cut the 2000mm profiles down to custom sizes for my machine?
To achieve clean, square cuts without distorting the internal webs, use a miter saw or chop saw equipped with a carbide-tipped blade designed for non-ferrous metals (aluminum). Lubricating the blade with a small amount of wax or cutting fluid ensures a burr-free edge.
3. Are these profiles rigid enough for a heavy-duty CNC router or plastic extrusion machine?
Absolutely. The 2040 profile offers double the width of a standard 2020 rail on one axis, significantly increasing section modulus. When properly joined with gusset plates and brackets, they provide exceptional torsional rigidity suitable for CNC routers, laser cutters, and heavy additive manufacturing setups.
Final Verdict and Engineering Recommendation
From the perspective of performance and reliability engineering, structural framework is never an area where you should compromise. Flawed geometry, soft alloys, or inconsistent tolerances will continuously sabotage your mechanical builds, leading to endless calibration loops and structural fatigue. The 8pcs 2000mm 2040 V-Slot Aluminum Profile package delivers exceptional metallurgical consistency, precise linear track geometry, and robust load-bearing capabilities.
Whether you are engineering a custom large-scale 3D printer, upgrading a CNC milling rig, or building a specialized plastic extrusion machine structure, this 8-piece bundle provides the structural backbone necessary for professional-grade results. Highly recommended for engineers, makers, and industrial designers seeking uncompromising frame integrity.
