Introduction
Building a compact home lab, small office network, or dedicated NAS setup often comes down to one challenge: finding enough equipment space without sacrificing accessibility. The Server Rack Wall Mount 9U with Swing Open is designed for exactly this type of environment. This 19-inch wall mount network rack provides a practical enclosure for networking hardware, NAS equipment, switches, patch panels, routers, power accessories, and other rack-mount components while using vertical wall space instead of valuable floor area.
For anyone searching for an Outdoor rackmount NAS storage System, it is important to understand that this rack is primarily a wall-mounted equipment enclosure rather than a weatherproof outdoor cabinet. Its value is in organizing compatible rack equipment in compact indoor or appropriately protected installations. The 9U format gives you enough vertical capacity for many small networking projects while keeping the overall footprint manageable.
The swing-open design is particularly useful when equipment needs frequent maintenance. Instead of removing the entire enclosure from the wall or struggling to reach rear connections, the cabinet can open for easier access. This can make cable management, upgrades, troubleshooting, and routine maintenance considerably more convenient.
Features
9U Compact Rack Capacity
The 9U configuration provides a useful amount of vertical rack space without requiring a full-size floor cabinet. A 9U rack is well suited to installations where a few essential components need to be consolidated into one organized location. Depending on the dimensions of the individual devices, you can configure the available rack units around switches, patch panels, network appliances, storage equipment, shelves, cable organizers, and other 19-inch hardware.
This makes the cabinet particularly attractive for home labs and small offices where equipment requirements are growing but a large server room cabinet would be excessive. The vertical arrangement can also help create a cleaner installation by moving networking equipment away from desks and other working surfaces.
19-Inch Equipment Compatibility
The rack is designed around the common 19-inch equipment format, making it suitable for a broad selection of networking and computing accessories. Compatibility will depend on the depth, mounting requirements, and weight of your specific hardware, so checking individual equipment specifications before installation is recommended.
For a NAS-oriented setup, the available rack space can potentially accommodate compatible rackmount storage hardware alongside network switches, patch panels, cable management accessories, and power distribution equipment. Desktop NAS units that are not designed for rack mounting may require an appropriate rack shelf rather than being mounted directly to the rails.

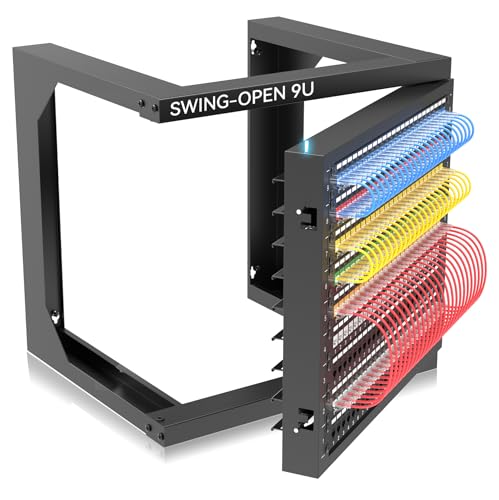

Swing-Open Design
One of the standout practical features is the swing-open construction. Traditional wall-mounted cabinets can make rear access difficult, particularly after multiple network cables and power connections have been installed. A swing-open design can make it easier to reach equipment, inspect connections, and perform maintenance.
This is valuable for home labs because networking configurations tend to evolve. You might add a faster switch, replace a router, upgrade storage, or reorganize cabling. Easier physical access means less time spent disconnecting and rearranging an entire installation simply to reach the back of a device.
Space-Saving Wall Mount Installation
Wall mounting is the main reason to consider this style of cabinet. Instead of occupying floor space, the rack uses vertical wall area. That can be especially useful in compact offices, utility rooms, network closets, workshops, and home labs.
A wall-mounted cabinet can also help create a dedicated location for networking equipment. Rather than having a router, switch, NAS accessories, and cables scattered around a workspace, compatible components can be consolidated into a single rack system.
Organized Cable Management
As a network grows, cable organization becomes increasingly important. Ethernet cables, power cords, patch cables, uplinks, and storage connections can quickly turn a small installation into a difficult-to-service bundle. A rack cabinet provides a defined equipment area where cable routing can be planned more systematically.
For a NAS and networking installation, consider separating power and data cables where practical, labeling Ethernet connections, leaving sufficient cable slack for service, and avoiding excessive bends. A neat installation is not simply about appearance; it can make future troubleshooting and upgrades much easier.
Sturdy Construction for Network Equipment
The cabinet is designed as a sturdy enclosure for compatible rack equipment. That makes it a practical alternative to leaving valuable networking hardware exposed on shelves or desks. When properly mounted to an appropriate wall structure with suitable hardware, a rack cabinet can provide a stable home for supported equipment.
Installation should always account for the combined weight of the cabinet and all installed equipment. Heavy NAS systems, UPS units, batteries, and other substantial devices can create significant loads. Use appropriate mounting hardware and verify the wall structure and cabinet specifications before loading the rack.
Useful for Home Labs and Small Offices
The 9U size strikes a middle ground between a basic wall shelf and a much larger server rack. It can work well for users who need structured rack space but do not operate a large enterprise infrastructure.
A compact configuration might include a patch panel, Ethernet switch, router or firewall, rack shelf, cable organizer, and storage-related equipment. Another installation might prioritize a NAS, switch, power distribution unit, and connectivity accessories. The exact configuration depends on the dimensions and mounting requirements of your hardware.
Pros & Cons
| Pros | Cons |
|---|---|
| Compact 9U wall-mounted format | Limited compared with larger floor-standing racks |
| Designed for standard 19-inch rack equipment | Equipment depth must be checked carefully |
| Swing-open access simplifies maintenance | Wall structure must support the loaded weight |
| Helps save valuable floor space | Not automatically suitable for exposed outdoor environments |
| Useful for home labs and small offices | Non-rackmount NAS units may need a shelf |
| Creates a more organized networking area | Large UPS or deep equipment may not fit comfortably |
Performance
In practical use, the biggest advantage of this 9U wall mount rack is organization. A rack cabinet does not make networking equipment faster by itself, but it can provide a better physical environment for building and maintaining a structured system.
For example, a small NAS network can be arranged with the storage system, Ethernet switch, patch panel, and supporting accessories in a centralized location. This can shorten cable runs and make it easier to identify where individual connections terminate. If your network uses multi-gigabit or 10GbE hardware, proper cable organization becomes even more useful because high-speed networking installations often involve multiple dedicated connections and carefully selected cables.
The swing-open feature can also have a noticeable effect on maintenance. Imagine needing to replace an Ethernet cable connected behind a switch or inspect a power connection. A cabinet that provides easier rear access can reduce the amount of time and physical effort required for these jobs.
Another important consideration is airflow. Rack-mounted equipment can generate substantial heat, especially when several active devices are installed close together. NAS systems, switches, routers, and storage hardware should have the ventilation clearance recommended by their manufacturers. Do not assume that an enclosed rack automatically provides sufficient cooling for every equipment combination.
If you are planning an installation described as an Outdoor rackmount NAS storage System, the environmental conditions deserve additional attention. This wall-mounted cabinet should not be treated as a substitute for a certified outdoor enclosure unless the product documentation specifically states that it provides the required weather, dust, temperature, and moisture protection. For an outdoor deployment, the surrounding installation may need a dedicated weatherproof structure, appropriate cable entry protection, environmental control, and suitable power protection.
NAS and Storage Setup Considerations
For rackmount NAS hardware, check the server depth, mounting rail requirements, total weight, and ventilation needs before installation. Compact rackmount NAS appliances can be a natural match for a 9U environment, while large enterprise storage systems may require a deeper or larger rack.
For desktop-style NAS systems, a rack shelf can provide a more flexible mounting method. The shelf should be rated for the device’s weight and dimensions. This approach can also leave additional rack units available for switches, patch panels, or other components.
Networking Equipment Setup
A common compact configuration is to place the network switch in a convenient rack position and use a patch panel to keep permanent cabling organized. A router or firewall can be mounted or placed on a suitable shelf depending on its design. Cable managers can then help maintain clean connections between the front and rear equipment areas.
Before mounting everything, it is worth planning the rack-unit allocation. Leave appropriate space for ventilation and service access instead of filling every available unit simply because space exists. A little planning at the beginning can prevent a crowded installation later.
Installation and Accessibility
Because the cabinet is wall-mounted, installation quality matters. The mounting surface should be capable of handling the expected load. Proper anchors, screws, and mounting methods should be selected according to the wall construction. Once the cabinet is installed, heavy equipment should be positioned carefully to avoid unnecessary stress on the mounting points.
The swing-open design becomes especially useful after installation because the cabinet can provide improved access to the equipment area. This can be beneficial when adding components or troubleshooting network problems.
If you are also planning wireless coverage around your network rack, a separate access-point or mesh configuration may be useful. For additional networking context, see this Related Guide.
Who Should Consider This 9U Wall Mount Rack?
This rack is a sensible format for users who need a dedicated equipment enclosure but do not have enough equipment to justify a large floor-standing cabinet. Home lab enthusiasts, small businesses, security-camera installations, network administrators, IT hobbyists, and compact office environments can all benefit from the organized 9U layout.
It is particularly useful when floor space is limited. Mounting the equipment vertically can free desks, shelves, and floor areas for other purposes. The swing-open design adds another layer of practicality by improving access to equipment during maintenance.
Users with large servers, deep enterprise NAS appliances, oversized UPS systems, or extensive storage arrays should carefully compare equipment dimensions before purchasing. A 9U rack provides vertical capacity, but available depth and weight capacity can be just as important as the number of rack units.
FAQ
Is this rack suitable for a NAS?
Yes, it can be suitable for compatible 19-inch rackmount NAS equipment. Desktop NAS systems may require a suitable rack shelf. Always compare the NAS dimensions, mounting requirements, depth, weight, and ventilation requirements with the rack specifications.
What does 9U mean?
9U refers to nine rack units of vertical mounting space. One rack unit is approximately 1.75 inches of vertical height, so a 9U cabinet provides approximately 15.75 inches of nominal equipment mounting height, excluding structural and clearance considerations.
Can I install a 10GbE switch in this rack?
A compatible 19-inch 10GbE switch can potentially be installed if its dimensions, mounting hardware, depth, and weight are appropriate. High-speed switches can generate heat, so adequate ventilation should be maintained.
Is this a weatherproof outdoor rack?
It should not automatically be considered weatherproof. If you are planning an outdoor rackmount NAS storage system, verify the manufacturer’s environmental protection specifications. Outdoor installations may require a purpose-built weatherproof enclosure and additional protection against moisture, dust, temperature extremes, and condensation.
Can a desktop NAS be placed inside?
Yes, if there is enough space and an appropriately rated rack shelf is used. A desktop NAS generally cannot be secured directly to standard rack rails unless it was specifically designed for rack mounting.
Does the swing-open design help with maintenance?
Yes. Swing-open access can make it easier to reach rear connections, inspect cables, replace components, and perform troubleshooting without completely removing the cabinet from the wall.
Is a 9U rack enough for a home lab?
For many compact home labs, 9U can provide a useful amount of space. A configuration might include a switch, patch panel, router or firewall, NAS or rack shelf, power accessories, and cable management hardware. Larger labs may eventually need a bigger cabinet.
What should I check before mounting it?
Check the wall structure, mounting hardware, cabinet dimensions, equipment depth, total load, ventilation requirements, cable routing, and available power. Planning these details before installation can prevent compatibility and accessibility problems.
Final Thoughts
The Server Rack Wall Mount 9U with Swing Open offers a practical way to bring structure to a compact networking or storage installation. Its combination of 9U capacity, 19-inch equipment compatibility, wall-mounted design, and swing-open accessibility makes it particularly relevant to home labs and small office environments where space and serviceability both matter.
For users building a compact NAS network, the cabinet can provide a centralized location for compatible storage equipment, switches, patch panels, and accessories. The most important step is matching every component’s dimensions, weight, mounting method, and cooling requirements with the cabinet before installation.
For an Outdoor rackmount NAS storage System, remember that rack compatibility and outdoor environmental protection are separate considerations. Use this type of cabinet only in an environment appropriate for its specifications, and use dedicated weatherproof equipment when exposure to rain, humidity, dust, or extreme temperatures is expected.
Overall, the 9U wall-mounted format is aimed at users who want a cleaner, more organized equipment installation without committing to a large floor-standing server cabinet. For compact networking environments, its accessible swing-open design and efficient use of vertical space can make equipment management significantly more convenient.
