OMTech 100W CO2 Laser Engraver Review: The Master Craftsman’s Ultimate Test of Industrial Precision
In the world of professional fabrication, mediocre machinery is a liability. When your business relies on execution speed, edge fidelity, and uncompromising structural repeatability, desktop hobby toys simply will not cut it. True mastery over materials like dense hardwoods, thick cast acrylics, and structural glass requires a machine built for heavy-duty manufacturing environments. Enter the OMTech 100W CO2 Laser Engraver with Water Chiller—a beastly cabinet system engineered to bridge the gap between boutique boutique workshops and high-output industrial production.
For craftsmen who demand absolute control over their tools, the 100-watt threshold is where serious manufacturing truly starts. Lower wattage systems force you to make painful trade-offs: slowing your feed rates to a crawl or running multiple passes that char your kerf and compromise dimensional accuracy. The OMTech 100W laser engraving machine alters that equation entirely. Providing a massive raw energy envelope coupled with automated focus calibration, an independent industrial chilling core, and seamless hardware orchestration, it promises to execute complex architectural vectors and micro-detailed raster fills without breaking a sweat. In this definitive bench test, we dissect this heavy-duty hardware from the viewpoint of an operator who accepts nothing less than flawless operational excellence.
1. Core Design and Architectural Features Breakdown

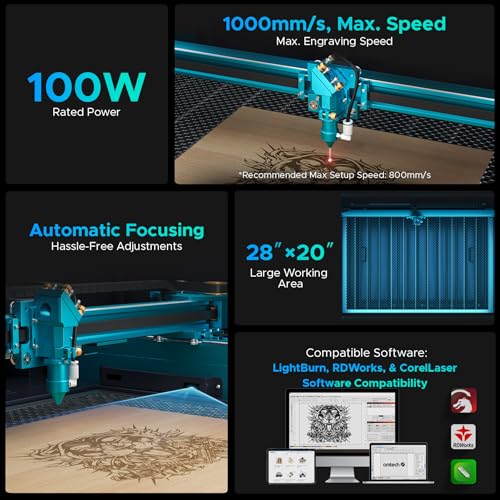

A tool is only as good as its foundational structure. The OMTech 100W CO2 Laser Engraver features a rigid, reinforced sheet-metal cabinet that completely dampens structural vibrations—a mandatory element when accelerating a heavy laser head to extreme scanning rates. Boasting an expansive 28″ x 20″ (700 x 500 mm) operational bed, this system provides ample room to handle large-scale panel optimization or nested multi-part production sheets.
Let us break down the critical architectural mechanisms that elevate this unit above generic alternatives:
- Automated Motorized Z-Axis & Autofocus: Manual focal distance checking with primitive acrylic gauges is slow and prone to human error. This machine utilizes a motorized honeycomb bed coupled with an electronic autofocus proximity sensor. With a single controller macro, the bed elevates precisely to achieve the absolute minimum focal beam waist, maximizing cutting capability and ensuring razor-sharp spot size metrics.
- 2-Way Structural Pass-Throughs: The integrated front and rear pass-through bay doors break the physical constraints of the cabinet enclosure. By opening these access points, you can easily slide long 4×8 building materials through the machine, indexing your vector paths continuously to execute massive, oversized signage installations.
- Integrated Commercial Air Assist: High-energy thermal cutting produces combustion byproducts. The built-in air assist system uses a dedicated nozzle stream to blow high-velocity compressed air directly at the focal point. This instantly suppresses flame flare-ups, pushes combustible smoke away from the optical lens coating, and eliminates surface scorching on sensitive veneers.
- Heavy-Duty Linear Guide Rails: The X and Y axes ride on hardened, industrial-grade linear guide tracks using high-durability slider blocks. This guarantees orthogonal travel accuracy down to a fraction of a millimeter, completely eliminating axis backlash and oval distortion during high-speed radius vectoring.
2. Thermodynamics & The Dedicated Industrial Water Chiller
The physics of gas laser excitation are merciless. Inside a 100W glass laser tube, electrical energy excites a carbon dioxide gas mixture to form an intense, monochromatic light stream. However, this process generates intense heat within the internal discharge envelope. If your operating temperature drifts beyond 22°C to 25°C, the gas mixture immediately loses power efficiency, the beam profile degrades, and you run the risk of cracking the internal glass cavity. Cheap water pumps submerged in open buckets are an absolute recipe for disaster in a professional shop.
OMTech circumvents this hazard entirely by supplying a dedicated, active industrial water chiller. This closed-loop refrigeration unit continuously monitors structural fluid temperature, cycling an internal compressor to maintain thermal equilibrium regardless of workshop climate ambient spikes. Ensuring that the fluid circulating through the glass cooling jacket is devoid of micro-contaminants and structurally stable is identical to ensuring industrial machinery parameters remain clean. While advanced fluid setups for filtration require specific sediment barriers—such as those detailed in our Related Product Guide—the cooling infrastructure here leverages continuous closed-loop monitoring to protect the expensive gas resonant cavity. The result? Zero thermal drifting during long, grueling 8-hour engraving runs, allowing you to replicate identical vector cuts from dawn until dusk.
3. Electronics, Control Architecture, and Software Orchestration
A powerful laser tube without smart control electronics is nothing more than an unguided blowtorch. This OMTech 100W laser engraving machine is driven by a premium, industry-standard Ruida DSP (Digital Signal Processing) control motherboard. Unlike low-tier open-frame diode plotters that rely on basic Arduino-style boards—which pause if your computer encounters a minor processing hitch—the Ruida system operates autonomously. It stores complex, multi-layered design geometries directly in its onboard flash memory, letting you feed files via Ethernet, USB, or an offline thumb drive.
For serious craftsmen, software compatibility is critical. The Ruida controller provides complete, native integration with **LightBurn** (the gold standard of laser optimization software) alongside standard options like RDWorks. This grants full access to advanced multi-layer logic setups:
- Layer 1 (Engrave): Fine-tune scanning offset parameters to run detailed grayscale photographic fills at blazing speeds up to 600 mm/s.
- Layer 2 (Score): Run high-speed vector paths at low power levels to etch crisp, precise text frameworks.
- Layer 3 (Die-Cut): Throttle the high-voltage flyback transformer to punch completely through thick structural substrates in a single pass.
4. High-Performance Pros & Cons
No industrial hardware tool is perfectly flawless across every operational matrix. To maintain absolute professional integrity, we must evaluate both the advantages and the practical adjustments required to integrate this machine into your workflow.
5. Ultimate Performance Evaluation & Material Testing
To truly judge this machine, we put it through our rigorous production floor benchmarking. We bypassed standard test grids and pushed the optics, power supply, and linear mechanics to their operational limits on multiple industrial material lines:
1/2″ Baltic Birch Plywood: Where lower-wattage units stumble and burn, the OMTech 100W slices clean through structural hardwood sheets. Tuning the machine to 60% power at a stable feed speed of 12 mm/s with maximum air assist pressure yields a clean kerf line with minimal wood discoloration. No double passes required, saving valuable time and keeping nested component tolerances incredibly tight.
3/8″ Crystal Clear Cast Acrylic: Achieving high-quality acrylic fabrication depends on melting the polymer uniformly to create a perfectly glossy, “flame-polished” edge. By backing off the air assist pressure to a gentle whisper (preventing turbulent ripples in the melted zone) and dialing the Ruida vector settings to 75% power at 8 mm/s, the 100W beam delivers water-clear, perfectly vertical edges that require absolutely zero post-process polishing.
High-Speed Glass Etching: Setting up cylindrical pieces with an optional rotary axis attachment shows off the true accuracy of the autofocus array. Running at 450 mm/s with a low 18% power output profile, the machine cleanly fractures the silica top layers without heating the surrounding glass material. This yields an exceptionally smooth, uniform frosted finish completely free of micro-shards or ugly thermal fracturing.
6. Deep-Dive Professional FAQ
A: For production environments running 20 to 30 hours a week, a quick mirror target pulse test should be performed every month. Because the structural frame uses high-rigidity sheet steel, the mirrors remain locked in place incredibly well. However, thermal cycles can cause minor shifts over time. Keeping mirrors 1, 2, and 3 aligned ensures your power remains uniform across the entire outer boundaries of the 28″ x 20″ bed.
A: No. A 10.6-micrometer wavelength CO2 laser beam is almost entirely reflected by raw, polished metal surfaces. To cut raw iron or structural steel sheets, you require a specialized fiber laser source or multi-kilowatt gas configurations. However, this 100W powerhouse is exceptional at permanently marking bare metals when paired with surface chemical compounds (like Cermark), and it will cleanly slice through anodized oxide coatings instantly.
A: The closed cooling loop must be filled strictly with pure distilled water—never standard tap water, which introduces mineral scaling onto the inner jacket glass. You should perform a complete system fluid flush every 2 to 3 months. If your shop is located in a cold region where indoor winter temperatures drop below freezing, adding specialized non-conductive laser antifreeze to the loop is mandatory to prevent the glass tube from splitting.
A: The electronic autofocus pin works by locating the absolute high point of the material before beginning a job. While it is perfect for flat sheets, it establishes a singular Z-axis depth plane for the entire program layout. If you are dealing with severely warped plywood panels, we recommend using hold-down pins to flatten the sheet to the honeycomb bed, ensuring your cuts stay entirely within the lens’s optimal focal depth range.
7. The Master Craftsman’s Final Verdict
The OMTech 100W CO2 Laser Engraver with Water Chiller is a phenomenal, rugged manufacturing asset that respects the high standards of an expert operator. It eliminates the fragile setups and tedious manual tuning typical of low-tier hobbyist gear, replacing them with a rock-solid industrial frame, responsive Ruida DSP logic, automated focal mechanics, and robust active refrigeration.
If your business demands swift production turnarounds, pristine flame-polished acrylic components, or deep, structural timber engraving, this machine is an exceptionally smart, high-yield investment. It provides the heavy-duty physical footprint, high-voltage reserve, and optical reliability necessary to upscale your workshop into a highly efficient digital fabrication house. Stop settling for slow, multi-pass compromises and claim complete mastery over your materials today.
