What Is a Multi Room Fiber Network Switch System?

A multi-room fiber network setup connects devices or network segments in different rooms through a central switching point. Fiber links can be useful for longer cable runs, electrical-noise-sensitive environments, and network backbones that need more capacity than conventional 1Gb Ethernet connections provide.This particular switch uses SFP+ ports rather than relying exclusively on conventional RJ45 Ethernet connections. SFP+ is a common interface for high-speed network transceivers, including compatible fiber-optic modules and certain direct-attach copper cables. The exact connection method depends on the modules, cables, and devices you choose.The switch is described as supporting adaptive 10G and 2.5G networking. That feature may be useful when building a network with a mixture of higher-speed equipment and selected multi-gig devices. Nevertheless, buyers should verify which port speeds and negotiation modes are supported on the exact model, especially if they intend to connect devices operating at 1Gbps.

Key Features and What They Mean in Practice

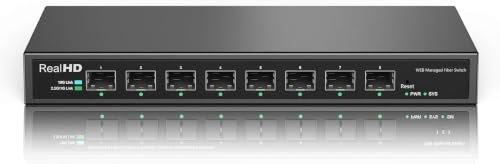

1. Eight 10Gb SFP+ Ports

The headline feature is the eight-port SFP+ configuration. It can provide multiple high-speed fiber or compatible direct-attach connections for a network backbone, storage equipment, servers, workstations, and other supported devices.For example, a small creative studio might connect a server, a network-attached storage device, and several workstation-side network links through a central switch. A home lab could use a similar arrangement to connect virtualization hosts and shared storage.Keep in mind that SFP+ ports do not automatically function like ordinary Ethernet sockets. You may need a compatible transceiver or cable at each connection. Confirm whether your devices require fiber modules, direct-attach cables, or another supported connection type.

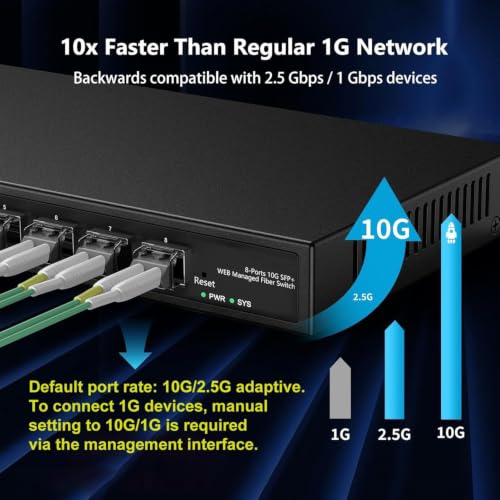

2. Adaptive 10G and 2.5G Networking

The advertised multi-gig capability is potentially helpful for networks that combine high-speed infrastructure with equipment that supports 2.5Gbps connections. A gradual upgrade can be more economical than replacing every network component at once.However, the term adaptive should not be interpreted as universal compatibility. SFP+ interfaces, RJ45 multi-gig ports, and Ethernet transceivers have different capabilities. Check the manufacturer’s port specifications and supported transceiver list to determine whether your existing hardware will negotiate the intended speed.If your network contains older 1Gb Ethernet devices, verify compatibility before purchasing. The listing’s warning about 1Gb connections is particularly important for buyers expecting every conventional Ethernet device to work without additional hardware.

3. Web Management for Network Control

A web-managed switch can offer more control than a basic unmanaged model. Depending on the functions available in the specific firmware, management features may allow administrators to configure network segmentation, prioritize traffic, inspect port status, and adjust supported settings through a browser-based interface.For a multi-room installation, centralized management can make troubleshooting easier. If a workstation cannot access shared storage, for example, the administrator may be able to examine the relevant port configuration and VLAN membership rather than checking every cable and device without guidance.Management interfaces vary considerably between products. Confirm the available login method, management IP configuration, firmware documentation, and supported features before assuming that a particular function is included.

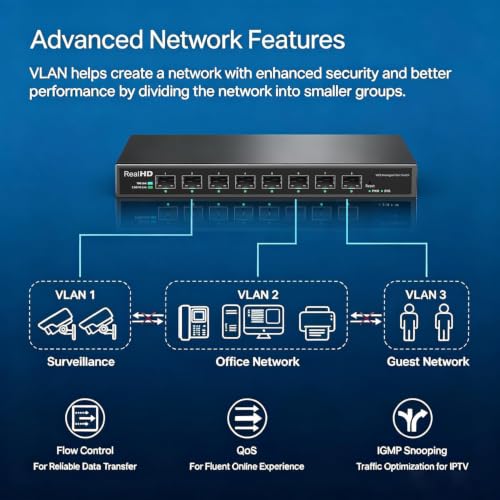

4. VLAN Support for Network Segmentation

VLAN support allows compatible network devices to separate traffic into logical networks over shared switching infrastructure. This can be useful when a home or business network contains computers, smart devices, cameras, guest equipment, and storage servers that should not all occupy the same network segment.For instance, a small office could use separate VLANs for employee computers and guest devices, provided its router and other relevant network equipment are configured accordingly. VLANs can improve organization and help enforce access policies, but they are not a substitute for a properly configured firewall.Before relying on VLAN functionality, check whether the switch supports the tagging, port modes, and management features required by your planned network design.

5. QoS and Jumbo Frames

Quality of Service (QoS) can help prioritize selected traffic when supported configurations and network conditions make prioritization useful. This may matter in environments where voice, video, storage transfers, and general internet traffic share network infrastructure.Jumbo frames can increase the maximum Ethernet frame size above the standard setting. In suitable networks, they may reduce per-packet processing overhead during certain large transfers. However, the connected devices and the entire relevant network path must support compatible frame sizes. Incorrect settings can cause connectivity problems rather than improve performance.Neither feature guarantees lower latency or faster application performance in every situation. Their value depends on traffic patterns, device compatibility, and correct configuration.

6. Fanless Design

The listed fanless construction may appeal to users who prefer to avoid fan noise in a home office, editing room, or other quiet workspace. A fanless switch can eliminate the noise produced by an internal cooling fan, although it may still generate some electronic noise depending on its components.Cooling remains important. High-speed networking components and transceivers can produce heat, particularly under sustained workloads. Install the switch in a suitable location with the ventilation and operating conditions recommended by the manufacturer. Do not assume that fanless automatically means cool-running in every environment.

7. Advertised 160G Bandwidth

The product description lists 160G bandwidth. This is a switching-capacity figure, not a promise that a single connected computer will transfer files at 160Gbps. Actual throughput depends on the port configuration, link speeds, traffic direction, endpoint capabilities, cabling, and network design.For a buyer evaluating a multi-room fiber network, it is more useful to consider the number of simultaneous connections, the speed of each link, and the expected traffic between devices than to rely on the headline figure alone.

How to Plan a Multi-Room Fiber Network

A successful installation begins with a clear picture of where your devices are located and how much bandwidth they need. The switch is only one component of the network, and its usefulness depends on the equipment connected to it.

Step 1: Identify Your Main Network Devices

List your router, access points, computers, servers, NAS devices, cameras, and other network equipment. Identify which devices support 10Gbps, 2.5Gbps, 1Gbps, or another link speed. This inventory helps prevent unnecessary spending on connections that cannot use the available capacity.

Step 2: Choose the Right Fiber or Cable

Determine the distance between rooms and whether the installation requires single-mode fiber, multimode fiber, compatible direct-attach cables, or another supported medium. Select transceivers that match the cable type, connector, wavelength where applicable, and required link speed.Do not assume that two modules will work together merely because both are described as 10G SFP+. Compatibility with the switch and the equipment at the other end must be verified.

Step 3: Check Router and Device Compatibility

Your router, network interface cards, storage devices, and other switches must support the intended connection method. A fast switch cannot make a 1Gbps endpoint operate at 10Gbps. Likewise, a router with only Gigabit ports may limit internet traffic even if local file transfers use faster links.

Step 4: Configure Management Features Carefully

After connecting the hardware, follow the product documentation to access the management interface and configure the required settings. If you use VLANs, ensure that the router, access points, and connected devices have compatible configurations. Introduce jumbo frames only after confirming that the relevant endpoints and network paths support them.

Step 5: Test Each Link

Verify link status, negotiated speed, and connectivity between intended devices. For performance testing, use suitable network tools and capable endpoints rather than relying exclusively on an internet speed test. Internet service speed and local network throughput measure different things.

Pros and Cons

Who Should Consider This Switch?

Home Lab and NAS Users

Users who frequently move large files between a NAS, workstation, and server may benefit from faster local network links if all relevant devices support them. A multi-gig or 10Gbps connection can reduce network bottlenecks that otherwise limit storage transfers.

Small Offices and Creative Studios

Video editors, designers, and teams working with large media files may find a managed fiber switch useful as part of a high-speed backbone. The fanless design may also be attractive in a quiet office, subject to appropriate cooling and installation conditions.

Network Enthusiasts

People building segmented networks or experimenting with high-speed storage and virtualization may appreciate a managed switch with VLAN and QoS capabilities. The important consideration is whether the management functions and module compatibility meet the needs of the intended setup.

Who Should Look Elsewhere?

Buyers seeking a simple plug-and-play switch for ordinary home devices may prefer an unmanaged RJ45 Ethernet switch. Users whose equipment supports only 1Gbps should verify compatibility before considering this model, especially because the product description explicitly warns against assuming universal 1Gb support.

Important Buying Considerations

Before ordering this Multi Room fiber network switch System, review the following points:

• Port compatibility: Confirm the precise port types and supported speeds, including whether the advertised 2.5G capability applies to your intended connections.
• Transceiver requirements: Verify compatible SFP+ modules, connector types, and fiber specifications. The product description specifically mentions TP-Link compatibility, so confirm support for your exact equipment.
• 1Gb Ethernet support: Do not assume that standard Gigabit devices will connect directly or negotiate successfully.
• Management features: Check the actual VLAN, QoS, jumbo-frame, and web-management capabilities in the product documentation.
• Cooling and placement: Allow sufficient ventilation, particularly if the switch will operate continuously.
• Power and installation: Confirm the power supply, mounting options, physical dimensions, and environmental requirements before planning the installation.
• Expansion needs: Consider whether you need additional RJ45 ports, PoE for access points or cameras, or more fiber connections in the future.
• Current listing details: Check Amazon for the latest specifications, included accessories, compatibility notes, return conditions, and available support information.

How Does It Compare With Other Switch Types?

The right choice depends on your existing equipment. An SFP+ switch may be an excellent fit for a fiber-based backbone, but a managed RJ45 model can be more practical if most of your devices use ordinary Ethernet cables. Some installations benefit from combining different switch types rather than trying to make one switch serve every purpose.

Frequently Asked Questions

1. Is this switch suitable for a multi-room home network?

It may be suitable when you need high-speed links between rooms and have compatible network interfaces, transceivers, and cabling. Plan the connections first and confirm the supported port speeds before purchasing.

2. Does it work with standard 1Gb Ethernet devices?

Do not assume so. The product description specifically warns that it is not a plug-and-play 1Gb solution. Check the official specifications and compatibility information for your exact device and transceiver combination before ordering.

3. Do I need separate SFP+ modules?

Possibly. The required accessories depend on the intended connections and what the package includes. Fiber links commonly require compatible modules at the relevant endpoints, while certain direct-attach cables can connect supported equipment without separate optical transceivers. Confirm the included items and compatibility list.

4. Can I use VLANs to separate guest and office traffic?

Potentially, provided the switch supports the required VLAN configuration and your router and other network equipment are configured accordingly. VLANs help organize and separate traffic, but firewall rules and other security controls may still be necessary.

5. Does 160G bandwidth mean a device can transfer files at 160Gbps?

No. The advertised bandwidth is a switch-level capacity figure. A single connection is limited by its negotiated link speed and the capabilities of the connected devices. Actual file-transfer speeds also depend on storage performance, protocols, and other network conditions.

6. Is a fanless switch suitable for continuous operation?

A fanless design can be useful in a quiet environment, but suitability for continuous operation depends on the manufacturer’s operating specifications, component temperatures, and installation conditions. Maintain adequate ventilation and confirm the product’s supported operating environment.

Final Verdict

This 8-port 10Gb SFP+ web-managed fiber switch is worth evaluating if you are building a high-speed network backbone for a home lab, NAS setup, small office, or creative workspace. Its advertised combination of 10G SFP+ connectivity, adaptive multi-gig capability, VLAN, QoS, jumbo frames, fanless construction, and 160G bandwidth may suit users who want more control over their network infrastructure.Its main limitation is the need to verify compatibility before buying. SFP+ equipment is not universally interchangeable, and the listing’s warning about 1Gb Ethernet makes checking your existing hardware especially important. Buyers who need simple connections for conventional home devices may be better served by an ordinary RJ45 switch.Overall, consider this model when its port configuration and management capabilities match a clearly defined networking plan. Confirm the latest Amazon listing, supported transceivers, included accessories, and documentation before making a decision.If you are also equipping a workshop or maintaining other hardware, you can explore this related https://omnixbuy.com/heavy-duty-cordless-impact-wrench-kit-6/“>heavy-duty cordless impact wrench kit guide on Omnixbuy.
