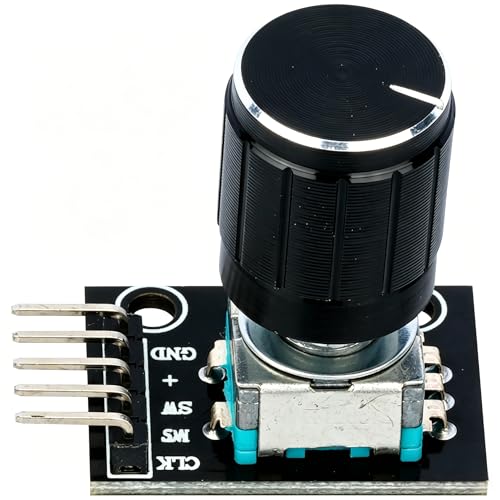

What Is the 5-Piece KY-040 Rotary Encoder Module Set?

The KY-040 is a commonly used rotary encoder module in Arduino-style electronics projects. Unlike a potentiometer, which typically provides an absolute resistance-based position, a rotary encoder detects changes in rotational position. A compatible microcontroller can process those changes to determine the direction of rotation and track user input.This makes rotary encoders useful when a project needs an adjustable setting, menu navigation, or a physical dial. The supplied black knobs provide a conventional dial-style interface, while the five-piece quantity gives builders multiple components for a larger project or spare modules for future experiments.

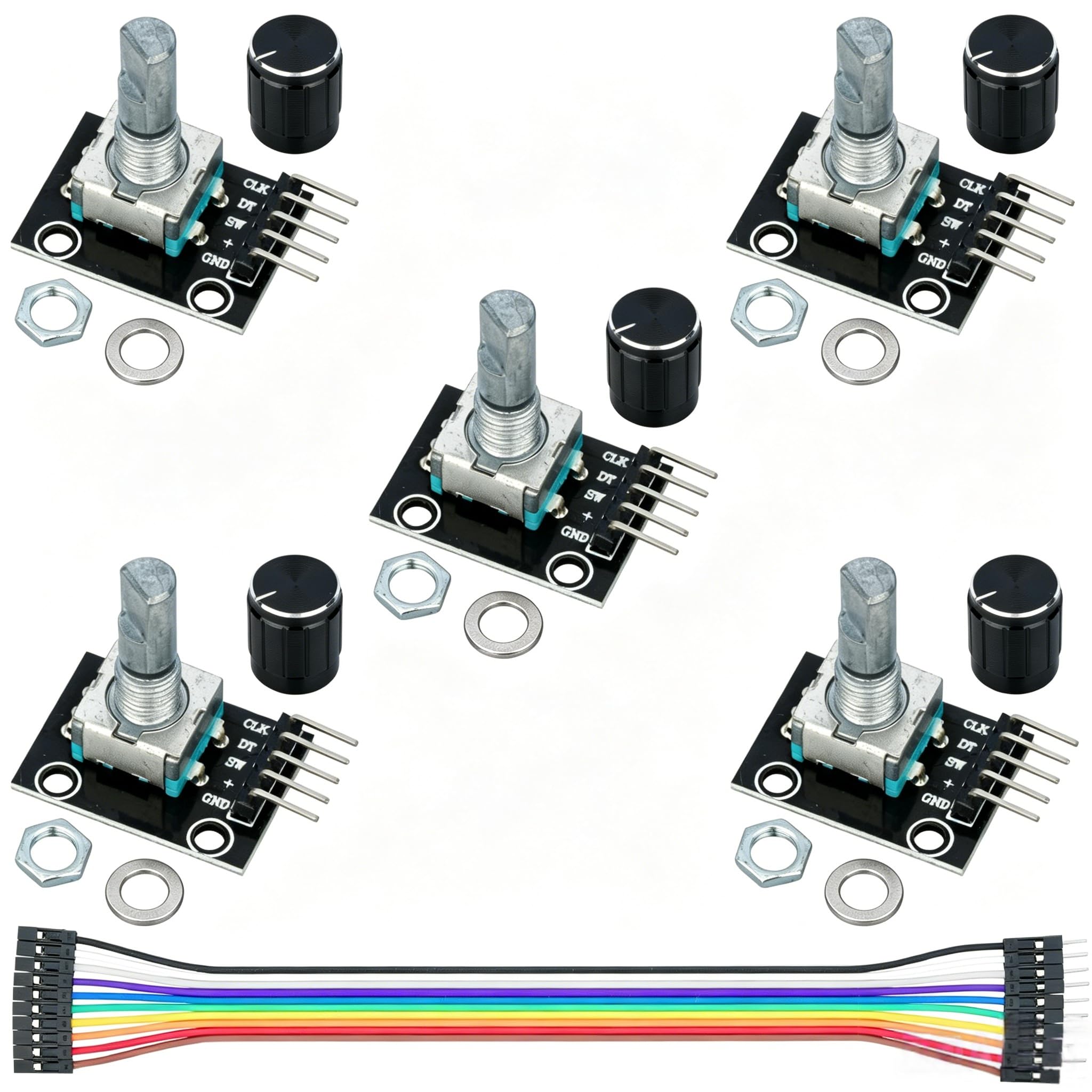

What Does the Five-Piece Set Offer?

• Multiple encoder modules: Build several controls or keep spare modules available.
• Black rotary knobs: Provide a familiar grip for turning a dial.
• Rotational input: Let compatible electronics detect clockwise and counterclockwise movement.
• Push-button input: Many KY-040 modules incorporate a switch activated by pressing the shaft.
• DIY integration: Suitable for experimentation with microcontrollers and custom control interfaces.

The exact contents, pin labels, electrical characteristics, and included accessories can vary between sellers. Confirm the current Amazon listing before purchasing, particularly if you need a specific board layout or connector arrangement.

How It Fits a Multi Function Professional Streaming Encoder System

A physical rotary control can make a custom streaming workstation easier to operate. Instead of relying entirely on mouse clicks, a user can turn a dial to change a value or press it to select an option. With suitable programming, a KY-040 module can become one input in a broader Multi Function professional streaming encoder System.For example, a hobbyist could create a small control panel that uses separate dials for audio levels, menu navigation, lighting settings, or other adjustable parameters. However, the encoder itself does not directly control those functions. The connected microcontroller or computer software must translate its electrical signals into the desired actions.

Potential Streaming Control Applications

• Audio adjustment: Use a programmed dial to request volume changes through compatible software.
• Menu navigation: Scroll through custom menus and press the knob to select an item.
• Lighting controls: Adjust brightness or other supported settings through a suitable controller.
• Recording workflows: Trigger software functions when the encoder is connected to a correctly configured input system.
• DIY macro panels: Combine multiple encoders with buttons, displays, and a microcontroller to build a customized interface.

These are possible project designs, not built-in features of the KY-040 modules. If your goal is a ready-to-use streaming controller, check whether a complete USB device with supported software would be more appropriate.

Key Features and Practical Benefits

1. Rotary Input for Adjustable Controls

The main advantage of a rotary encoder is its ability to register incremental movement. A microcontroller can use this input to increase or decrease a value, move through a menu, or select between options. This is useful when a project requires repeated adjustments without a touchscreen or multiple individual buttons.Unlike a typical absolute-position potentiometer, an incremental encoder does not inherently communicate a fixed position across its full rotation. Your program must track the changes and decide what each movement means. This behavior is helpful for controls such as volume adjustment, where the physical knob does not need to match a particular absolute value.

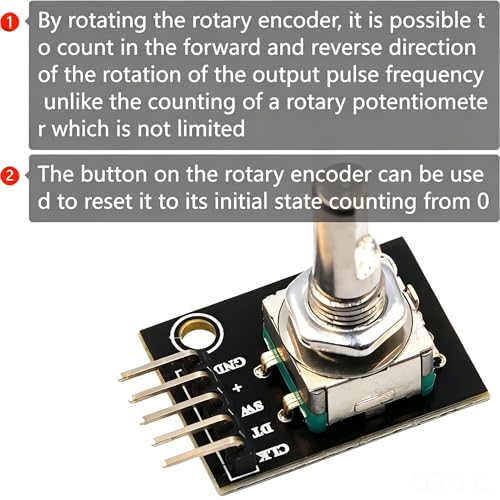

2. Integrated Push-Button Operation

Many KY-040 boards include a switch that activates when the knob shaft is pressed. This provides another input without requiring a separate external button for every function. A project might use rotation to move through a menu and a press to confirm a selection.Software should account for switch bounce, which can cause one physical press to register as several rapid electrical transitions. Debouncing logic helps make the interface more reliable.

3. Multiple Modules for Custom Projects

Five modules can be useful when designing a panel with several independent controls. For example, a builder might dedicate one dial to menu navigation, another to a lighting parameter, and others to separate settings. The precise use depends on the available inputs and the program running on the controller.The additional modules may also be useful for testing different wiring arrangements or keeping replacements available. Before planning a large panel, verify the physical dimensions, mounting requirements, and electrical connections of the actual boards.

4. Black Knobs for Physical Interaction

The included black knobs provide a recognizable control surface and may make the finished project look more organized than exposed encoder shafts. Their usefulness depends on fit, grip, clearance, and the enclosure design. Check the shaft compatibility and knob dimensions if the appearance or tactile feel of your finished controller matters.

Setup and Compatibility Considerations

The KY-040 is intended for electronic projects rather than direct connection as a conventional USB peripheral. A typical build connects the module to a compatible microcontroller, which reads the encoder signals and runs the relevant program.

What You May Need

• A compatible microcontroller or development board.
• Suitable jumper wires, connectors, and a breadboard or mounting solution.
• A power source appropriate for the selected controller and module.
• Code or a compatible library to interpret rotation and switch inputs.
• Optional enclosure, display, buttons, or other components for a finished control panel.
• Computer-side software or an interface program if the controller needs to operate streaming applications.

Before wiring the module, identify its actual pin labels and confirm the voltage requirements of both the board and the connected controller. Do not assume that every board or microcontroller uses identical electrical levels. A suitable interface may be necessary when the components have different voltage requirements.For streaming use, the software integration deserves particular attention. Reading the encoder signal is only the first step. To change an application’s volume or trigger a macro, your project needs a supported communication method and appropriate software permissions.

Performance: What Should Buyers Realistically Expect?

For basic electronic input projects, the KY-040 offers a straightforward way to experiment with rotary interaction. Its value lies in providing a physical input mechanism that can be interpreted by a programmable controller. It is not a substitute for a dedicated audio interface, a professional hardware encoder, or a complete streaming deck.

Rotation Accuracy and Responsiveness

The experience depends on the encoder’s mechanical quality, the connected circuit, and the code used to interpret its signals. Incorrect signal handling can cause missed steps, reversed movement, or inconsistent input. Good programming practices, appropriate polling or interrupt handling, and suitable debouncing can improve the overall experience.

Durability and Build Quality

The product name identifies a five-piece set with black knobs, but it does not establish a specific cycle rating, material grade, ingress protection level, or service life. If the controller will be used frequently in a studio or commercial environment, investigate the seller’s specifications and consider whether a more robust encoder is appropriate.

Noise and Physical Feel

Rotary encoders can differ in their detents, turning resistance, shaft play, and tactile feedback. These characteristics affect how comfortable a control feels during repeated adjustments. If you need a premium dial for frequent live production, check detailed product photos and reliable technical information rather than assuming every KY-040 variant feels the same.

Pros and Cons

Who Should Buy the KY-040 Encoder Modules?

Good Choice for Electronics Hobbyists

Students, makers, and Arduino enthusiasts may find the set useful for learning how incremental encoders work. The modules can support experiments with digital inputs, rotary menus, counters, and simple user interfaces. Having five units allows several designs to be explored without buying each component individually.

Useful for DIY Streaming Controller Builders

People creating a custom streaming workstation may appreciate the opportunity to add physical dials to their designs. A microcontroller can read the encoder signals, while suitable software translates those signals into actions in supported computer applications. This approach offers flexibility but requires development and testing.

Less Suitable for Buyers Seeking a Ready-Made Device

If you want to connect a dial to your computer and immediately control OBS Studio, a video editor, or a streaming platform, a standalone KY-040 module is unlikely to meet that requirement by itself. Consider a finished USB control surface with documented software support instead.

Buying Guide: What to Check Before Ordering

• Quantity: Confirm that the listing includes five encoder modules and the expected number of knobs.
• Board design: Review photographs and pin labels to ensure the module matches your project.
• Electrical compatibility: Check operating voltage and signal compatibility with your microcontroller.

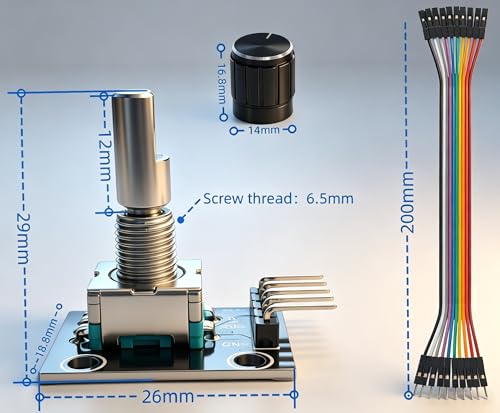

• Mounting: Consider shaft clearance, panel thickness, knob fit, and enclosure space.
• Software requirements: Make sure you can program the controller and communicate with the target application.
• Intended use: Decide whether a DIY component or a ready-made USB controller better matches your needs.
• Listing details: Confirm current specifications, package contents, availability, shipping, and return conditions on Amazon.

For buyers researching a broader workstation setup, the https://omnixbuy.com/1440p-gaming-monitor-27-inch-8/“>27-inch 1440p monitor guide on Omnixbuy may also be useful when planning a display for a streaming or computer-control workspace.

Frequently Asked Questions

1. Can I use the KY-040 as a professional streaming encoder?

Not by itself. It is a rotary input module, not a complete streaming encoder or USB control device. You need a compatible controller, suitable programming, and software integration to use it for streaming controls.

2. Does the module support both rotation and pressing?

Typical KY-040 boards provide rotational sensing and a push-button switch. Verify the exact board layout and switch configuration in the current listing before relying on those features in a particular design.

3. Can I connect it directly to a computer?

Generally, the module is designed to connect to a compatible electronic controller rather than directly to a computer’s USB port. A separate microcontroller or interface board is normally needed to communicate with computer software.

4. Are five modules enough for a custom control panel?

Five modules can provide five rotary inputs for a suitable design, although the final number of usable controls depends on wiring, available controller pins, software, and enclosure space. The package contents should be checked before ordering.

5. Is the KY-040 suitable for beginners?

It can be a useful beginner component for people who already have access to a compatible microcontroller and are willing to learn basic wiring and programming. Those seeking a ready-to-use streaming accessory may prefer a complete controller.

6. What should I verify before purchasing?

Check the module layout, pin labels, electrical requirements, knob compatibility, package quantity, seller information, and current return conditions. If you plan to use the module in a streaming setup, also confirm that you can implement the required software connection.

Final Verdict

The 5Pcs 360 Degree Rotary Encoder Module KY-040 with Black Knobs is best viewed as a component kit for custom electronics projects rather than a finished streaming accessory. Its main strengths are the multiple-module quantity, familiar rotary interface, and potential for integration into programmable control panels.For hobbyists and developers, it can be a sensible starting point for experimenting with physical controls. For a Multi Function professional streaming encoder System, however, the modules are only one part of the solution. A compatible microcontroller, carefully designed input handling, and reliable software integration are essential to turn them into practical streaming controls.Ultimately, buy this set if you want to build and customize your own interface. If you need a ready-made controller for immediate studio use, compare complete USB control surfaces before making a decision. Always confirm the latest product details and package contents on Amazon.
