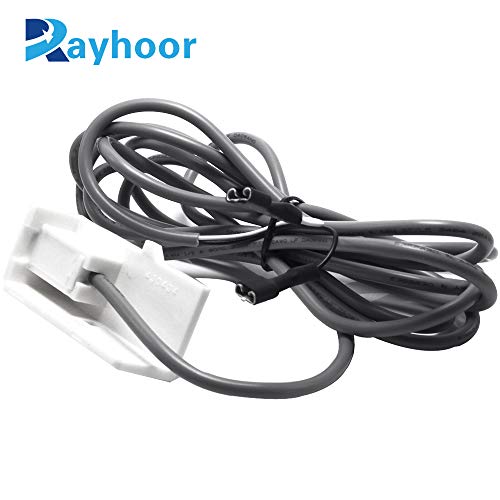

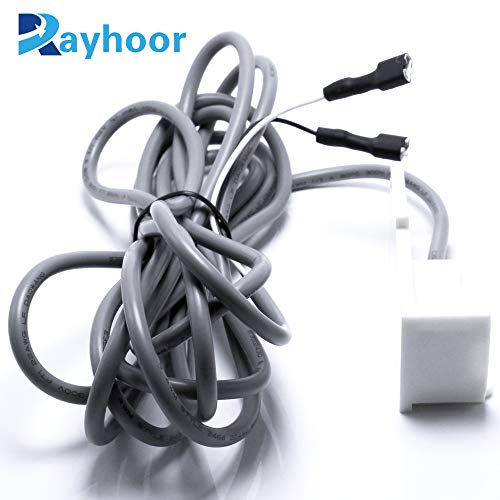

2301483 Ice Magnetic Bin Switch Assembly Replacement Part for Manitowoc Ice Machines by Rayhoor – Reliable Ice Level Control Solution for Commercial Systems
Introduction: Precision Control for Manitowoc Ice Systems
Manitowoc ice maker machine large commercial systems are widely known for their durability, high-output ice production, and reliability in restaurants, hotels, hospitals, and industrial kitchens. However, even the most advanced ice machines depend on small yet critical components to function properly. One of these essential components is the 2301483 Ice Magnetic Bin Switch Assembly Replacement Part by Rayhoor.

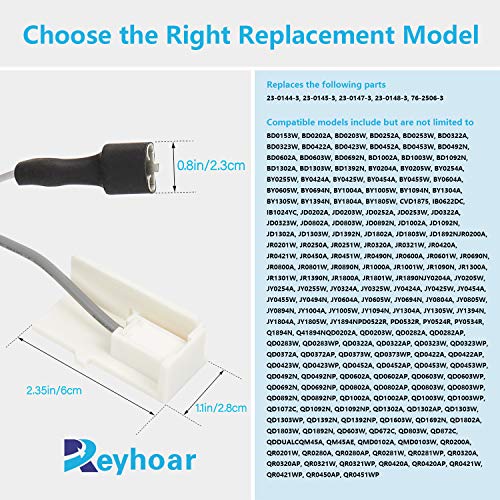

This replacement part is engineered specifically for Manitowoc ice machines and serves as a direct substitute for multiple OEM part numbers including 23-0144-3, 23-0145-3, 23-0147-3, 23-0148-3, and 76-2506-3. Its main function is to detect ice levels inside the storage bin and signal the machine to stop or resume ice production accordingly. Without a properly functioning bin switch assembly, even a high-capacity ice maker can overflow, underperform, or shut down unexpectedly.
In modern commercial environments where ice demand is constant and operational efficiency is critical, having a dependable sensor like this magnetic bin switch ensures uninterrupted service. Whether you’re running a busy café or managing a large-scale food service operation, this small component plays a big role in maintaining system balance, reducing downtime, and improving equipment lifespan.
In this detailed review, we will explore the features, performance, advantages, disadvantages, and real-world usability of this Rayhoor replacement part. By the end, you will understand why it is considered a practical and cost-effective solution for maintaining Manitowoc ice systems in 2026.
Key Features of the 2301483 Ice Magnetic Bin Switch Assembly
The Rayhoor 2301483 Ice Magnetic Bin Switch Assembly is built with precision engineering to match OEM-level performance. It ensures compatibility, reliability, and smooth integration into existing Manitowoc systems. Below are its standout features:
- Magnetic Sensing Technology: Uses a reliable magnetic detection system to monitor ice levels accurately inside the storage bin.
- OEM-Compatible Replacement: Fully replaces multiple original Manitowoc part numbers, ensuring broad compatibility.
- Durable Construction: Designed with high-quality materials to withstand moisture, cold temperatures, and continuous operation.
- Easy Installation: Simple plug-and-play design reduces service time and maintenance costs.
- Stable Performance: Provides consistent switching behavior to prevent overfilling or machine shutdown errors.
- Commercial Grade Reliability: Suitable for high-demand environments such as restaurants, bars, hotels, and catering services.
Why This Replacement Part Matters in Ice Machine Performance
Ice machines are complex systems where even minor component failure can disrupt the entire workflow. The bin switch assembly acts as a communication bridge between the ice storage bin and the control system. When ice reaches a certain level, the magnetic sensor triggers a signal that stops production, preventing overflow and mechanical strain.
Without a functioning switch, the machine may continue producing ice indefinitely, leading to blockages, wasted energy, and potential compressor damage. On the other hand, a faulty switch may stop production too early, resulting in insufficient ice supply during peak hours.
This is why replacement parts like the 2301483 Rayhoor assembly are essential for maintaining operational stability in Manitowoc systems. It ensures that ice production remains balanced, efficient, and responsive to real-time storage conditions.
Installation and Compatibility Insights
One of the strongest advantages of this replacement part is its compatibility with a wide range of Manitowoc ice machine models. It replaces several OEM part numbers, making it a flexible solution for technicians and maintenance professionals who service multiple units.
Installation is generally straightforward for trained personnel. The switch assembly is designed to integrate seamlessly into existing mounting points without requiring complex modifications. This reduces downtime significantly, which is especially important in commercial environments where every hour of machine inactivity can affect business operations.
For best results, technicians should always ensure that the machine is powered off during installation and that the magnetic alignment is properly calibrated after replacement.
Performance in Real Commercial Environments
In real-world usage, the Rayhoor 2301483 bin switch performs consistently under demanding conditions. Commercial kitchens and hospitality environments require continuous ice production, often 24/7. This component helps maintain that continuity by accurately detecting ice levels and preventing unnecessary interruptions.
Users often report improved system responsiveness after replacing worn-out or faulty bin switches. Machines regain proper cycling behavior, reducing both overproduction and underproduction issues. This leads to better energy efficiency and more predictable maintenance cycles.
Additionally, the magnetic sensing mechanism is less prone to mechanical wear compared to older mechanical switch designs, which enhances longevity and reduces the need for frequent replacements.
Pros and Cons Overview
| Pros | Cons |
|---|---|
| Compatible with multiple Manitowoc OEM part numbers | Requires professional installation for best results |
| Reliable magnetic sensing technology | Not a universal fit for non-Manitowoc machines |
| Durable construction for commercial use | Performance depends on correct alignment |
| Helps prevent ice overflow and system shutdowns | May not include installation instructions for beginners |
| Reduces maintenance downtime | Limited use outside specified models |
Maintenance and Long-Term Reliability
Maintaining ice machine components is essential for ensuring long-term reliability, especially in large-scale systems like Manitowoc units. The 2301483 bin switch assembly is designed to reduce maintenance frequency by providing stable and consistent performance over time.
However, periodic inspection is still recommended. Technicians should check for proper alignment, ensure that no ice buildup interferes with the sensor, and verify that electrical connections remain secure. Proper maintenance can significantly extend the life of both the switch and the ice machine itself.
When paired with routine cleaning and servicing of the ice system, this replacement part contributes to a more efficient and reliable operation overall.
For operators looking to optimize their commercial kitchen workflow, pairing efficient ice systems with broader operational improvements such as ergonomic workstations or equipment upgrades like a motorized folding treadmill with incline can contribute to overall workplace efficiency planning in hospitality and service environments.
FAQ – Frequently Asked Questions
Q1: Is this compatible with all Manitowoc ice machines?
It is compatible with many models that use the listed OEM part numbers, but users should verify model compatibility before purchase.
Q2: What does the bin switch assembly do?
It detects ice levels in the storage bin and signals the machine to start or stop ice production accordingly.
Q3: Can I install it myself?
While possible, professional installation is recommended for accurate alignment and safe operation.
Q4: What happens if the bin switch fails?
The machine may overproduce ice, shut down unexpectedly, or fail to maintain proper ice levels.
Q5: Is this a genuine OEM part?
It is a compatible replacement designed to meet OEM specifications but manufactured by Rayhoor.
Final Verdict
The 2301483 Ice Magnetic Bin Switch Assembly Replacement Part for Manitowoc Ice Machines by Rayhoor is a practical, efficient, and cost-effective solution for maintaining commercial ice production systems. It delivers reliable performance, broad compatibility, and durable construction suitable for demanding environments.
For businesses relying on uninterrupted ice supply, this component offers an excellent balance between affordability and functionality. When properly installed and maintained, it ensures that Manitowoc ice systems continue operating smoothly with minimal disruptions.
