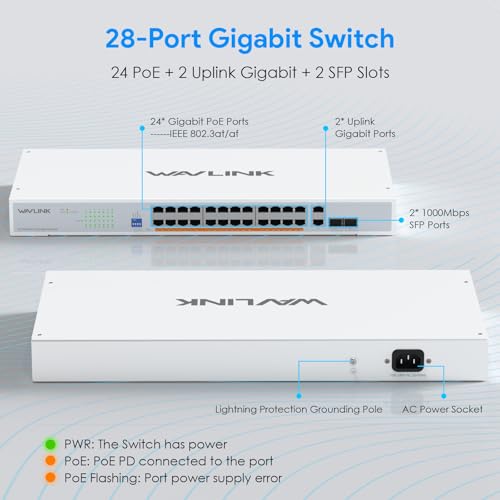

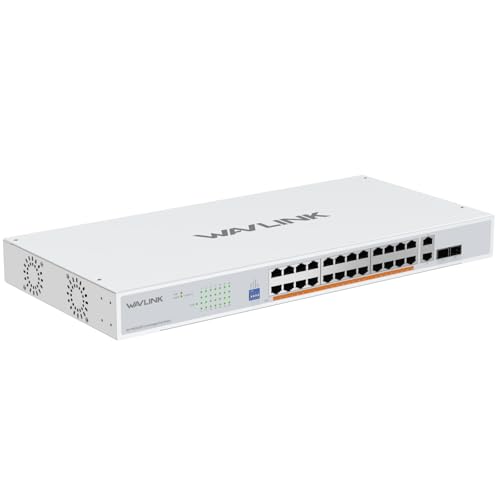

What Is the WAVLINK 28-Port Gigabit PoE+ Switch?

The WAVLINK switch combines a large collection of Ethernet ports with PoE+ power delivery and SFP connectivity. Instead of using separate power adapters for every compatible network device, you can connect supported equipment to the switch’s PoE+ ports and supply both data and electrical power over Ethernet.The product information identifies four important connectivity features:

• 24 PoE+ Ethernet ports: Designed to connect compatible powered devices, including network cameras, wireless access points, and VoIP phones.
• 250W PoE power budget: The stated total power capacity available for connected PoE devices, subject to the switch’s allocation limits and operating conditions.
• Two SFP slots: Provide options for compatible SFP modules and fiber-optic uplinks.
• Two Gigabit Ethernet uplink ports: Offer additional copper-based network connections for routers, core switches, or other network equipment.

The switch also advertises VLAN, LAG, Extend, and PD-Alive modes. These features may help with network separation, uplink configuration, compatible device reach, and recovery of powered devices. Because the unit is described as unmanaged, buyers should verify exactly how each advertised function operates and which configuration options are available.

Key Features of This Long Range Fiber Network Switch

1. Twenty-Four PoE+ Ports for Connected Devices

One of the strongest reasons to consider this model is its 24-port PoE+ configuration. For a business installing several IP cameras or access points, centralized power delivery can reduce the number of individual power adapters and simplify cable routing.For example, a small office could use the switch to connect cameras around its premises, wireless access points throughout the building, and compatible network equipment in a central cabinet. The final number of devices supported through PoE depends on their individual power requirements and the available total budget.Before purchasing, check that each powered device supports IEEE 802.3af or 802.3at. Equipment requiring more power than the applicable port standard provides may need a different solution or its own power supply.

2. A Stated 250W Power Budget

The advertised 250W PoE budget determines how much combined electrical power the switch can supply to connected devices. It does not mean that every one of the 24 ports can simultaneously deliver 250W, nor does it guarantee that all ports can operate at their maximum individual output at once.To estimate whether the budget is sufficient, add the expected power consumption of all planned PoE devices. For example, 20 devices averaging 8W each would require approximately 160W, leaving a nominal 90W of the stated budget for additional demand. This calculation is illustrative; actual consumption varies by device, and some cameras draw more power when infrared illumination, heaters, or other features activate.Allowing headroom is sensible when planning a surveillance or wireless network. It can also make future expansion easier without immediately replacing the switch.

3. SFP Slots for Fiber-Optic Uplinks

The two SFP slots are particularly relevant to anyone comparing a Long Range fiber network switch with a conventional copper-only model. With compatible SFP transceivers, fiber can connect network equipment across longer distances than standard Ethernet copper cabling typically supports, while also offering electrical isolation between connected locations.However, an SFP slot alone does not establish the maximum fiber distance. That depends on the selected transceiver, supported optical wavelength, fiber type, link budget, and compatibility with the remote device. Single-mode and multimode fiber have different characteristics, and transceivers must be selected for the intended cable and distance.Confirm whether the required SFP modules are included or sold separately. You should also verify compatibility with your router, core switch, and existing optical infrastructure before ordering.

4. Gigabit Ethernet Uplink Connections

Alongside the SFP slots, the switch has two additional Gigabit Ethernet uplink ports according to its product description. These provide flexibility when connecting to a router, another access switch, or a network backbone using copper Ethernet.Gigabit connections can be appropriate for many small and medium-sized installations, but they may become a bottleneck when numerous high-resolution cameras or other bandwidth-intensive devices share the same uplink. The actual experience depends on traffic volume, recording settings, network design, and the capabilities of connected equipment.Check the manufacturer’s port documentation to understand whether all uplinks can operate simultaneously and how they interact with LAG or other advertised modes.

5. VLAN and Link Aggregation Features

VLAN support can help separate compatible network traffic into logical groups. For example, an installer may want to separate surveillance equipment from office computers or guest wireless traffic. Proper segmentation can improve organization and reduce unnecessary communication between devices, although a VLAN feature by itself is not a substitute for a firewall or a complete security policy.LAG, short for link aggregation, can combine compatible physical links into a logical connection when supported by both ends. Depending on implementation and configuration, this may increase aggregate bandwidth or provide redundancy. It does not necessarily make an individual connection faster than its underlying link speed.Since this product is described as unmanaged, verify whether VLAN and LAG modes are preset or selectable through physical switches and whether they provide the flexibility your network requires. Do not assume it offers the comprehensive configuration interface of a fully managed switch.

6. Extend Mode and PD-Alive Functionality

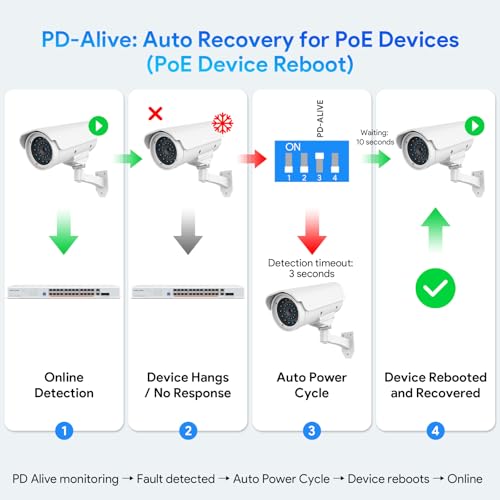

The advertised Extend mode may be useful for certain installations where compatible devices need to be connected over longer copper Ethernet runs. However, extended-reach modes can change port speed, and the supported distance depends on the device implementation, cable quality, and environmental conditions.PD-Alive mode is intended to help monitor or recover connected powered devices. This can be useful for remote cameras or access points that may occasionally stop responding. Its exact detection and recovery behavior should be confirmed in the product documentation rather than assumed from the feature name alone.Neither feature eliminates the need for good cable installation, suitable surge protection, or a network design that meets the installation’s distance and reliability requirements.

Performance and Practical Applications

For IP Camera and CCTV Systems

The 24 PoE+ ports make this switch a potential fit for a multi-camera installation. A central switch can simplify connections between compatible cameras, a network video recorder, and the rest of the local network. The SFP slots may also help connect a remote building or equipment cabinet through a suitable fiber link.Before deploying it, estimate the total camera bandwidth and power consumption. High-resolution cameras with demanding frame rates can generate significant traffic, especially when many devices transmit simultaneously. Check whether the available uplink capacity is sufficient for the combined traffic reaching the recorder or server.

For Offices and Wireless Access Points

Businesses can use PoE+ to power compatible access points and VoIP phones from a centralized location. This can simplify installation in areas where convenient electrical outlets are unavailable. The additional copper uplinks and SFP slots provide alternative ways to connect the switch to the wider network.However, organizations requiring advanced traffic prioritization, detailed monitoring, authentication policies, or sophisticated routing should carefully evaluate whether an unmanaged switch meets their operational needs. Those requirements may justify a managed alternative.

For Workshops, Warehouses, and Multiple Buildings

In larger spaces, fiber can provide a useful backbone between network cabinets, particularly where cable routes exceed conventional copper Ethernet limits or electrical isolation is desirable. The WAVLINK’s SFP slots may support such a design when paired with the correct modules and fiber infrastructure.For a link between separate buildings, consider grounding differences, lightning exposure, conduit, and environmental conditions. Fiber can reduce risks associated with electrical potential differences between buildings, but outdoor-rated cabling and proper installation practices remain important.

Pros and Cons

What to Check Before Buying

Choosing a network switch involves more than counting ports. Review the following points before deciding whether this model suits your installation.

• PoE power requirements: Add the maximum expected power draw of cameras, access points, phones, and other powered devices. Leave a reasonable margin below the advertised 250W budget.
• Fiber compatibility: Confirm SFP module compatibility, fiber type, connector type, wavelength, and the distance supported by the selected transceivers.
• Uplink capacity: Estimate the combined traffic that must pass between the switch and your router, recorder, server, or core network.
• Management requirements: Determine whether the advertised VLAN and LAG functions meet your needs or whether a managed switch is necessary.
• Cable quality and distance: Use suitable Ethernet cabling and check any restrictions associated with Extend mode.
• Physical installation: Confirm rack dimensions, included mounting accessories, ventilation requirements, and available space.
• Power and cooling: Check the input power requirements and installation environment. A fully loaded PoE switch can produce heat that needs adequate ventilation.
• Included accessories: Verify whether SFP modules, rack hardware, and other installation accessories are included with the particular listing.

Specifications, availability, included accessories, and seller terms can change. Confirm the current Amazon listing and product documentation before making a purchase.

How Does It Compare With Other Network Switch Types?

The right choice depends on your priorities. The WAVLINK may be attractive when a large number of PoE ports matters more than advanced management. If you need extensive monitoring, detailed security policies, or higher-speed uplinks, compare its capabilities with those of managed switches before deciding.

Who Should Consider the WAVLINK 28-Port Switch?

This switch may suit:

• Small and medium-sized businesses connecting multiple PoE devices.
• Installers building IP camera systems with centralized power delivery.
• Offices using compatible PoE wireless access points and VoIP phones.
• Network administrators who need both copper uplinks and potential fiber connectivity.
• Users who prefer an unmanaged design and do not require a full-featured management interface.

It may be less suitable for environments that require 10GbE uplinks, advanced Layer 3 routing, highly detailed per-port configuration, or more PoE power than the stated budget provides. Buyers planning a long-distance fiber connection should also budget for compatible transceivers, fiber cable, and any necessary installation work.

Frequently Asked Questions

1. Can the WAVLINK switch be used as a long-range fiber network switch?

It can potentially serve as part of a fiber-connected network because the product advertises two SFP slots. The achievable distance depends on compatible transceivers, fiber type, optical specifications, and the remote equipment. Confirm the supported configuration before purchasing.

2. Does the switch provide PoE power on all 24 Ethernet ports?

The product is advertised with 24 PoE+ ports. However, the available total power is limited by its stated 250W budget and any applicable per-port limits. Check the product documentation for the precise power allocation and supported standards.

3. Are SFP modules included?

The supplied product description identifies two SFP slots but does not confirm that transceivers are included. Check the current Amazon listing and package contents before ordering.

4. Can I connect IP cameras and wireless access points to the same switch?

Yes, provided the devices use compatible Ethernet connections and their combined power requirements remain within the switch’s limits. Plan bandwidth carefully, and use appropriate network separation if your installation requires it.

5. Is an unmanaged switch suitable for a business network?

It can be suitable for a relatively straightforward network that needs reliable connectivity without extensive configuration. Businesses requiring detailed traffic monitoring, advanced access controls, or flexible network policies may benefit from a fully managed model.

6. Will Extend mode guarantee a longer Ethernet connection?

No. The actual supported reach depends on the switch’s implementation, cable quality, connected devices, and operating speed. Consult the manufacturer’s documentation and test the planned installation before relying on extended-distance operation.

Final Verdict

The WAVLINK 28-Port Full Gigabit Switch offers a practical combination of 24 PoE+ ports, a stated 250W power budget, two SFP slots, and two additional Gigabit Ethernet uplinks. Its advertised VLAN, LAG, Extend, and PD-Alive features may also be useful for straightforward surveillance, office, and small-business network deployments.For buyers searching for a Long Range fiber network switch, the main consideration is how the SFP connectivity fits into the wider network design. The slots can provide a fiber uplink option, but the required transceivers, cable, distance capability, and remote equipment must all be compatible. The unmanaged design is another important consideration if your network needs advanced controls.Overall, this WAVLINK model is worth comparing with other PoE+ switches if you need numerous powered connections and flexible uplink options in one unit. Verify the current specifications, included accessories, power requirements, and management features before making your final decision.
