Puikos Honeycomb Laser Bed 400 x 400 mm Review: Inside the Tech Deep Dive
Introduction: Unlocking Peak Precision in Desktop Laser Cutting
Welcome to another deep technical teardown and hardware review here at Inside the Tech. If you have spent any significant amount of time operating diode or CO2 laser engravers like the popular xTool M2, D1, or D1 Pro series, you already know that the laser module itself only tells half the story. You can have a state-of-the-art optical assembly, ultra-precise stepper motors, and cutting-edge software control, but if your work surface is compromised, your final output will suffer. Enter the Puikos Honeycomb Laser Bed 400 x 400 mm Working Table—a dedicated accessory engineered to solve one of the most persistent bottlenecks in desktop laser CNC fabrication: thermal buildup, back-reflection, and smoke entrapment.
When cutting wood, acrylic, leather, or fabric with a focused high-density laser beam, the beam does not simply stop once it punches through your material. It hits whatever lies beneath. Without a proper structural bed, this residual energy causes unsightly burn marks on the underside of your workpiece due to beam reflection, while stagnant trapped gases cause charring and smoke staining. The Puikos Honeycomb Bed provides an elevated, open grid matrix that minimizes contact points, allows rapid heat dissipation, and streamlines smoke evacuation. In this comprehensive review, we are going to look under the hood of this worktable, test its thermal and structural limits, examine its compatibility across multiple platforms, and help you determine whether it deserves a permanent home on your workbench.
Build Quality and Engineering Design
At first glance, the Puikos 400 x 400 mm working table immediately impresses with its industrial-grade aesthetic. Fabricated primarily from high-strength galvanized steel and aluminum alloy framing, it balances rigidity with structural lightweight properties. The honeycomb core itself consists of tightly packed hexagonal cells engineered to provide maximum structural load-bearing capacity while maintaining an exceptionally high open-area ratio. This structural design is critical; it ensures that the weight of dense materials like thick MDF, slate, or acrylic slabs won’t cause sagging in the center over prolonged machining cycles.
The edges are bound by a durable protective aluminum alloy frame that eliminates sharp, exposed metal burrs—a common safety hazard found in cheaper, generic honeycomb beds. Furthermore, Puikos has integrated precision measurement scales along the border margins. This allows operators to quickly align materials visually or use physical stoppers without needing external rulers, drastically speeding up workflow efficiency during batch production jobs.
Key Features and Technical Specifications
When evaluating laser accessories, specifications tell the true story of how well a tool will integrate into an existing ecosystem. The Puikos Honeycomb Bed packs several standout features designed for modern CNC and laser enthusiasts:
- Optimal Dimensions: The 400 x 400 mm (approx. 15.75 x 15.75 inches) working area provides a generous footprint that accommodates standard project stock while fitting seamlessly inside popular desktop enclosures.
- Advanced Hexagonal Geometry: The dense honeycomb pattern offers uniform structural support while allowing laser beams to pass through unobstructed, preventing back-scattered scorching.

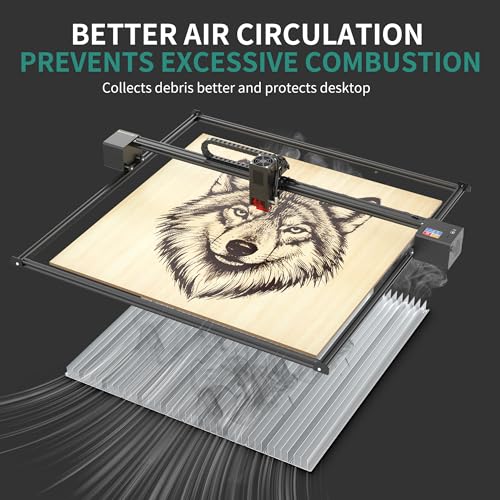

- Superior Heat and Smoke Dissipation: The open cellular layout permits unrestricted downward airflow, rapidly cooling the cut zone and preventing flare-ups during intense wood-cutting operations.
- Broad Machine Compatibility: Specifically engineered to integrate flawlessly with xTool M2, D1, and D1 Pro systems, while remaining fully compatible with various other diode and CO2 laser engraving platforms.
- Included Aluminum Protection Panel: Comes bundled with a heavy-duty aluminum base plate that shields your underlying workbench or machine chassis from stray laser energy.
Performance Analysis: Cutting, Engraving, and Thermal Management
To evaluate the real-world utility of the Puikos Honeycomb Bed, we subjected it to a battery of rigorous tests spanning multiple material types and laser intensity levels. We paired it with an xTool D1 Pro running at high power outputs to measure how effectively it managed thermal dynamics.
During prolonged vector cutting of 5mm basswood plywood, traditional solid metal or flat slate beds frequently trap hot gases directly beneath the cut line, causing resin boiling and dark carbon soot accumulation on the bottom face of the wood. With the Puikos honeycomb bed, the open structure allowed smoke and exhaust fumes to evacuate instantly downward, aided by an external ventilation fan. The underside of our test pieces emerged remarkably clean, requiring minimal post-processing sanding.
Furthermore, metal back-reflection—a common enemy of diode laser modules—was dramatically reduced. When a laser hits a solid flat floor beneath thin material, the reflected beam can scatter back up, occasionally scorching the material or even causing thermal stress on the diode lens housing. The hexagonal cell walls absorb and scatter stray energy harmlessly. For those working on precision electronics or intricate crafts, this reduction in back-reflection translates directly into higher yield rates and fewer ruined batches.
Compatibility and Setup Integration
Integration is where many third-party laser accessories stumble, but Puikos has engineered this bed to fit seamlessly into popular workflows. If you are operating an xTool M2 enclosed cutter or an xTool D1/D1 Pro open-frame system, the 400 x 400 mm dimensions fit within standard footprint limits.
Setting up the bed takes under two minutes. You simply place the included aluminum safety plate onto your machine’s base, position the honeycomb table directly on top, and you are ready to load your stock. For users managing complex smart home automation workshops or multi-tool setups, maintaining an organized workspace is vital. If you are looking to optimize other tech gear in your workshop or studio environment, you might also find our Related Product Guide helpful for climate and environment control.
Pros and Cons
| Pros | Cons |
|---|---|
|
|
Frequently Asked Questions (FAQ)
Q: Will this honeycomb bed fit inside an xTool D1 Pro enclosure?
A: Yes, the 400 x 400 mm dimensions are engineered to fit comfortably within standard enclosures designed for the xTool D1 Pro and similar desktop CNC machines.
Q: Does the package include the aluminum sheet to protect my desk?
A: Absolutely. Puikos bundles a heavy-duty aluminum protection plate that sits directly beneath the honeycomb bed, catching any stray laser energy and keeping your workstation completely safe.
Q: How do I clean resin and debris from the honeycomb cells?
A: Regular maintenance is simple. You can use a stiff nylon brush or a scraper to clear out loose ash. For sticky resin buildup from cutting woods like MDF or pine, a quick wipe down with isopropyl alcohol on a rag will keep the cells clear.
Q: Can I use this bed with CO2 laser cutters as well as diode lasers?
A: Yes, the galvanized steel construction is robust enough to handle the thermal output of both high-power diode lasers and desktop CO2 laser systems.
Final Verdict: Is the Puikos Honeycomb Bed Worth It?
After putting the Puikos Honeycomb Laser Bed 400 x 400 mm through extensive testing, it is clear that this accessory is far more than a simple metal grid—it is an essential performance upgrade for serious laser creators. By eliminating bottom-side scorching, optimizing smoke extraction, and providing rock-solid material support, it elevates the quality of every project that comes off your laser bed. If you own an xTool M2, D1, or D1 Pro and want to take your cutting precision to the next level, adding this worktable to your setup is an absolute no-brainer.
