Introduction
When a solar power system, inverter setup, or backup battery bank becomes large enough to handle serious electrical loads, the ability to safely disconnect the DC power source becomes an important part of the overall system design. The DIHOOL Battery DC Disconnect Switch is designed around that need, combining a high-current 250-amp DC breaker with a manual disconnect function for applications such as solar systems, UPS equipment, battery banks, and main power stations.For anyone building a large UPS battery backup System, a dedicated DC disconnect can provide a convenient point for isolating battery power during maintenance, troubleshooting, or system servicing. Instead of treating the battery bank as something that can simply remain connected at all times, a properly selected disconnect gives the installation a deliberate method of separating the DC source from downstream equipment.
The DIHOOL unit is particularly interesting for installations where battery current can be substantial. Its 250A rating places it in a category intended for high-current DC applications rather than small portable electronics. That makes it worth considering for solar energy storage, inverter systems, UPS installations, and other battery-powered equipment where current management and convenient isolation are part of the installation requirements.
What Is the DIHOOL 250A DC Disconnect Switch?

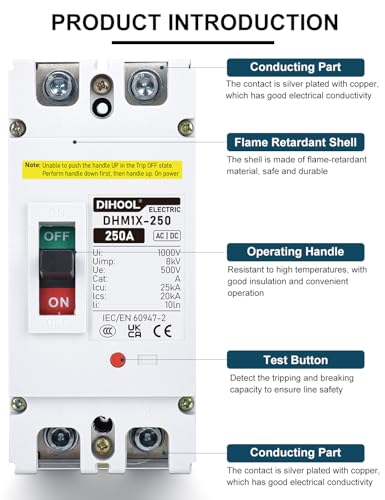

The DIHOOL Battery DC Disconnect Switch is a DC-rated breaker/disconnect intended to sit between a battery or DC power source and connected equipment. Its primary purpose is straightforward: provide a manual means of interrupting the DC circuit while also serving as a high-current protective switching component.The 250-amp designation is the key specification to pay attention to. This is not a component intended to be selected simply because the number sounds large. The breaker must be matched to the actual system voltage, conductor size, expected current, battery characteristics, and the requirements of the equipment being protected. A qualified installer should verify compatibility before installation.For a large battery-backed system, the disconnect can become part of a broader electrical architecture. A typical arrangement may include the battery bank, appropriately sized cabling, overcurrent protection, the DC disconnect, inverter or UPS equipment, grounding provisions, and other required safety components. The DIHOOL switch can serve as the manually operated isolation point within that arrangement.
Features
250A High-Current Capacity
The headline feature is its 250A current rating. That makes the switch relevant to high-current DC applications where ordinary low-amperage switches would not be suitable. Large battery banks and powerful inverter systems can draw substantial current, particularly during heavy loads or charging and discharging events.When selecting a disconnect for a high-current installation, however, the rating should never be considered in isolation. The complete electrical system must be evaluated to determine whether the breaker is appropriate for the application’s operating conditions.
Designed for DC Power Systems
DC circuits have different interruption characteristics from AC circuits, so using a component specifically intended for DC service is important. The DIHOOL product is marketed as a DC breaker for battery and solar applications, making its intended use clear.This makes it relevant to systems built around battery storage, solar power equipment, UPS installations, and other DC power architectures. Before purchasing, users should confirm the exact DC voltage compatibility and installation requirements for their particular system.

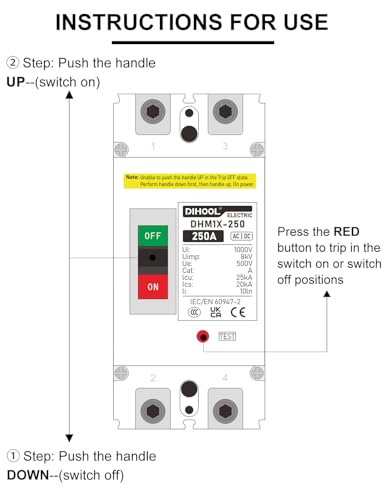

Manual Power Isolation
A major practical advantage of a disconnect switch is the ability to deliberately isolate the battery circuit. During service work, inspection, troubleshooting, or equipment replacement, having an accessible disconnect can be much more convenient than relying on improvised methods of separating the power source.For a large UPS battery backup System, this manual isolation capability can be especially useful because the battery bank may remain connected even when the connected equipment is not actively operating. A dedicated disconnect establishes a clear switching point between the source and the downstream circuit.

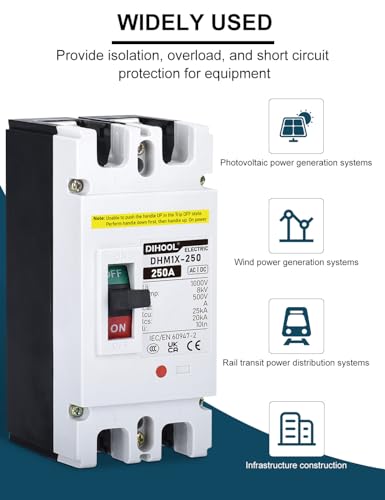

Solar and UPS Applications
The product is positioned for several related power applications, including solar systems, UPS equipment, and main power stations. These environments share a common requirement: significant DC power may need to move between batteries and power-conversion equipment.That makes the DIHOOL switch potentially useful for home energy storage projects, off-grid systems, backup power installations, workshop power systems, and other appropriately designed battery installations.
Useful for Battery Bank Maintenance
Battery systems require careful handling because stored electrical energy can be substantial. A dedicated disconnect can simplify the process of separating the battery bank from downstream equipment when maintenance procedures call for isolation.That does not eliminate the need for proper electrical safety procedures. Users should still follow the manufacturer’s installation instructions, system documentation, applicable electrical codes, and appropriate lockout or isolation procedures.
Compact Switching Concept
Rather than incorporating a complicated electronic control system, a manual DC disconnect focuses on one important task: controlling the connection between the DC source and the connected circuit. That simplicity can be useful in installations where the operator wants an easily identifiable physical switching point.For professional installations, the physical location of the disconnect is also worth considering. It should be accessible while remaining appropriately protected from accidental operation and environmental conditions.
How It Fits Into a Large UPS Battery Backup System
A UPS battery installation can involve considerable stored energy. The battery bank feeds the UPS or inverter through appropriately sized DC conductors, and the disconnect can be incorporated into that circuit according to the system design.One practical benefit is service isolation. If the UPS needs to be inspected or downstream equipment needs to be serviced, the disconnect can provide a clearly defined means of separating the battery source from the circuit. This is especially useful in larger installations where simply unplugging a device is not an option.
However, the disconnect should not be viewed as a substitute for a complete protection strategy. Cable sizing, fuse or breaker coordination, short-circuit protection, battery chemistry, DC voltage, enclosure requirements, grounding, and installation procedures all matter. A 250A rating does not automatically make a component suitable for every 250A battery application.
Pros & Cons
| Pros | Cons |
|---|---|
| High 250A current rating for substantial DC applications | Requires careful compatibility checks before installation |
| Designed specifically for DC power applications | Not intended as a universal replacement for every protection device |
| Provides a dedicated manual disconnect point | Professional installation may be appropriate for high-energy systems |
| Relevant to solar, UPS, and battery-bank configurations | Users must verify system voltage and electrical specifications |
| Useful during maintenance and troubleshooting | Proper cable, grounding, and upstream/downstream protection remain necessary |
Performance
In a high-current battery installation, the most important aspect of a disconnect is not flashy functionality but dependable operation within its specified electrical limits. The DIHOOL’s 250A rating makes it relevant to systems where current requirements exceed what smaller DC switches are designed to handle.The manual switching function is also practical. In a properly configured installation, an operator can use the disconnect to separate the battery source from the downstream equipment when the system design calls for it. This can make maintenance workflows more organized and can provide a clearly recognizable isolation point.
For solar applications, the switch can be considered as one component in the DC side of an energy-storage or power-conversion system. Solar battery banks can operate at potentially hazardous voltages and currents, so installation should be approached as electrical infrastructure rather than a casual DIY accessory.For UPS applications, the same principle applies. A larger UPS can depend on a battery bank capable of supplying significant current. In such a setup, selecting the correct disconnect involves more than matching the expected operating current. The installer should also verify voltage ratings, interrupting capabilities, conductor specifications, enclosure requirements, and compatibility with the particular battery and UPS equipment.The switch may also be useful for workshops, backup power installations, off-grid energy systems, and other battery-powered projects. Its value is greatest when the system has a genuine need for a high-current manually operated DC isolation point.
Installation Considerations

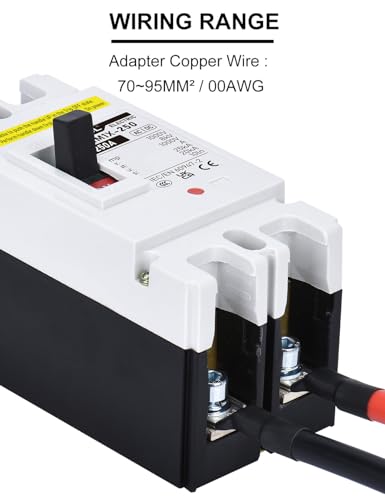

Before installing the DIHOOL 250A DC breaker, check the electrical specifications of the complete system. Confirm the nominal DC voltage, maximum expected current, conductor gauge, battery configuration, inverter or UPS requirements, and the applicable protection scheme.High-current battery circuits deserve particular attention because batteries can deliver very high fault currents. Connections should be properly sized and secured, and exposed conductive parts should be protected according to the installation environment.It is also worth planning the disconnect’s physical location before wiring begins. An accessible and clearly identified switch can make system operation and maintenance easier, while an unsuitable location can make an otherwise useful disconnect difficult to operate safely.
Anyone who is uncertain about DC electrical installation should use a qualified electrician or appropriately trained professional. Solar and UPS battery systems can store enough energy to cause severe electrical hazards if incorrectly wired or short-circuited.
Who Should Consider It?
The DIHOOL 250A DC Disconnect Switch is aimed at users who are working with substantial DC electrical systems rather than small consumer battery packs. Solar installers, UPS builders, backup-power users, off-grid system designers, and technically experienced DIY enthusiasts may find the 250A format relevant when their system specifications call for it.It is particularly worth considering when the installation needs a dedicated physical isolation point. The product’s purpose is more specialized than that of a general-purpose electrical switch, so buyers should focus on whether their specific system requirements match the device’s specifications.If you are researching inspection equipment for electrical, mechanical, or equipment-maintenance projects, this September 2026
