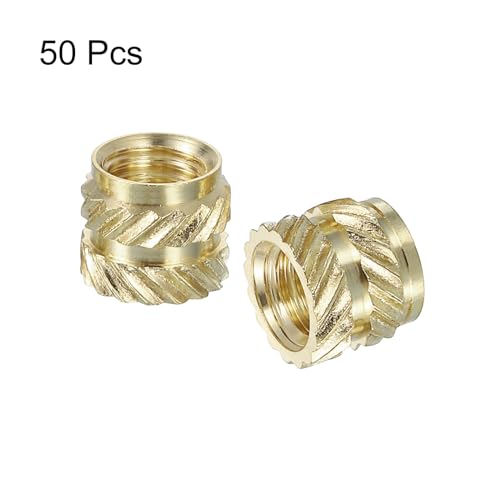

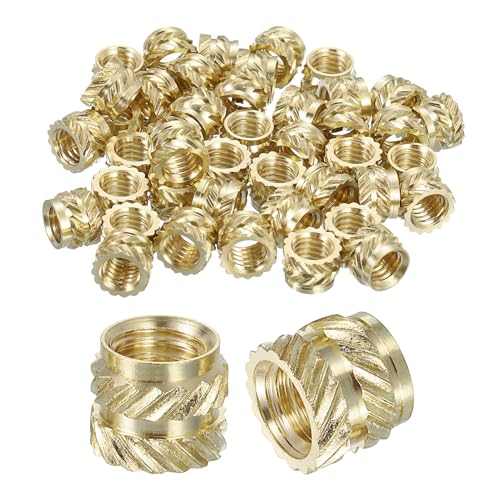

uxcell Knurled Insert Nuts Review: Optimizing Workplace Ergonomics and 3D Assembly Workflow
When operating in a modern prototyping laboratory, manufacturing cell, or custom fabrication workspace, physical efficiency and tool reliability dictate overall output. As an ergonomic specialist focusing on micro-mechanical assembly, reducing operator fatigue and optimizing tactile interaction points is paramount. Every component used in post-processing 3D-printed parts directly influences wrist torque, posture strain, and repetitive motion stress. The uxcell Knurled Insert Nuts, 50pcs M5 x 6mm L x 7mm OD 3D Printing Brass Nuts represent a fundamental shift in how mechanical fasteners integrate with thermoplastic housings. By providing a reliable, heat-set female threaded anchor, these inserts minimize the need for awkward, force-intensive tapping or unstable thread configurations, thereby protecting workstation posture and operator well-being.
In this comprehensive analysis, we examine how these precision-engineered brass inserts perform under industrial workflows, looking closely at their thermal conductivity, knurled grip geometry, and how they contribute to a frictionless, strain-free assembly ecosystem. Whether you are scaling up custom injection molding ancillary components or producing heavy-duty robotic enclosures, understanding the micro-ergonomics of fasteners is essential for long-term productivity.
Introduction to Thermal Heat-Set Inserts and Ergonomic Workflow Design
In professional prototyping environments, assembly line efficiency is deeply tied to fastener predictability. Traditional self-tapping screws driven directly into plastics require high downward axial force, causing repetitive wrist strain, carpal compression, and grip fatigue over extended shifts. Furthermore, stripped threads lead to frustrating rework, increasing cognitive load and physical frustration.
Heat-set brass inserts, such as the uxcell M5 x 6mm variants, transform this paradigm. By utilizing a controlled thermal insertion iron, the surrounding polymer matrix melts smoothly around the diamond knurling, creating an atomic-level mechanical lock without requiring excessive torque. This allows technicians to assemble complex multi-axis enclosures with minimal muscular effort. For teams looking to integrate smart lab automation and hardware setups, matching components with a Related Product Guide can further streamline your interconnected workspace infrastructure.

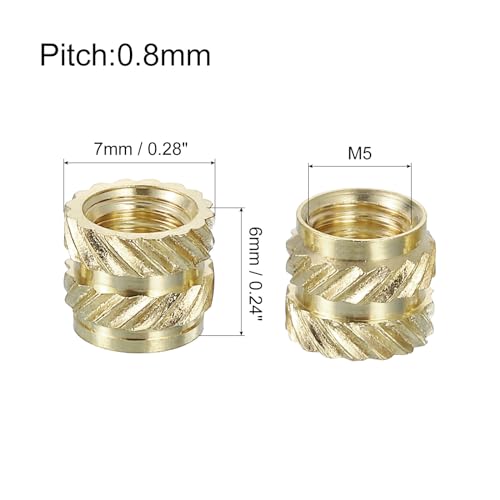

Core Specifications and Design Architecture
Precision manufacturing relies heavily on tight dimensional tolerances. The uxcell M5 knurled inserts are meticulously proportioned to fit standard thermal holes across a wide range of fused deposition modeling (FDM) and injection-molded thermoplastics like ABS, PETG, Nylon, and polycarbonate.
- Thread Size: M5 standard metric female threads, compatible with widespread industrial bolts.
- Length: 6mm total height, offering deep engagement for heavy mechanical loads.
- Outer Diameter (OD): 7mm, optimized for standard wall thicknesses without risking casing blowout.
- Material Composition: High-grade solid brass, ensuring exceptional corrosion resistance and balanced thermal transfer.
- Knurling Pattern: Helical and straight diamond knurl combination for supreme rotational and pull-out resistance.
From an ergonomic perspective, the 7mm outer diameter and 6mm height strike an optimal balance. They provide a robust anchoring platform that handles high-torque tightening without demanding oversized boss features on the 3D printed part, keeping overall housing profiles sleek and lightweight.
Thermal Performance and Installation Ergonomics
When evaluating tools and hardware from a workplace ergonomics standpoint, the speed and physical effort required for setup are primary metrics. If an operator struggles to seat hardware, cumulative trauma disorders (CTDs) can develop in the fingers and wrists.
The uxcell brass nuts feature exceptional thermal conductivity. When touched with a heated soldering iron tip fitted with an M5 insertion adapter, the brass rapidly reaches uniform temperature. It glides into the pre-designed printed hole with minimal vertical downward force—less than 2 kilograms of pressure is typically required. The molten plastic flows seamlessly into the diamond knurled grooves, cooling into a rigid, permanent lock.
This frictionless insertion process eliminates the jarring shock and vibration associated with hammer-in or cold-press inserts, protecting the technician’s joints and nerves from micro-impact trauma.
Comprehensive Pros & Cons Evaluation
To provide an objective overview for engineering managers and hobbyists alike, here is a detailed breakdown of the advantages and limitations of the uxcell M5 Knurled Insert Nuts:
| Advantages (Pros) | Considerations (Cons) |
|---|---|
| Exceptional Pull-Out Strength: Deep helical knurling provides superior torque and pull resistance. | Precision Hole Sizing Required: Requires exact drill or print hole dimensions (~6.4mm-6.6mm depending on material) for optimal fit. |
| Ergonomic Installation: Low insertion force protects worker joints from repetitive strain injuries. | Thermal Equipment Needed: Requires a temperature-controlled soldering iron or dedicated insertion press. |

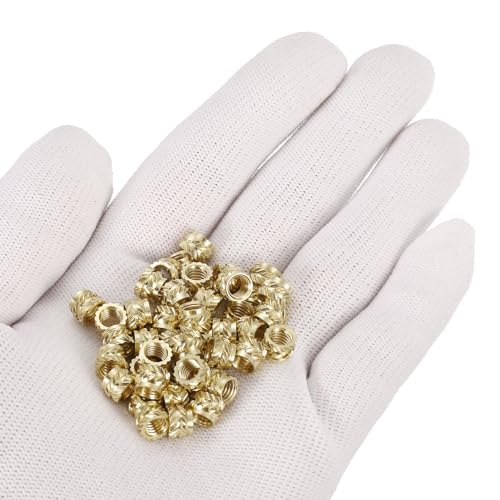

| High-Grade Brass: Corrosion-resistant material ensures long-lasting durability in industrial conditions. | Bulk Packaging Management: 50-piece pack requires organized storage bins to prevent workspace clutter. |
| Standard M5 Threading: Highly versatile, matching standard metric bolts used across automation setups. | Initial Learning Curve: Operators need brief training on dwell time to prevent excessive plastic melt-out. |
Long-Term Durability and Structural Integrity
In industrial settings, fasteners undergo constant mechanical cycling, thermal expansion, and vibration stress. Cheap zinc-plated or aluminum inserts often strip or gall under repeated bolt insertion and removal. The solid brass composition of the uxcell nuts guarantees thread longevity, resisting stripping even after dozens of maintenance cycles.
Furthermore, because the heat-setting process evenly distributes stress across the entire 6mm cylindrical body, stress concentrations are minimized. This prevents micro-cracking in the surrounding polymer matrix—a common failure point in poorly designed mechanical assemblies. By maintaining structural integrity over time, these inserts reduce unexpected maintenance downtime, thereby lowering cognitive stress and physical strain for maintenance personnel.
Frequently Asked Questions (FAQ)
1. What is the recommended hole size for printing or drilling before inserting these M5 nuts?
For most standard filaments like PLA, PETG, and ABS, a hole diameter between 6.3mm and 6.5mm provides the ideal interference fit, allowing the knurled ridges to bite securely into the melted plastic without cracking the surrounding wall.
2. Can these brass inserts be used with injection molding machines directly?

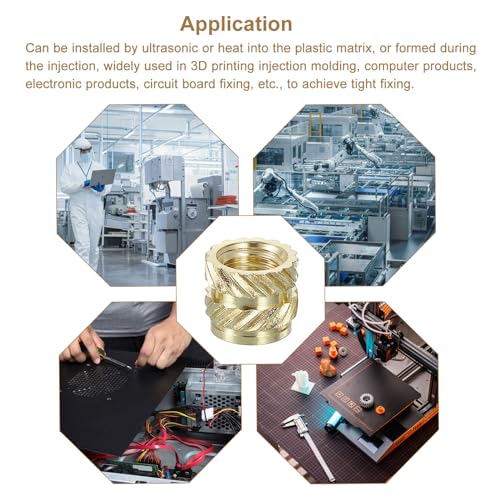

Yes, while marketed heavily for 3D printing post-processing, their geometry and knurled exterior make them exceptional for mold-in or post-mold thermal insertion in small-scale injection molding workflows.
3. What temperature should my soldering iron be set to when installing them?
Depending on the plastic type (e.g., ~200°C for PLA, ~230°C for ABS/PETG), setting your iron slightly above your printing temperature allows for smooth, rapid seating without scorching the polymer.
4. How do these nuts support workplace ergonomics?
By requiring minimal downward force during thermal insertion and providing smooth, reliable female threads that prevent stripped screws, they eliminate physical hand strain and reduce repetitive motion fatigue during batch assembly tasks.
Final Verdict and Recommendation
The uxcell Knurled Insert Nuts (M5 x 6mm x 7mm) deliver professional-grade performance that satisfies both rigorous mechanical requirements and human-centric workspace ergonomics. By streamlining the assembly process, lowering physical exertion rates, and providing robust, long-lasting thread engagement, these brass inserts are an indispensable asset for any modern engineering lab or manufacturing workshop. Investing in quality fasteners translates directly to smoother workflows and higher-quality final products.
