8CH PPM Encoder & Pixhawk I2C Splitter Expand Module is a compact electronics accessory designed for RC, UAV, autopilot, and embedded-control projects where reliable signal interfacing and expansion are important. For builders working with Pixhawk-based flight controllers, multiple peripheral connections, or custom control architectures, a dedicated expansion module can make wiring considerably more organized and practical.The appeal of this module comes from its focused design. Rather than being a general-purpose development board, it is intended around PPM encoding and I2C expansion applications. That makes it particularly interesting for drone builders, robotics enthusiasts, autonomous vehicle developers, and electronics hobbyists who need to integrate control inputs and I2C peripherals into a Pixhawk-oriented setup. While the keyword Industrial Grade broadcast streaming encoder Kit may sound oriented toward professional media equipment, this product is better understood as an embedded signal-interface module rather than a conventional video or network streaming encoder.For anyone planning a custom flight-control or embedded electronics project, the important question is whether this type of compact module can simplify connectivity without introducing unnecessary complexity. In this review, we examine its design, practical features, installation considerations, performance characteristics, and the situations where an 8-channel PPM and Pixhawk I2C expansion solution can make sense.

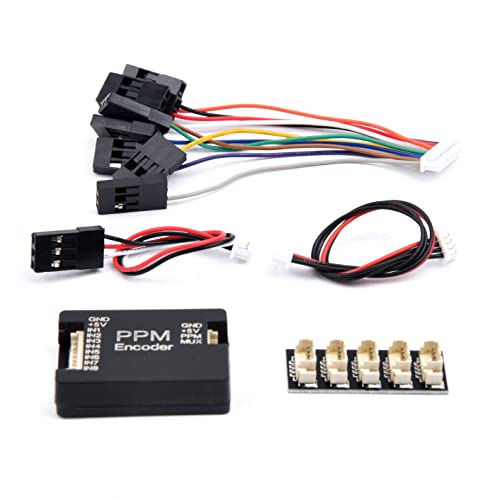

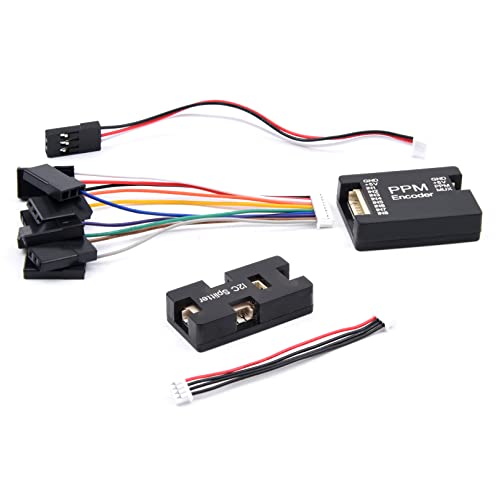

What Is the 8CH PPM Encoder & Pixhawk I2C Splitter?
The 8CH PPM Encoder & Pixhawk I2C Splitter Expand Module combines two useful functions for compatible electronics projects: PPM signal encoding for multiple channels and I2C expansion for supported peripherals. PPM, or Pulse Position Modulation, is commonly encountered in radio-control and flight-control systems because multiple control channels can be represented through a combined signal.For a Pixhawk-based architecture, having an appropriate interface module can help bridge external control inputs and additional I2C-connected devices. Instead of treating every peripheral as an isolated connection, an expansion module can provide a more structured approach to wiring and integration.It is important to distinguish this from a broadcast video encoder. An Industrial Grade broadcast streaming encoder Kit normally deals with video compression, network transmission, HDMI, SDI, or similar media workflows. This module serves a completely different purpose: embedded signal handling and hardware expansion for compatible control systems.
Key Features

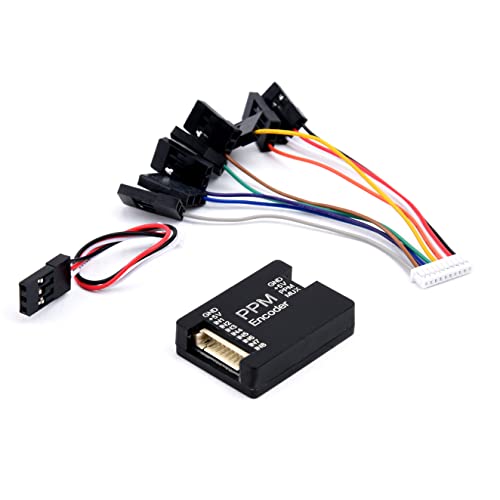

8-Channel PPM Encoding
The eight-channel PPM capability is one of the most significant characteristics of the module. PPM can combine multiple control-channel signals into a consolidated signal format, which is useful in RC and flight-controller applications where streamlined signal wiring is desirable.For a project that requires several proportional control inputs, an 8-channel configuration can provide useful flexibility. Builders can potentially connect multiple control functions while keeping the overall signal architecture more organized.
Pixhawk-Oriented Expansion
The module is designed with Pixhawk-related applications in mind. Pixhawk flight controllers are widely used in UAV and autonomous-system projects, and their ecosystem can involve numerous sensors and peripherals. An expansion module can be valuable when the base controller does not conveniently accommodate every desired connection.Compatibility should always be checked against the exact Pixhawk hardware, firmware, connector arrangement, and peripheral requirements before installation. Different Pixhawk-compatible systems can vary considerably, so confirming pin assignments and electrical requirements is an important part of any integration process.

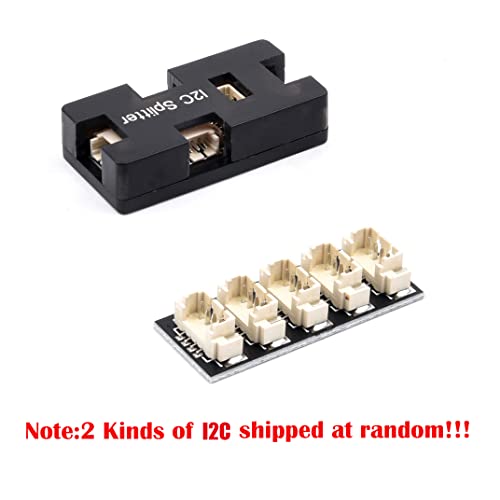

I2C Splitter Function
I2C is a widely used communication bus for connecting compatible sensors, displays, controllers, and other peripherals. A splitter or expansion module can help create a more convenient physical connection arrangement when several compatible I2C devices need to be incorporated into a project.This can be especially useful during prototype development. Instead of repeatedly rebuilding the wiring harness whenever a peripheral is added or removed, an organized expansion point can make experimentation easier.
Compact Embedded Design
A compact expansion board is particularly useful in UAV and robotics projects where available physical space is limited. Large interface hardware can add weight and complicate cable management, while a small dedicated module can be incorporated into a larger electronics stack more easily.
Useful for Custom Electronics Projects
The module is not limited conceptually to one type of aircraft. Depending on compatibility and the project architecture, its signal and bus functions can be relevant to RC vehicles, robotics platforms, autonomous prototypes, experimental controllers, and other embedded systems.For users developing more sophisticated systems, it can become one component of a larger electronics architecture that includes a flight controller, radio receiver, sensors, GPS equipment, telemetry hardware, and other peripherals.
Design and Installation Considerations
Installation is an area where careful preparation matters more than simply connecting cables. Before powering the module, users should identify the correct signal direction, connector pinout, voltage requirements, ground connections, and intended Pixhawk interfaces.With embedded electronics, an incorrect connection can cause anything from a nonfunctional peripheral to potential hardware damage. The safest approach is to compare the module’s documentation and labeling against the exact controller and peripheral being used rather than assuming that similarly shaped connectors have identical electrical functions.Good cable management is also important. UAV and robotics systems can experience vibration, movement, and mechanical stress. Keeping signal wiring secured and separated from moving components can make the finished installation cleaner and more dependable.
Performance
Performance for a module like this should be evaluated differently from the way you would judge a computer, video encoder, or network switch. The key questions are whether the PPM signal is properly encoded, whether compatible I2C devices communicate correctly, whether the wiring remains stable, and whether the module integrates reliably with the intended controller.In a suitable configuration, the 8-channel PPM architecture can simplify the way multiple control inputs reach the flight-control system. That can be useful in projects where reducing individual signal connections makes the wiring harness easier to manage.The I2C expansion side is similarly valuable when a project requires several compatible peripherals. Instead of focusing solely on raw processing performance, the practical benefit comes from connectivity and organization.Users should also remember that overall system performance depends on the connected hardware. A splitter cannot compensate for an incompatible sensor, incorrect firmware configuration, unsuitable voltage levels, poor-quality wiring, or a flight controller that does not support the intended peripheral arrangement.
Practical Applications
One of the most obvious applications is custom UAV development. A builder creating a Pixhawk-based aircraft may need to integrate multiple control inputs and I2C peripherals while maintaining a manageable wiring layout. An expansion module can provide a convenient building block for that architecture.Robotics is another potential application. Autonomous ground vehicles and experimental robotic platforms can incorporate sensors and controllers using communication buses such as I2C. The module’s compact form can make it interesting for prototyping environments where physical space and cable organization matter.RC projects can also benefit from consolidated control signaling. When several channels are involved, a PPM-based approach can simplify the signal side of the system compared with managing numerous independent connections.For users researching related computing and production hardware, our October 2026
