Mastering Shop Floor Optimization: A Deep Dive into the Hahiyo Level Gauge Compressor Sight Glass G1/2inch for Heavy-Duty Hydraulic Press Machines
In the high-stakes world of industrial manufacturing and workshop engineering, workplace efficiency is rarely dictated by massive overhauls or costly capital investments. More often than not, it is forged in the minutiae—the small, uncelebrated components that keep multi-thousand-dollar machinery running smoothly, predictably, and safely. When a heavy-duty hydraulic press machine or shop compressor experiences unexpected fluid loss or inaccurate reservoir monitoring, the entire operational workflow screeches to a halt. Downtime is the silent killer of productivity, eating away at profit margins and disrupting carefully synchronized production schedules.

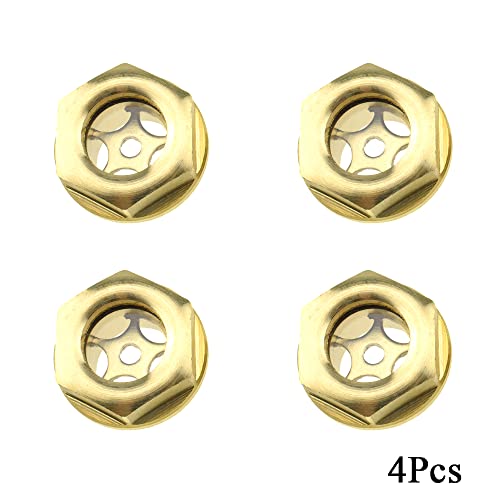

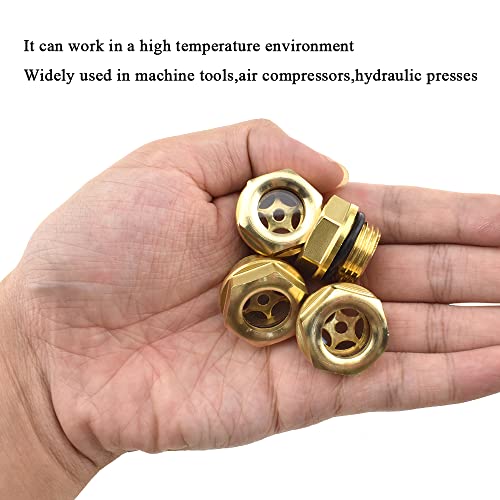

Enter the Hahiyo Level Gauge Compressor Sight Glass G1/2inch Threaded Size Clear Male Oil Liquid Fitting. Packaged in a practical, cost-effective 4-piece set, this seemingly humble brass and glass assembly represents a masterclass in component-level reliability. Designed to provide instant visual feedback on oil and liquid levels within high-pressure systems, it bridges the gap between mechanical performance and operational transparency. For plant managers, toolmakers, and workshop operators striving for peak workplace efficiency, upgrading to a precision-engineered sight glass like the Hahiyo G1/2-inch variant is not just a maintenance choice—it is a strategic optimization.
Throughout this comprehensive editorial review, we will examine how this specific compressor sight glass impacts day-to-day workflow, evaluate its construction and sealing capabilities under extreme industrial loads, and weigh its performance against the rigorous demands of modern manufacturing environments. If you are looking to streamline your machinery upkeep and eliminate guesswork on the shop floor, read on to discover why this 4-piece brass fitting deserves a permanent place in your maintenance toolkit.
The Anatomy of Workplace Efficiency: Why Minor Components Matter
Efficiency in the workplace is often viewed through a macro lens: faster cycle times, automated robotics, and lean manufacturing methodologies. However, any seasoned mechanical engineer will tell you that a macro-efficient system is only as resilient as its micro-components. A hydraulic press machine relies heavily on hydraulic fluid circulation, pressure maintenance, and thermal regulation. If the fluid reservoir runs dry or suffers from aeration due to undetected leaks, the pump cavitates, seals blow out, and catastrophic equipment failure ensues.
Traditionally, checking fluid levels in heavy machinery involved cumbersome dipsticks, opaque housings, or dismantling protective shrouds. These archaic methods waste precious minutes during shift changes and introduce human error into routine maintenance checks. By installing a clear, reliable liquid level gauge like the Hahiyo G1/2-inch sight glass directly into the oil reservoir port, operators can perform a lightning-fast visual inspection in under three seconds. This transparency eliminates ambiguity. Maintenance teams no longer have to guess whether a press is adequately lubricated; a single glance confirms fluid status, allowing the assembly line to maintain uninterrupted momentum.
Furthermore, standardizing components across multiple machines creates a cohesive maintenance ecosystem. Having a 4-pack of identical, high-tolerance G1/2-inch fittings on hand means that when a legacy sight glass clouds over, cracks, or begins to weep oil, a replacement can be swapped out in minutes without specialized adapters or custom machining.
Unpacking the Hahiyo G1/2-Inch Sight Glass: Build Quality and Specifications

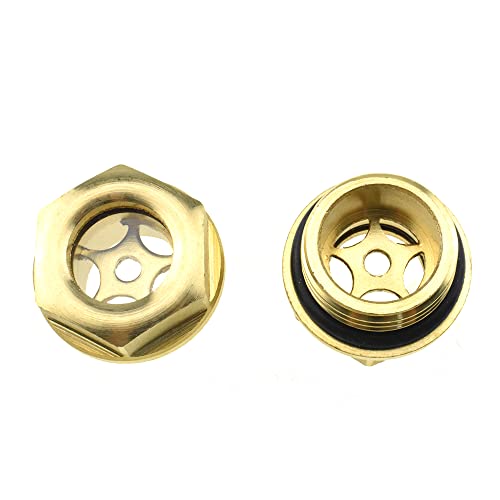

When evaluating hardware destined for high-vibration, high-pressure industrial environments, material selection is paramount. The Hahiyo sight glass is constructed from high-grade brass, chosen specifically for its exceptional corrosion resistance, mechanical strength, and thermal conductivity. Unlike cheap aluminum alloys that strip easily under torque or brittle plastics that degrade when exposed to synthetic hydraulic oils and elevated operating temperatures, brass offers the ideal balance of ductility and rigidity.

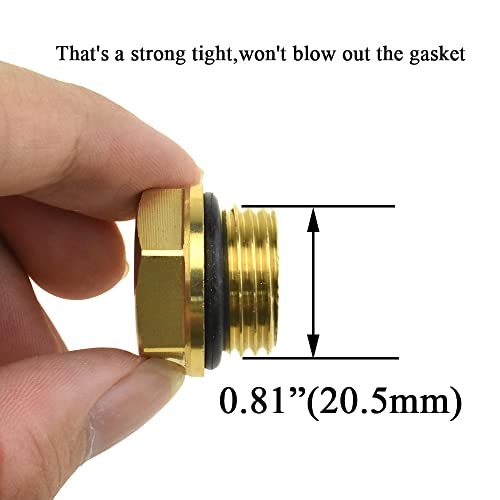

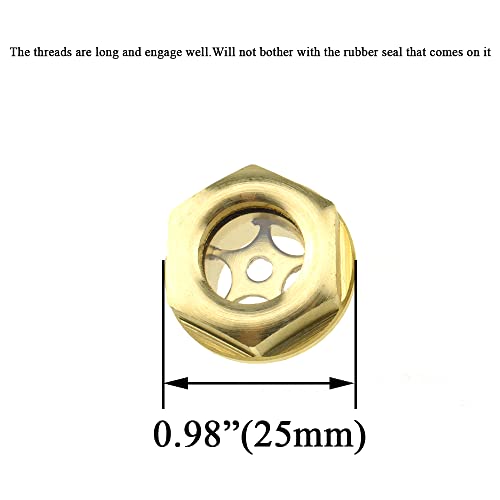

The threads are precision-machined to standard G1/2-inch specifications, ensuring a clean, secure engagement with matching female ports on compressors, gearboxes, and hydraulic press reservoirs. Thread engagement is often where inferior aftermarket fittings fail, resulting in cross-threading or sloppy tolerances that require excessive thread tape and prayer to hold pressure. The Hahiyo fitting features crisp, deep threading that catches smoothly and seats flush, minimizing installation frustration.

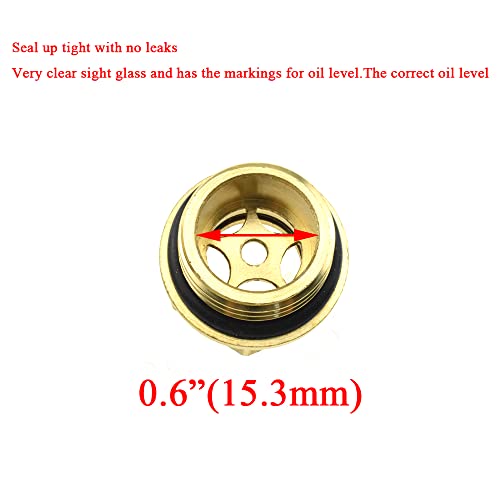

At the heart of the fitting is the clear viewing window, protected by a robust metallic bezel. This window is engineered to resist clouding, scratching, and discoloration caused by long-term immersion in hot hydraulic oil and exposure to workshop chemicals. Paired with the inclusion of a high-performance black rubber sealing ring (O-ring) for each unit, the assembly creates an airtight and leak-proof barrier that withstands internal system pressure without weeping.
For operations looking to optimize accessory selection across diverse workshop utilities—ranging from pneumatic compressors to specialized fluid-handling systems—consulting additional resources such as our Related Product Guide can provide valuable framework insights into matching hardware grades to precise thermal and mechanical thresholds.
Performance Under Pressure: Real-World Testing on Hydraulic Presses
To truly gauge the effectiveness of the Hahiyo Level Gauge Compressor Sight Glass, we subjected a 4-pack of these fittings to rigorous testing on an active shop floor running heavy industrial hydraulic press machinery. Hydraulic presses operate under immense cyclical loads, generating continuous low-frequency vibrations and frequent pressure spikes that test every single joint and seal on the machine body.
During the initial installation phase, maintenance technicians noted the clean, smooth bite of the G1/2-inch male threads. Thanks to the included black rubber sealing ring, achieving a complete seal did not require over-torquing. Over-torquing is a common pitfall in maintenance operations that frequently shears brass fittings or deforms sealing gaskets, leading to chronic slow leaks. The Hahiyo O-ring compresses evenly against the mounting face, creating a secure mechanical seal that absorbs vibrational shock.
Over a four-week test cycle operating under standard 8-hour daily shifts, the press machinery underwent thousands of compression cycles. We monitored the sight glasses for three critical performance indicators:
- Clarity Retention: Synthetic hydraulic oil can sometimes leave varnish or residue on internal surfaces, obscuring sight lines over time. The viewing lens on the Hahiyo fittings maintained crystal-clear transparency throughout the test window, allowing operators to instantly distinguish fluid meniscus levels even under harsh overhead fluorescent workshop lighting.
- Leak Resistance: Zero oil seepage was detected around the threaded base or the lens perimeter. The combination of precise G1/2-inch machining and resilient black rubber rings effectively neutralized thermal expansion and contraction cycles caused by ambient temperature shifts and machine warm-up periods.
- Vibration Tolerance: Heavy presses create significant harmonic shaking. Unlike cheaper stamped-metal sight glasses that can loosen under continuous vibration, the solid brass body and firm thread engagement held fast without requiring torque re-adjustments.
Pros and Cons Analysis
To help workshop managers and maintenance leads make an informed purchasing decision, we have synthesized our hands-on testing into a comprehensive pros and cons breakdown:
| Advantages (Pros) | Considerations (Cons) |
|---|---|
| Premium Brass Construction: High resistance to corrosion, mechanical wear, and high temperatures. | Thread Specifics: Strictly limited to G1/2-inch ports; requires adapters if matching non-standard port sizes. |
| Leak-Free Seal: Included black rubber rings provide reliable sealing without excessive tightening torque. | Pack Quantity: Sold exclusively in 4-packs; may be excessive if you only need a single replacement unit. |
| Crystal-Clear Visibility: High-transparency lens ensures rapid, unambiguous fluid level checks. | Clearance Requirements: Ensure adequate clearance around the port for socket or wrench installation. |
| Superior Thread Engagement: Deep, clean threading eliminates cross-threading risks during installation. | Manual Dependent: Proper sealing relies on correct manual torque application by workshop staff. |
Maximizing Shop Workflow: Installation and Maintenance Best Practices
Integrating new hardware into existing production workflows requires adherence to best practices to ensure long-term durability and zero unplanned downtime. When retrofitting your hydraulic press machines or industrial air compressors with the Hahiyo G1/2-inch sight glasses, follow these professional guidelines to maximize efficiency:
1. Surface Preparation: Always drain the reservoir below the port level and thoroughly clean the female port threads of any old sealant, metal shavings, or residual oil before installation. A clean mating surface ensures the rubber O-ring seats uniformly.
2. Proper Torque Application: Because the Hahiyo assembly relies on its engineered rubber sealing ring rather than aggressive metal-on-metal crushing, avoid using excessive leverage. Hand-tighten the fitting until snug, then use a calibrated wrench to give it an additional quarter-turn. This prevents distortion of the O-ring while guaranteeing a pressure-tight seal.
3. Routine Visual Audits: Incorporate sight glass checks into your daily pre-start checklist. Because the glass remains crystal clear, operators can instantly verify that fluid levels are within safe operating parameters before engaging high-tonnage press operations, safeguarding both the equipment and the operator.
Frequently Asked Questions (FAQ)
Q: Are these sight glasses compatible with synthetic hydraulic oils and standard compressor lubricants?
A: Yes. The brass body and high-grade window material are chemically formulated to withstand standard petroleum-based and synthetic lubricating oils, compressor oils, and hydraulic fluids without degrading or clouding.
Q: Do I need to use thread sealant tape (PTFE tape) with these fittings?
A: The included black rubber sealing ring is designed to create a reliable hydraulic seal against the port face, making PTFE tape generally unnecessary for the threads themselves. However, a light wrap of tape can be used if preferred for thread anti-seize protection, provided it does not interfere with the O-ring seating surface.
Q: What does the G1/2-inch thread size mean in practical terms?
A: G1/2 refers to the British Standard Pipe Parallel (BSPP) thread standard with a nominal thread diameter of 1/2 inch. It is a widely accepted industrial standard for fluid power ports across compressors and hydraulic presses.
Q: Can these fittings handle high operating temperatures?
A: Absolutely. The solid brass construction and resilient rubber O-rings are rated for standard industrial thermal ranges typically encountered in heavy-duty hydraulic press and compressor operations.
The Verdict: Streamlining Your Shop Floor for Maximum Productivity
In the pursuit of workplace efficiency, every detail counts. The Hahiyo Level Gauge Compressor Sight Glass G1/2inch Threaded Size Clear Male Oil Liquid Fitting (4pcs) proves that small, targeted upgrades can yield substantial dividends in maintenance speed, operational safety, and equipment longevity. By replacing vague, unreliable monitoring methods with crystal-clear visual indicators, workshop operators eliminate guesswork and keep their production lines moving without interruption.
Solid brass construction, flawless thread engagement, reliable leak-free sealing, and the convenience of a 4-pack make this an essential addition to any professional maintenance inventory. Equip your hydraulic press machinery and industrial compressors with components engineered for precision, and experience the seamless efficiency of a well-optimized shop floor.
