Hitachi ZX350 Excavator Machine Electric Injection Hydraulic Pump Wiring Harness Review (2026 Upgrade Guide)
Introduction: Hitachi ZX350 Excavator Machine Electrical Reliability Upgrade
The Hitachi ZX350 excavator machine is widely recognized in heavy construction environments for its strength, durability, and precision hydraulic performance. However, even the most robust machines depend heavily on the integrity of their electrical and hydraulic communication systems. One of the most critical yet often overlooked components is the wiring harness that connects the electric injection system and hydraulic pump control module.

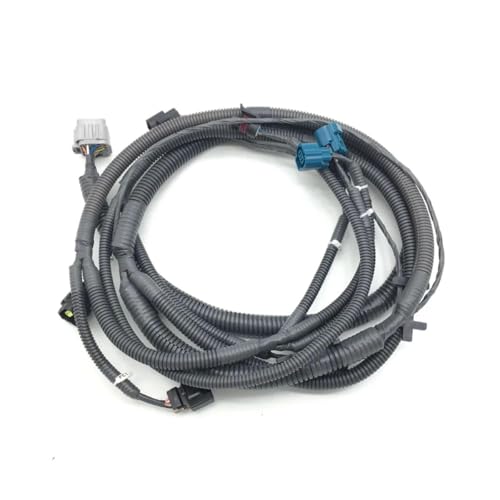

This 0006505 Electric Injection Hydraulic Pump Wiring Harness is designed specifically for Hitachi ZX series models such as ZX330-3, ZX350-3, and ZX360-3. It ensures stable electrical signals between engine control units and hydraulic pump actuators, allowing the machine to maintain smooth digging, lifting, and loading operations under extreme workloads.
In 2026, with increasing demands for precision excavation and fuel-efficient hydraulic response, replacing or upgrading wiring harness components has become essential for maintaining uptime and preventing costly downtime in construction projects.
Key Features of the 0006505 Wiring Harness
This wiring harness is engineered to meet OEM-level standards for Hitachi excavators, ensuring compatibility, durability, and stable performance in harsh working environments such as mining sites, road construction zones, and large-scale earthmoving operations.
1. High-Precision Electrical Signal Transmission
The harness is built to minimize signal loss between the electric injection system and hydraulic pump control unit. This ensures the engine receives accurate feedback, improving fuel efficiency and reducing hydraulic lag during operation.
2. Heavy-Duty Insulation and Protection
Designed for extreme working conditions, the cable insulation is resistant to heat, oil exposure, vibration, and moisture. This is essential for machines operating in muddy, dusty, or high-temperature environments typical of excavation sites.
3. OEM-Compatible Fit for ZX Series
It is specifically engineered for ZX330-3, ZX350-3, and ZX360-3 models, ensuring plug-and-play compatibility without requiring modifications to existing machine wiring systems.
4. Reinforced Connector System
The connectors are reinforced to prevent loosening due to vibration. This is critical for maintaining stable performance in long-hour excavation work where continuous vibration is unavoidable.
5. Improved Hydraulic Pump Communication
By stabilizing the communication between sensors and hydraulic pump controls, the harness helps maintain consistent digging force and smoother boom-arm movements.
Performance in Real Excavation Environments
When installed in the Hitachi ZX350 excavator machine, the wiring harness demonstrates consistent performance improvements in hydraulic responsiveness and engine control stability. Operators report smoother throttle response and reduced lag in hydraulic arm movements, especially during heavy load lifting and deep excavation tasks.
One of the key performance advantages is improved signal stability during long working hours. Construction equipment often operates in high-vibration environments, which can degrade electrical connections over time. This harness reduces such issues significantly, allowing the machine to maintain consistent output without unexpected shutdowns or sensor errors.
Another important factor is fuel efficiency optimization. Because the electric injection system receives cleaner and more stable signals, combustion timing becomes more precise. This leads to better fuel usage and reduced engine strain, particularly in high-demand excavation cycles.
Durability and Build Quality Analysis
The construction of this wiring harness emphasizes long-term durability. The outer casing is engineered with industrial-grade polymer protection that resists abrasion from metal components and engine heat. In addition, the internal copper wiring is designed for high conductivity and reduced resistance, ensuring minimal signal degradation over time.
In comparison to standard aftermarket wiring solutions, this model offers enhanced resistance against corrosion, which is a common issue in humid environments like construction zones in coastal and tropical regions. For operators working in South and Southeast Asia, this durability is especially valuable.
Interestingly, technicians sometimes compare electrical fault detection tools with diagnostic precision equipment such as a metal detector for adults high sensitivity, since both rely on detecting subtle signal variations to locate hidden issues within complex systems.
Pros and Cons
| Pros | Cons |
|---|---|
| OEM-compatible design for ZX series excavators | Requires professional installation for best results |
| Improves hydraulic pump communication stability | Not suitable for non-Hitachi models |
| Durable insulation resistant to heat, oil, and vibration | Limited availability in local offline markets |
| Enhances fuel efficiency through better signal control | High dependency on correct installation alignment |
| Reinforced connectors reduce loosening issues | Replacement cost can be higher than generic harnesses |
Frequently Asked Questions (FAQ)
1. Is this wiring harness compatible with all Hitachi excavators?
No, it is specifically designed for ZX330-3, ZX350-3, and ZX360-3 models. Compatibility with other models is not guaranteed.
2. Can I install it without professional help?
While experienced technicians may handle installation, professional installation is strongly recommended to ensure correct routing and secure connections.
3. What symptoms indicate a failing wiring harness?
Common signs include hydraulic delay, engine miscommunication, sensor error codes, and inconsistent pump pressure.
4. How does this affect machine performance?
It improves signal transmission stability, resulting in smoother hydraulic response, better fuel efficiency, and reduced downtime.
5. Is it resistant to harsh working environments?
Yes, it is designed to withstand vibration, heat, dust, moisture, and oil exposure typical in heavy construction sites.
Final Thoughts on the Hitachi ZX350 Wiring Harness
The 0006505 Electric Injection Hydraulic Pump Wiring Harness is a vital upgrade component for maintaining the performance and reliability of the Hitachi ZX350 excavator machine. Its robust design, improved signal stability, and OEM compatibility make it a dependable choice for construction professionals who cannot afford unexpected downtime.
Whether used in large infrastructure projects or daily excavation operations, this wiring harness ensures that hydraulic systems respond accurately and efficiently under pressure. For operators seeking long-term machine stability and optimized performance, it represents a highly practical investment in equipment reliability.
