What Is This Electric Outboard Motor Premium Trim Switch?

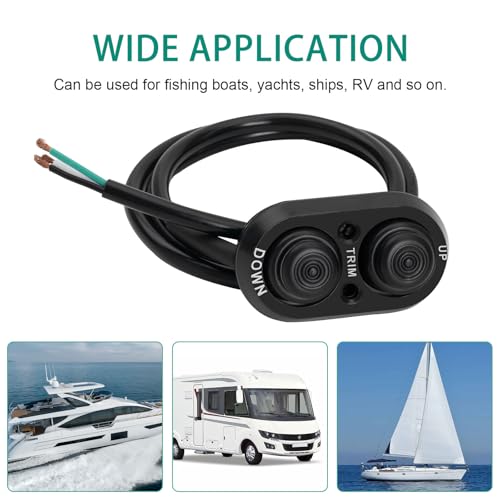

This product is a push-button trim control intended for transom-mounted use with a compatible outboard motor system. Tilt and trim controls generally allow an operator to change the motor’s angle relative to the boat, helping adjust the setup for different operating conditions.The product listing identifies fishing boats, yachts, and ships as suitable applications and advertises IP67 waterproof protection. Nevertheless, the listing information provided does not identify specific compatible motor brands, model numbers, voltage requirements, connector types, or wiring configurations. Those details matter because marine trim systems are not universally interchangeable.

What does a trim switch do?

A trim switch typically commands a compatible power-trim mechanism to raise or lower an outboard motor. Small adjustments can help an operator manage the boat’s running attitude and adapt to changing load or water conditions. The exact effect depends on the boat, motor, speed, loading, and operating conditions.A switch is only the user control. It does not independently provide the hydraulic or electrical power required to move the motor, and it should not be assumed to include a trim motor, relay assembly, wiring harness, or other installation components unless the seller explicitly confirms that they are included.

Key Features of the Boat Tilt Trim Switch

1. Push-button control

The push-button design provides a straightforward interface for operating a compatible trim system. Dedicated controls can be easier to understand than a complicated menu-based interface, particularly when an operator needs to make a small adjustment while concentrating on navigation.Before buying, check the number and function of the buttons, the direction of operation, and whether the switch uses momentary contacts or another switching arrangement. These details should match the requirements of the intended trim circuit. The supplied product description does not specify the internal switching design.

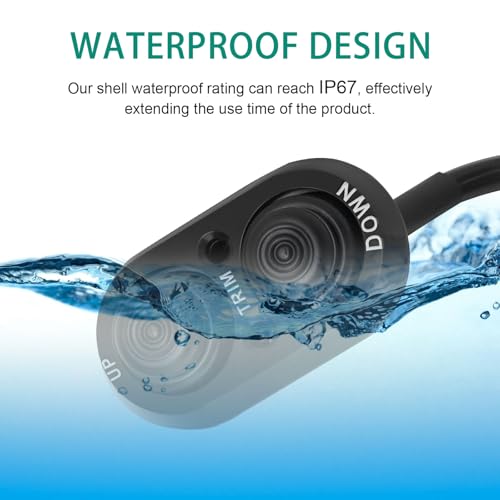

2. Advertised IP67 waterproof rating

Water resistance is a major consideration for marine electrical accessories. The product is advertised as IP67 waterproof, a designation associated with protection against dust ingress and temporary immersion under specified laboratory conditions.That rating does not mean every installation will remain watertight under every marine condition. The mounting surface, cable entry, connector seals, wiring joints, and installation method can affect the protection of the complete assembly. Saltwater exposure, prolonged weathering, and physical damage also deserve consideration.For a boat used in wet or coastal environments, inspect the actual product documentation for details about sealing, corrosion resistance, and approved installation practices. Do not assume that the switch’s rating automatically applies to connectors or wiring supplied separately.

3. Transom-oriented installation

The product is described as a transom outboard remote trim control. A transom-mounted control may be useful when an operator needs access to trim functions from a position near the stern, such as during certain launching, retrieval, maintenance, or low-speed maneuvering tasks.Practical usefulness depends on where the control can be mounted safely. Consider clearance, visibility, accidental activation, cable routing, and whether the operator can reach it without leaning overboard or moving into an unsafe position.

4. Black finish and compact control concept

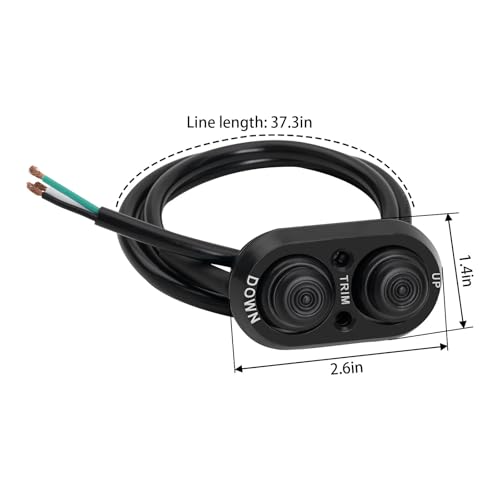

The listed black finish offers a neutral appearance that can suit many marine control layouts. Appearance, however, should be secondary to reliable operation, secure mounting, readable controls, and compatibility with the intended electrical system.Check the seller’s photographs and dimensions before ordering if you need the switch to fit an existing cutout or mounting position. Exact dimensions and material composition are not confirmed in the supplied product description.

Potential Benefits for Boat Owners

• Convenient trim access: A compatible remote switch can provide a dedicated point for commanding the outboard’s tilt and trim mechanism.
• Simple control layout: Push-button operation may be easier to understand than a more complex control interface.
• Marine-focused design: The stated boat applications and advertised IP67 rating make the product worth investigating for suitable marine installations.
• Possible retrofit use: It may be an option when replacing a damaged switch or adding a compatible control, provided the existing system supports it.
• Flexible placement: A suitable transom mounting position may provide convenient access for specific tasks, subject to the boat’s layout and installation requirements.

These are potential benefits based on the described product type, not verified test results. Actual usability depends on compatibility, construction quality, installation, and the condition of the surrounding trim system.

Pros and Cons

Performance: What Should You Expect?

A trim switch’s practical performance depends on more than the button itself. The electrical contacts must work correctly with the intended circuit, the wiring must be appropriate for the application, and the outboard’s trim mechanism must be functioning properly.

Control responsiveness

A correctly matched switch should send the appropriate command to a compatible trim system. However, no response-time measurements or independent test results are available for this specific product. It would therefore be misleading to promise faster adjustment, zero delay, or smoother motor movement.When evaluating the switch, confirm its electrical ratings and switching arrangement against the motor manufacturer’s requirements. Never connect a control based only on similar-looking connectors or matching wire colors.

Weather and water exposure

The advertised IP67 rating is a useful starting point when assessing environmental protection. For boats regularly exposed to rain, spray, or saltwater, also investigate connector sealing, UV resistance, corrosion protection, and maintenance requirements.After installation, inspect the assembly periodically for damaged insulation, loose mounting hardware, moisture intrusion, and corrosion. Follow the manufacturer’s instructions for cleaning and maintenance.

Long-term reliability

Marine equipment experiences vibration, temperature changes, moisture, and repeated operation. The product description does not establish a tested service life, switching-cycle rating, warranty period, or resistance to saltwater corrosion.If the switch will be used on a commercial vessel or a boat that operates frequently, request the relevant documentation before relying on it for regular service. A low purchase price, if offered, should not outweigh electrical suitability and dependable operation.

Compatibility and Installation: What to Check Before Buying

Compatibility is the most important purchasing consideration for this type of accessory. A product described as a boat trim switch is not necessarily suitable for every electric outboard, conventional gasoline outboard, or hydraulic trim arrangement.

1. Identify the motor: Record the manufacturer’s name, model number, year, and trim-system configuration.
2. Confirm the electrical requirements: Check the required voltage, current rating, switch-contact arrangement, and circuit protection specified by the motor manufacturer.

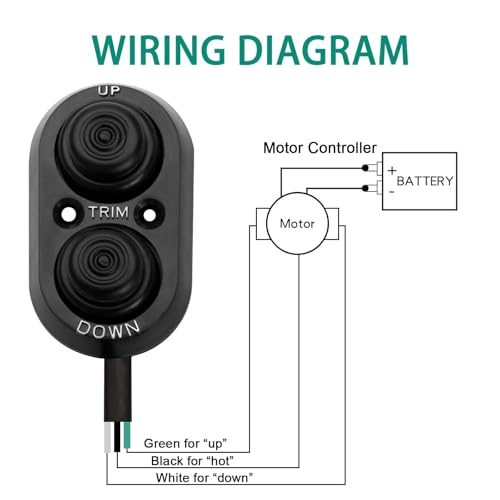

3. Compare the connector: Verify connector type, pin configuration, and wiring diagram rather than relying on appearance.
4. Check mounting dimensions: Confirm that the switch can be installed securely in the intended transom location.
5. Review included components: Ask whether mounting hardware, a wiring harness, connectors, seals, or installation instructions are supplied.
6. Follow marine electrical practices: Use appropriate circuit protection, secure cable routing, and suitable corrosion-resistant connections. Have a qualified marine technician perform the installation if the wiring requirements are unclear.

Disconnect the relevant power source before performing electrical work and follow the motor manufacturer’s safety instructions. After installation, verify the control’s operation in a safe, stationary setting before returning the boat to normal use.

Who Should Consider This Trim Switch?

Boat owners replacing an existing switch

If your original trim switch has become damaged or unreliable, this product may be worth considering as a replacement candidate. The strongest reason to buy would be documented compatibility with your existing motor and control system.

Fishing boat operators

Fishing boat owners may appreciate having an accessible trim control for appropriate operating and maintenance tasks. Still, the switch should be mounted where it cannot be accidentally activated and does not interfere with steering, throttle operation, or other safety-critical controls.

Yacht and recreational vessel owners

For recreational vessels, the product’s advertised water protection and dedicated button-control format may be appealing. Verify the construction and compatibility details before using it in an exposed mounting position.

Commercial and heavy-use operators

Operators who depend on their vessel for work should be particularly careful about documentation, replacement-part availability, environmental suitability, and warranty support. If the seller cannot provide electrical specifications or compatibility information, a documented original-equipment or approved replacement part may be the safer choice.

Buying Considerations and Alternatives

Before ordering, compare this switch with three broad options: an original-equipment replacement, a compatible aftermarket switch, and a complete remote-control assembly. Each serves a different purpose.

• Original-equipment replacement: Worth investigating when exact fit, manufacturer compatibility, and documented specifications are priorities.
• Compatible aftermarket switch: May be suitable when the electrical specifications, connector, mounting requirements, and environmental rating are verified.
• Complete control assembly: May be necessary if the existing remote control, wiring, or related components are damaged rather than the switch alone.

Do not assume that this product is a universal control or a complete trim-system upgrade. The listing description establishes its general intended use, but not universal compatibility or the inclusion of additional components.For another equipment-related topic, you can also explore our https://omnixbuy.com/high-performance-magnetic-rowing-machine-6/“>high-performance magnetic rowing machine guide. It covers a different category of equipment, so use it as a separate buying resource rather than as a direct alternative to a marine trim switch.

Frequently Asked Questions

1. Is this trim switch compatible with every outboard motor?

No universal compatibility is established by the supplied description. Check the exact motor make, model, year, voltage requirements, wiring diagram, and connector configuration before purchasing. Contact the seller if any of these details are missing.

2. What does the IP67 waterproof rating mean?

IP67 indicates protection against dust ingress and temporary immersion under specified test conditions. It does not guarantee that every installation will withstand unlimited immersion, sustained water pressure, saltwater corrosion, or damaged seals.

3. Can I install the switch myself?

Installation may be manageable for someone familiar with the relevant marine electrical system, but it depends on the wiring and mounting requirements. Follow the motor manufacturer’s documentation and consult a qualified marine technician if the connections or circuit ratings are uncertain.

4. Does the product include a trim motor or wiring harness?

The supplied description identifies a push-button trim switch but does not confirm that a trim motor, relay, wiring harness, mounting hardware, or other accessories are included. Review the current Amazon package contents carefully before ordering.

5. Is this switch suitable for saltwater boats?

The advertised IP67 rating may be relevant to marine use, but it does not independently establish saltwater corrosion resistance. Confirm the materials, connector protection, and maintenance recommendations before using the switch in a coastal environment.

6. How can I check the latest product specifications?

Consult the current Amazon listing and ask the seller for the installation diagram, electrical ratings, compatibility list, dimensions, included accessories, and warranty information. Listing details and availability can change, so verify them before making a purchase.

Final Verdict: Is This Boat Trim Switch Worth Considering?

The Boat Tilt Trim Switch Push Button Transom Outboard Remote Control Trim is a potential option for boat owners seeking a dedicated trim control with an advertised IP67 waterproof rating. Its push-button design and stated marine applications make it worth investigating for a compatible replacement or installation.However, the available product information leaves important questions unanswered, particularly motor compatibility, electrical specifications, mounting dimensions, included components, corrosion resistance, and warranty coverage. These details should be resolved before purchase, especially for a vessel used frequently or commercially.Our recommendation: Consider this switch only after confirming that it matches your specific outboard trim system and intended installation. If the seller cannot provide clear compatibility and wiring information, choose a documented alternative rather than risking an unsuitable connection.
