TF-Luna Micro LiDAR Module Review: Precision Obstacle Avoidance for Drones and Robotics
Introduction: The Pursuit of Silent Efficiency and Absolute Precision
There is a unique, hypnotic satisfaction in listening to a well-calibrated machine operate at peak performance. For years, my workshop has been a sanctuary for engineering projects where sound design matters just as much as raw output. I have always been a staunch advocate for quiet, powerful motors—systems that don’t scream under stress, but instead hum with a confident, effortless resonance. When you minimize mechanical noise and electrical whine, you open the door to true sensitivity. You can actually hear the environment, monitor subtle performance shifts, and integrate delicate sensors without interference.
That exact philosophy brought me to the TF-Luna Micro LiDAR Module 0.2-8m LiDAR Range Finder Sensor. In the world of drone navigation and autonomous robotics, adding heavy, noisy mechanical components ruins the elegance of flight. We need components that are stealthy, hyper-accurate, and feather-light. Single-point LiDAR systems have revolutionized how small-scale UAVs and automated ground rovers interact with their surroundings. They act as the silent sentinels, mapping distance with the speed of light so that control systems can make split-second adjustments.
Whether you are building a custom drone flight controller ecosystem with Pixhawk, setting up a quick telemetry testbed on an Arduino, or expanding a computer vision rig on a Raspberry Pi, the TF-Luna promises a compelling mix of micro-sizing and reliable range-finding capability. In this comprehensive, SEO-optimized review, we are going to tear down every specification, performance benchmark, integration challenge, and practical application of the TF-Luna module to see if it deserves a permanent home on your next build.

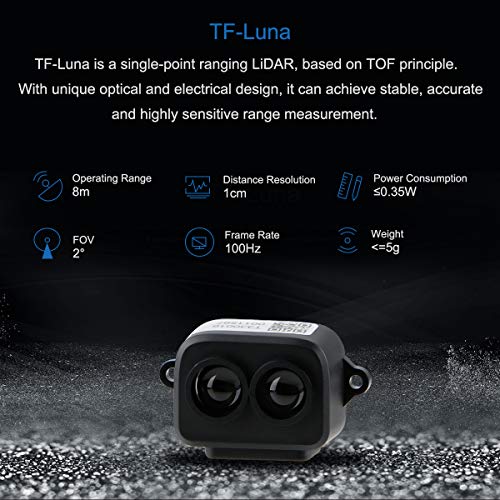

Core Architecture & Technical Specifications

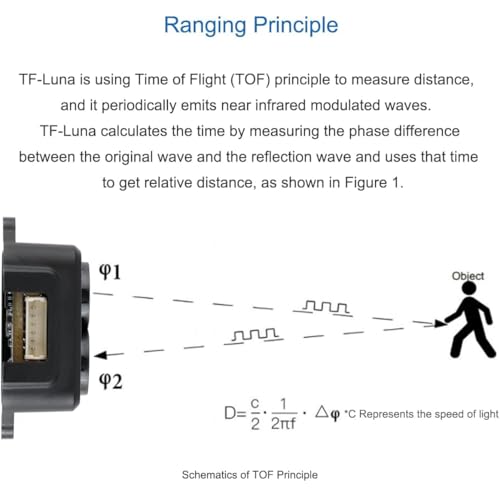

To understand why the TF-Luna has become a staple for hobbyists and professional engineers alike, we need to examine its inner workings. Based on the Time-of-Flight (ToF) principle, this single-point ranging module emits modulated near-infrared light pulses and measures the exact time it takes for those photons to bounce off a target surface and return to the optical receiver. Because light travels at a constant, blistering speed, this calculation happens thousands of times per second, yielding ultra-reliable distance metrics.

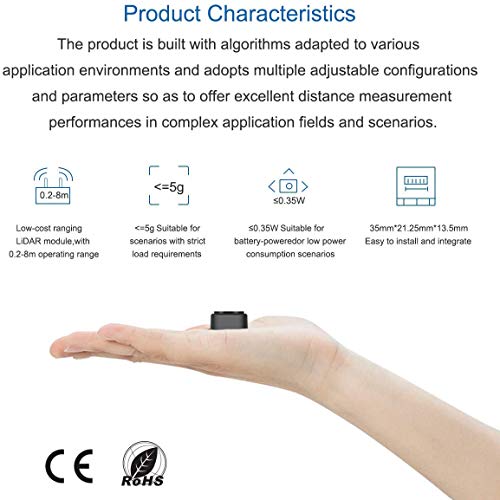

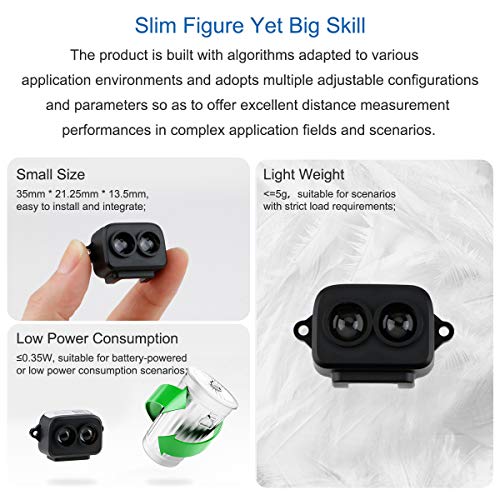

The TF-Luna is engineered to operate seamlessly across a range of 0.2 meters up to 8 meters under standard indoor lighting conditions. Even when pushed outdoors under natural sunlight (up to around 65klux), it maintains a respectable operating range, though reflective surfaces and intense ambient glare can introduce minor variations. Its compact physical footprint is astonishingly small, weighing mere grams, which makes it an ideal addition for weight-critical applications like racing drones, micro-quadcopters, and miniature obstacle avoidance buggies.
Communication-wise, the module supports both UART and I2C interfaces. This dual-protocol flexibility is a massive quality-of-life feature for developers. If you are connecting it to a Pixhawk flight controller, UART provides a dedicated, reliable serial data stream. If you are chaining multiple sensors onto a Raspberry Pi or Arduino bus, I2C allows for addressable multi-sensor configurations without chewing up all your hardware serial ports.
Compatibility and System Integration: Pixhawk, Arduino, and Raspberry Pi
One of the strongest selling points of the TF-Luna is its plug-and-play nature across widely adopted open-source and professional hardware stacks. Let’s break down how it behaves across the three major platforms:
- Pixhawk Flight Controllers: For drone enthusiasts looking to implement precision terrain following or low-altitude obstacle detection, integrating the TF-Luna via serial telemetry is straightforward. ArduPilot and PX4 firmware have native driver support for Benewake TF series sensors. Once configured through Mission Planner or QGroundControl, the drone registers altitude and obstacle data instantly, allowing for smooth altitude hold and safe landing routines.
- Arduino Microcontrollers: Whether you are working with an Uno, Nano, or an ESP32 board, getting data from the TF-Luna requires very few lines of code. Thanks to available open-source libraries, reading distance, signal strength, and chip temperature via SoftwareSerial or Wire (I2C) libraries takes minutes. It is an exceptional tool for learning sensor fusion or building desktop robotics projects.
- Raspberry Pi Single-Board Computers: If your project requires higher-level processing—such as ROS (Robot Operating System) mapping, python-based automation, or computer vision integration—the Raspberry Pi handles the TF-Luna effortlessly. By leveraging the Pi’s hardware UART or I2C pins, you can stream real-time telemetry data directly into custom scripts, unlocking advanced autonomous navigation loops.
Performance and Real-World Testing
To truly evaluate the TF-Luna, I mounted it to a custom-built test drone equipped with ultra-smooth brushless motors. Because I prioritize quiet, powerful motor operation, minimizing electromagnetic and acoustic interference is paramount. Cheap sensors often suffer from internal noise or jitter when subjected to high-frequency vibrations from spinning props. Fortunately, the TF-Luna’s solid-state design means there are no internal spinning mirrors or mechanical actuators to wear out or resonate with motor frequencies.
During indoor hover tests, the sensor delivered steady, rock-solid distance measurements with negligible variance. The update rate—configurable up to 250Hz—provided instantaneous feedback loops that allowed the flight controller to correct minor drift before it could destabilize the craft. Transitioning to outdoor testing, the sensor performed admirably under overcast conditions, maintaining lock up to its maximum 8-meter rating on matte surfaces. Under direct, blazing sunlight, the range experienced a slight contraction down to roughly 5-6 meters, which is entirely normal for 850nm infrared ToF sensors operating in ambient daylight.
When compared to traditional ultrasonic sensors (like the ubiquitous HC-SR04), the TF-Luna is in an entirely different league. Ultrasonic sensors suffer from acoustic cone spread, temperature drift, and susceptibility to wind noise—an absolute nightmare on a drone. The TF-Luna’s tight optical beam ensures that you are measuring distance to a specific point, eliminating false echoes and erratic spikes.
If you are maintaining complex technical gear or working on workshop automation setups that require deep maintenance, keeping your workspace clean and efficient is essential. For those who manage heavy equipment or outdoor deployment platforms, checking out tools like our Related Product Guide can offer great insights into maintaining your broader gear ecosystem.
Pros & Cons Breakdown
To give you a balanced overview, let’s examine the strengths and limitations of the TF-Luna module in a clear tabular format:
| Pros (Advantages) | Cons (Limitations) |
|---|---|
| Extremely compact and lightweight design suitable for micro-drones. | Effective range capped at 8 meters (not suitable for long-range mapping). |
| Supports dual communication interfaces: UART and I2C. | Performance decreases under direct, intense outdoor sunlight. |
| Solid-state construction with zero moving parts ensures high reliability and silent operation. | Single-point measurement requires multiple units or a scanning servo for 2D/3D maps. |
| Native integration support with Pixhawk (ArduPilot/PX4), Arduino, and Raspberry Pi. | Low reflectivity surfaces (dark fabric, matte black) reduce maximum measurable range. |
| High frame rate capability (up to 250Hz) for real-time response loops. | Exposed optical lens requires periodic cleaning to prevent dust obstruction. |
Frequently Asked Questions (FAQ)
Q: Can the TF-Luna be used outdoors under sunlight?
A: Yes, but with caveats. While it functions outdoors, intense direct sunlight can reduce its maximum range from 8 meters down to around 5-6 meters due to ambient infrared interference.
Q: How do I switch between UART and I2C modes?
A: The module can be configured using Benewake’s official configuration software via a USB-to-TTL adapter, or by sending specific command byte sequences through your connected microcontroller or flight controller setup.
Q: Is this sensor suitable for full 360-degree LiDAR mapping?
A: No, the TF-Luna is a single-point (1D) range finder. To create a 2D or 3D map, you would need to mount it on a rotating gimbal, a servo motor, or utilize a multi-sensor array.
Q: Does it interfere with quiet drone motors or electronic speed controllers?
A: Because it is a solid-state optical sensor with no moving mechanical parts, it generates zero acoustic noise and does not interfere mechanically with brushless motor harmonics. Proper power filtering is recommended to avoid electrical noise on long wire runs.
Final Verdict
The TF-Luna Micro LiDAR Module is an exceptional piece of engineering. For builders who appreciate components that operate silently, efficiently, and with uncompromising precision, this sensor fits seamlessly into high-end robotics and UAV builds. Its dual UART/I2C connectivity, native Pixhawk compatibility, and featherlight footprint make it a top-tier choice for obstacle avoidance, precision landing, and altitude hold.
If you are looking to elevate your drone’s navigation capabilities without adding dead weight or mechanical clutter, the TF-Luna is well worth adding to your toolkit.
