A Deluxe network video storage server System needs more than capable networking equipment and dependable storage; it also needs a practical way to organize and protect its hardware. The NavePoint 6U Vertical Server Rack Enclosure offers a low-profile wall-mounted cabinet with a listed depth of 35.4 inches, perforated construction, and a maximum weight capacity of 132 pounds. It is designed for installations where keeping network and server equipment organized matters, particularly in offices, surveillance setups, small businesses, and dedicated equipment rooms.This cabinet may be worth considering if you want a more structured alternative to placing network equipment on shelves or leaving cables exposed. However, its vertical mounting arrangement, available wall space, equipment depth, ventilation requirements, and total installed weight deserve careful consideration before purchasing.
Affiliate disclosure: This article may contain affiliate links. If you purchase through qualifying links, we may earn a commission at no additional cost to you.

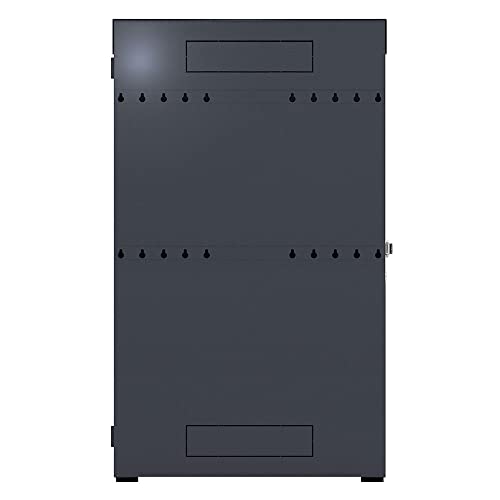

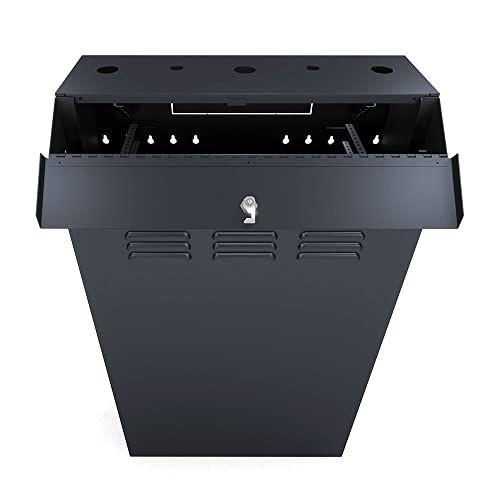

What Is the NavePoint 6U Vertical Server Rack Enclosure?
The NavePoint 6U is a compact-format rack enclosure intended for wall-mounted equipment installations. Its 6U designation describes the vertical rack space available for compatible rack-mount equipment. Rather than occupying floor space like a conventional freestanding cabinet, its vertical design can help make better use of suitable wall areas.The product listing identifies a 35.4-inch depth and a maximum weight capacity of 132 pounds. These figures are important because a cabinet that appears compact from the front may extend substantially from the wall. Before installation, measure the full available depth and check the clearance needed to access connectors, route cables, and service equipment.For a network video storage server setup, the enclosure could provide a centralized location for compatible rack-mounted networking devices, storage hardware, and other supporting equipment. Compatibility depends on the dimensions, mounting requirements, cooling needs, and combined weight of the devices you plan to install.
Key Features of This Deluxe Network Video Storage Server System Cabinet
1. Space-saving vertical wall mounting
The vertical mounting design is the main attraction for installations where floor space is limited. A suitable wall location can help consolidate network hardware in a dedicated area rather than spreading devices across desks, shelves, or separate furniture.This can be useful in small offices, workshops, communications rooms, and surveillance installations. It can also make equipment placement more deliberate, with networking components and associated cabling grouped together.Wall mounting is not automatically the best choice for every installation. A cabinet measuring 35.4 inches deep can project significantly into a room, so verify the actual installation orientation, door and panel clearance, and manufacturer’s mounting instructions before choosing a location.
2. Six rack units for compatible equipment
The 6U capacity provides a defined amount of rack space for compatible equipment. Depending on their dimensions and rack requirements, users may be able to accommodate networking devices, rack-mounted storage equipment, patch panels, or other accessories.It is important to calculate the space required before ordering. A device’s rack-unit height is only one part of compatibility. Its depth, mounting hardware, power connections, cable bends, and ventilation clearance can affect whether it fits properly.
Measure each device’s rack height and depth.
Account for any shelves, brackets, or mounting accessories.
Leave room for power plugs and network cable connections.
Check whether the equipment needs additional clearance for airflow or maintenance.
A careful layout can help prevent overcrowding and make later upgrades easier. Do not assume that every combination of devices will fit simply because their rack-unit heights total six units or less.
3. Perforated construction for airflow
The perforated design is intended to support airflow through the enclosure. This matters when installing network switches, recording equipment, storage servers, and other electronics that produce heat during operation.Perforations alone do not guarantee adequate cooling. Actual temperatures depend on equipment heat output, ambient room temperature, cabinet placement, airflow direction, and the spacing between devices. A densely populated cabinet can still develop hot spots if warm air cannot escape effectively.For a surveillance or storage installation expected to operate continuously, review the cooling requirements of every component. Monitor temperatures during normal operation after installation, and consider additional ventilation only if the cabinet supports it and the equipment manufacturer recommends it.
4. Listed maximum weight capacity of 132 pounds
The stated maximum weight capacity is a useful starting point when planning an installation. Add the weight of all equipment, shelves, accessories, and other items that will be supported by the cabinet. Keep the combined load within the specified limit.There is an important distinction between the cabinet’s stated capacity and the load a particular wall can safely support. The mounting surface, fasteners, bracket arrangement, installation quality, and load distribution all matter. A cabinet rated for 132 pounds does not mean that every wall can safely carry that amount.Follow the manufacturer’s mounting instructions and use suitable fasteners for the actual wall construction. If the installation is heavy or the wall structure is uncertain, seek qualified installation advice before mounting the enclosure.
5. Black finish and centralized cable organization
The black finish provides a neutral appearance suitable for many office and equipment-room environments. More importantly, consolidating equipment in one location can make it easier to plan cable paths, label connections, and identify which devices belong to a particular network or surveillance system.The cabinet should be treated as part of a broader cable-management plan rather than a complete solution by itself. Use suitable cable-management accessories where needed, avoid sharp bends, keep power and data cabling organized, and preserve access to ports that may need frequent attention.
How It Fits a Network Video Storage Server Setup
A network video storage installation can include IP cameras, a network video recorder (NVR), a network switch, storage hardware, a router, and an uninterruptible power supply (UPS). The exact arrangement varies according to camera count, storage requirements, network architecture, and whether the system records locally or uses additional remote services.The NavePoint 6U cabinet can provide a centralized mounting location for compatible rack-format components. However, the enclosure does not itself provide storage, recording, networking, backup power, or video-management software. Those capabilities come from the equipment installed inside or alongside it.Before treating this enclosure as the foundation of a Deluxe network video storage server System, assess the entire installation:
Recording hardware: Confirm that the NVR or storage server fits within the cabinet’s usable dimensions.
Network connectivity: Check that the switch, router, patch panel, and required ports can be accommodated.
Storage expansion: Consider whether future drives or a larger server will require more rack space.
Power protection: Determine whether a UPS will fit and whether its weight and heat output are appropriate for the installation.
Cooling: Verify that airflow is sufficient for continuous operation under the expected load.
Maintenance access: Make sure you can reach cables, power switches, and serviceable components after installation.
If your system depends on large storage arrays, deep servers, or several heavy devices, compare this cabinet with larger rack enclosures before committing to a 6U layout.
Installation and Buying Considerations
Measure before mounting
Start by measuring the available wall area, including the cabinet’s full depth and any space needed for cables and access. Confirm the product’s actual mounting configuration and usable internal dimensions using the current listing or manufacturer documentation.
Check equipment compatibility
List every planned device and record its height, depth, weight, and cooling requirements. Some networking equipment is designed for desktop use rather than rack mounting, so it may require a compatible shelf or bracket. Confirm that any required accessories are supported and included or budgeted separately.
Plan cable routing and servicing
Leave enough room to connect and disconnect cables without placing unnecessary strain on ports. Label important connections and consider how you will replace a switch, service a recorder, or add equipment later. A well-planned installation should remain accessible after all devices are fitted.
Verify the wall and mounting hardware
Choose a structurally suitable mounting surface and follow the product’s installation instructions. Do not rely solely on the cabinet’s weight rating when deciding whether a wall, anchor, or fastener is appropriate. The complete mounted assembly must be supported safely.
Confirm current product details
Product availability, included accessories, dimensions, and listing details can change. Check the current Amazon listing before purchasing, particularly if you need a specific mounting arrangement or intend to install expensive equipment. Do not assume that shelves, fans, locks, or other accessories are included unless the current product information explicitly confirms them.
Pros and Cons
Pros
Cons
Vertical wall-mounted format can conserve floor space.
The 35.4-inch listed depth may project substantially into a room.
Six rack units provide organized mounting space for compatible equipment.
Limited rack capacity may restrict future expansion.
Perforated construction supports airflow through the enclosure.
Perforations do not guarantee adequate cooling for high-heat equipment.
Listed maximum weight capacity of 132 pounds gives buyers a planning reference.
The wall and mounting hardware must independently support the installed load.
Black finish suits many office and technical environments.
Compatibility depends on usable depth, mounting requirements, and accessory needs.
Can help consolidate compatible network and surveillance equipment.
It does not provide recording, storage, networking, or backup power by itself.
Who Should Consider the NavePoint 6U Cabinet?
Small businesses and home labs
This enclosure may suit users who want to organize a modest collection of rack-compatible networking or computing equipment while preserving floor space. It is most practical when the planned devices fit comfortably within the available rack units and depth.
Network video surveillance installations
Businesses managing IP cameras may appreciate having compatible network and recording hardware grouped in one location. Before buying, confirm that the NVR, switch, and any supporting hardware fit and that the installation provides sufficient cooling and service access.
IT and communications setups
For users who value organized cabling and a defined equipment location, a wall-mounted cabinet can make a small installation easier to manage. However, users with frequent hardware changes or substantial expansion plans may prefer a larger cabinet with more accessible working space.
Who may want a different option?
A larger floor-standing rack may be more suitable if you need extensive storage capacity, several deep servers, a heavy UPS, or substantial room for future growth. Likewise, installations in weak walls or areas with poor ventilation may require a different mounting or cooling strategy.
Frequently Asked Questions
1. What does 6U mean on this server rack?
Six rack units describe the cabinet’s nominal vertical equipment capacity. Actual usable space depends on the cabinet design, mounting arrangement, and accessories. Check each device’s rack height and allow for any additional installation requirements.
2. Can this cabinet hold a network video recorder and switch?
Potentially, if both devices are compatible with the mounting system and fit within the available height and depth. Check the recorder’s dimensions, the switch’s mounting requirements, cable clearances, ventilation needs, and combined weight before purchasing.
3. Is the 132-pound weight capacity enough for a storage server?
It may be sufficient for some equipment combinations, but the answer depends on the total installed weight and the manufacturer’s specified loading conditions. Include shelves, accessories, and any other supported components in your calculations. The wall and fasteners must also be suitable for the load.
4. Does the perforated design eliminate the need for cooling?
No. Perforations can assist airflow, but they do not ensure that every component stays within its recommended operating temperature. Consider heat output, room temperature, equipment spacing, and airflow direction, especially for systems that record video or serve files continuously.
5. Can I use this cabinet for a home NAS or server?
It may work for a compatible rack-mounted NAS or server if the dimensions, mounting requirements, power needs, weight, and cooling requirements are appropriate. Many desktop NAS units are not rack-mountable without suitable accessories, so verify compatibility rather than assuming they will fit.
6. What should I check before ordering?
Confirm the 6U capacity, listed 35.4-inch depth, 132-pound maximum weight capacity, usable internal dimensions, mounting requirements, ventilation provisions, and included accessories. Review the current Amazon listing for any updated specifications and make sure your intended equipment can be installed and serviced safely.
Final Verdict: Is the NavePoint 6U Worth Considering?
The NavePoint 6U Vertical Server Rack Enclosure is worth considering if you need a wall-mounted cabinet for a carefully planned, relatively compact network installation. Its vertical design can help conserve floor space, its six rack units provide a defined mounting area, and its perforated construction is a useful feature to consider when planning airflow.Its suitability ultimately depends on equipment compatibility and installation conditions. The 35.4-inch listed depth requires careful space planning, the 132-pound maximum capacity must not be confused with the safe capacity of the wall, and the 6U format may be restrictive for expanding storage systems. It is also an enclosure rather than a complete server or surveillance solution.Bottom line: Consider this cabinet for a compatible, space-conscious network or surveillance installation when its dimensions and mounting requirements match your needs. If you expect significant expansion, need to house multiple deep servers, or require more room for power and cooling equipment, compare larger rack options first.
