Introduction

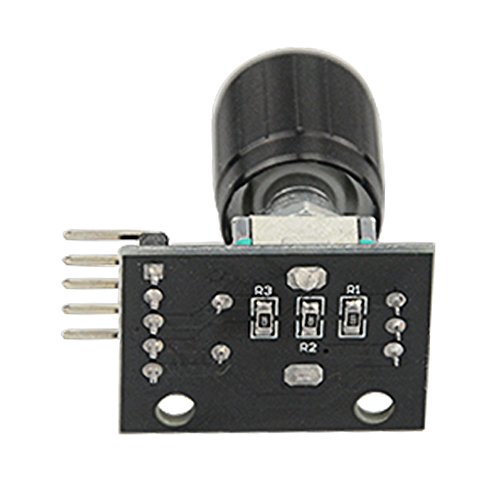

Building a custom control interface for Arduino and microcontroller projects often requires a simple way to adjust values, navigate menus, select settings, or control parameters. The WMYCONGCONG 8 Pcs KY-040 360 Degree Rotary Encoder Module with Knob Cap is designed for exactly this kind of hands-on electronics work. With eight encoder modules included in the package, it offers a convenient supply for prototyping, educational projects, DIY control panels, and embedded interfaces.
Although the supplied keyword is Commercial Grade broadcast streaming encoder Kit, it is important to clarify what this product actually is. The KY-040 is a small electromechanical rotary encoder module intended for electronic control and input applications. It is not a professional video, audio, or network broadcast streaming encoder. Instead, it can be useful when designing physical controls for electronics projects that may form part of a larger streaming or media-control setup.
The 360-degree rotary design lets users turn the knob repeatedly in either direction while a push-button function can provide an additional input. This combination makes the KY-040 especially useful for menus, volume-style controls, parameter adjustment, device interfaces, and Arduino experimentation. Having eight modules also makes it practical for makers who frequently prototype different projects or need replacement units.
Features

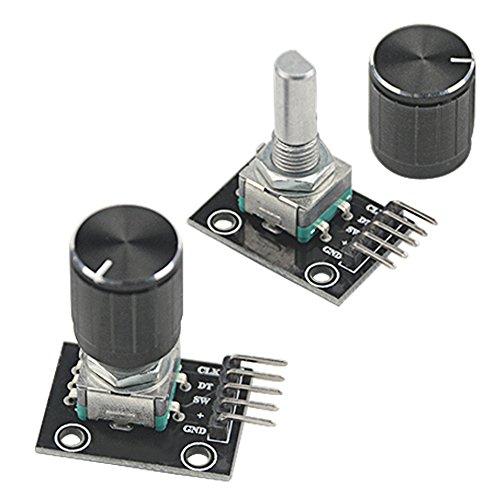

8-Piece Module Package
One of the most useful aspects of this kit is the quantity. Instead of purchasing a single rotary encoder for one experiment, the package includes eight KY-040 modules with knob caps. This can be helpful for classrooms, electronics workshops, hobbyists, and developers who work on several prototypes at the same time.
Multiple modules also make it easier to experiment with different interface concepts. You could dedicate one encoder to menu navigation, another to brightness adjustment, another to speed control, and another to a custom parameter without constantly moving the same component between breadboards.
360-Degree Rotary Operation
The KY-040 provides continuous rotary operation rather than a limited-angle potentiometer-style adjustment. Turning the knob produces directional input that a compatible microcontroller can interpret in software. This makes it suitable for applications where the user needs to move through menu items or increment and decrement numerical values.
For Arduino-based projects, rotary encoders are particularly useful because they can provide more interactive control than a basic push button. Software can determine whether the user turns the knob clockwise or counterclockwise and respond accordingly.
Integrated Push Function
The encoder module commonly combines rotary input with a push-button function. Pressing the knob can therefore provide a separate user input. This is convenient for menu interfaces because one component can handle both navigation and selection.
For example, turning the encoder could scroll through settings while pressing it could select the highlighted option. In a DIY media controller, turning the knob might change a value while pressing it could activate or confirm a function.
Designed for Microcontroller Projects
The KY-040 format is widely associated with hobby electronics and microcontroller experimentation. It can be incorporated into projects using compatible development boards and suitable programming libraries or custom code.
Because the module is compact, it can be placed on breadboards, prototype boards, custom control panels, and other DIY electronics assemblies. This flexibility is useful when developing a prototype before committing to a custom PCB.

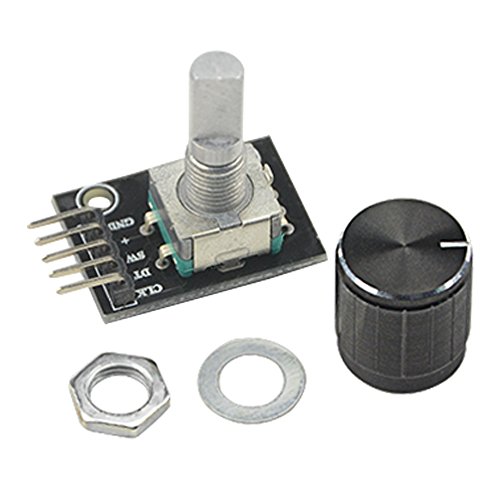

Knob Caps Included
The included knob caps provide a more practical physical interface than working directly with the encoder shaft. A larger surface makes the control easier to grip and turn, especially when the device is installed inside a project enclosure or control panel.
Useful for Prototyping
For makers, prototyping is often about quickly testing an idea before spending time and money on a finished enclosure or circuit board. A module-based rotary encoder can simplify this process because it provides a ready-made interface component that can be connected and tested during development.
The eight-piece quantity also reduces the concern of using one module for every experimental circuit. If a project evolves into a different design, additional encoders remain available for future work.
Pros & Cons
| Pros | Cons |
|---|---|
| Eight KY-040 encoder modules included | Not a professional broadcast streaming encoder |
| 360-degree rotary operation | Requires compatible microcontroller programming |
| Integrated push-button functionality | Mechanical encoder operation may not feel as refined as premium controls |
| Knob caps included | Small modules require careful wiring and handling |
| Useful for Arduino and DIY electronics projects | Not intended to directly encode video or audio streams |
| Good quantity for prototyping and experimentation | Project-specific software and circuitry are still required |
Performance
The practical performance of a KY-040 module depends heavily on the project design, wiring, microcontroller, software, and how the encoder signals are interpreted. In a properly configured Arduino project, the rotary mechanism can provide intuitive directional input for changing values or navigating an interface.
One of its biggest strengths is simplicity. Instead of requiring multiple buttons for increasing and decreasing a value, a single rotary encoder can provide two-directional control. This can result in a cleaner physical interface and a more natural user experience.
For example, consider a DIY controller with a small display. The encoder can be used to scroll through a list of settings. Rotating clockwise can move downward through the list, while counterclockwise movement can move upward. Pressing the encoder can then confirm the selection. This creates a compact three-action interface from one physical control.
The encoder can also be useful for numerical adjustment. A developer could program each rotational step to increase or decrease a value. Depending on the application, that value could represent brightness, timing, speed, gain, menu position, temperature targets, or another software-defined parameter.
For projects associated with streaming equipment, the distinction between an encoder control and a broadcast streaming encoder is particularly important. The WMYCONGCONG KY-040 does not perform video compression, audio encoding, HDMI encoding, network streaming, or similar media-processing functions. Instead, it can serve as a physical input component in a larger DIY controller that operates compatible software or hardware.
That makes the product potentially interesting for makers creating custom control surfaces. For example, a developer could build a small desktop interface where rotary controls are assigned to software parameters. The KY-040 could provide the physical interaction while an Arduino or another microcontroller handles the input logic.
Control Feel
The tactile experience of a rotary encoder differs from a potentiometer. The KY-040 provides incremental rotational input, so software can interpret movement as individual steps. This is useful when precise digital increments are more appropriate than continuous analog adjustment.
The included knob cap also makes repeated adjustments more convenient. However, users building premium control panels should remember that this is an economical hobby-oriented module rather than a high-end studio control component.
Learning and Development
For students and beginners, rotary encoders provide an excellent introduction to digital input processing. They can be used to demonstrate concepts such as state changes, clockwise and counterclockwise detection, debouncing, button inputs, and event-driven programming.
More experienced developers can use the same basic component for rapid prototyping. Once the control concept has been proven, the design can potentially be transferred to a custom PCB or a more specialized production component.
Building a Custom Media Controller
If your goal is to experiment with a custom interface for a media workstation, streaming computer, or automation system, multiple KY-040 modules can provide several physical controls. One encoder could be assigned to volume, another to scene selection, another to a timer, and another to a software-defined parameter.
The exact functionality will depend on the microcontroller and software. The encoder itself is simply the physical input mechanism. This modular approach can make it easier to create a personalized interface without purchasing an expensive commercial control surface.
Installation and Project Considerations
Before installing the modules permanently, it is a good idea to test each encoder individually. Confirm that clockwise and counterclockwise movements are detected correctly and verify that the push-button input behaves as expected. This helps identify wiring or software issues before the components are installed into an enclosure.
Software debouncing may also be useful because mechanical switches can produce rapid electrical transitions when contacts change state. Proper code can help ensure that one physical action is interpreted as one intended event rather than multiple unintended inputs.
Users should also pay attention to the wiring and pin assignments used by their specific microcontroller. A clean prototype layout makes troubleshooting easier and helps prevent accidental connections that could interfere with the project.
Who Should Consider the WMYCONGCONG KY-040?
This kit is primarily suited to Arduino enthusiasts, electronics students, makers, DIY developers, robotics builders, and anyone who needs inexpensive rotary input modules for prototyping. The eight-piece package is particularly convenient for people who build multiple projects rather than needing just one encoder.
It can also be relevant to developers experimenting with custom control panels. If you are creating a physical interface for a computer, media application, automation system, or other programmable device, rotary encoders can provide a useful alternative to conventional buttons.
On the other hand, someone specifically searching for a hardware device that encodes and transmits professional video or audio streams should look for a dedicated broadcast streaming encoder instead. The keyword Commercial Grade broadcast streaming encoder Kit should not be interpreted as the technical function of this product.
Related Guide
When researching other technology and equipment categories, a useful approach is to compare the intended application, physical design, compatibility, and feature set before choosing a product. You can also explore this Related Guide for another example of product-focused buying information.
FAQ
What is the WMYCONGCONG KY-040?
The WMYCONGCONG KY-040 is a rotary encoder module designed for electronics and microcontroller projects. It provides rotary directional input and typically includes a push-button function.
How many rotary encoder modules are included?
This package contains eight KY-040 rotary encoder modules with knob caps, making it suitable for multiple prototypes, replacements, classroom projects, or larger control-interface experiments.
Is this a broadcast streaming encoder?
No. Despite the supplied keyword Commercial Grade broadcast streaming encoder Kit, the KY-040 is not a video or audio streaming encoder. It is a physical rotary input module for electronic and microcontroller applications.
Can it be used with Arduino?
Yes. The KY-040 format is commonly used in Arduino and other microcontroller projects. The appropriate connections and software depend on the development board and project design.
Does the encoder rotate continuously?
The KY-040 is designed for 360-degree rotary operation, allowing the knob to be turned repeatedly in either direction rather than stopping at a fixed endpoint like many potentiometers.
What can the push button be used for?
The push function can be programmed as a separate input. A common application is using rotation to navigate or adjust a value and pressing the knob to select or confirm an option.
Is this suitable for a professional studio control panel?
The modules can be useful for prototyping a custom control panel, but they are compact hobby-oriented components. A production studio interface may require components selected specifically for its durability, tactile feel, enclosure design, electrical requirements, and long-term operating conditions.
Why buy eight modules instead of one?
The eight-piece package is useful when experimenting with multiple circuits or designing a control interface that requires several rotary inputs. It also provides spare modules for future projects or replacements.
What should beginners know before using a KY-040?
Beginners should understand the module’s pin connections, configure the microcontroller correctly, and use suitable code to detect rotational direction and button presses. Testing the encoder on a breadboard before permanent installation is a practical way to learn how it works.
Final Thoughts
The WMYCONGCONG 8 Pcs KY-040 360 Degree Rotary Encoder Module kit is a straightforward and versatile option for DIY electronics projects that need physical rotary controls. Its eight-module quantity, 360-degree operation, integrated push functionality, and included knob caps make it useful for experimentation and prototyping.
Its strongest application is not professional media encoding itself, but programmable physical control. When connected to a suitable microcontroller and programmed correctly, the encoder can become a compact interface for menus, numerical settings, automation controls, media applications, and custom electronics projects.
For makers looking for an affordable collection of rotary input components, this kit offers plenty of flexibility. Just keep the product’s actual role in mind: it is a rotary encoder module, not a standalone commercial broadcast streaming encoder. With that distinction understood, it can be a practical building block for a wide range of Arduino and microcontroller-based designs.
