FoxAlien 4th Axis Rotary Module Review for CNC Precision Engraving (2026 Guide)
CNC router 4×8 woodworking machine users in 2026 are increasingly moving toward advanced 4th axis upgrades, and the FoxAlien 4th Axis Rotary Module for Masuter 3S, XE-Ultra, and XE-PRO is one of the most impactful enhancements available today. Designed for cylindrical engraving, rotational carving, and complex 3D machining tasks, this module transforms a standard CNC router into a professional-grade rotary production system.
This rotary axis upgrade is engineered for makers, woodworking professionals, and small-scale manufacturing workshops who want to push beyond flat 2D carving. Whether you’re engraving wooden balusters, custom pens, cylindrical molds, or metal tubes, this system adds an entirely new dimension to your CNC workflow.
In this detailed review, we break down everything you need to know—features, build quality, performance, pros and cons, and real-world usability—so you can decide whether this upgrade is worth integrating into your CNC setup.
What Makes the FoxAlien 4th Axis Rotary Module Special?

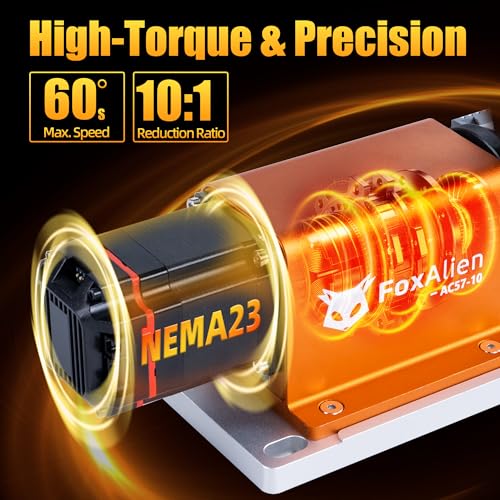

The FoxAlien 4th axis module is built around a NEMA23 closed-loop stepper motor paired with a 10:1 reduction gearbox. This combination delivers high torque, smooth rotation, and precise angular control—essential for accurate cylindrical engraving.
Unlike standard rotary attachments that may suffer from backlash or vibration, this system prioritizes stability and precision. The closed-loop motor ensures that every movement is monitored and corrected in real time, significantly reducing engraving errors and missed steps.
For CNC enthusiasts upgrading from 3-axis machines, this rotary module bridges the gap between hobby-grade tools and industrial-level production capabilities.
Core Features and Engineering Design
The FoxAlien rotary module includes several standout engineering features that make it a strong competitor in the CNC accessory market:
- NEMA23 Closed-Loop Stepper Motor: Provides higher torque and precise feedback control for error-free machining.
- 10:1 Reduction Gearbox: Enhances rotational precision and improves torque output for heavy or dense materials.
- Durable Aluminum Frame: Built for long-term stability and resistance to vibration during high-speed engraving.
- Plug-and-Play Compatibility: Designed specifically for FoxAlien CNC systems like Masuter 3S and XE series machines.

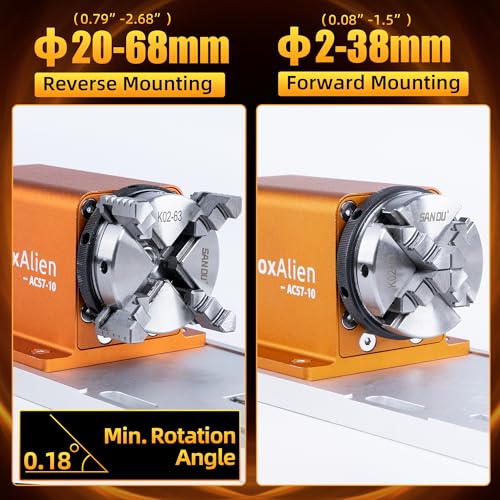

- Rotary Chuck System: Securely holds cylindrical objects such as rods, bottles, and wooden blanks.
This combination of mechanical strength and electronic precision makes it ideal for both beginners scaling up and professionals expanding production capabilities.
Installation and Setup Experience
One of the biggest advantages of this module is its relatively straightforward installation process. While many 4th axis systems require complex wiring and firmware configuration, FoxAlien simplifies the setup by providing direct compatibility with its CNC ecosystem.
Most users can integrate the rotary module into their existing machine setup with minimal modification. However, software configuration in GRBL or CNC control software may still be required depending on your workflow.
For users upgrading from basic CNC setups, this learning curve is manageable and well-documented through FoxAlien’s support ecosystem.
Performance in Real-World CNC Applications
In actual CNC operations, the FoxAlien 4th axis module performs exceptionally well across multiple materials including hardwood, softwood, acrylic, and even aluminum. The closed-loop system ensures consistent rotational accuracy, even during long carving sessions.

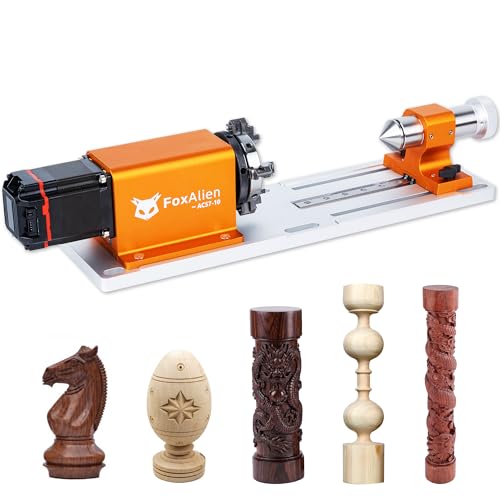

Users report excellent results when engraving cylindrical objects like:
- Wooden table legs and balusters
- Customized pens and decorative rods
- Metal tubes and industrial components
- Rotating art sculptures and crafts
Compared to standard 3-axis machining, the rotary module significantly expands creative possibilities. Instead of limited flat engraving, users can now execute continuous 360-degree designs with smooth transitions.
Just as automation is transforming other industries like food preparation with tools such as electric pasta maker machine professional, CNC rotary systems are redefining modern woodworking precision.
Pros and Cons
| Pros | Cons |
|---|---|
| High-precision closed-loop stepper system | Requires software configuration knowledge |
| Strong torque with 10:1 gearbox | Not universal for all CNC brands |
| Excellent cylindrical engraving quality | Learning curve for beginners |
| Durable aluminum construction | Additional workspace setup needed |
| Seamless integration with FoxAlien machines | Not ideal for ultra-small desktop setups |
Who Should Use This Rotary Module?
This upgrade is best suited for CNC users who already have experience with 3-axis machining and want to expand into advanced engraving techniques. It is especially valuable for:
- Woodworking professionals creating custom furniture components
- Small manufacturing workshops producing cylindrical parts
- Hobbyists upgrading from entry-level CNC routers
- Artists designing 3D rotational sculptures
If your workflow involves repetitive cylindrical engraving or mass production of round objects, this module quickly pays for itself in efficiency and precision.
Comparison with Standard CNC Rotary Attachments
Compared to basic rotary add-ons, the FoxAlien system stands out due to its closed-loop feedback mechanism and gearbox enhancement. Many entry-level rotary axes rely on open-loop motors, which can lose steps under load, leading to inaccurate carving.
This module eliminates that issue by continuously monitoring motor position and adjusting in real time. The result is smoother engraving, better surface finish, and significantly improved dimensional accuracy.
FAQ – FoxAlien 4th Axis Rotary Module
1. Is this compatible with all CNC routers?
No, it is primarily designed for FoxAlien CNC machines such as Masuter 3S, XE-Ultra, and XE-PRO.
2. Can it engrave metal?
Yes, it can handle light metal engraving like aluminum and soft alloys when properly configured.
3. Do I need special software?
You may need CAM software that supports 4-axis machining, such as Fusion 360 or similar tools.
4. Is it beginner-friendly?
While installation is straightforward, mastering rotary CNC workflows requires some learning.
5. What materials can it handle?
It works well with wood, acrylic, plastics, and light metals.
Final Verdict
The FoxAlien 4th Axis Rotary Module is a powerful upgrade for anyone serious about expanding their CNC capabilities. With its precision engineering, strong torque output, and closed-loop control system, it delivers professional-grade performance for cylindrical engraving tasks.
If you are looking to elevate your CNC workflow beyond flat surfaces and unlock true 3D rotational machining, this module is a highly reliable investment for 2026 and beyond.
