American Photonics CO2 Laser Nozzle and Lens Tube Review 2026 – Precision Upgrade for Boss Laser CO2 machine
Introduction
Boss Laser CO2 machine users understand that precision is everything when it comes to engraving, cutting, and production efficiency. The American Photonics CO2 Laser Nozzle and Lens Tube with 20mm diameter (PN-2065-KIT4-LS-ADA-RLL) is designed specifically to elevate performance in professional and semi-professional laser systems. Built as a complete lens assembly package featuring ZnSe focus lenses, this upgrade is engineered to enhance beam stability, improve cutting accuracy, and extend the lifespan of your optical system.
In modern laser engraving workflows, even a minor misalignment in lens positioning can lead to inconsistent cuts, burnt edges, or reduced engraving clarity. That’s where this precision-engineered nozzle and lens tube system becomes essential. It is optimized for compatibility with BOSS Laser LS-1420 systems and similar CO2 laser machines, making it a highly valuable upgrade for workshop owners, makers, and small manufacturing businesses.
Unlike generic aftermarket lens assemblies, American Photonics has focused on optical purity and mechanical stability. The ZnSe (Zinc Selenide) lens ensures high transmission efficiency of CO2 laser wavelengths, reducing energy loss and maximizing cutting power. Whether you’re working on wood, acrylic, leather, or advanced composite materials, this kit provides consistent beam focus for superior output quality.
This review explores its features, build quality, real-world performance, pros and cons, and whether it’s worth upgrading your current laser setup in 2026.
Features of American Photonics CO2 Lens Assembly Kit
This lens and nozzle kit is designed with a focus on performance consistency and optical clarity. Every component is manufactured to tight tolerances, ensuring smooth integration into compatible laser systems.
One of the standout features is the 20mm diameter lens tube, which provides enhanced beam alignment stability. This is especially important for high-speed engraving operations where vibration or thermal expansion can impact beam precision. The ZnSe focus lens is another critical component, known for its excellent infrared transmission properties.

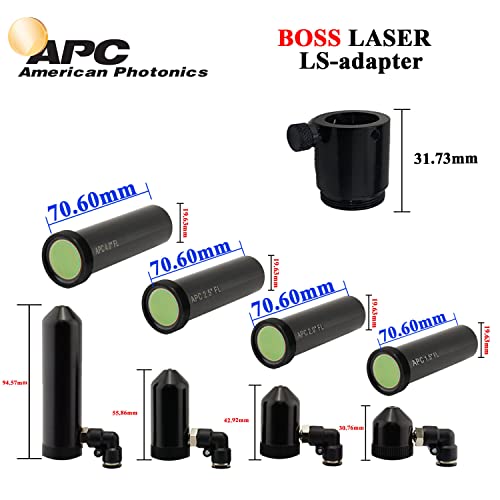

The kit includes a complete lens assembly package, meaning users don’t need to source individual components separately. This reduces installation complexity and ensures that all parts are calibrated to work together seamlessly.

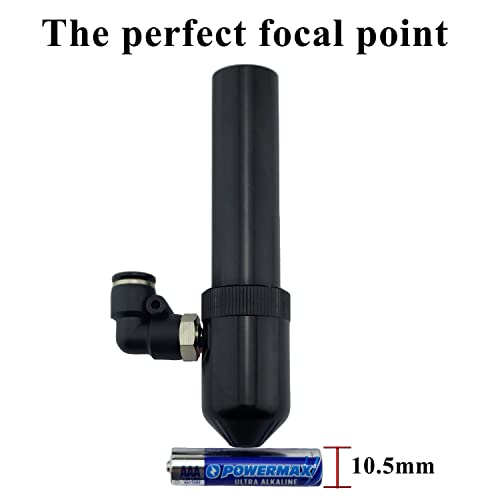

Additionally, the nozzle design improves airflow management around the cutting zone. Proper air assist is essential for reducing burn marks, clearing debris, and maintaining edge quality. With this system, airflow is optimized for cleaner and sharper cuts.
For users operating in demanding production environments, this upgrade ensures higher uptime and reduced maintenance interruptions.
Compatibility and Build Quality
The American Photonics lens assembly is specifically designed for BOSS Laser LS-1420 systems, but it also integrates well with a wide range of CO2 laser engraving machines that use standard 20mm lens tubes. This makes it a versatile choice for workshops running mixed equipment setups.
Build quality is one of its strongest advantages. The lens housing is constructed from durable metal alloy designed to withstand heat buildup during prolonged operation. In laser cutting environments, thermal stability is crucial because even small distortions can affect focal accuracy.
The ZnSe lens itself is precision-polished to ensure minimal scattering and maximum beam focus. This leads to cleaner cuts, especially in detailed engraving tasks where edge definition matters. Compared to lower-grade acrylic or coated glass lenses, ZnSe offers superior longevity and performance consistency.
For operators who demand professional-grade output, this lens assembly bridges the gap between entry-level machines and industrial-grade performance systems.
Performance in Real-World Applications

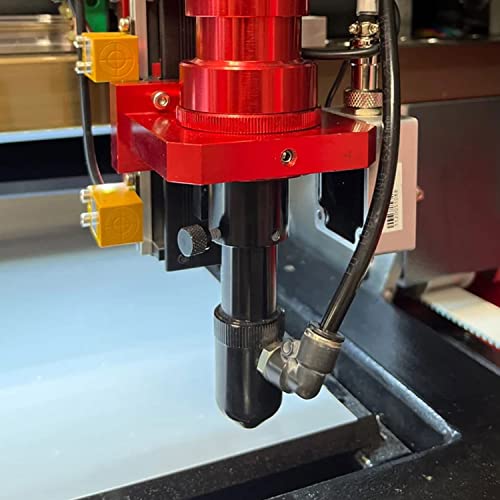

When installed on a Boss Laser CO2 machine, the American Photonics nozzle and lens tube kit delivers noticeable improvements in cutting consistency and engraving sharpness. Users report cleaner edges on acrylic cuts, reduced charring on wood materials, and more accurate fine-detail engraving results.
The improved beam focus reduces energy dispersion, allowing the laser to cut more efficiently at lower power settings. This not only improves output quality but also extends the lifespan of the laser tube itself by reducing unnecessary strain.
In high-volume production environments, consistency is critical. This lens assembly maintains stable performance even during long continuous operation cycles. Combined with proper maintenance and alignment, it significantly reduces downtime caused by optical degradation.
For advanced users, integrating this kit into a well-optimized workflow can improve throughput and reduce material waste, making it a cost-effective upgrade over time.
Pros & Cons
| Pros | Cons |
|---|---|
| High-quality ZnSe focus lens for superior beam transmission | Premium build may be overkill for hobby users |
| Improved cutting precision and engraving clarity | Requires proper alignment for best results |
| Durable 20mm lens tube design for stability | Not universal for all CO2 machines |
| Optimized airflow for cleaner cutting edges | Replacement parts can be relatively specialized |
| Complete assembly kit reduces installation complexity | Higher cost compared to generic lens kits |
Frequently Asked Questions (FAQ)
1. Is this compatible with all Boss Laser CO2 machines?
It is primarily designed for BOSS Laser LS-1420 models but can work with other CO2 machines using a 20mm lens tube system.
2. What makes ZnSe lenses better?
ZnSe lenses offer superior infrared transmission efficiency, reducing energy loss and improving cutting precision compared to standard glass lenses.
3. Can beginners install this lens kit?
Yes, but basic knowledge of CO2 laser alignment is recommended for optimal performance.
4. Does it improve engraving quality?
Yes, the improved beam focus significantly enhances engraving sharpness and detail clarity.
5. How often should the lens be cleaned?
Regular cleaning after heavy use is recommended to maintain consistent performance and avoid residue buildup.
Final Verdict
The American Photonics CO2 Laser Nozzle and Lens Tube Kit is a powerful upgrade for anyone serious about improving the performance of their Boss Laser CO2 machine. With its high-quality ZnSe lens, durable construction, and optimized airflow design, it delivers consistent, professional-grade results across a wide range of materials.
For workshops, small businesses, and advanced hobbyists looking to increase precision and reduce operational inefficiencies, this kit stands out as a reliable and long-term investment in laser performance optimization.
