Introduction
Reliable backup power is not simply about having a generator available when the utility supply fails. The transfer between power sources also needs to be handled in a controlled, dependable way. The 100Amp AC 110V Dual Power Automatic/Manual Transfer Switch is designed for applications where a load may need to switch between two power sources, such as utility power and a home generator. With a 100A rating, four-pole configuration, automatic/manual operation, DIN-rail installation, and 50/60Hz compatibility, it offers a practical foundation for a backup-power setup.
For homeowners, RV users, workshop operators, and other applications using compatible 110V systems, this automatic transfer switch generator package can simplify the process of changing from a primary source to a backup source. The automatic mode is intended to handle source changeover without requiring constant manual intervention, while manual operation provides an additional level of control when needed.
One of the most useful aspects of this type of equipment is the combination of automatic and manual functionality. Automatic transfer is convenient during an outage, while manual switching can be useful during installation, testing, maintenance, troubleshooting, or situations where the operator wants direct control. The four-pole design also makes it important to plan the installation carefully around the specific electrical system and applicable requirements.
Features
100A Current Rating
The switch is specified at 100 amps, making its capacity an important consideration for larger residential backup-power applications and other compatible installations. A transfer switch should always be selected according to the actual voltage, current, load characteristics, and generator specifications of the system. The 100A designation does not mean every installation should operate continuously at that level.
For a homeowner planning an automatic transfer switch generator package, the current rating is one of the first specifications to examine. Matching the switch to the electrical distribution equipment helps create a more appropriate overall system rather than selecting a transfer device based solely on the generator’s advertised output.
110V AC Operation
This model is designed for AC 110V applications. That makes voltage compatibility a critical checkpoint before installation. Electrical systems can differ substantially in their wiring arrangements, grounding methods, neutral configuration, and available voltage, so users should verify that the switch matches their particular system rather than assuming that any 110V device will work in every installation.
Automatic and Manual Transfer Modes
The dual-mode design is one of the product’s defining features. In automatic operation, the transfer switch is intended to change the connected load from one available power source to another according to the operating conditions of the system. Manual operation provides a direct alternative when automatic operation is not desired or when testing and maintenance require operator control.
Having both modes can be particularly useful in backup-power installations because it provides flexibility. An automatic mode can reduce the need for immediate intervention during a utility outage, while manual control can be valuable for commissioning or troubleshooting the installation.
Four-Pole Configuration
The four-pole construction is another specification that deserves attention during system planning. Transfer equipment must be selected based on the electrical architecture of the installation, including how the conductors are arranged and whether neutral switching is required for the particular system.
Because four-pole transfer equipment can affect the way conductors are isolated and transferred, installation should not be treated as a simple plug-and-play project. A qualified electrician should determine whether this configuration is appropriate for the generator, utility supply, panel, grounding system, and local electrical requirements.

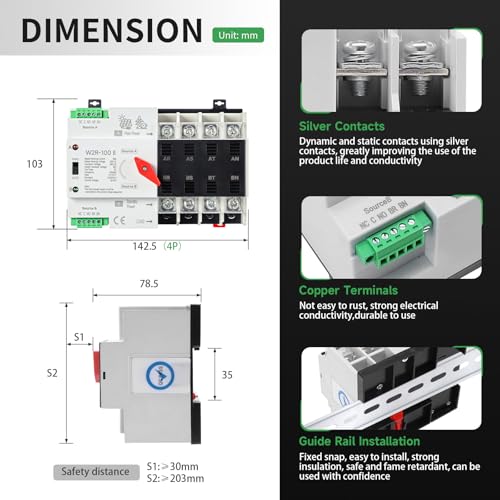

DIN Rail Installation
The DIN-rail design can make the switch convenient to integrate into a compatible electrical enclosure. DIN rails are widely used for organizing electrical control and distribution components, so this mounting approach can help create a cleaner installation when the enclosure and surrounding components are designed for it.
For a professional-looking automatic transfer switch generator package, neat component placement can also make inspection and maintenance easier. Adequate enclosure space, conductor routing, ventilation, accessibility, and protection from accidental contact should all be considered during installation.
50/60Hz Compatibility
The switch is specified for both 50Hz and 60Hz systems. This provides useful frequency compatibility, but frequency alone should never be treated as the only compatibility requirement. Voltage, current, phase arrangement, wiring configuration, generator output, and transfer requirements must also be checked before installation.
Pros & Cons
| Pros | Cons |
|---|---|
| 100A-rated design for compatible applications | Requires careful electrical compatibility checks |
| Automatic and manual operating modes | Not a universal solution for every generator setup |
| Four-pole configuration | Installation should be handled by a qualified professional |
| DIN-rail mounting design | 110V specification limits use to compatible systems |
| 50/60Hz frequency support | Load and wiring configuration must be verified before use |
| Useful for utility-to-generator changeover applications | Proper enclosure and electrical protection are still required |
Performance
The most important performance characteristic of an automatic transfer switch is controlled source changeover. In a backup-power arrangement, the switch sits between two electrical sources and the supported load, so its role is fundamentally different from that of the generator itself. The generator creates the backup electricity; the transfer equipment manages how the load is connected to the available source.
With this 100A unit, the automatic function is intended to make source switching more convenient when the installation is configured correctly. Instead of relying entirely on someone to manually move a switch whenever utility power changes, an automatic transfer arrangement can respond according to the equipment’s operating logic. This can be especially useful for equipment that needs a consistent backup-power strategy.
The manual function adds another practical layer. During installation or service, technicians may want to test the transfer mechanism without relying entirely on automatic operation. Manual control can also provide an alternative operating method when the automatic function is intentionally disabled or when troubleshooting is necessary.
Another consideration is the 100A rating. Buyers should not interpret this specification as permission to connect any collection of loads that happens to total 100 amps. Electrical load calculations, conductor sizing, breaker protection, generator capacity, and the requirements of the distribution system all matter. The transfer switch needs to be one correctly matched component within the complete electrical design.
Practical Installation Considerations
The DIN-rail format can be convenient for a structured electrical enclosure, but installation quality is more important than mounting convenience. Conductors should be correctly sized and terminated, terminals should be tightened according to applicable specifications, and the enclosure should provide suitable protection from accidental contact and environmental conditions.
Users should also verify the generator’s output and transfer requirements before connecting it to the switch. A generator that does not provide the required voltage or electrical configuration cannot be made compatible simply by installing a transfer switch. The primary and backup sources must be appropriate for the switch and for the intended load.
Home Backup Applications
For a home backup installation, this type of switch may be considered where a compatible generator is intended to support selected circuits or an appropriately designed electrical distribution system. The exact arrangement depends on the home’s electrical architecture and local code requirements.
For example, a homeowner may want backup power for selected essential loads such as refrigeration, lighting, communications equipment, or other appropriately rated circuits. The transfer equipment should be integrated into a properly engineered system rather than used as an improvised way to connect a generator to household wiring.
RV and Other Applications
The product description also identifies RV and low-voltage power applications. Portable and recreational electrical systems can have their own wiring arrangements and limitations, so compatibility should be established before installation. Space constraints, generator capacity, shore-power configuration, grounding, and the requirements of the RV electrical system can all influence whether a particular transfer switch is suitable.
Why Automatic Transfer Matters
The advantage of automatic transfer becomes most apparent when an outage occurs while nobody is immediately available to operate the equipment. In a correctly configured backup system, automatic transfer can reduce the number of steps required from the user. That convenience can be valuable for homes, workshops, remote installations, and other locations where maintaining electrical service is important.
At the same time, automatic switching should not be confused with uninterrupted power. A transfer switch changes the electrical source; it does not necessarily provide the seamless, battery-supported continuity associated with an uninterruptible power supply. Users with sensitive electronics should determine whether additional power-conditioning or UPS equipment is appropriate for their needs.
Setup and Safety
Electrical transfer equipment involves potentially hazardous voltages and currents. Installation should be performed by a qualified electrician familiar with transfer equipment and the applicable electrical codes. Before installation, the electrician should verify the source voltage, phase configuration, conductor arrangement, generator capacity, load requirements, overcurrent protection, grounding and bonding arrangement, enclosure requirements, and the suitability of the four-pole configuration.
It is also important to understand how the transfer system prevents incompatible sources from being improperly connected together. The transfer mechanism should be installed and configured exactly as required by the product documentation and the electrical design. Improperly connecting utility and generator sources can create serious hazards to equipment, occupants, and utility personnel.
Before putting the system into service, the installation should be inspected and tested appropriately. Testing can include verifying operation in automatic and manual modes, confirming that the intended loads transfer correctly, checking that the generator starts and supplies the required electrical output where applicable, and ensuring that the system returns to the intended primary source according to the designed sequence.
Related Guide
If you are also researching equipment for temperature-controlled cooking and smart kitchen applications, this Related Guide provides another product-focused reference.
FAQ
What is an automatic transfer switch?
An automatic transfer switch, commonly called an ATS, is electrical switching equipment designed to transfer a connected load between two power sources. In a typical backup-power installation, those sources may be utility electricity and a generator. The ATS manages the source connection according to its design and control system.
Is this switch suitable for a 110V generator?
The product is specified for AC 110V applications, but suitability depends on the complete electrical configuration. Before purchasing or installing it, verify the generator’s voltage, frequency, phase arrangement, current capability, wiring configuration, and transfer requirements against the switch specifications and the intended electrical system.
What does 100A mean on this transfer switch?
The 100A designation refers to the stated current rating of the transfer switch. It does not automatically mean that every installation should operate at 100 amps continuously. The complete system must be designed around appropriate conductor sizes, overcurrent protection, load calculations, generator output, and applicable electrical requirements.
What is the purpose of the four poles?
The four-pole configuration provides four switched conductors within the transfer arrangement. Whether this is appropriate depends on the electrical system, including its neutral and grounding configuration. A qualified electrician should determine whether a four-pole transfer arrangement matches the specific installation.
Can it operate manually?
Yes. The product is described as supporting both automatic and manual operation. Manual control can be useful for testing, maintenance, troubleshooting, or situations where the user wants direct control of the transfer process.
Does the DIN-rail design make installation easy?
The DIN-rail format can simplify physical mounting inside a compatible electrical enclosure, especially where other DIN-mounted components are already being used. However, mounting the unit is only one part of installation. Electrical connections, protection, enclosure design, grounding, conductor sizing, and system configuration require appropriate professional attention.
Does it work with both 50Hz and 60Hz power?
The product is specified for 50Hz and 60Hz operation. Buyers should still confirm all other electrical specifications before installation because frequency compatibility alone does not establish compatibility with a particular generator or electrical distribution system.
Can I install this myself?
Because this is electrical transfer equipment capable of handling substantial current, professional installation is the safer approach. A qualified electrician can determine whether the switch is appropriate, install it according to the required electrical standards, and test the finished system before it is placed into service.
Is this the same as a UPS?
No. An automatic transfer switch manages the connection between power sources, while a UPS generally uses stored energy to provide temporary power and can help bridge interruptions. An ATS and UPS can serve different purposes and may sometimes be used together in a properly designed system.
Who should consider an automatic transfer switch generator package?
This type of equipment may be relevant to homeowners, RV users, workshops, and other users who have a compatible primary and backup AC source and need controlled source transfer. The key is matching the transfer switch to the actual electrical system rather than choosing it solely because of its current rating.
Final Thoughts
The 100Amp AC 110V Dual Power Automatic/Manual Transfer Switch combines several useful characteristics for compatible backup-power installations: a stated 100A rating, 110V AC operation, automatic and manual transfer modes, four-pole switching, DIN-rail mounting, and 50/60Hz compatibility. Its strongest practical value comes from giving a properly designed system both automatic source changeover and manual control when needed.
For anyone assembling an automatic transfer switch generator package, however, the switch should be viewed as one component of a complete electrical system. Generator specifications, load requirements, conductor sizing, protection, grounding, neutral configuration, enclosure design, and local regulations all need to be considered together. When those details are correctly matched and the installation is performed by a qualified professional, this type of transfer equipment can provide a structured way to manage backup power between compatible sources.
