Top 5 Reasons This Dual RJ45 Multimode LC Gigabit Fiber to Ethernet Media Converter Pair Is a Smart Network Upgrade
Introduction: A Practical Bridge Between Copper Ethernet and Fiber
Modern networks increasingly have to connect two very different physical environments. Copper Ethernet remains convenient for computers, switches, cameras, access points, and other conventional network equipment, while fiber optic cable provides a powerful way to extend connectivity over longer distances and through electrically noisy environments. The Dual RJ45 Multimode LC Gigabit Fiber to Ethernet Media Converter Pair Kit is designed around that exact transition point, providing a straightforward bridge between RJ45 Gigabit Ethernet and multimode LC fiber.
The important thing to understand is that this is a media conversion solution rather than a conventional Ethernet switch. A media converter translates the physical Ethernet signaling from copper into optical signaling and then performs the reverse conversion at the other end. That makes a paired kit especially useful when two network locations need to communicate over fiber while retaining standard RJ45 Ethernet connections at each endpoint.
For anyone evaluating an all-in-one fiber network switch system concept, this approach has a major advantage: it can add fiber connectivity without requiring every endpoint device to have a native fiber interface. The result is a focused, relatively simple deployment architecture that can work well for offices, labs, network closets, surveillance installations, classrooms, workshops, and other structured-network environments.
Below are the five biggest reasons this type of converter kit deserves consideration, with emphasis on the technical details that actually determine whether a fiber-to-Ethernet installation performs reliably.
Reason 1: It Makes Gigabit Fiber Integration Much Simpler
The first reason to consider this kit is the simplicity of converting between two common network media types. On the copper side, RJ45 is one of the most familiar interfaces in Ethernet networking. On the optical side, LC is a compact fiber connector commonly encountered in structured fiber installations. By putting copper and optical interfaces into dedicated conversion hardware, the kit avoids forcing an ordinary Ethernet device to understand optical signaling directly.
Technically, the converter operates at the physical networking layer. Ethernet frames arriving through the RJ45 interface can be transferred across the optical link, with the receiving converter translating the optical signal back into electrical Ethernet signaling. This separation is valuable because the connected network devices can continue using conventional Ethernet ports.
The Gigabit designation is also important. A 1Gbps Ethernet link provides considerably more capacity than older 10/100Mbps infrastructure, making it appropriate for many modern data-transfer tasks. Actual application throughput will always depend on protocol overhead, connected equipment, cable quality, network congestion, and the capabilities of the rest of the network, but Gigabit-class media conversion gives the installation a substantially stronger foundation than basic Fast Ethernet hardware.
This is especially useful when upgrading an existing copper network incrementally. Instead of replacing every switch or endpoint with fiber-capable hardware, you can introduce fiber at the location where it provides the greatest benefit and retain RJ45 connectivity for local equipment.
Reason 2: Multimode LC Fiber Gives You a Purpose-Built Optical Path
The second reason is the use of multimode fiber with LC connectivity. Fiber is not simply a faster version of copper cable; it uses light rather than electrical signals to carry information. This fundamental difference can be valuable when the network route passes through electrically noisy areas or when isolation between network segments is desirable.
Multimode fiber is designed for optical transmission over comparatively shorter distances than long-haul single-mode systems. That makes it particularly relevant for building-scale or campus-style deployments where the goal is to connect network closets, rooms, floors, equipment areas, or nearby buildings rather than create a metropolitan fiber link.
The LC connector is another practical feature. Its compact form factor is convenient in higher-density patching environments because it occupies less physical space than many older fiber connector designs. Correct connector cleanliness, fiber type, polarity, and optical compatibility still matter enormously, however. A converter cannot compensate for a damaged fiber, contaminated connector face, incompatible transceiver characteristics, or incorrect patching configuration.
From a troubleshooting perspective, fiber also changes what you should inspect when diagnosing a network. With copper, you might immediately check twisted-pair termination, electromagnetic interference, or cable length. With multimode fiber, you should additionally consider optical loss, connector condition, fiber type, patch-cord quality, and link indicators on both converters.
That makes the kit particularly attractive for users who want the advantages of optical networking without turning every connected computer or network appliance into a specialized fiber device.
Reason 3: The Pair-Based Design Fits Point-to-Point Networking

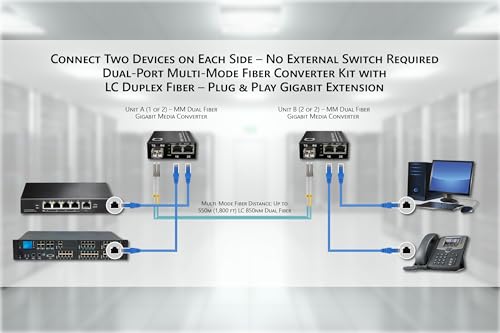

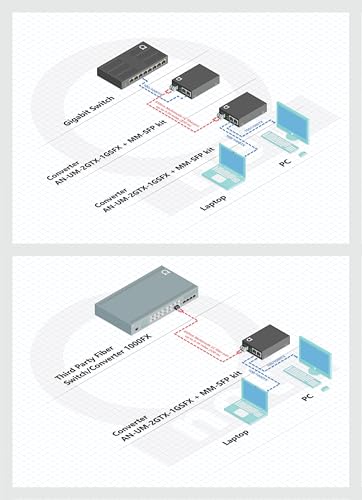

The third reason is the paired architecture. A fiber media converter pair naturally fits a point-to-point connection: one converter sits near the source network equipment, while the second converter sits near the destination equipment. Fiber runs between the two optical interfaces, while ordinary Ethernet patch cables connect the converters to the network devices.
This arrangement can simplify network planning because the physical conversion points are clearly defined. For example, one converter could be installed in a main communications room and the other in a remote office or equipment area. The existing Ethernet switch remains in place at the source, and the remote device can continue using its familiar RJ45 interface.
There is also a useful architectural distinction here. A media converter is not intended to replace a managed switch with VLAN configuration, extensive port density, routing functions, or sophisticated traffic-management features. Instead, its strength is focused connectivity. It solves the physical-medium problem without unnecessarily changing the logical network design.
That can make it an efficient choice for a single fiber uplink or a dedicated point-to-point connection. If a deployment requires many copper devices at the remote end, the converter can potentially be paired with an Ethernet switch there, allowing the fiber link to serve as the backbone connection for the local devices.
Reason 4: Fiber Helps Separate Networking From Electrical Noise
The fourth reason is electrical isolation. Copper Ethernet carries electrical signals, so installations can sometimes encounter challenges related to grounding differences, electromagnetic interference, or electrically noisy equipment. Fiber optic communication instead uses light within the fiber, creating a physical separation between the electrical environments at the two ends.
This characteristic can be particularly useful in environments containing motors, industrial machinery, power equipment, or long cable pathways where electrical interference is a concern. It can also help when two network areas have different electrical grounding conditions. Fiber does not magically eliminate every possible network problem, but its optical transmission method removes the copper conductor from the communication path between the endpoints.
From an engineering perspective, that is one of the strongest reasons to use fiber even when Gigabit copper might appear adequate on paper. Network design is not only about theoretical bandwidth. Physical environment, cable routing, distance, electrical conditions, and installation constraints all influence reliability.
The same principle can make fiber attractive for security-camera networks and other distributed systems. A remote equipment location can communicate back to the central network through an optical link while keeping the copper Ethernet segment relatively short at each endpoint.
Users should still follow appropriate installation practices. Fiber should be routed according to its bend-radius requirements, connectors should be protected from contamination, and the correct multimode optical components should be used. Good physical installation remains just as important as selecting the converter itself.
Reason 5: It Offers a Focused Solution Without Overcomplicating the Network
The fifth reason is the balance between capability and complexity. Networking hardware can quickly become unnecessarily complicated when a deployment only needs one thing: a dependable transition between RJ45 Ethernet and fiber. A dedicated media converter pair addresses that specific requirement without requiring a major redesign of the network.
This simplicity can be valuable for troubleshooting as well. When the fiber link is not communicating, the technician can work through a relatively short diagnostic chain: verify power, inspect RJ45 link status, inspect optical link status, confirm fiber type and polarity, inspect connectors, test the Ethernet patch cables, and check the connected network devices. That is easier to reason about than troubleshooting a large integrated system where multiple switching, routing, and management functions interact.
For an installation described as an all-in-one fiber network switch system, it is important to understand the role correctly. The converter provides media conversion; it is not a substitute for every function found in a full enterprise switch. If you need multiple switched ports, VLAN management, routing, PoE, or advanced monitoring, those requirements should be handled by appropriate networking equipment alongside the converter.
For the narrower job of extending Gigabit Ethernet over compatible multimode LC fiber, however, a dedicated converter pair can be a clean and logical component in the overall network architecture.

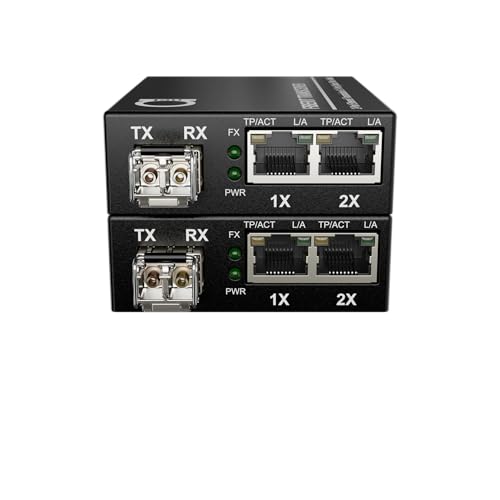

Features at a Glance
- Dual RJ45 interfaces: Designed to connect conventional Ethernet equipment to the media conversion path.
- Gigabit Ethernet capability: Supports a 1Gbps-class Ethernet connection, subject to the capabilities of the connected equipment and installation.
- Multimode fiber architecture: Intended for compatible multimode optical networking applications.
- LC optical connectivity: Uses the compact LC connector format for the fiber side.
- Pair-based deployment: Two converters can establish a straightforward fiber bridge between separate network locations.
- Physical-layer conversion: Provides a focused way to translate between electrical Ethernet and optical Ethernet signaling.
- Useful for network expansion: Can help extend connectivity without replacing every existing RJ45 endpoint.
Pros & Cons
| Pros | Cons |
|---|---|
| Provides a practical RJ45-to-fiber conversion path | Requires compatible multimode fiber equipment and cabling |
| Gigabit-class connectivity suits many modern networks | Not a replacement for a feature-rich managed Ethernet switch |
| LC interface is compact and common in structured fiber installations | Fiber connectors require careful handling and cleanliness |
| Pair design is well suited to point-to-point links | Actual throughput depends on the entire network path |
| Optical transmission provides electrical isolation between endpoints | Installation requires correct fiber polarity, type, and optical compatibility |
Performance: What to Expect in a Real Network
Performance should be evaluated from the perspective of the entire link rather than the converter alone. A Gigabit media converter can provide the physical foundation for 1Gbps Ethernet, but the final user experience depends on the Ethernet adapters, switches, patch cables, fiber components, network protocols, storage devices, and traffic conditions involved.
In a properly matched installation, the converter pair should function as a transparent bridge between the copper and optical portions of the network. For file transfers, network storage access, camera traffic, workstation connectivity, or general LAN communication, this can provide a useful fiber backbone while preserving standard RJ45 connections at the endpoints.
One of the most important performance considerations is fiber compatibility. Because this product is designed around multimode LC fiber, users should verify that the fiber cable and optical characteristics match the converter requirements before installation. Mixing incompatible optical standards can result in a link that fails to establish or performs unpredictably.
Likewise, connector condition matters. Fiber end faces are extremely sensitive to contamination, and even a small amount of dirt can introduce optical loss. If a link does not come up, checking and cleaning the fiber connections should be part of the troubleshooting process rather than immediately assuming the converter is defective.
The RJ45 side deserves equal attention. Use appropriate Ethernet patch cables and verify that the connected network ports negotiate at the expected speed. A Gigabit-capable converter cannot force a slower network device to operate beyond its own limitations.
For users planning a distributed network, the best approach is to treat this converter pair as one component in a structured system. Put the fiber where it provides the greatest architectural benefit, keep local copper runs practical, and use switches or routers for the higher-level network functions the converters do not provide.
If your broader setup includes high-speed workstation peripherals or modern docking hardware, you can also explore this Related Product Guide for additional connectivity considerations.
Installation and Compatibility Tips
Before deploying the converter pair, confirm that both ends of the intended connection use compatible Gigabit Ethernet equipment and compatible multimode LC fiber. Plan the cable route carefully and avoid unnecessarily tight bends. Keep optical connectors protected until they are ready to be connected, because contamination can significantly affect optical performance.
Once connected, check the link indicators on both units and the Ethernet devices. A useful troubleshooting method is to isolate the connection into sections: test the local RJ45 connection, verify the optical path, then verify the remote RJ45 connection. This method quickly identifies whether the problem is on the copper side, optical side, or connected network equipment.
It is also wise to document which fiber strand connects to which optical port. Correct polarity is a fundamental part of duplex fiber networking, and swapping transmit and receive paths can prevent the link from establishing.
Frequently Asked Questions
1. What does a fiber-to-Ethernet media converter do?
A media converter translates Ethernet signaling between copper RJ45 and optical fiber interfaces. It allows conventional Ethernet equipment to communicate across a compatible fiber connection without requiring native fiber ports on the endpoint devices.
2. Is this the same as an Ethernet switch?
No. A media converter is primarily designed for physical-media conversion. A managed Ethernet switch may provide multiple ports, VLANs, traffic management, PoE, monitoring, and other network functions that a basic converter is not intended to replace.
3. What type of fiber does this kit use?
The product is identified as a multimode LC Gigabit fiber-to-Ethernet media converter pair. Users should still verify the exact optical specifications and compatibility requirements before connecting it to an existing fiber installation.
4. Why use fiber instead of ordinary Ethernet cable?
Fiber can be advantageous for longer network links and electrically challenging environments. Its optical transmission also provides electrical isolation between the connected endpoints, which can be valuable in certain building, industrial, and distributed-network installations.
5. Can I connect the converter directly to a computer?
Yes, a conventional Ethernet device can generally connect to the RJ45 side when its Ethernet specifications are compatible. The other converter provides the corresponding optical-to-Ethernet transition at the remote end.
6. Will it automatically make my network faster?
Not necessarily. The converter can provide a Gigabit-class physical connection, but real-world throughput is limited by the slowest relevant component and by network conditions. Gigabit switches, network adapters, cabling, fiber components, storage devices, and configuration all influence actual performance.
7. What should I check if the fiber link does not work?
Start by checking power and link indicators, then verify fiber type, LC connector condition, polarity, optical compatibility, and the RJ45 connections at both ends. Testing each portion independently is usually more effective than replacing equipment immediately.
8. Is this suitable for a network closet or office deployment?
It can be useful for point-to-point links in offices, network closets, labs, classrooms, equipment areas, and similar environments where compatible multimode fiber is available and Gigabit Ethernet needs to cross the optical segment.
Final Verdict
The Dual RJ45 Multimode LC Gigabit Fiber to Ethernet Media Converter Pair Kit makes the most sense when you need a focused, practical bridge between conventional copper Ethernet and compatible multimode fiber. Its biggest strengths are architectural simplicity, Gigabit-class connectivity, LC multimode fiber support, point-to-point deployment, and the electrical isolation inherent in optical networking.
The key is to match the converter with the right fiber, optical characteristics, Ethernet hardware, and installation practices. When those pieces are correct, this type of media converter can be a very useful building block for an all-in-one fiber network switch system or a broader structured network upgrade.
