Introduction

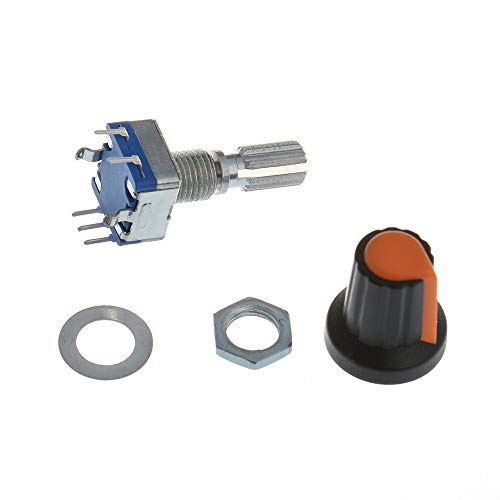

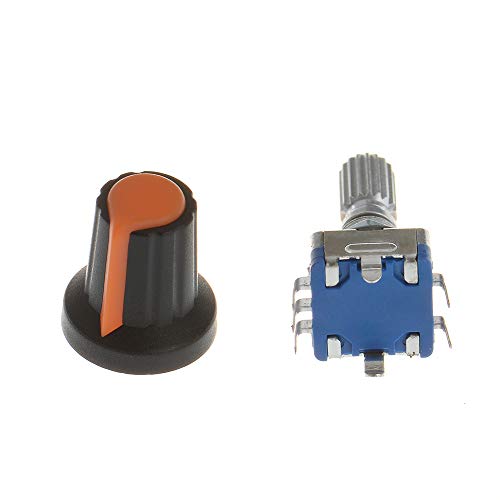

The 10PCS 20mm 5Pins 360 Degree Rotary Encoder Code Switch Digital Potentiometer with Push Button and Orange Knob Cap DIY Kit is a practical component set for electronics enthusiasts who need physical rotary controls in Arduino, Raspberry Pi, and other DIY projects. With ten encoder modules included, this kit is particularly useful when a single project requires multiple controls or when you want spare components for prototyping, experimentation, and future builds.A rotary encoder is different from a conventional potentiometer because it can detect rotational direction and incremental movement while also providing a push-button function. That makes it useful for menu navigation, parameter adjustment, volume-style controls, camera interfaces, lighting controllers, robotics, instrument panels, and custom user interfaces. Although the supplied keyword describes an All In One broadcast streaming encoder Kit, this product is best understood as a compact rotary input component kit rather than a complete audio or video broadcasting encoder.
For makers working with microcontrollers, the appeal is straightforward: you get ten 20mm rotary encoder units with orange knob caps, giving you enough hardware to test different circuit designs without purchasing individual encoders repeatedly. The compact form factor also makes these components suitable for breadboard prototypes and custom control panels where a tactile physical input is preferred over touch controls.
Features
10-Piece Component Kit
The most obvious advantage is quantity. Instead of receiving one rotary encoder, this package includes ten pieces. That can make a meaningful difference during development because electronics projects often require several iterations. A spare encoder can be useful if a wiring mistake, soldering issue, or mechanical experiment damages a component.For classrooms, maker groups, workshops, or repeated DIY builds, having multiple matching components also helps maintain consistency between projects. You can use several encoders in one interface or keep extras available for future experiments.

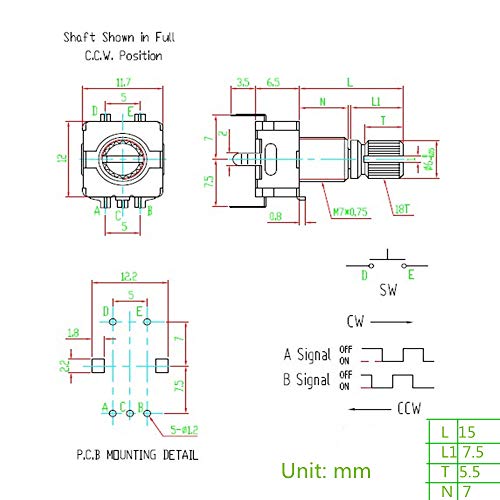

20mm Rotary Control Format
The 20mm size provides a useful balance between compactness and hands-on control. A very small knob can be difficult to manipulate precisely, while an oversized control may consume unnecessary panel space. A 20mm control is well suited to desktop electronics, development boards, custom enclosures, and experimental control panels.The orange knob cap also gives the control a clear visual identity. In a panel containing several switches, buttons, or indicators, a bright knob can make rotary controls easier to locate.
360-Degree Rotation
The encoder is designed around continuous 360-degree rotational input. Unlike a traditional potentiometer that typically has a defined resistance range and physical endpoints, an incremental rotary encoder can be rotated repeatedly while the connected microcontroller interprets the direction and movement.This is especially useful when navigating menus or changing values. For example, clockwise rotation can increase a setting while counterclockwise rotation decreases it. The exact behavior depends on how your Arduino, Raspberry Pi, or other controller is programmed.
Integrated Push Button
The rotary control is not limited to turning. Pressing the shaft activates an integrated push-button function, allowing one component to provide both rotary and button input.That combination is valuable in compact interfaces. A user could rotate the knob to highlight a menu option and press it to select that option. Similarly, an electronics project could use rotation to adjust a numerical value and pressing to confirm the selection.

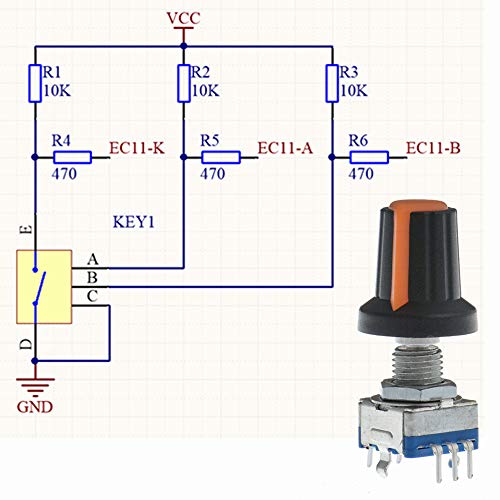

Five-Pin Interface
The five-pin configuration provides connections for the encoder’s rotational signals, common connection, and push-button function. When connected correctly to a compatible development board, software can monitor the encoder’s changing signals and button state.Because pin assignments can vary by module or manufacturer, builders should verify the specific component’s markings and test the terminals before integrating the encoder permanently into a project.
Arduino and Raspberry Pi DIY Applications
The product is marketed for Arduino and Raspberry Pi projects, making it suitable for a broad range of maker applications. Typical uses include digital menus, control interfaces, robotics, LED controllers, audio controls, measurement instruments, game controllers, and experimental automation projects.The encoder itself does not provide processing or networking. The connected microcontroller or computer is responsible for interpreting the input and performing the desired action.
Pros & Cons
| Pros | Cons |
|---|---|
| Includes 10 rotary encoder components | Requires external electronics and programming |
| 360-degree incremental rotation | Not a standalone broadcast or streaming encoder |
| Integrated push-button functionality | Pin configuration should be verified before installation |
| 20mm format is practical for DIY control panels | Mechanical components may require careful mounting |
| Orange knob caps provide visible physical controls | Software configuration is required for advanced functions |
| Useful with Arduino and Raspberry Pi projects | Electrical characteristics should be checked for specialized circuits |
Performance

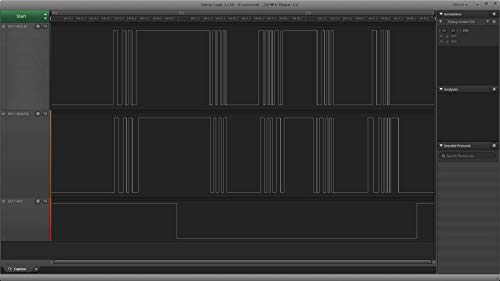

Performance with a rotary encoder depends on two main factors: the mechanical component itself and the software used to interpret its signals. In a basic Arduino project, the encoder can provide a simple way to detect clockwise and counterclockwise movement. The push button adds a second input without requiring a separate physical switch.For example, imagine building a compact digital control interface. One encoder could control display brightness, another could adjust a timer, a third could navigate a menu, and a fourth could change a motor speed setting. Because the package contains ten pieces, you have considerable flexibility when developing multi-control interfaces.The incremental nature of the encoder is particularly helpful when you do not want a physical control to have a fixed minimum and maximum position. A conventional potentiometer has a resistance value associated with its shaft position, while an incremental encoder reports movement events. This makes the encoder a natural choice for digital parameter adjustment.
In a Raspberry Pi project, the encoder can similarly serve as a physical input device. A Python-based application could monitor the encoder signals and translate rotation into commands. A press could trigger a selection, open a menu, pause an operation, or perform another programmed function.The same concept can be extended to custom broadcast-control interfaces, but it is important to distinguish this component from a complete streaming encoder. If your goal is to build an All In One broadcast streaming encoder Kit, the rotary encoder can potentially act as a physical control element within a larger system, but it does not encode video or audio, stream content, provide network transmission, or replace dedicated broadcasting hardware.This distinction is important when evaluating the product. The component is a building block. Its value comes from what you build around it.
Control Panel Projects
For custom control panels, these encoders are especially interesting because rotation and button input can be combined in one location. You could create a small enclosure containing several knobs and use each one for a different digital parameter.The 20mm footprint also provides reasonable flexibility when laying out a panel. Before drilling or cutting an enclosure, however, measure the physical dimensions of your particular installation and account for the mounting hardware and knob clearance.
Prototyping Experience
A ten-piece kit is convenient for prototyping because experimentation is less intimidating when you have multiple identical parts. You can dedicate individual encoders to different circuit designs and compare software approaches.For beginners, this also creates room to learn. Rotary encoders can initially seem more complicated than simple buttons because the software must interpret changing signals and determine rotational direction. Once the basic concept is understood, however, the same input method can be reused across many projects.
DIY Automation Potential
Rotary encoders can provide tactile input for automation systems. For instance, a user interface might allow an operator to rotate a control to select a value and press the knob to activate it. Combined with a display and microcontroller, this can produce a compact interface without requiring numerous dedicated buttons.They can also be useful in robotics projects where a physical dial is needed to adjust parameters such as speed, position, timing, or operating modes. The actual capabilities depend on the controller, code, connected hardware, and power requirements of the overall system.
Build and Integration Considerations
Before installing an encoder into a finished project, it is worth testing each component individually. Connect the appropriate terminals to your development board according to the encoder’s pin arrangement, then write or use a simple test program that identifies clockwise rotation, counterclockwise rotation, and button presses.This testing stage can help identify wiring mistakes early. It is also useful for understanding how the encoder behaves with your particular software library. Some applications may require debouncing or filtering to prevent unwanted button or rotation events.Mechanical installation deserves attention as well. A rotary encoder is intended to be physically operated, so the mounting point should be secure. If the component can move when the knob is turned or pressed, the user experience can suffer and repeated mechanical stress can affect the connections.When designing a custom enclosure, leave enough clearance around the knob so the user can rotate it comfortably. If several encoders are installed next to one another, spacing becomes especially important.
Who Should Consider This Kit?
This kit is a natural fit for Arduino enthusiasts, Raspberry Pi makers, electronics students, robotics builders, hobby programmers, and anyone developing custom digital control interfaces. The ten-piece quantity is particularly useful for people who frequently prototype or expect to build several projects.It can also be useful for educators because the encoder demonstrates several fundamental electronics concepts at once: digital inputs, rotational sensing, switch operation, microcontroller programming, and user-interface design.It is less appropriate for someone looking for a finished streaming, broadcasting, or multimedia encoder. The keyword All In One broadcast streaming encoder Kit should not be interpreted as a description of the hardware’s complete functionality. This product is a rotary input component kit intended to be incorporated into a larger electronic system.
Related DIY Resources
If you’re building a larger smart-home or automation project alongside your electronics experiments, you can also explore this Related Guide for another type of automated device.
FAQ
What is a rotary encoder?
A rotary encoder is an input device that detects rotational movement and sends corresponding signals to an electronic controller. An incremental rotary encoder can detect direction and movement without functioning like a conventional variable-resistance potentiometer.
Can this kit be used with Arduino?
Yes. The product is designed for DIY electronics applications involving platforms such as Arduino. You will need to connect the encoder correctly and use suitable code to interpret its rotational and push-button signals.
Can it work with Raspberry Pi?
It can be used as a physical input component in Raspberry Pi projects. Software running on the Raspberry Pi must monitor the encoder signals and translate them into the desired commands.
What does the push button do?
The push button is activated by pressing the rotary shaft. In a programmed project, that input can be assigned to actions such as selecting a menu item, confirming a value, changing modes, or activating another function.
Does the encoder have a 360-degree rotation?
The product is specified as a 360-degree rotary encoder. Its incremental design allows the control to rotate continuously rather than behaving like a conventional potentiometer with a fixed resistance range.
Are ten pieces included?
Yes. The product description identifies the package as a 10PCS kit, providing ten rotary encoder components for projects, prototyping, or replacement use.
Is this a complete broadcast streaming encoder?
No. Despite the supplied keyword All In One broadcast streaming encoder Kit, these components are rotary input devices rather than complete audio/video streaming encoders. They can potentially be used as physical controls within a larger broadcast-control project, but additional hardware and software would be required for actual media encoding and streaming.
What projects can use these rotary encoders?
Potential applications include Arduino menus, Raspberry Pi interfaces, robotics controls, LED controllers, digital instruments, automation panels, game projects, audio controls, camera-control prototypes, and custom electronic interfaces.
Do I need to program the encoder?
For Arduino or Raspberry Pi applications, programming is normally required to make the controller respond to rotation and button presses. The encoder provides the physical input signals; your microcontroller or computer determines what those signals should do.
Are these suitable for beginners?
They can be a useful learning component for beginners, especially when paired with an Arduino or Raspberry Pi tutorial. Understanding the encoder’s pins, rotational signals, button input, and software handling provides a practical introduction to digital input programming.
Final Thoughts
The 10PCS 20mm 5Pins 360 Degree Rotary Encoder Code Switch Digital Potentiometer kit offers a straightforward collection of physical input components for DIY electronics. Its ten-piece quantity makes it practical for experimentation, while the 360-degree rotation and integrated push button allow each encoder to perform more than a simple on/off function.For Arduino and Raspberry Pi builders, these encoders can become useful building blocks for custom menus, automation controls, robotics interfaces, digital instruments, and other projects requiring tactile adjustment. The orange knob caps also make the controls easy to identify in a custom interface.The most important consideration is to match expectations with the product’s actual role. It is not a standalone audio/video broadcast encoder. Instead, it is a compact rotary control component that can become part of a much larger system, including a custom control surface for multimedia or streaming equipment. For makers who understand that distinction and want multiple rotary inputs for future builds, a ten-piece kit provides plenty of room for prototyping and creative experimentation.
