Introduction
The OREI 4×4 HDMI Matrix Switch is designed for users who need to route multiple HDMI sources to multiple displays without constantly swapping cables. With HDMI 2.1 support, 8K capability, audio extraction, EDID management, and IR control, this Advanced System 8K video switcher targets modern home theaters, gaming setups, media rooms, conference environments, and professional AV installations.
A 4×4 matrix differs from a conventional HDMI switch because it can independently route several input sources to several output displays. That flexibility becomes especially useful when a setup includes a gaming console, streaming device, Blu-ray player, computer, receiver, projector, and television. Instead of moving connections manually, the matrix provides centralized signal management.
The HDMI 2.1 platform is particularly relevant for newer entertainment equipment because higher-bandwidth video standards can support high-resolution content and demanding refresh-rate configurations. For anyone building an advanced display system, the OREI unit offers a combination of connectivity and control features that can simplify the overall signal path.
Features
The feature set is where the OREI 4×4 HDMI Matrix becomes more than a basic source selector. Its design combines multiple HDMI inputs and outputs with configuration features intended for flexible AV routing.
4×4 Matrix Switching

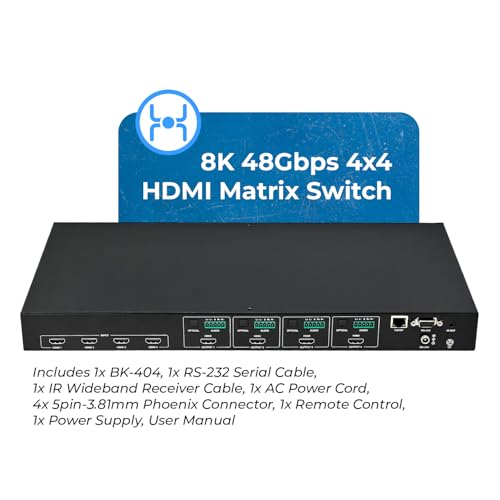

The central function is the 4×4 matrix architecture. Four HDMI sources can be connected to the four HDMI inputs, while four displays or other HDMI destinations can be connected to the outputs. Each output can then be assigned to a desired source according to the requirements of the installation.
This arrangement can be useful in a home theater with both a television and projector, or in a gaming environment where multiple displays are used. It can also reduce the need for repeated cable changes when several devices share the same displays.
HDMI 2.1 and 8K Support
The HDMI 2.1 specification is an important part of this switcher’s appeal. Its 8K positioning makes it suitable for modern high-resolution AV systems where compatible source devices, displays, and cables are available.
However, users should remember that an HDMI matrix cannot create an 8K signal from a lower-resolution source. The actual resolution, refresh rate, HDR behavior, and other video characteristics depend on the complete signal chain. The source, matrix, display, and HDMI cables all need to support the desired configuration.

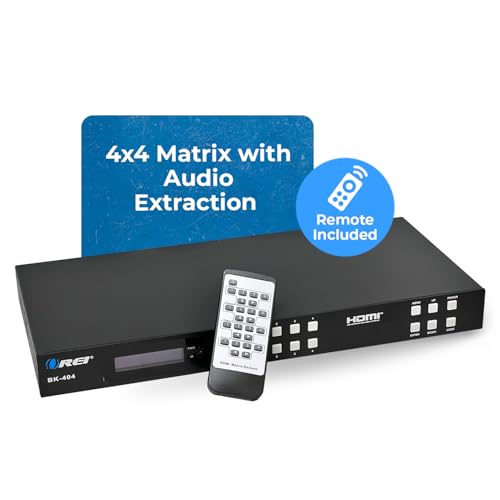

Audio Extraction
Audio extraction provides another useful installation option. Instead of sending audio only through the display, supported configurations can route extracted audio toward a compatible audio system. This can be helpful when a display and sound system need to be managed independently.
For example, a media room might use a projector for video while sending audio to a dedicated receiver or powered speaker system. Audio extraction can help simplify that type of arrangement by giving the installation another path for handling sound.
EDID Management
EDID is an important but sometimes overlooked part of HDMI installations. Displays communicate supported video and audio capabilities to connected sources through EDID information. When multiple displays have different capabilities, source selection can become more complicated.
The OREI matrix includes EDID functionality to help manage compatibility between connected equipment. This can be especially useful when mixing displays with different resolutions or capabilities. Correct EDID configuration can help reduce situations where a source chooses an unexpected resolution or fails to establish the desired connection.
IR Control
IR support adds convenient control options for installations where the matrix itself may not be positioned directly beside the user. Remote operation can make it easier to change routing without physically accessing the unit.
For a dedicated entertainment cabinet, equipment rack, conference room, or other structured AV environment, centralized control can make everyday operation more practical.
Designed for Multi-Device AV Systems
A 4×4 matrix is particularly useful when the number of connected HDMI devices starts growing. Instead of treating every display as an isolated system, the matrix becomes a central routing point.
This can make cable organization easier and provide a more structured approach to managing multiple sources. Users planning a larger AV installation should still map their signal requirements before installation, especially when mixing 8K displays, older HDMI equipment, receivers, capture hardware, and different refresh-rate requirements.
Pros & Cons
| Pros | Cons |
|---|---|
| 4×4 independent HDMI matrix routing | Advanced features require careful configuration |
| HDMI 2.1 platform with 8K support | Actual performance depends on compatible source and display hardware |
| Useful audio extraction functionality | Complex installations may require additional troubleshooting |
| EDID management for compatibility control | Users unfamiliar with EDID may need time to understand the settings |
| IR control for convenient operation | High-end HDMI systems can require careful cable selection |
| Suitable for home theater and professional AV routing | A matrix may be unnecessary for simple one-source setups |
Performance
The performance of an HDMI matrix should be judged by more than its maximum advertised resolution. In a real installation, the matrix has to work as part of an entire signal chain. The quality and capabilities of the HDMI sources, displays, cables, audio equipment, and configuration settings all contribute to the final result.
For compatible 8K equipment, the OREI 4×4 HDMI Matrix provides a centralized platform for handling high-resolution signals. This makes it attractive to users who are building a system around newer televisions, projectors, gaming hardware, or professional displays.

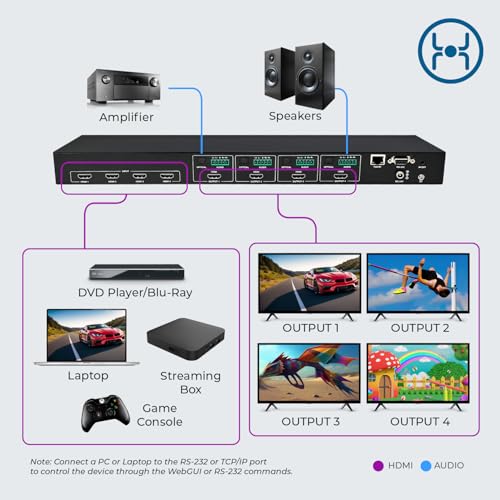

The 4×4 routing capability is arguably one of the most practical aspects of the design. Imagine having four sources connected to the matrix and several displays positioned throughout a media room. Rather than disconnecting equipment every time you want to change the source, the matrix can manage those connections electronically.
Gaming enthusiasts can also benefit from this approach. A modern setup might contain a gaming console, PC, streaming box, and another media source. A matrix can make it easier to distribute those sources to different displays. However, gamers should verify the exact resolution and refresh-rate requirements of their consoles or graphics hardware before purchase.
Audio extraction can further expand the installation possibilities. A system may use one display for video while relying on an independent audio path. This can be particularly useful in installations where the preferred sound equipment does not sit directly in the display’s normal HDMI chain.
EDID in Real-World Use
EDID becomes increasingly important when different displays are connected simultaneously. A basic installation with one source and one display may not require much attention to compatibility negotiation. A 4×4 system is different because several devices can have different supported capabilities.
For example, one display may support a higher resolution while another is limited to a lower specification. The correct EDID strategy can help ensure that the source receives appropriate capability information. Users should take the time to understand the available EDID settings instead of assuming that every connected display will automatically operate at its maximum specification.
Installation Considerations
Before installing the OREI matrix, it is worth creating a simple connection map. List every source, every display, the desired resolution, the expected refresh rate, and the audio destination. This approach makes troubleshooting much easier later.
Use HDMI cables appropriate for the bandwidth requirements of the installation. A system designed around 8K or other high-bandwidth signals can be affected by cable limitations even when the matrix and displays themselves are capable of handling the desired format.
Ventilation is another practical consideration. Like other electronic AV equipment, a matrix should be installed in a location with reasonable airflow. Avoid placing it in a tightly enclosed area where heat can accumulate.
If your setup includes several devices, labeling both ends of each HDMI cable can also save considerable time. This becomes especially valuable when the matrix is installed in an equipment rack or entertainment cabinet where multiple cables may look nearly identical.
Who Should Consider the OREI 4×4 HDMI Matrix?
This product makes the most sense for users who need centralized HDMI routing rather than simple source switching. Home theater enthusiasts, gaming rooms, professional AV installers, conference spaces, media production environments, and multi-display installations are all potential applications.
It may be unnecessary for someone who owns only one HDMI source and one display. In that situation, a conventional direct connection can be simpler. The value of a 4×4 matrix becomes clearer as the number of sources and destinations increases.
Users planning equipment for a dedicated room may also want to consider how other infrastructure products fit into the overall project. For example, environmental equipment can matter in equipment-heavy spaces. This Related Guide provides additional information on another type of equipment consideration for specialized spaces.
Setup Tips for an Advanced 8K Video System
Start by connecting the primary HDMI sources to the matrix inputs and the displays to the corresponding outputs. Then connect any required audio equipment according to the desired signal path. After the physical installation is complete, configure the matrix according to the capabilities of the connected equipment.
For an 8K-focused system, check every component in the signal path rather than focusing only on the matrix. An 8K-capable display connected to an incompatible source or cable will not automatically produce an 8K signal. Similarly, advanced gaming modes can depend on the capabilities of the console or PC, display, cable, and matrix working together.
After installation, test each source individually. Confirm that every output receives the intended source, then test the different combinations. This is a simple way to identify whether a problem is related to routing, EDID, source compatibility, cable performance, or display configuration.
FAQ
What is a 4×4 HDMI matrix?
A 4×4 HDMI matrix has four HDMI inputs and four HDMI outputs. It allows multiple HDMI sources to be routed to multiple displays, giving users more flexibility than a basic HDMI switch.
Does the OREI 4×4 HDMI Matrix support 8K?
The product is designed around HDMI 2.1 and 8K-capable signal handling. The actual resolution and refresh-rate combination available in a particular setup depends on the source, display, HDMI cables, and other connected equipment.
What does HDMI audio extraction do?
Audio extraction allows compatible audio signals to be separated from the HDMI video path and routed toward suitable audio equipment. This can be useful when video and audio need to follow different paths.
Why is EDID important?
EDID communicates display capabilities to HDMI sources. In a multi-display installation, EDID management can help sources determine compatible video and audio settings, especially when connected displays have different capabilities.
Can this matrix be used for gaming?
Yes, a matrix can be useful in gaming setups with multiple consoles, PCs, or displays. Before purchasing, gamers should verify the exact resolution, refresh rate, HDR, and other features required by their hardware and ensure that the complete signal chain supports them.
Is this suitable for a home theater?
The 4×4 architecture, high-bandwidth HDMI platform, audio extraction, EDID management, and IR control make this type of matrix suitable for advanced home theater configurations where several sources and displays need to be managed.
Does an HDMI matrix improve picture quality?
A matrix is primarily a signal-routing device. It does not inherently upgrade a lower-quality source into a higher-quality signal. Picture performance depends on the original source, compatible signal formats, connected displays, cables, and the complete AV chain.
Do I need special HDMI cables for an 8K setup?
For high-bandwidth 8K configurations, appropriate HDMI cables are important. Users should select cables rated for the bandwidth required by their specific resolution and refresh-rate combination and keep cable runs practical.
Is a 4×4 matrix difficult to configure?
The basic connections are straightforward, but advanced installations can require attention to EDID, audio routing, display compatibility, and high-bandwidth signal requirements. Planning the system before connecting everything can make configuration significantly easier.
Final Thoughts
The OREI 4×4 HDMI Matrix Switch is built for users who need more flexibility than a conventional HDMI switch can provide. Its 4×4 routing architecture gives multiple sources and displays a centralized connection point, while HDMI 2.1 and 8K support position it for modern high-resolution AV environments.
Audio extraction, EDID management, and IR control add further functionality for users creating more sophisticated installations. The key is to evaluate the matrix as one component of the complete HDMI system. Source devices, displays, cables, audio equipment, and configuration settings all need to match the intended use case.
For a multi-display entertainment room, advanced gaming setup, conference environment, or professional AV installation, the combination of routing flexibility and modern HDMI features makes the OREI 4×4 HDMI Matrix a product worth considering when centralized signal management is a priority.
