diymore Robotic Arm Kit Silver ROT3U 6DOF Aluminium Robot Arm Mechanical Robotic Clamp Claw Kits Review
When engineering enthusiasts, robotics hobbyists, and automation students evaluate experimental hardware, precision, structural integrity, and mechanical accuracy remain the absolute highest priorities. Industrial-grade solutions like an ABB robotic arm inspire modern benchtop prototyping, and bridging the gap between heavy industrial concepts and desktop learning requires robust mechanical components. Enter the diymore Robotic Arm Kit Silver ROT3U 6DOF Aluminium Robot Arm Mechanical Robotic Clamp Claw Kit. Designed to offer multi-axis kinematic freedom without requiring soldering for the mechanical build, this kit serves as a formidable platform for kinematics experimentation, microcontroller integration, and automated sorting tasks.
In this exhaustive, precision-focused review, we will dissect every structural, kinematic, and functional aspect of the ROT3U 6DOF mechanical arm kit. We will evaluate its aluminum alloy chassis, joint articulation precision, load capacity constraints, actuator compatibility, assembly dynamics, and overall value for developers who prioritize accurate motion execution.
Introduction to 6DOF Kinematics and Benchtop Automation
The field of robotics relies heavily on Degrees of Freedom (DOF) to define spatial mobility. A 6DOF (Six Degrees of Freedom) configuration mimics the complex articulation of human arms and sophisticated industrial systems, permitting movement along three spatial translations (X, Y, Z axes) and three rotational orientations (pitch, yaw, roll). Whether you are studying forward and inverse kinematics or setting up a compact pick-and-place conveyor line, a multi-axis mechanical chassis is essential. For those seeking complementary automation accessories or exploring related automated setups, checking out this Related Product Guide offers fascinating insights into workflow optimization hardware.
The diymore ROT3U framework provides a metallic, rigid architecture built entirely from hard-anodized aluminum plates. Unlike flimsy acrylic or 3D-printed plastic kits that suffer from flex under load, aluminum structural components ensure that deflection is minimized, yielding repeatable positioning accuracy. However, because this specific SKU ships as an unassembled mechanical kit without servos, it places the burden of motor selection and calibration squarely on the builder—a feature that true robotics purists will deeply appreciate.
Key Features and Structural Specifications
Analyzing a mechanical robot arm requires a meticulous look at its physical blueprint. The ROT3U chassis is engineered with specific material parameters designed to support standard servo motors while maintaining a balanced center of gravity across its six pivot points.

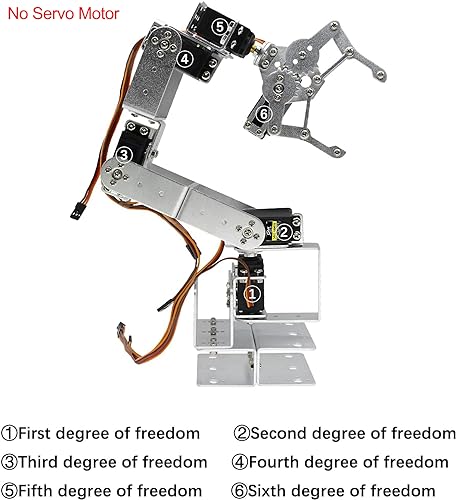

- 6-Axis Articulation (6DOF): Provides comprehensive spatial maneuverability, including base rotation, shoulder pitch, elbow pitch, wrist pitch, wrist roll, and clamp actuation. This allows end-effector orientation at virtually any angle within its spherical work envelope.
- All-Aluminium Alloy Construction: Crafted from thick, CNC-machined aluminum sheets finished in a sleek silver coating. This metallic build prevents warping, resists torsional stress, and drastically outperforms plastic alternatives under continuous operational cycles.
- Standardized Servo Compatibility: Engineered to accept standard hobbyist servos (such as MG996R or similar high-torque metal-gear servos) for high-load joints, ensuring modularity and easy replacement in case of electronic failure.
- Precision Mechanical Clamp Claw: The end-effector features an optimized gripping jaw equipped with rubber or textured grip pads, capable of securing objects of varying geometric shapes (cylinders, spheres, and rectangular prisms).

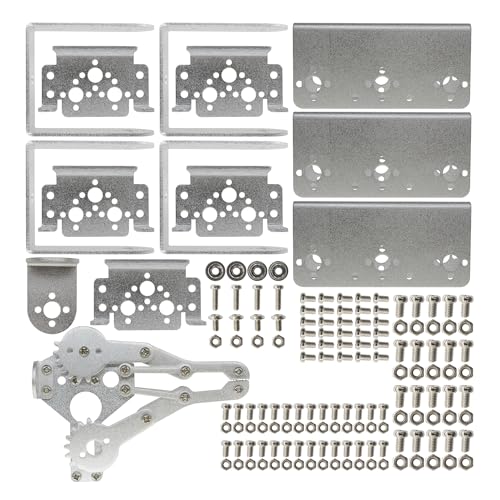

- No Soldering Required for Assembly: The mechanical skeleton is assembled entirely using mechanical fasteners—nuts, bolts, standoffs, and bearing brackets—making the build process clean, modular, and easily modifiable.
Detailed Pros & Cons Analysis
When assessing equipment under strict standards of precision and accuracy, weighing structural advantages against operational limitations is crucial. The table below outlines the exact trade-offs experienced with the diymore ROT3U 6DOF kit.
| Advantages (Pros) | Limitations (Cons) |
|---|---|
| High Structural Rigidity: Full aluminum alloy build drastically reduces flex and mechanical play compared to acrylic frames. | Servos Not Included: Requires separate purchase of compatible high-torque metal-gear servos (e.g., MG996R). |
| True 6DOF Kinematics: Enables complex rotational and translational positioning studies mimicking professional industrial arms. | Complex Assembly: Requires patience, microscopic fastener management, and careful alignment during mechanical buildup. |
| Modular Architecture: Easy to disassemble, upgrade, or reconfigure brackets to suit custom sensor payloads. | Payload Restrictions: Extended reach limits lifting capacity at full extension due to torque leverage on shoulder joints. |
| Cost-Effective Prototyping: Provides industrial-grade mechanical layout at an accessible entry-level price point. | Documentation Curve: Instruction manuals can be sparse, requiring logical deduction or online community diagrams. |
Performance, Accuracy, and Kinematic Evaluation
Precision in robotics is dictated by repeatability and minimal backlash. When outfitted with high-quality metal-gear digital servos, the diymore ROT3U arm performs remarkably well for its class. The thick aluminum brackets eliminate the spring-like deformation commonly observed in plastic arm kits. When executing repetitive coordinate commands via microcontrollers like Arduino, ESP32, or Raspberry Pi, the end-effector maintains tight positional tolerances.
However, physics dictates certain operational constraints. Because the shoulder and elbow joints must bear the cumulative weight of all subsequent motors and linkages, servo selection is critical. Utilizing standard plastic-gear servos will result in stripped gears under load; high-torque metal-gear units (such as MG996R or DS3218) are mandatory to ensure that torque margins are respected. At maximum horizontal extension, payload capacity drops to approximately 100 to 200 grams, making this arm ideal for light sorting, educational demonstrations, and sensor-payload deployment rather than heavy industrial lifting.

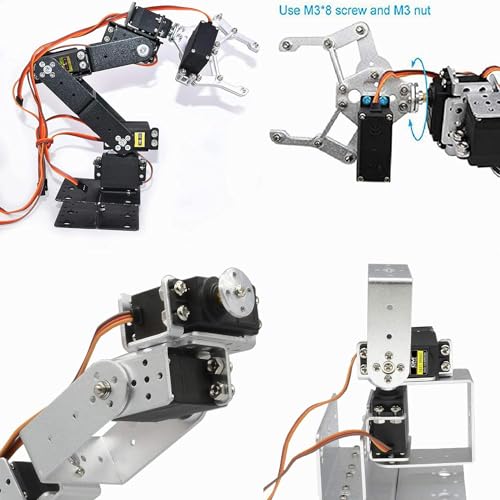

Assembly Process and Build Quality
The build phase of the ROT3U kit is an engaging exercise in mechanical precision. Because no soldering is required for the chassis, the workflow consists entirely of mechanical assembly using screws, lock nuts, and aluminum U-beam brackets. Builders are advised to sort hardware meticulously before starting, as managing various screw lengths and bearing joints is essential for smooth articulation.
Care must be taken to align the servo horn splines correctly before securing them to the brackets. Zeroing out your servos using a simple test script prior to mechanical mounting prevents calibration offset issues later on. The anodized silver finish gives the assembled arm a professional, laboratory-grade appearance that mirrors industrial robotic testbeds.
Frequently Asked Questions (FAQ)
1. Does this kit include the servo motors?
No. As clearly stated in the product specifications, this is an unassembled mechanical kit consisting of aluminum brackets and hardware only. Servos (typically 6 standard metal-gear servos like MG996R) must be purchased separately.
2. What microcontrollers can be used to control this robotic arm?
The arm can be controlled by any microcontroller capable of generating PWM (Pulse Width Modulation) signals for servo control, including Arduino Uno, Mega, ESP32, Raspberry Pi, and specialized multi-channel servo driver boards (such as PCA9685).
3. What is the maximum payload capacity of the ROT3U arm?
Payload capacity depends heavily on the torque rating of the servos you install. With standard high-torque metal-gear servos, the arm can comfortably lift objects weighing up to 100-200 grams when operating near its base, though lifting capacity decreases at maximum horizontal extension.
4. Is soldering required during assembly?
No soldering is required for the mechanical build of the chassis. However, wiring your chosen servos to a control board, power supply, or shield may require basic electronic wiring or jumper connections depending on your setup.
Final Verdict and Professional Recommendation
The diymore Robotic Arm Kit Silver ROT3U 6DOF Aluminium Robot Arm is an exceptional mechanical platform for students, developers, and automation hobbyists who demand structural rigidity and true multi-axis articulation. By avoiding flimsy plastics in favor of solid aluminum alloy, it delivers the stability necessary for accurate kinematic calculations and repeatable benchtop testing. While sourcing your own servos requires an extra step, it ultimately grants complete freedom over torque selection and electronic customization.
For anyone seeking a reliable, heavy-duty mechanical frame to explore robotics, inverse kinematics, and automated control systems, the ROT3U kit stands as a stellar investment in precision engineering.
