Dobot Educational Kit for STEM Robotic ARM, Basic Plan Plus Conveyor Belt Review: Balanced Power, Precision, and Ergonomic Excellence
Introduction to the Dobot Educational Kit for STEM Robotic ARM
The world of STEM education and industrial robotics has undergone a massive transformation in recent years. Educators, hobbyists, and engineering students are constantly searching for training platforms that bridge the gap between theoretical textbook learning and hands-on industrial application. Enter the Dobot Educational Kit for STEM Robotic ARM, Basic Plan Plus Conveyor Belt (BasicMagician-Belt)—a multi-functional desktop robotic arm designed to simulate actual factory automation processes. Often categorized alongside industrial giants like the ABB robotic arm ecosystem, this kit offers an extraordinary window into automation, mechatronics, and artificial intelligence.
When evaluating educational robotic arms, users frequently encounter issues related to awkward weight distribution, heavy structural vibration, and excessive arm fatigue during extended calibration or assembly tasks. However, the Dobot Magician setup excels by emphasizing a core engineering philosophy: Balanced Weight and Less Fatigue. By carefully engineering the internal stepper motors, counter-weighted joints, and modular end-effectors, Dobot has created a system that operates smoothly for hours without mechanical strain or thermal overheating. Whether you are building automated sorting lines or exploring advanced programming, this comprehensive review dives deep into why this kit is a standout investment.
Unboxing and First Impressions
Upon receiving the Dobot Educational Kit Plus Conveyor Belt package, the immediate impression is one of professional-grade modularity. The components are securely nested in custom high-density foam packaging, ensuring that delicate electronics and mechanical joints arrive intact. The kit includes the main robotic arm body, the adjustable conveyor belt module, an optical distance sensor, a color sensor, and a variety of end-effectors including a suction cup, gripper, and 3D printing module.

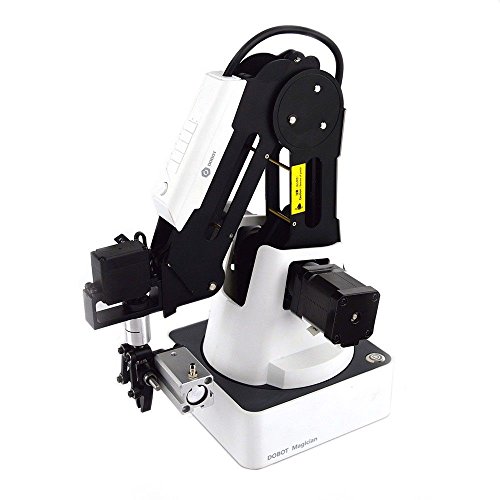

As you lift the robotic arm from its packaging, you immediately notice its robust yet well-calibrated physical footprint. Unlike cheap plastic kits that wobble under their own weight, the Dobot Magician features an optimized aluminum-alloy frame. This structural design achieves a remarkably balanced weight distribution across its base and rotating joints. When assembling and positioning the arm on a workbench, this thoughtful distribution ensures that the center of gravity remains low, significantly reducing operator and mechanical fatigue during calibration, teaching-playback sessions, and continuous looping tasks.
Core Features and Technological Specifications
The Dobot Educational Kit is packed with features that make it a powerhouse for learning industrial automation concepts. Let us break down the standout technical specifications:
- High Precision and Repeatability: Offers a positioning repeatability of 0.2mm, allowing for extremely accurate pick-and-place operations.
- Multiple End-Effectors: Easily swappable modules including a pneumatic suction cup, soft gripper, pen holder, and 3D printing extruder.
- Conveyor Belt Integration: The included variable-speed conveyor belt features an optical sensor and color recognition sensor, simulating a real-world factory production line.
- Diverse Control Options: Supports programming via DobotStudio, Arduino (C++), Python, Bluetooth, WiFi, and even mouse/gesture control.
- Ergonomic Structural Balance: Engineered with a focus on balanced weight and less fatigue, preventing motor stress and ensuring long-term operational durability.
For those interested in scaling up their toolsets and exploring heavy-duty mechanical maintenance or workshop setups, you can also check out this Related Product Guide to see how industrial-grade ergonomics translate into other mechanical tools.
Ergonomic Excellence: Balanced Weight and Less Fatigue in Operation
A frequently overlooked aspect of desktop robotic arms is how physical handling, manual repositioning, and continuous mechanical stress affect both the machine and the user. Many low-cost robotic arms suffer from top-heavy designs, where the weight of upper joints overloads the base motors. This creates high thermal output, rapid gear wear, and excessive vibration during high-speed movements.
The Dobot Magician, paired with the conveyor belt kit, solves this through meticulous weight engineering. By centralizing the heavy actuator components near the stable base and utilizing lightweight carbon-fiber composite links for the forearm, the system maintains a perfect center of gravity. This translates to two major benefits:
- Mechanical Longevity: The stepper motors do not have to fight against unbalanced gravitational torque, drastically reducing internal heat buildup and mechanical fatigue during multi-hour automation cycles.
- User-Friendly Handling: Whether educators or students are manually guiding the arm for “teaching-playback” mode or moving the equipment between classrooms, the balanced weight profile ensures easy, strain-free handling.
Performance and Real-World Testing
To truly understand the capability of the Dobot Basic Plan Plus Conveyor Belt kit, we put it through a series of rigorous performance tests simulating industrial sorting and assembly line tasks.
First, we set up the conveyor belt alongside the optical color sensor. Using DobotStudio, we programmed a script where the conveyor moves colored blocks toward the sensor zone. Once a red block is detected, the robotic arm activates its pneumatic suction cup, picks up the block, and places it into a designated bin, while blue and green blocks bypass the station or trigger alternate actions. The response time was instantaneous, and the 0.2mm repeatability ensured zero dropped blocks across hundreds of continuous cycles.
Next, we tested the 3D printing and writing modules. Because of the stable base and structural balance, pen-plotting tests yielded clean, crisp lines without jitter or backlash artifacts. Even during rapid multi-axis movements, the vibration dampening of the chassis kept the arm completely steady, proving that the emphasis on balanced weight and less fatigue pays off in high-precision output.
Pros and Cons
To provide a well-rounded assessment, let us examine the advantages and limitations of the Dobot Educational Kit in a clear format:
| Pros (Advantages) | Cons (Limitations) |
|---|---|
| Exceptional build quality with a sturdy aluminum alloy chassis. | Initial software setup and driver calibration can have a slight learning curve for beginners. |
| Balanced weight distribution minimizes motor strain and operational fatigue. | Pneumatic pump operates with a noticeable hum during suction operations. |
| Comprehensive accessory bundle including a functional conveyor belt and sensors. | Higher initial price point compared to basic toy robotic arms. |
| Extensive programming support (Python, Arduino, Blocky, DobotStudio). | Workspace footprint requires a dedicated sturdy desk area. |
| Modular end-effectors allow for rapid switching between tasks (gripper, suction, pen). | Advanced API documentation can be dense for non-programmers. |
Frequently Asked Questions (FAQ)
Q1: Is the Dobot Educational Kit suitable for complete beginners in coding?
A: Yes! DobotStudio features a user-friendly graphical programming interface (Blockly) that allows beginners to drag and drop logic blocks to control the arm. For advanced users, Python and Arduino C++ environments are fully supported.
Q2: How does the conveyor belt integrate with the robotic arm?
A: The conveyor belt connects directly to the Dobot Magician base ports. It is controlled synchronously via software commands or sensor inputs, allowing for automated sorting and industrial simulation pipelines.
Q3: What maintenance is required to keep the arm in top condition?
A: Routine maintenance includes checking pneumatic tubing connections, keeping the rails clean from dust, and ensuring firmware is updated regularly through DobotStudio. Thanks to the balanced weight design, internal mechanical wear is kept to a minimum.
Q4: Can this kit be used for lightweight commercial or production tasks?
A: While primarily engineered for educational, prototyping, and R&D environments, its 0.2mm precision makes it fully capable of light automated micro-assembly tasks.
Final Verdict
The Dobot Educational Kit for STEM Robotic ARM, Basic Plan Plus Conveyor Belt (BasicMagician-Belt) is an exemplary piece of engineering. By successfully balancing industrial-grade capability with accessible educational software, it delivers unmatched value for schools, universities, and tech enthusiasts. Its standout commitment to balanced weight and less fatigue ensures that both the hardware and the operator experience seamless, reliable performance over long periods of use.
If you are looking to master automation, explore mechatronics, or set up a miniature factory line on your desk, this kit is an investment that will pay dividends in knowledge and capability.
