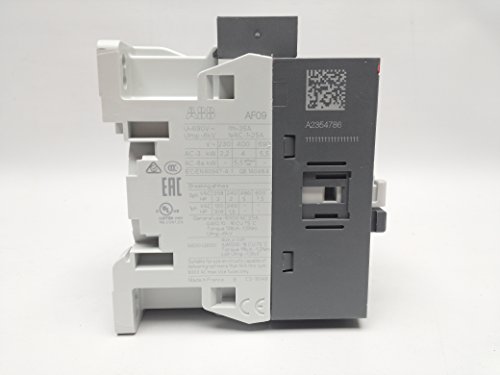

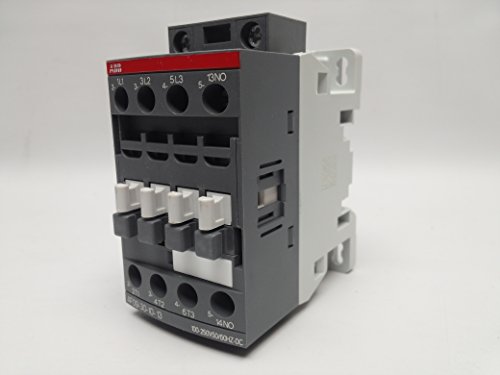

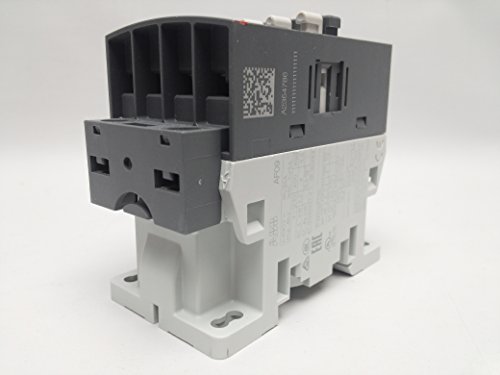

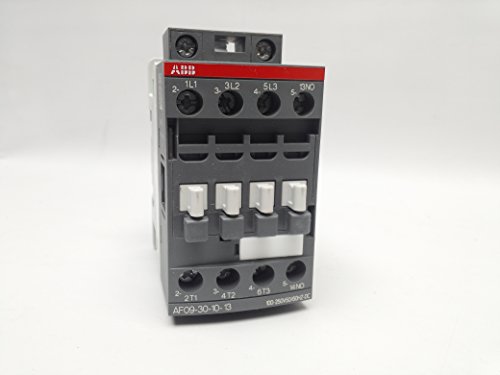

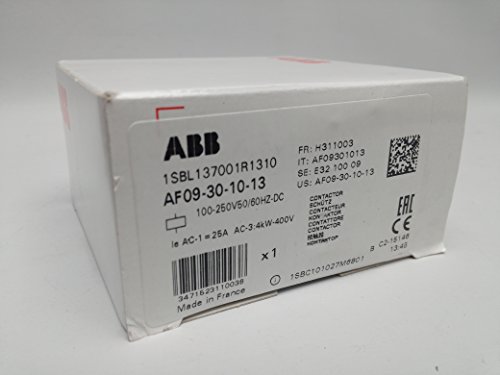

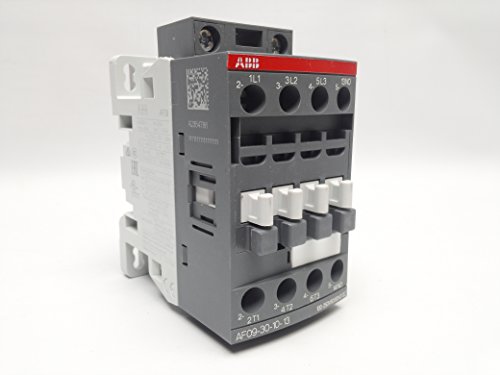

ABB AF09-30-10-13 IEC Magnetic Contactor: Why Portability Matters for Remote Industrial Technicians
In the evolving landscape of industrial maintenance, the ability to respond to equipment failures remotely has become a critical skill for technicians. Whether you are managing complex machinery in a remote mining facility or handling control systems in an off-grid manufacturing plant, the tools you choose must balance rugged reliability with compact design. The ABB AF09-30-10-13 IEC Magnetic Contactor stands out as a premier component in the ABB industrial controller system ecosystem, offering a unique blend of performance and portability that is highly prized by field professionals.
When you are traveling to remote job sites, every ounce in your toolkit counts. Heavy, oversized contactors are a thing of the past. The AF09 series is engineered for the modern technician who requires a compact footprint without sacrificing the rigorous electrical standards required for safe, long-term operation. In this review, we will explore why this specific contactor has become a staple for those who prioritize efficiency, reliability, and ease of transport in their daily workflows.
Unpacking the Portability Factor
Remote jobs often mean working in constrained spaces or transporting a full suite of diagnostic tools and replacement parts over difficult terrain. The ABB AF09-30-10-13 is remarkably lightweight and compact. Its design ensures that it fits effortlessly into a technician’s field bag, reducing the clutter that typically accompanies high-voltage electrical repair kits. If you are interested in outfitting your entire mobile workstation, you might find this Related Product Guide helpful for understanding how to integrate diverse toolsets for various project types.
Key Features of the ABB AF09-30-10-13
The ABB AF09-30-10-13 is not just a compact device; it is a technological powerhouse. Designed for 120VAC applications, it is perfect for standardized control circuits that require consistent, reliable operation under load. Here are the standout features:
- Compact IEC Design: Optimized to occupy minimal DIN rail space, allowing for more dense configurations in control panels.
- Versatile 3-Pole Operation: Provides robust power switching suitable for various industrial motors and lighting systems.
- 120VAC Coil Voltage: A standard voltage rating that ensures compatibility with most North American control system setups.
- Integrated 1NO Contact: Simplifies the wiring process by providing a built-in normally open contact, reducing the need for additional auxiliary blocks.
- Energy Efficient: Engineered with low power consumption coils, which is a major advantage when running on battery-backed or limited power remote systems.
Pros & Cons Overview
To help you decide if this contactor fits your needs, we have compiled a quick summary of its advantages and limitations in the field.
| Pros | Cons |
|---|---|
| Extremely compact, perfect for mobile tool kits. | Lower current rating may not suit heavy industrial loads. |
| High build quality ensures longevity in harsh environments. | Requires specific mounting orientation in some panels. |
| Easily integrates with existing ABB controller systems. | Initial cost can be higher than non-branded alternatives. |
| Reliable 120VAC coil performance. | Wiring terminals can be tight for large gauge wires. |
Performance for the Remote Technician
When working on remote sites, reliability is the most important factor. You cannot simply run to a local supply house if a component fails prematurely. The ABB AF09 series has been subjected to rigorous testing to ensure that it handles voltage fluctuations and ambient temperature changes common in rugged environments. Its electronic coil technology is particularly impressive, as it maintains a stable pull-in force even if the incoming line voltage varies slightly due to long cable runs or fluctuating remote power sources.
Furthermore, the physical construction—impact-resistant housing and high-conductivity contact points—means you spend less time replacing components and more time focusing on the actual job at hand. The ease of mounting the AF09 to a standard DIN rail is a major time-saver, allowing for rapid installation or removal when troubleshooting control cabinet issues on the fly.
Frequently Asked Questions (FAQ)
Q: Is this contactor compatible with older ABB systems?
A: Yes, the AF09 series is designed to be backwards compatible with many older ABB contactor footprints, making it an excellent replacement for maintenance upgrades.
Q: Does it require any special tools for installation?
A: No special tools beyond a standard flat-head screwdriver and your wire strippers are needed for standard DIN rail mounting and wire termination.
Q: Can it be used in outdoor or high-humidity environments?
A: While the contactor itself is rugged, it should always be housed within an IP-rated enclosure to protect it from direct exposure to water or excessive environmental humidity.
Q: How many auxiliary contacts can be added to this model?
A: This model includes one built-in NO auxiliary contact. Additional blocks can be side-mounted if your application requires more inputs.
In conclusion, for those of us working in the field, portability and reliability aren’t just buzzwords—they are essential requirements. The ABB AF09-30-10-13 provides the peace of mind that your control system will remain stable, while its compact nature ensures your travel kit remains manageable. Investing in quality components like this is a fundamental part of providing high-level technical services in remote locations.
