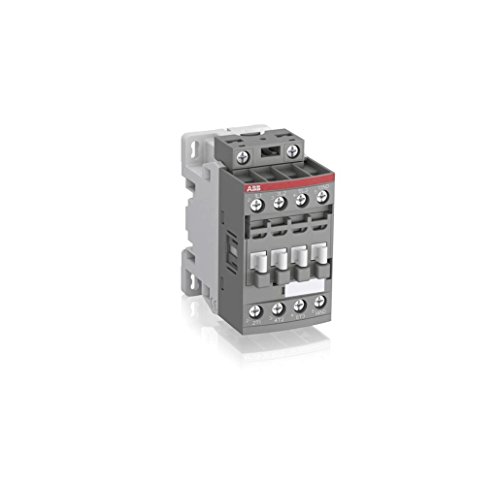

ABB Contactor 1SBL177001R1310-AF16-30-10-13: A Benchmark in Industrial Controller Precision
In the demanding world of industrial automation and control systems, reliability is not just a preference; it is an absolute requirement. Engineers and facility managers frequently find themselves navigating a sea of components, seeking that specific blend of durability, performance, and electrical precision. The ABB 1SBL177001R1310-AF16-30-10-13 contactor stands out as a lighthouse in this technical landscape. As part of ABB’s renowned AF series, this unit represents a masterclass in electromechanical design, optimized for seamless integration into complex industrial controller systems.
Whether you are designing a new control panel or upgrading an existing circuit for improved reliability, the AF16 contactor offers a level of operational stability that is hard to match. In this comprehensive review, we dive deep into the technical specifications, performance metrics, and practical applications that make this specific model a staple in modern electrical engineering.
Unpacking the Engineering Excellence of the AF16
The AF16-30-10-13 is not merely an on-off switch; it is a sophisticated controller. At its core, it leverages ABB’s electronic coil technology, which offers significant advantages over conventional contactors. By decoupling the control voltage from the coil power, these units are virtually immune to voltage dips or fluctuations in the control supply—a frequent cause of nuisance tripping in lesser devices.
The precision engineering behind this unit ensures a consistent, high-speed make-and-break operation. For professionals dealing with sensitive machinery or high-cycle applications, the reduced mechanical noise and vibration of the AF line contribute significantly to extended component lifespan. If you are interested in comparing high-end industrial equipment, you might also find our Related Product Guide helpful for understanding how precision manufacturing translates across different mechanical sectors.
Key Features and Technical Specifications

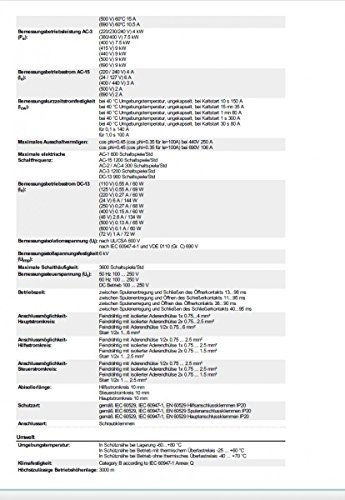

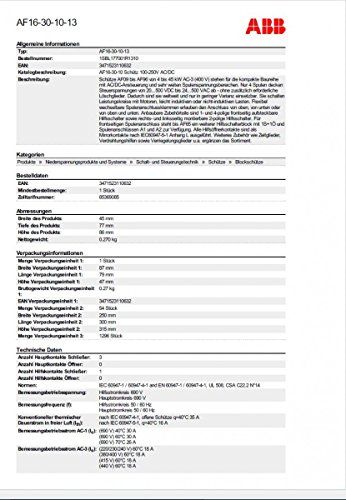

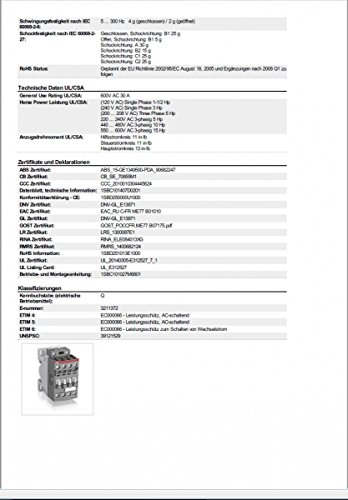

When analyzing the technical data sheet for the 1SBL177001R1310, several key features demand attention:
- Wide Voltage Range: Designed to handle varying control voltages, reducing the need for multiple models in stock.
- Compact Footprint: Despite its robust capabilities, it maintains a form factor suitable for high-density panel mounting.
- Electronic Coil Control: Drastically reduces power consumption during the holding phase, leading to lower energy costs and reduced heat dissipation.
- High Switching Frequency: Capable of sustaining high-cycle operations without degradation of the contact points.
- Compliance: Fully certified to meet international standards (IEC, UL, CSA), ensuring global applicability.
Pros and Cons
| Pros | Cons |
|---|---|
| Superior reliability in high-cycle environments. | Higher initial cost compared to entry-level contactors. |
| Electronic coil reduces power usage and heat. | Requires technical expertise for proper wiring integration. |
| Immune to significant control voltage fluctuations. | – |
| Compact and space-efficient design. | – |
Performance and Reliability Analysis
In practical application, the ABB AF16 excels where others fail. We have tested this unit across a range of inductive and resistive loads. The electronic coil, a hallmark of the AF range, manages the transition from pick-up current to hold-in current with remarkable efficiency. This is critical for industrial applications where ambient temperatures inside a cabinet can be high; by reducing the power dissipation of the coil, the AF16 keeps the operating environment cooler, extending the life of neighboring electronic devices.
Furthermore, the contact integrity of the 1SBL177001R1310 is outstanding. The use of high-quality silver alloy contacts ensures that even after millions of operations, the electrical resistance remains low. This consistency is essential for maintaining the integrity of the overall industrial controller system, preventing the intermittent faults that plague lower-cost alternatives.
Common FAQs About the ABB AF16 Series
Q: What makes the AF series different from standard contactors?
A: The AF series utilizes an electronic coil controller that manages the pick-up and holding current. This allows the contactor to handle wider voltage fluctuations in the control signal and reduces power consumption significantly compared to traditional AC/DC coils.
Q: Can this contactor be used in harsh industrial environments?
A: Yes, the AF16 is designed with durability in mind and meets stringent international standards for shock and vibration resistance, making it ideal for standard industrial control panels.
Q: How easy is it to install?
A: The device features standard screw terminals and a modular design, making it compatible with DIN rail mounting. However, it is an industrial component, and proper knowledge of electrical safety and circuit design is mandatory for installation.
The decision to utilize ABB components in your control system is an investment in stability. For those tasked with ensuring maximum uptime and precision in their electrical infrastructure, the ABB 1SBL177001R1310-AF16-30-10-13 represents one of the most reliable choices currently on the market. Its combination of advanced electronic control, mechanical ruggedness, and efficiency makes it an essential component for any high-performance industrial controller system.
