Introduction
Managing multiple high-resolution video sources across several displays can quickly become complicated, especially in professional AV installations, conference rooms, control centers, home theaters, studios, and commercial environments. The 8K HDMI Matrix 8×8 w/Web GUI is designed to simplify that challenge by combining eight HDMI inputs and eight HDMI outputs into one rackmountable switching platform. With HDMI 2.1 support, 8K at 60Hz, 4K at 120Hz, smart EDID management, Web GUI control, APP control, and audio embedding and de-embedding, this 8K video switcher Smart solution is built around flexible signal management.
Instead of repeatedly moving cables or relying on several separate switches and splitters, an 8×8 matrix allows each connected source to be routed to the desired display. That makes it particularly useful when different screens need different content at the same time. The 1U rackmount design also makes it suitable for organized equipment racks where reliable access and clean cable management matter.

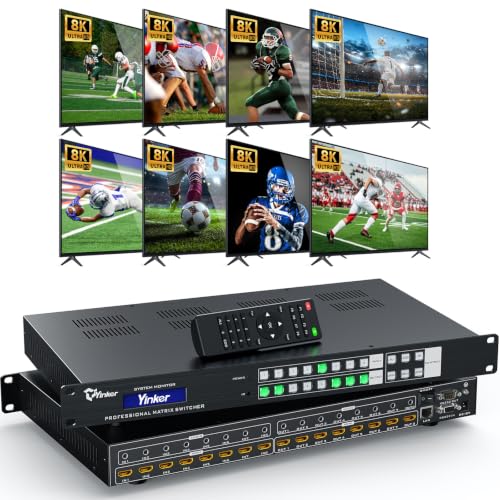

What Makes This 8K Video Switcher Smart?
The main attraction is the combination of high-bandwidth HDMI 2.1 connectivity and centralized control. An 8×8 matrix configuration gives you eight source connections and eight destination connections, creating a flexible routing environment for complex AV systems.
The Web GUI provides a convenient way to manage routing from a network-connected computer, while APP control can provide another practical control option. This can be much easier than physically accessing a rack-mounted unit whenever a source needs to be changed.
Smart EDID functionality is another important feature. In multi-display environments, different screens can advertise different capabilities. EDID management helps the matrix coordinate source and display compatibility, reducing the frustration that can occur when devices do not negotiate video formats as expected.
Key Features
- 8×8 HDMI Matrix Design: Connect up to eight HDMI sources and route them independently to up to eight HDMI displays or destinations.
- HDMI 2.1 Connectivity: Designed for modern high-bandwidth video applications requiring advanced HDMI performance.
- 8K at 60Hz: Supports high-resolution 8K60 video for compatible equipment and appropriate signal configurations.
- 4K at 120Hz: Suitable for high-refresh-rate 4K applications where compatible sources, displays, and cabling are used.
- Web GUI Control: Manage matrix routing through a browser-based interface rather than relying exclusively on physical controls.
- APP Control: Provides another control method for convenient source and display management.
- Smart EDID: Helps manage communication between video sources and connected displays.
- Audio Embed and De-Embed: Provides additional flexibility for integrating audio into or extracting audio from an AV signal path.
- 1U Rackmount Form Factor: Designed to fit neatly into compatible equipment racks and professional installations.
8×8 Routing for Complex AV Systems
The advantage of an 8×8 matrix becomes particularly clear when several displays need different content. Imagine a conference facility with presentation computers, media players, cameras, and other HDMI sources connected to multiple screens. A conventional splitter might send the same signal everywhere, while a simple switch typically focuses on one input-to-one-output selection.
A matrix is different because it provides routing flexibility. Source one can be sent to display one, source two can be sent to display two, and another source can be routed to several destinations depending on the system configuration. This makes the architecture much more adaptable as the installation grows.
For professional users, this centralized approach can also reduce cable swapping and make day-to-day operation more predictable. Once the sources and displays are connected, routing becomes a management task rather than a physical rewiring exercise.
High-Resolution HDMI 2.1 Performance
High-resolution video systems demand more than simply having an HDMI label on a product. Bandwidth, source capability, display compatibility, cable quality, and signal-management settings all contribute to the final result. The advertised support for 8K at 60Hz and 4K at 120Hz positions this matrix for demanding modern video applications.
For an 8K workflow, every component in the signal chain should support the desired resolution and refresh rate. That includes the source device, HDMI cables, matrix, display, and any other equipment between them. When those components are properly matched, the matrix can serve as the central switching point without forcing users to compromise on the intended signal format.
For gaming, high-refresh displays, production environments, and advanced home theaters, 4K at 120Hz can also be valuable. It provides a combination of detailed resolution and smooth motion when supported throughout the system.
Web GUI and APP Control
Control is one of the most practical aspects of this design. A rack-mounted matrix may be installed somewhere that is not convenient to access repeatedly. A Web GUI can eliminate the need to physically reach the equipment every time an input or output assignment needs to change.
For installations with multiple users, centralized network-based control can make the system easier to operate. Instead of walking to the rack, an authorized operator can manage routing from a connected computer. APP control adds another potential layer of convenience for compatible operating environments.
This approach is especially useful when the matrix is integrated into a larger AV workflow where source selection happens frequently. The less often the physical rack needs to be accessed, the cleaner and more manageable the installation can become.
Smart EDID Management
EDID can be one of the less visible but more important parts of a multi-display HDMI system. Displays communicate their supported video capabilities to source devices, and differences between displays can create compatibility challenges.
Smart EDID functionality is intended to help the matrix manage these relationships more effectively. This is particularly relevant when an installation contains displays with different resolutions or refresh-rate capabilities. Instead of treating every destination as identical, EDID management can help establish a more controlled signal environment.
Users should still verify the exact EDID modes and supported formats of their individual equipment. Matrix switching cannot make an incompatible display physically support a format it was not designed to handle, but effective EDID management can make compatible systems considerably easier to configure.
Audio Embed and De-Embed
Video routing is only part of a professional AV installation. Audio often needs its own routing or integration path, which is why audio embedding and de-embedding can be useful features.
Audio embedding can help incorporate audio into an HDMI workflow, while de-embedding can provide a way to extract audio for compatible external equipment. This gives system designers additional flexibility when integrating displays, amplifiers, processors, speakers, or other audio components.
For conference rooms and production spaces, this can help reduce the need for separate signal-management hardware. The exact supported audio formats and configurations should be checked against the requirements of the installation before deployment.
1U Rackmount Design
The 1U rackmount format is another practical advantage for professional environments. AV equipment can quickly become difficult to organize when individual devices are scattered across shelves or stacked wherever space is available. A rackmount matrix provides a more structured installation approach.
A properly organized rack can simplify maintenance, cable identification, equipment access, and future expansion. It can also help create a cleaner professional appearance in studios, conference facilities, control rooms, and dedicated home theaters.
Before installation, make sure the rack provides adequate ventilation and that HDMI and other connected cables have enough room for proper routing. High-performance AV equipment should not be squeezed into a poorly ventilated space simply because the chassis fits physically.
Pros & Cons
| Pros | Cons |
|---|---|
| 8×8 routing provides extensive source-to-display flexibility | Requires compatible HDMI 2.1 equipment for advanced formats |
| Supports up to 8K at 60Hz on compatible systems | High-bandwidth installations require appropriate HDMI cables |
| 4K at 120Hz support suits high-refresh applications | Configuration may be more involved than a basic HDMI switch |
| Web GUI provides convenient network-based management | Network configuration may require additional setup |
| APP control adds another management option | Advanced features can be unnecessary for simple one-display setups |
| Smart EDID helps with multi-display compatibility | Actual output capability depends on connected source and display hardware |
| Audio embedding and de-embedding add system flexibility | Users should verify required audio formats before installation |
| 1U rackmount form factor suits professional installations | Rack installation requires appropriate ventilation and cable planning |
Performance in Real-World Setups
In a properly configured system, the biggest performance benefit is flexibility. Instead of having separate switching hardware for every display, the matrix can become the central routing point for the entire HDMI environment.
For example, a presentation room could connect several computers and media sources to the HDMI inputs while multiple projectors and displays occupy the outputs. A control operator can then determine which source appears on which destination. The same principle can be applied to digital signage, monitoring systems, training rooms, entertainment spaces, and production environments.
The 8K capability is particularly relevant for users building systems around newer high-resolution displays. However, it is important not to confuse maximum supported resolution with a guarantee that every connected configuration will operate at that maximum. The source, destination, cable length, HDMI specification, and system settings all matter.
Installation and Setup Considerations
Before connecting everything, it is worth planning the signal flow. Label each HDMI source and destination clearly so that the Web GUI configuration remains easy to understand. For a larger installation, a simple source-to-display map can save considerable troubleshooting time later.
Use high-quality cables appropriate for the intended HDMI bandwidth, especially when working toward 8K60 or 4K120 operation. Long cable runs may require additional consideration because signal integrity can become more challenging as bandwidth and distance increase.
It is also useful to configure displays and sources individually before introducing the entire matrix into the system. This helps isolate compatibility problems and makes troubleshooting easier. Once each device is known to work correctly, integrate the matrix and verify routing, EDID behavior, video modes, and audio operation.
Who Should Consider an 8K Video Switcher Smart System?
This type of matrix makes the most sense for users who actually need multi-source, multi-display routing. Professional AV integrators, conference rooms, control centers, studios, educational facilities, digital signage installations, and advanced home theaters are natural applications.
It can also be useful for enthusiasts building a centralized entertainment system with several HDMI sources and multiple displays. The combination of 8×8 routing and remote management can make an otherwise complicated setup easier to operate once properly configured.
For someone who only needs to connect two devices to one television, however, an 8×8 matrix may provide substantially more capability than necessary. Its value increases as the number of sources, destinations, and routing requirements grows.
Build and Long-Term Usability
A rackmount design suggests that the product is intended to be part of a more permanent installation rather than something that is constantly moved around. That makes thoughtful installation especially important. Good airflow, cable support, secure rack mounting, and clear labeling can all contribute to a more reliable long-term system.
The centralized architecture also makes future management easier. Instead of physically changing connections every time a display needs a different source, operators can use the available control interface to adjust routing. That can be a meaningful productivity improvement in environments where video assignments change throughout the day.
FAQ
What does an 8×8 HDMI matrix do?
An 8×8 HDMI matrix connects up to eight HDMI input sources and provides up to eight HDMI output destinations. It allows users to route sources to selected displays rather than simply duplicating one signal everywhere.
Does this matrix support 8K at 60Hz?
The product is specified for 8K at 60Hz. Actual 8K60 operation depends on the connected source, display, HDMI cables, settings, and the complete signal chain supporting the required format.
Can it handle 4K at 120Hz?
Yes, the product is specified to support 4K at 120Hz. For reliable high-refresh operation, all relevant components should support the required HDMI bandwidth and signal format.
What is EDID used for?
EDID is used by HDMI devices to communicate display capabilities to source equipment. Smart EDID management can help coordinate signal compatibility in systems where multiple displays have different capabilities.
Can I control the matrix remotely?
The product includes Web GUI and APP control options. These features are designed to provide convenient management without requiring users to operate the rack-mounted hardware directly for every routing change.
Is this suitable for a home theater?
It can be suitable for an advanced home theater with multiple HDMI sources and displays. For a basic setup with only one television and a few sources, a smaller switch may be more appropriate.
Why is the 1U rackmount design useful?
A 1U chassis allows the matrix to be installed in a compatible equipment rack, helping create a centralized and organized AV system. It is especially useful in professional installations where multiple devices need structured placement.
What should I check before using 8K?
Check the capabilities of the source, display, HDMI cables, and every other component in the signal path. For 8K60, all components must support the intended resolution, refresh rate, and bandwidth requirements.
Can audio be routed separately?
The product includes audio embed and de-embed functionality, giving system designers additional options for integrating HDMI video with external audio equipment. Confirm the required audio formats and connection methods for your specific installation.
Is this a good choice for a professional AV rack?
The combination of 8×8 routing, HDMI 2.1 support, Web GUI control, APP control, EDID management, audio functionality, and a 1U rackmount form factor makes it designed for more advanced AV environments. Proper installation and compatibility planning remain important.
Final Thoughts
The 8K HDMI Matrix 8×8 brings together the features expected from a modern centralized video-routing platform: high-resolution HDMI 2.1 connectivity, 8K60 and 4K120 support, flexible 8×8 routing, smart EDID management, network-based Web GUI control, APP control, audio embed/de-embed capabilities, and a rack-friendly 1U chassis.
Its strongest use case is an AV environment where multiple sources need to reach multiple displays without constantly changing physical connections. The more complex the system becomes, the more valuable centralized routing and remote management can be. As with any high-bandwidth HDMI installation, users should verify compatibility across the entire signal chain rather than evaluating the matrix in isolation.
If you are also researching equipment and tools for a broader installation project, you can explore this Related Guide for another equipment-focused reference.
For anyone planning a multi-display setup around modern HDMI 2.1 sources, the combination of high-resolution support and smart control features makes this 8×8 matrix worth considering as a centralized signal-management solution.
