What Is the 400W Flexible Solar Panel Kit?

This solar array consists of four nominally 100W flexible panels, giving the system a combined advertised capacity of 400W. Rather than using the rigid glass construction associated with many conventional solar modules, flexible panels are intended for applications where reduced weight, a lower profile, or a more adaptable mounting surface may be useful.The product description identifies an ETFE surface, an all-black appearance, 23% stated efficiency, and compatibility with 12V, 24V, and 48V battery systems. These features make it worth considering for mobile power and off-grid projects, provided the installation requirements match your equipment.

Understanding the four-panel configuration

Four 100W panels can provide more flexibility when arranging an array than a single panel of equivalent rated capacity. Depending on the available mounting area, the panels may be positioned individually or arranged together. The electrical configuration, however, matters just as much as the physical layout.Panels connected in series increase array voltage, while parallel connections increase available current. The correct arrangement depends on the panel specifications, charge controller limits, cable requirements, and battery system. Do not assume that every possible combination is supported simply because the product description lists three battery voltages.

Key Features of the 400W Portable Solar Panel Kit Kit

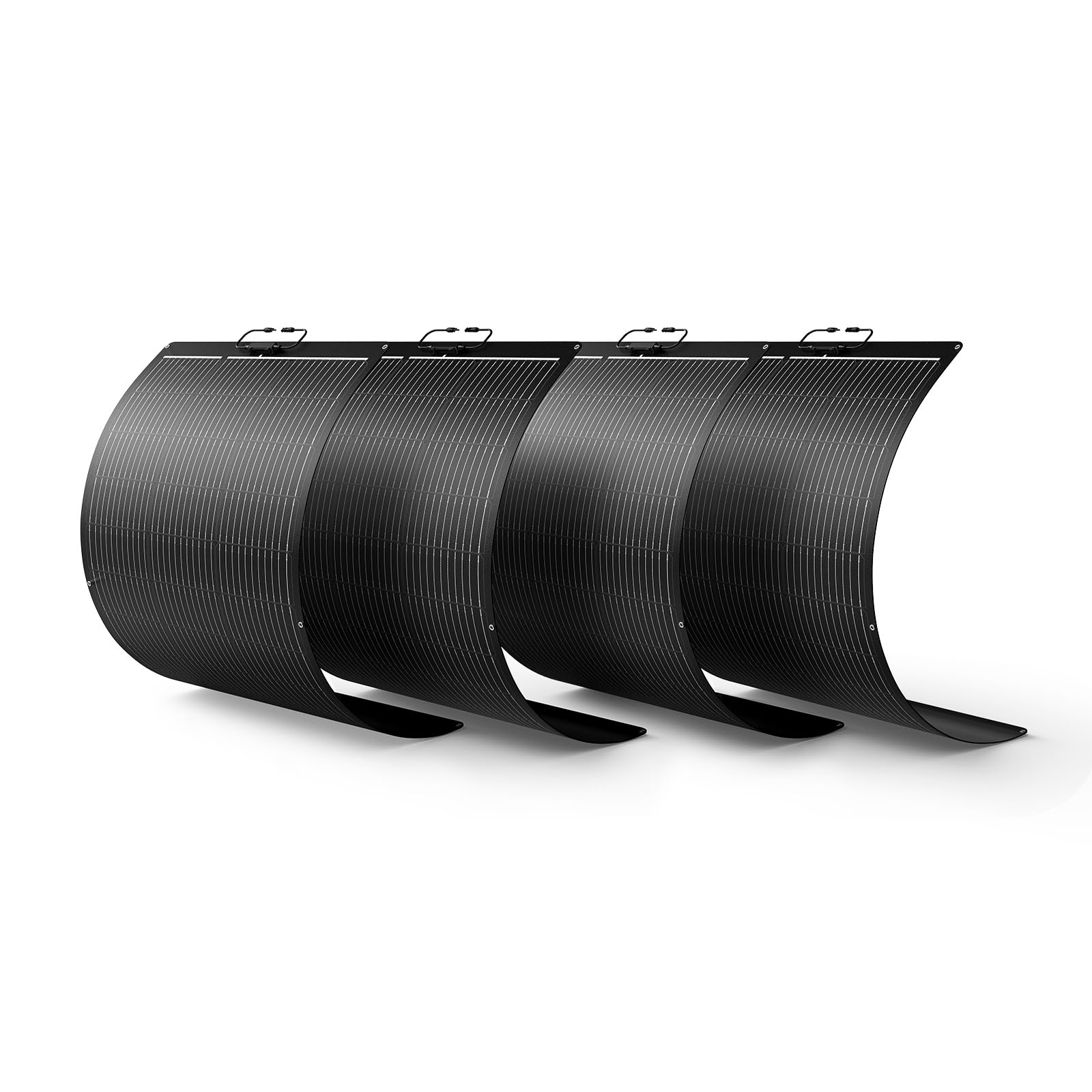

1. Four 100W flexible solar panels

The four-panel arrangement provides a combined rated output of 400W under specified test conditions. This capacity may suit users building a solar charging setup for an RV, small cabin, shed, or other location where grid electricity is unavailable or inconvenient.Actual daily energy generation will vary with local solar conditions. For example, if the array averages four equivalent peak-sun hours per day, a theoretical calculation gives:400W × 4 hours = 1,600Wh, or 1.6kWh per day.This is an illustrative estimate before system losses, not a guaranteed output. Shading, high temperatures, unfavorable panel angles, conversion losses, and battery charging efficiency can reduce the usable energy available to your appliances.

2. Flexible construction for alternative mounting locations

Flexible solar panels can be appealing where rigid modules would be difficult to install. Their adaptable construction may make them suitable for certain curved or space-constrained surfaces, including some RV installations and specialized off-grid projects.Nevertheless, flexibility should not be confused with universal bendability. Every panel has a permitted bending radius and specific mounting requirements. Excessive bending, twisting, unsupported edges, or repeated flexing can damage electrical connections and internal solar cells.Before mounting the panels on a curved roof, confirm the manufacturer’s approved surface shape, installation method, and minimum bend radius. Also check whether the roof material can support the mounting method without leaks or damage.

3. ETFE surface material

The product description specifies an ETFE surface. ETFE is a fluoropolymer used in applications where properties such as light transmission and environmental resistance are desirable. Its use can be an attractive feature for a solar panel intended for outdoor installation.Still, the presence of ETFE alone does not establish that the complete panel is waterproof, resistant to every weather condition, or suitable for permanent exposure in any climate. The durability of the finished module also depends on its encapsulation, backing material, edge construction, electrical connections, and manufacturing quality.Look for documented information about weather resistance, operating temperatures, installation restrictions, and any applicable ingress-protection rating before choosing a permanent outdoor location.

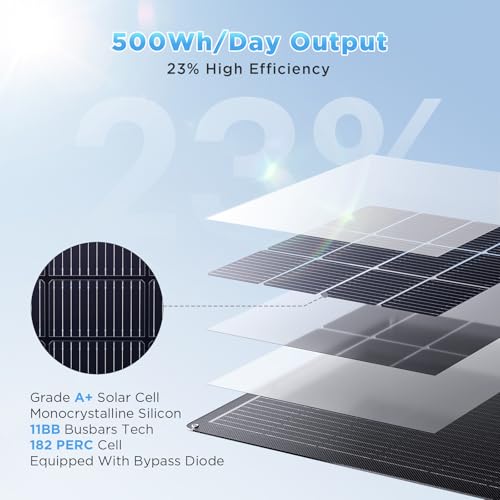

4. Advertised 23% efficiency

The stated 23% efficiency describes the advertised conversion efficiency of the solar technology under its specified measurement conditions. In general, higher efficiency allows a panel to convert more of the available sunlight into electricity for a given active surface area.Efficiency is different from total power output. The system’s 400W rating describes its combined nominal capacity, while the efficiency figure relates to how effectively the panel surface converts sunlight. Neither number guarantees the energy you will collect over a full day.Because the precise testing conditions and measurement method have not been supplied here, buyers should confirm the efficiency specification and the panel dimensions on the current product listing.

5. Compatibility with 12V, 24V, and 48V battery systems

The listed compatibility with 12V, 24V, and 48V battery systems makes this array potentially useful for several types of off-grid installations. However, solar panels do not necessarily connect directly to batteries just because the nominal battery voltage matches the intended application.A suitable solar charge controller is normally required to regulate charging. Its maximum photovoltaic input voltage, current capacity, power rating, and supported battery chemistry must match the actual system. The battery’s charging profile and any manufacturer-specific requirements must also be respected.For a 48V battery bank, for example, the panel wiring must provide an appropriate operating voltage for the chosen controller and battery-charging configuration. Verify the array’s open-circuit voltage, operating voltage, short-circuit current, and maximum power current before connecting anything.

What Can a 400W Solar Array Power?

A 400W array may help supply electricity to selected low-power appliances and charge batteries for later use. Its practical usefulness depends on how much energy your equipment consumes, when it operates, and how much sunlight reaches the panels.Potential applications include:

• RV and camper power: Charging a compatible house battery to support selected lighting, fans, communication equipment, and other modest electrical loads.
• Cabins and sheds: Supplying energy to a properly designed off-grid battery system for basic electrical needs.
• Portable power stations: Charging a compatible solar generator if its input voltage, current, connector, and power limits match the array.
• Remote monitoring equipment: Supporting suitable low-consumption devices through a properly sized battery and controller.
• Backup energy: Recharging batteries when sunlight is available, provided the rest of the electrical system is designed for the intended loads.

High-consumption appliances require additional planning. Electric kettles, air conditioners, heaters, induction cooktops, and large pumps can draw substantial power. A 400W array may contribute to their energy supply, but it should not be assumed to operate them continuously or independently.

How Much Energy Could It Generate in a Day?

The following examples show how peak-sun hours affect theoretical energy generation from a 400W array. They are calculations based on the nominal rating, not measured results for this particular product.

Actual production can be lower than these figures. For preliminary planning, you can apply an assumed system derating factor to account for wiring, conversion, temperature, and other losses. For example, a hypothetical 20% reduction would turn the 1.6kWh scenario into approximately 1.28kWh of usable energy before accounting for any additional battery-specific losses.For a more accurate estimate, use your location’s seasonal solar resource, the intended panel angle, and the specifications of the controller and battery.

Installation Considerations Before Buying

Choose the mounting location carefully

Even a small shadow can reduce solar output, depending on the panel’s cell layout and electrical configuration. Roof fixtures, vents, antennas, tree branches, and nearby structures should be considered when selecting a mounting location.Check the proposed surface for adequate support, heat exposure, drainage, and compatibility with the panel’s mounting instructions. A flexible module should not be installed in a way that traps excessive heat or creates mechanical stress.

Confirm the electrical specifications

Ask whether the package includes only the four panels or also includes connectors, extension cables, mounting hardware, a charge controller, or other accessories. The product title does not establish that these additional components are included.Before installation, verify the following details:

• Open-circuit voltage (Voc) and operating voltage (Vmp) of each panel.
• Short-circuit current (Isc) and operating current (Imp).
• Maximum series voltage and parallel current for the intended configuration.
• Charge controller input limits and supported battery types.
• Connector type, cable length, wire gauge, and polarity.
• Required overcurrent protection, disconnects, and appropriate grounding or bonding arrangements.

Solar wiring can remain energized whenever the panels receive light. Use the manufacturer’s installation instructions and seek a qualified installer when designing permanent roof wiring or higher-voltage battery systems.

Pros and Cons

Who Should Consider This Solar Panel Kit?

RV owners and campers

RV owners looking to recharge a house battery during sunny periods may find a four-panel array worth evaluating. Flexible construction can be useful when roof shape or available mounting space makes rigid panels less convenient. However, the roof’s material, allowable loading, heat buildup, and mounting requirements must be checked first.

Cabin and off-grid property owners

For a small cabin, workshop, or remote shed, this array could serve as one component of a broader solar power system. Whether it is sufficient depends on daily energy consumption, seasonal sunlight, battery capacity, and the need for backup generation.

Portable power station users

Owners of solar generators should check their device’s maximum solar input power, voltage range, current limit, and connector requirements. The 400W total rating does not guarantee compatibility with every power station, and adapters alone cannot correct an incompatible voltage or current range.

Buyers who need a complete ready-to-use kit

If you want a plug-and-play solution, confirm exactly what is included before ordering. A listing that describes a solar panel system does not necessarily include a battery, charge controller, inverter, mounting kit, or all required cables. Budget for any missing components.

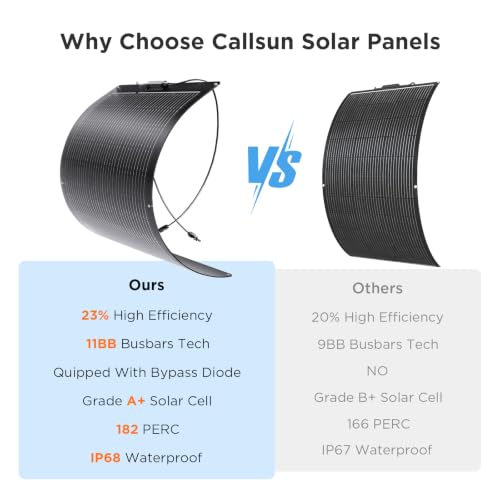

How Does It Compare With Rigid Solar Panels?

The main decision is not simply whether flexible panels are better than rigid panels. It is whether their construction suits the installation and the way you intend to use the system.

Neither construction type is automatically more efficient or longer-lasting in every installation. Compare the actual module specifications, warranty terms, expected operating conditions, and total installed cost rather than choosing based on flexibility alone.

Buying Checklist: What to Verify on Amazon

Before purchasing the 400W flexible solar panel system, review the current listing and clarify the following details:

• Panel dimensions: Make sure all four modules fit the intended mounting surface.
• Rated electrical output: Verify that the combined 400W rating corresponds to the supplied configuration.
• Efficiency claim: Confirm the stated 23% figure and how it was measured.
• Package contents: Check for controllers, cables, connectors, mounting hardware, and any other accessories you need.
• Battery requirements: Confirm compatibility with your battery chemistry and charging voltage.
• Environmental ratings: Look for documented operating temperatures and weather-resistance specifications.
• Warranty and support: Review the current seller terms, return policy, and available technical support.
• Recent customer feedback: Look for useful information about installation, electrical compatibility, and durability rather than relying only on star ratings.

Product descriptions, availability, package contents, and seller terms can change. Confirm the latest information on Amazon before placing an order.

Frequently Asked Questions

1. Does this solar panel kit really produce 400 watts?

The product is advertised as a four-panel, 400W system, with each panel rated at 100W. That rating represents nominal output under specified test conditions. Real-world output varies with sunlight, panel temperature, orientation, shading, and the rest of the electrical system.

2. Can I connect the panels to a 12V, 24V, or 48V battery?

The product description lists compatibility with all three battery-system voltages. However, the appropriate wiring configuration and a compatible solar charge controller are important. Check the panel voltage and current specifications, controller limits, and battery charging requirements before making a connection.

3. Can I mount the flexible panels directly onto an RV roof?

Possibly, if the roof material, shape, mounting method, and operating conditions are approved for the specific panels. Confirm the permitted bending radius, ventilation requirements, adhesive or fastener compatibility, and weatherproofing instructions before installation. Do not assume that every curved roof is suitable.

4. Is a charge controller included?

The supplied product information does not confirm whether a charge controller is included. Check the current Amazon package description or ask the seller. If one is not supplied, you will need a controller that supports the array’s voltage and current and is suitable for your battery type.

5. How much electricity can the system generate each day?

Daily energy depends on the amount of sunlight available and the system’s operating conditions. At four equivalent peak-sun hours, a 400W array has a theoretical output of 1.6kWh before losses. Actual usable energy may be lower, so plan around local seasonal conditions and your appliances’ energy consumption.

6. Is this kit suitable for powering an entire house?

It may contribute to a larger off-grid system, but a 400W array alone is unlikely to cover the full needs of a typical household. Household suitability depends on daily consumption, battery storage, inverter capacity, available roof or ground area, seasonal sunlight, and backup power requirements. Calculate your loads before deciding how much solar capacity you need.

Final Verdict: Is the 400W Flexible Solar Panel System Worth Considering?

The 400W flexible solar panel system offers an interesting combination of four 100W modules, an all-black ETFE surface, a stated 23% efficiency, and advertised compatibility with 12V, 24V, and 48V battery systems. Its flexible construction may be particularly appealing for selected RV, cabin, and off-grid installations where conventional rigid modules are less practical.Its suitability ultimately depends on the details behind those headline specifications. Buyers should confirm the panel dimensions, electrical ratings, mounting restrictions, weather-resistance documentation, package contents, and charge-controller requirements before committing. The advertised wattage should also be treated as a rating rather than a promise of continuous output.Bottom line: Consider this kit if you need a flexible solar array for a compatible off-grid installation and have verified the electrical and mounting requirements. If your priority is a permanent, long-term roof installation, compare it carefully with rigid alternatives before making your final decision.Review the current product listing for updated specifications, package details, availability, and seller policies before purchasing.For readers exploring other home and equipment products, visit https://omnixbuy.com/baby-monitor-with-two-cameras-and-large-2/“>this related Omnixbuy product guide.
