Introduction
When a 3D printer starts behaving unpredictably, the problem is not always the mainboard, motors, or firmware. Sometimes a small mechanical component such as an endstop limit switch is the part that needs attention. These switches tell the printer when an axis has reached its designated position, making them an important part of reliable homing and motion control. The 5Pcs Creality Original EndStop Limit Switch Kit is designed as a replacement option for a broad range of Creality machines, including several Ender and CR-10 series models.
For anyone maintaining a printer regularly, keeping spare limit switches available can be a practical move. A damaged, worn, or inconsistent switch can interrupt an otherwise perfectly functional machine. Having a five-piece kit on hand means a single replacement does not have to turn into a lengthy search for a compatible component. For users looking for a 3D printer professional maintenance solution, the emphasis here is on compatibility, straightforward replacement, and keeping essential motion-sensing hardware available when needed.
What Is the Creality EndStop Limit Switch Kit?

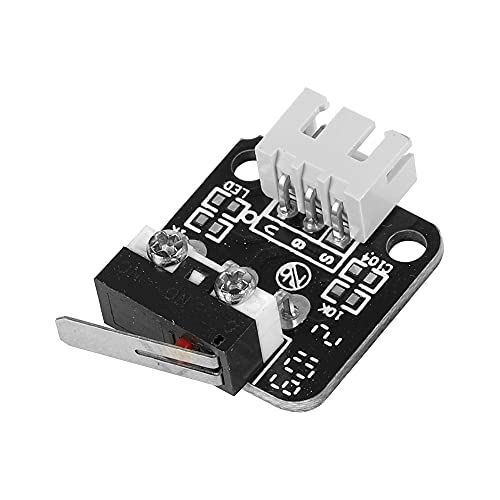

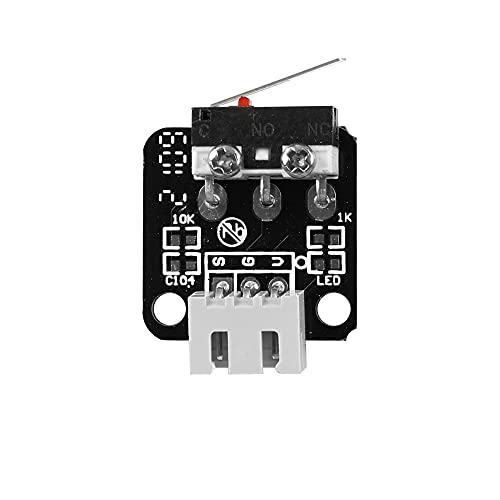

This package contains five Creality original-style endstop limit switches intended for compatible Creality 3D printers. Endstop switches are mechanical position sensors. During operations such as homing, the printer moves an axis toward its reference point until the corresponding switch is activated. The control system then knows where that axis is positioned and can use that information for subsequent movements.
Because endstops are small components that can experience repeated mechanical activation, they are useful items to keep in a printer maintenance kit. A five-piece pack can also be useful for users who operate multiple compatible machines, maintain printers for friends or family, or simply want replacements available before an unexpected failure occurs.
Key Features

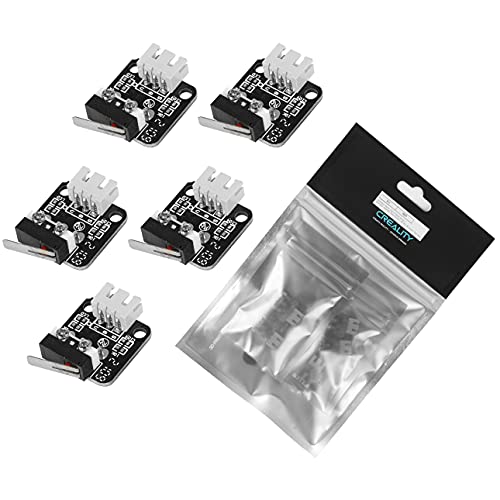

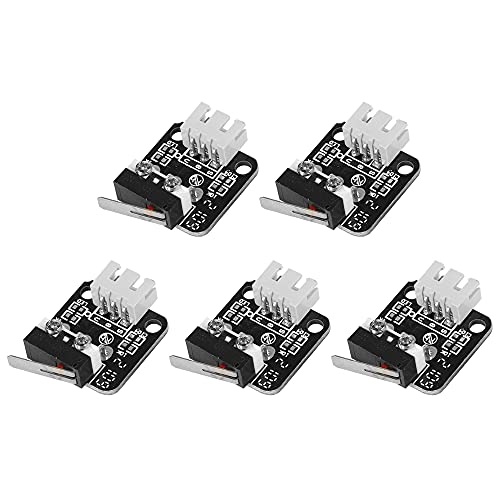

5-Piece Replacement Pack
The biggest practical advantage is quantity. Instead of purchasing one replacement at a time, this kit provides five switches. That gives you several replacement units for future maintenance and reduces the inconvenience of keeping a 3D printer out of service while waiting for a small part.
Designed for Compatible Creality Printers
The listed compatibility includes models from the Ender and CR-10 families, such as the Ender 3 V2, Ender 3 Pro, Ender 3S, Ender-3 Max, Ender-3X, CR-10 V3, and CR-10 S4, as well as other listed compatible configurations. Because Creality has produced numerous revisions and variants, it is still important to verify the exact model and existing switch configuration before ordering.
Mechanical Position Detection
An endstop has a simple but important job: detecting the physical limit of an axis. Its mechanical action provides a clear signal to the printer electronics. When functioning correctly, the switch helps establish repeatable reference positions during homing.
Useful for Routine Maintenance
3D printer owners who perform their own maintenance can benefit from keeping commonly replaceable components nearby. An endstop switch takes up very little storage space, so a five-pack is easy to include with spare nozzles, belts, PTFE tubing, fasteners, and other maintenance parts.
Practical Replacement Component
Replacing a failed mechanical switch is generally more approachable than troubleshooting a major electronic assembly. For users comfortable working on their printers, having the correct replacement component can make maintenance considerably more convenient.
Pros & Cons
| Pros | Cons |
|---|---|
| Five switches provide useful spare inventory | Compatibility should be confirmed for the exact printer revision |
| Designed for a range of Creality 3D printer models | These are replacement components rather than a performance upgrade |
| Important for reliable axis homing | Installation requires basic printer maintenance knowledge |
| Compact and easy to keep as spares | Not every Creality printer uses the same endstop configuration |
| Useful for individual users and multi-printer setups | Switches should be inspected and tested after installation |
Performance in Everyday 3D Printer Maintenance
The real value of an endstop switch is not something you notice during a successful print. Instead, its importance becomes apparent when the printer needs to establish its position. Homing is fundamental to many 3D printing workflows, and a properly functioning limit switch can help the machine identify the appropriate mechanical reference point.
A switch that is worn, damaged, improperly positioned, or electrically inconsistent can create frustrating symptoms. Depending on the printer and configuration, users may experience failed homing, unexpected movement, repeated attempts to home an axis, or an axis that does not behave as expected. Replacing the suspect switch with a compatible unit can therefore be an important troubleshooting step.
For a professional-style maintenance approach, it makes sense to treat these switches as consumable service parts rather than waiting until the printer is completely unusable. The five-piece quantity makes this approach particularly practical. One can be installed immediately while the remaining units stay in reserve for future servicing.
Compatibility and Installation Considerations
Compatibility is the first thing to check before installation. The product listing identifies multiple Ender and CR-10 models, but Creality printers can have model-specific hardware revisions. Before replacing a switch, compare the existing component with the replacement and confirm that the connector, mounting arrangement, switch orientation, and electrical configuration are appropriate for your machine.
Installation should begin with the printer powered off and disconnected from its power source. The existing switch can then be inspected, including its wiring and mounting position. If the switch is being replaced because of a suspected fault, it is useful to examine the wiring as well. A damaged cable or loose connection can sometimes produce symptoms similar to a defective switch.
After installation, manually check that the mechanical lever or actuator can move correctly and that the switch is firmly mounted. Run the appropriate endstop or homing test before starting a print. This is particularly important because incorrect positioning can affect the printer’s reference location even when the switch itself is working.
Why Spare Endstops Matter
One of the most appealing aspects of a five-piece kit is preparedness. 3D printers contain numerous mechanical and electrical components, and even a relatively inexpensive part can stop a machine from operating correctly. A spare endstop can be stored in a maintenance drawer until it is needed.
For users operating several printers, the value is even more obvious. A small collection of compatible service components can reduce downtime. Rather than ordering a replacement after discovering a failure, you already have a part available for diagnosis and repair.
3D Printer Professional Maintenance Approach
A 3D printer professional approach is less about buying the most expensive component and more about maintaining predictable operation. Regular inspection, correct calibration, clean mechanical assemblies, appropriate lubrication where required, and timely replacement of worn components all contribute to a more dependable printer.
Endstop switches fit naturally into that maintenance strategy. They are relatively inexpensive, small, and straightforward to store. When a printer’s homing behavior changes, the endstop can be one of the components worth checking rather than immediately assuming that a major electronic component has failed.
This kind of preventative maintenance is particularly useful for people who rely on a printer for repeated projects. A hobbyist may be able to tolerate an unexpected day of downtime, while a frequent printer user may prefer to resolve small issues as quickly as possible.
Build and Practical Design
The design of an endstop is intentionally uncomplicated. It needs to provide dependable mechanical actuation and a consistent electrical signal. That simplicity is an advantage when it comes to maintenance because there are fewer moving parts than in more complex printer assemblies.
The switches are also small enough to keep several in a toolbox without taking up meaningful space. This makes the five-pack particularly convenient for organized printer maintenance. You can keep replacements with your other spare components and label them according to compatible printer models.
Who Should Consider This Kit?
This kit makes sense for several types of users. First, owners of compatible Creality printers who want to keep spare endstop switches available can benefit from the five-piece quantity. Second, users with multiple compatible machines may appreciate having several replacements in one package. Third, people who frequently modify, repair, or upgrade their printers may prefer having service parts available before a problem occurs.
It can also be useful for anyone learning printer maintenance. Endstop switches are among the more approachable components to understand because their purpose is easy to visualize: the printer moves an axis, the axis reaches a defined physical position, and the switch signals that the position has been reached.
Maintenance Tips for Longer Service Life
Even though endstop switches are relatively simple, a few maintenance habits can help avoid unnecessary problems. Keep wiring secured so it does not repeatedly rub against moving components. Check that mounting screws remain appropriately tight without overtightening them. Inspect the switch actuator periodically and make sure nothing obstructs its movement.
If a printer is moved frequently, check the endstop wiring afterward. Mechanical movement during transportation can loosen connectors or shift mounting positions. A quick inspection before the next print can help identify these issues early.
It is also useful to test homing after any endstop replacement. Never assume that a newly installed component is correctly positioned simply because it physically fits. The printer should be observed during the first homing operation after maintenance.
Value of a Five-Pack
Buying five switches at once is primarily about convenience. An individual replacement might solve today’s problem, but the remaining four pieces provide a small maintenance reserve. This can be especially helpful for owners who do not want to interrupt a project to source another small replacement component.
The pack can also support systematic maintenance. For example, one switch can be used for an immediate repair, while additional pieces can remain sealed as emergency replacements. If you maintain multiple printers, you can also allocate spare components according to the machines that use them.
Things to Check Before Buying
- Confirm your exact Creality printer model and hardware revision.
- Compare the existing endstop with the replacement before installation.
- Check the connector and wiring arrangement.
- Verify the mounting position and physical dimensions.
- Make sure the switch is intended for the axis and printer configuration you are servicing.
If you are researching other equipment for your home workshop, you can also explore this Related Guide for a different type of appliance-focused project.
Frequently Asked Questions
What does an endstop switch do on a 3D printer?
An endstop switch detects when a printer axis reaches a defined physical reference position. The printer’s control system uses that signal during operations such as homing so it can establish the axis position.
How many switches are included?
The package contains five endstop limit switches. This provides multiple replacements rather than a single service component.
Which Creality printers are listed as compatible?
The listed models include several versions of the Ender 3 family and CR-10 family, including Ender 3 V2, Ender 3 Pro, Ender 3S, Ender-3 Max, Ender-3X, CR-10 V3, and CR-10 S4. Always verify your exact configuration before installation.
Can I use these as spare parts?
Yes. Keeping spare endstop switches is one of the practical reasons to choose a multi-piece kit. Store unused switches in a clean, dry location until required.
Does replacing an endstop improve print quality?
A replacement switch is primarily a maintenance component, not a direct print-quality upgrade. However, a properly functioning endstop can help the printer establish consistent reference positions during homing. If an old switch is malfunctioning, replacing it may restore normal operation.
Should I test the printer after replacing a switch?
Yes. After installation, check the switch mechanically and perform an appropriate endstop or homing test before beginning a print. Observe the printer carefully during the first homing cycle after maintenance.
Is this suitable for professional 3D printer maintenance?
For compatible Creality machines, keeping multiple replacement endstops available can be a sensible part of a professional-style maintenance inventory. The five-piece quantity is useful when minimizing downtime and maintaining more than one printer.
Final Thoughts
The 5Pcs Creality Original EndStop Limit Switch Kit focuses on something every 3D printer owner eventually encounters: routine component maintenance. Rather than offering a complicated upgrade, it provides five small replacement parts that can be important to reliable axis homing on compatible Creality printers.
The main attraction is preparedness. If you own a compatible Ender or CR-10 series printer, having several replacement switches available can make troubleshooting and maintenance more convenient. The compact design, five-piece quantity, and broad listed compatibility make this a practical item for a printer maintenance toolbox.
For anyone pursuing a more 3D printer professional workflow, keeping essential service components organized is part of reducing avoidable downtime. Just remember to confirm your exact printer model, inspect the wiring and mounting arrangement, and test the machine carefully after installation.
